Hilintec

D60

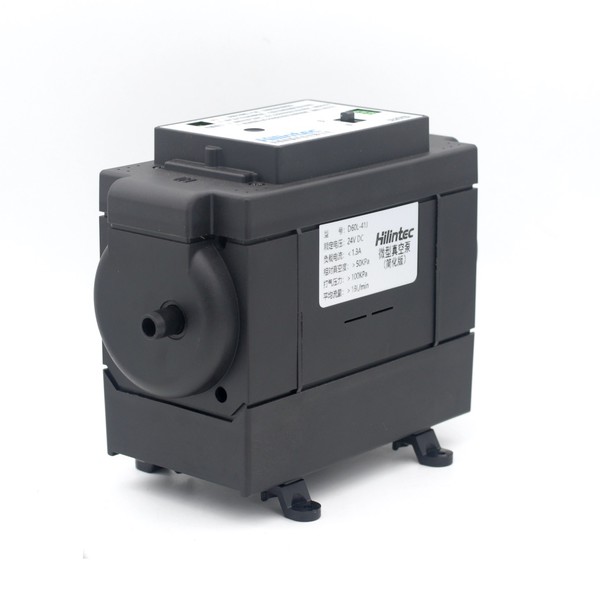

[Hilintec] D60 Mini Diaphragm Brushless DC Air Compressor Pump

가격문의

[Hilintec] D60 Mini Diaphragm Brushless DC Air Compressor Pump

D60 is a large-flow DC electric air compressor pump, equipped with BLDC motor. it is powered by 24 volt DC, with a big and controllable flow-rate.
D60 can be used to compress air or create positive pressure, and can also be used to suction or vacuum.
This diaphragm pump can be configured with different pneumatic connectors, different elastomer material like EPDM or FKM.
Its maximum average flow can reach 18L per minute, maximum pressure can reach 100kPa(14.5 Psi).

C09

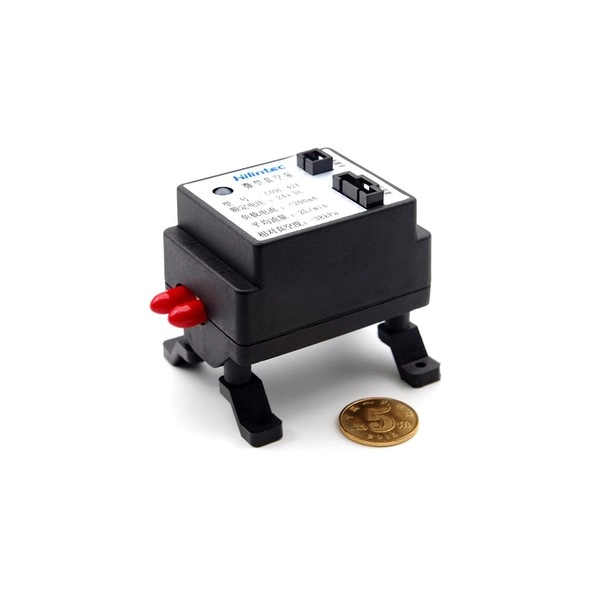

[Hilintec] C09 Diaphragm Mini Air Pump for Vacuum

가격문의

[Hilintec] C09 Diaphragm Mini Air Pump for Vacuum

C09 series miniature air pump is a compact vacuum pump with digital flow control function.
It has a small dimensions, long service life, low flow pulsation.
Connecting to its suction port can realize the function of suction or vacuum.
C09 series miniature air pump is a diaphragm air pump that can transfer air/gas by a moving diaphragm to change the volume of the pump chambers.

D15

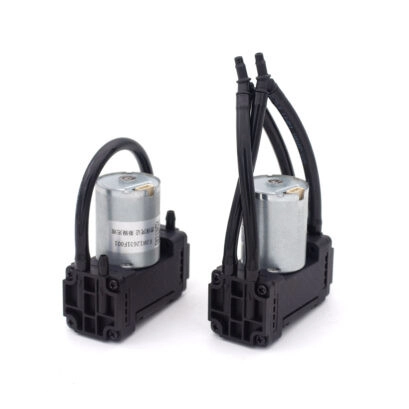

[Hilintec] D15 Dual-Head Positive Negative Pressure Mini Gas Pump

가격문의

[Hilintec] D15 Dual-Head Positive Negative Pressure Mini Gas Pump

The D15 series is a versatile micro diaphragm pump that functions as both a vacuum pump and a compressor.
It is distinguished by its dual-head design: the D15PB (series connection) is optimized for high pressure (up to 100 kPa positive pressure and -75 kPa relative vacuum), while the D15HB (parallel connection) is designed for high flow (up to 3.2 L/min peak flow).
Despite its powerful output, the pump maintains a compact size of approximately 56x49x25mm and weighs only about 80g.
Driven by a high-quality BLDC motor, it supports PWM speed control, tachometer (FG) feedback, and features comprehensive protection (stall, over-current, reverse polarity).
The standard wetted parts (EPDM) offer good resistance to alcohols, acids, alkalis, and ozone, making it suitable for a wide range of media.

D27

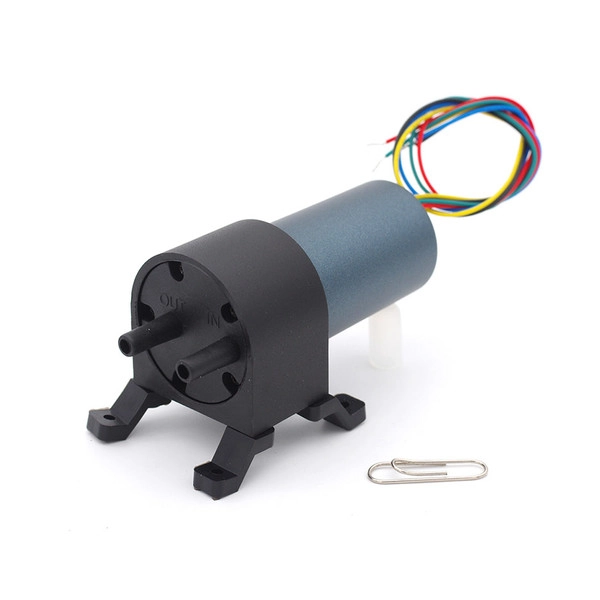

[Hilintec] D27 Creative Low Pulsation Pump for Gas Sampling

159,100원

200,000원

SALE

[Hilintec] D27 Creative Low Pulsation Pump for Gas Sampling

SALE

D27 is a special designed low pulsation pump with five diaphragm chambers.
Comparing with the traditional diaphragm pump,there is almost no flow pulsation for this model.which is driven by a 5V/12V/24V BLDC/DC motor,and the flow-rate can be adjusted by input PWM signal.
It has a high cost performance, long service life, small dimensions.There are two models(D27S,D27E) in this series, D27S can output positive and negative pressure.

D28

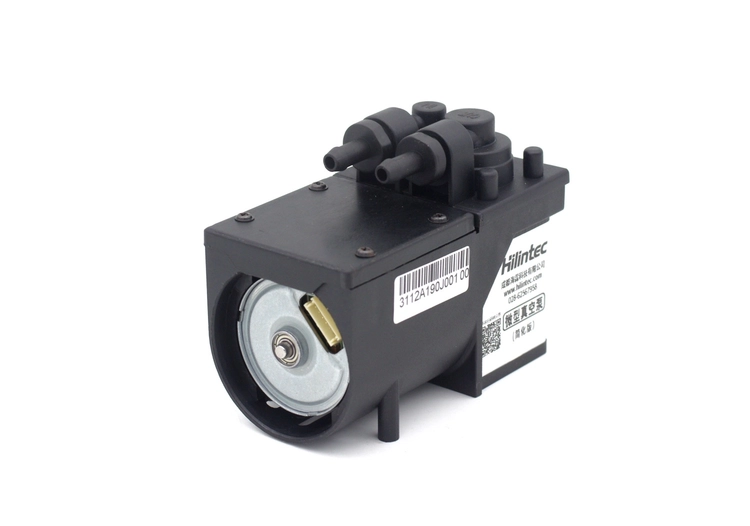

[Hilintec] D28 Speed-Adjustable Positive Negative Pressure Diaphragm Pump

가격문의

[Hilintec] D28 Speed-Adjustable Positive Negative Pressure Diaphragm Pump

Equipped with optional brushed DC motors (DC) and brushless DC motors (BL/BA), the D28 caters to diverse application demands from cost-effective solutions to long-life high-reliability scenarios.
Featuring modular replaceable gas nozzles, 360° rotatable air inlets/outlets, and multiple self-protection mechanisms, it offers unrivaled flexibility and durability for gas sampling, analytical instruments, medical equipment, and industrial driving systems.
With low electromagnetic interference, low noise, and excellent air tightness, the D28 sets a new standard for micro diaphragm pumps in terms of total life cycle cost performance.

D09

[Hilintec] D09 Smallest Portable Pump with Low Pulsation

62,300원

70,000원

SALE

[Hilintec] D09 Smallest Portable Pump with Low Pulsation

SALE

D09 is a 3-chamber gas pump with a low output flow pulsation.I
t is equipped with iron core BLDC motor, which makes the pump long life and low power consumption,D09 is a small and exquisite diaphragm pump with 3~6V wide voltage power supply technology, which is especially suitable for battery-powered handheld gas sampling.
This product has the characteristics of high pressure and large flow, it can pump negative pressure or positive pressure,the output flow can reach 0.6 L/min, the negative pressure can reach -40kPa, and the output positive pressure can reach 70kPa.
