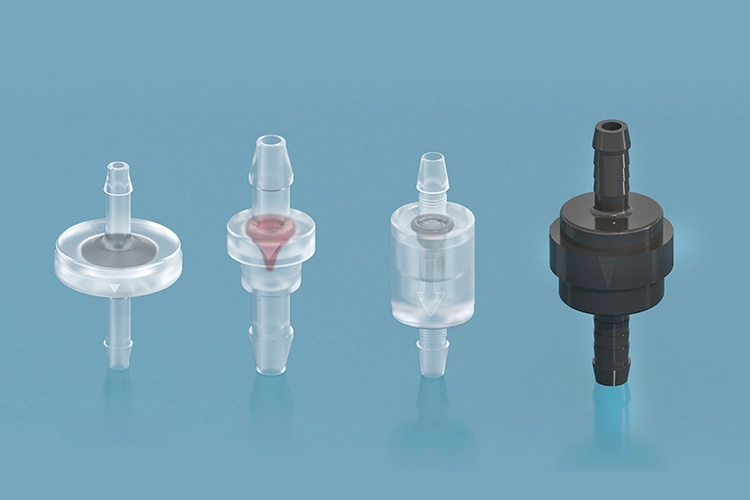

[Fitting] Barbed Check Valves Diaphragm check valve Coned check valve Spring check valve
Check Valve 시리즈

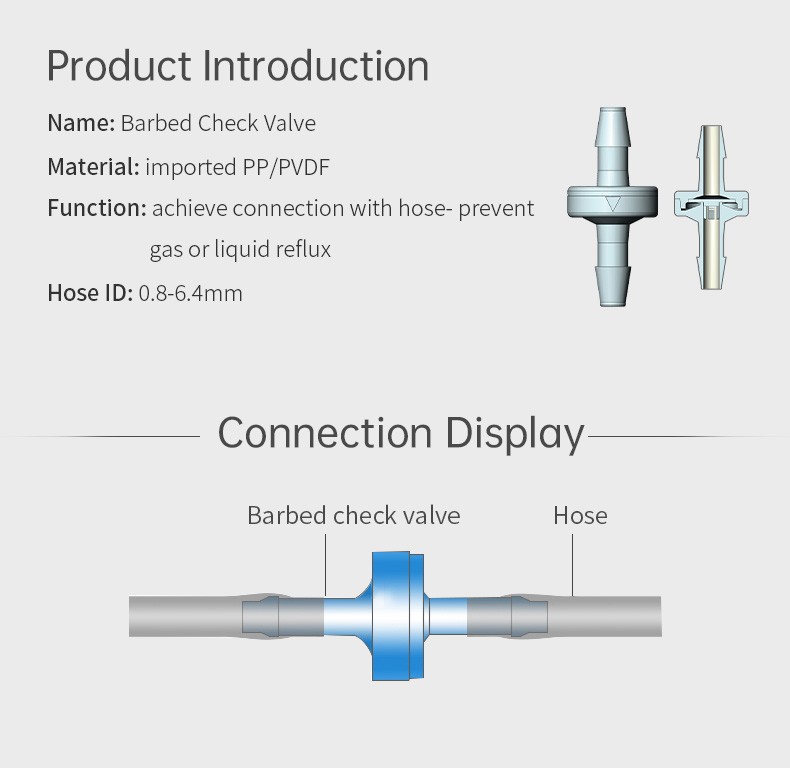

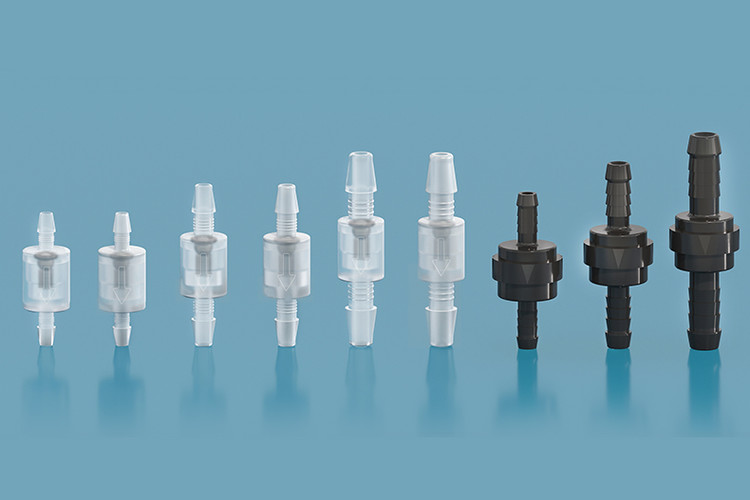

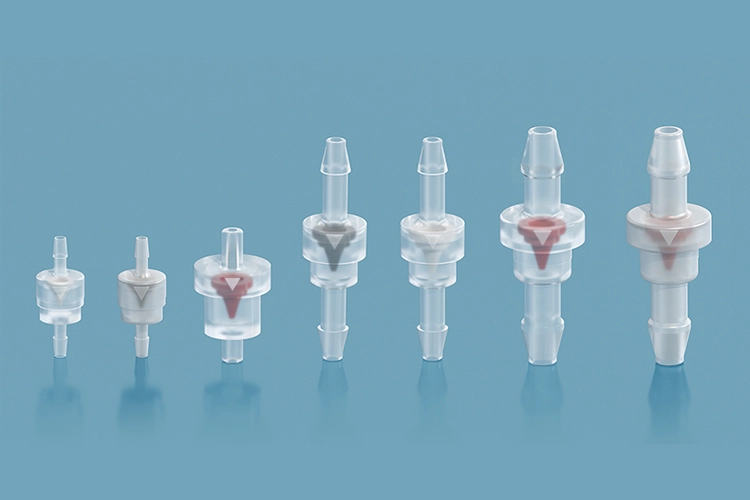

Barbed Check Valves
Barbed Check Valves are designed for connecting flexible peristaltic tubing in low pressure systems less than 0.3Mpa to control the flow directions to make fluids flowing in one specific direction, so it makes fluids inlet-only or outlet-only to pumps or valves.

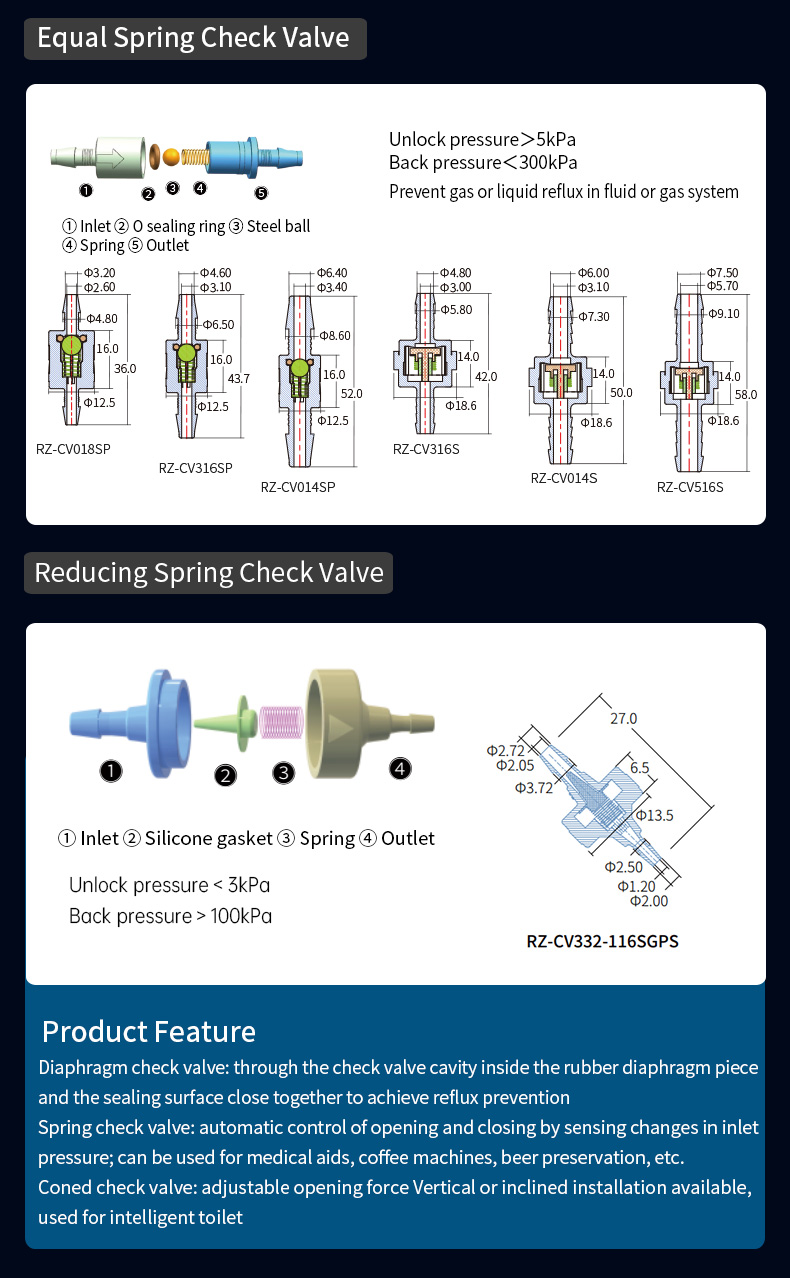

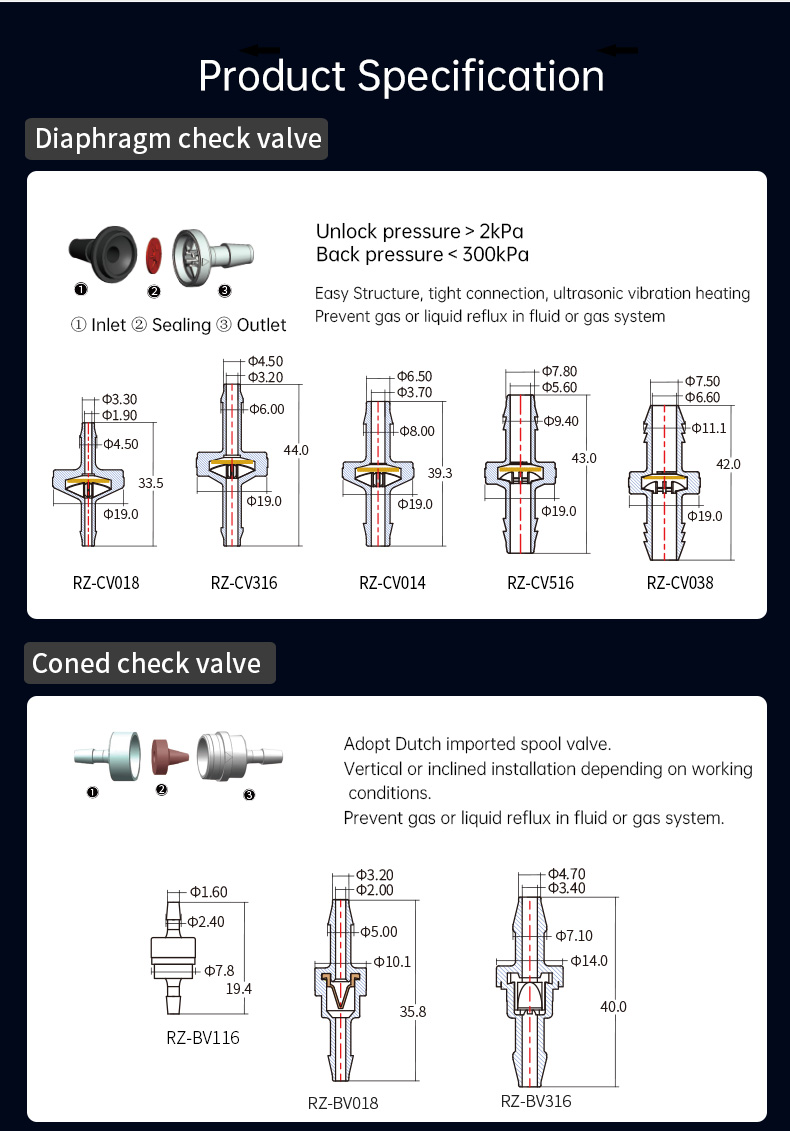

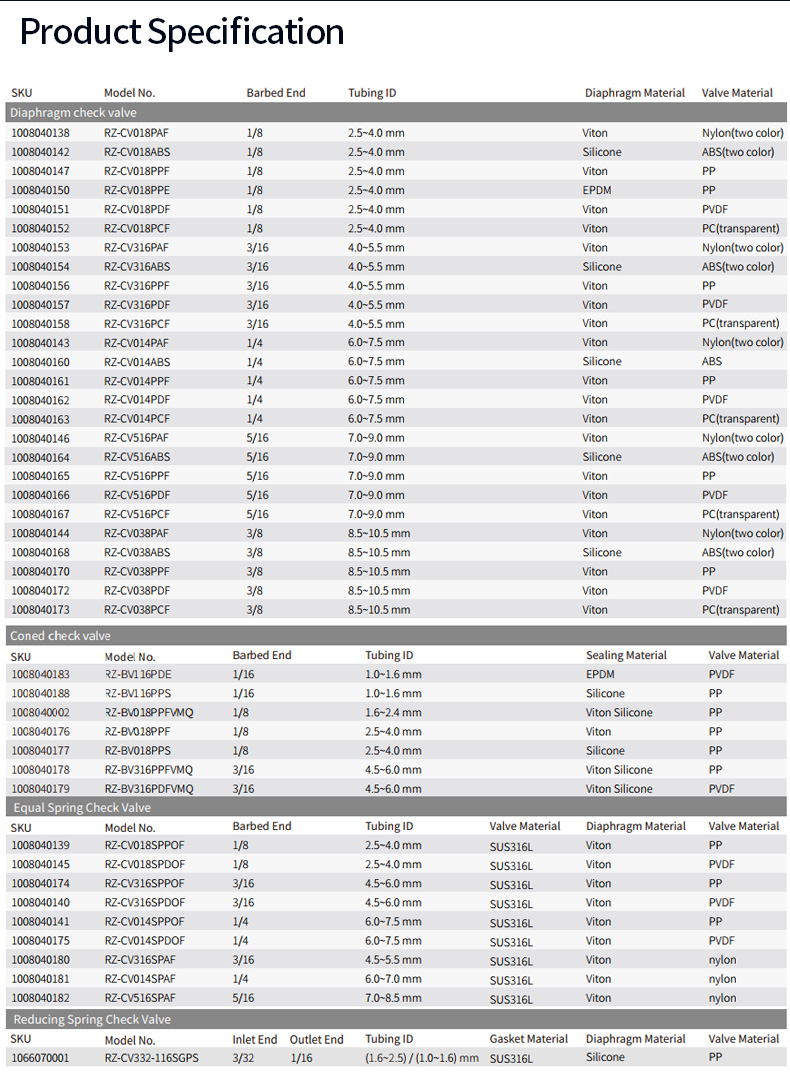

Specifications of Check Valve
| Photo | Product Code | Product Name | Model No. | Specification (CN) | Unit | Material | Tubing Size (mm) |
  | 1066070001 | Spring check valve (Reducing) | RZ-CV332-116SGPS | 3/32-1/16〞호환；PPBody재질；실리콘 가스켓；SUS316spring | Piece | PP valve body, Silicon sealing | (1.6-2.5)/(1.0-1.6)mm |
| 1008040139 | Spring check valve | RZ-CV018SPPOF | 1/8〞호환；PPBody재질；불소 고무 O-링；SUS316spring；SUS316L공 | Piece | PP valve body, Fluorine rubber sealing | ID2.5-4.0mm | |
| 1008040145 | Spring check valve | RZ-CV018SPDOF | 1/8〞호환；PVDFBody재질；불소 고무 O-링；SUS316spring；SUS316L공 | Piece | PVDF valve body, Fluorine rubber sealing | ID2.5-4.0mm | |
| 1008040174 | Spring check valve | RZ-CV316SPPOF | 3/16〞호환；PPBody재질；불소 고무 O-링；SUS316spring；SUS316L공 | Piece | PP valve body, Fluorine rubber sealing | ID4.5-6.0mm | |
| 1008040140 | Spring check valve | RZ-CV316SPDOF | 3/16〞호환；PVDFBody재질；불소 고무 O-링；SUS316spring；SUS316L공 | Piece | PVDF valve body, Fluorine rubber sealing | ID4.5-6.0mm | |
| 1008040141 | Spring check valve | RZ-CV014SPPOF | 1/4〞호환；PPBody재질；불소 고무 O-링；SUS316spring；SUS316L공 | Piece | PP valve body, Fluorine rubber sealing | ID6.0-7.5mm | |
| 1008040175 | Spring check valve | RZ-CV014SPDOF | 1/4〞호환；PVDFBody재질；불소 고무 O-링；SUS316spring；SUS316L공 | Piece | PVDF valve body, Fluorine rubber sealing | ID6.0-7.5mm | |
| 1008040180 | Fuel spring check valve | RZ-CV316SPAF | 3/16〞호환；NylonBody재질；불소 고무 가스켓；SUS316spring | Piece | Nylon valve body, Fluorine rubber sealing | ID4.5-5.5mm | |
| 1008040181 | Fuel spring check valve | RZ-CV014SPAF | 1/4〞호환；NylonBody재질；불소 고무 가스켓；SUS316spring | Piece | Nylon valve body, Fluorine rubber sealing | ID6.0-7.0mm | |
| 1008040182 | Fuel spring check valve | RZ-CV516SPAF | 5/16〞호환；NylonBody재질；불소 고무 가스켓；SUS316spring | Piece | Nylon valve body, Fluorine rubber sealing | ID7.0-8.5mm | |
| 1008040189 | Spring check valve | RZ-CV316SPPS | 3/16-호환-PPBody재질-실리콘 가스켓-SUS316spring | Piece | PP valve body, Silicon sealing | ID4.5-5.5mm | |
| 1008040190 | Spring check valve | RZ-CV516SPPS | 5/16-호환-PPBody재질-실리콘 가스켓-SUS316spring | Piece | PP valve body, Silicon sealing | ID7.0-8.5mm | |

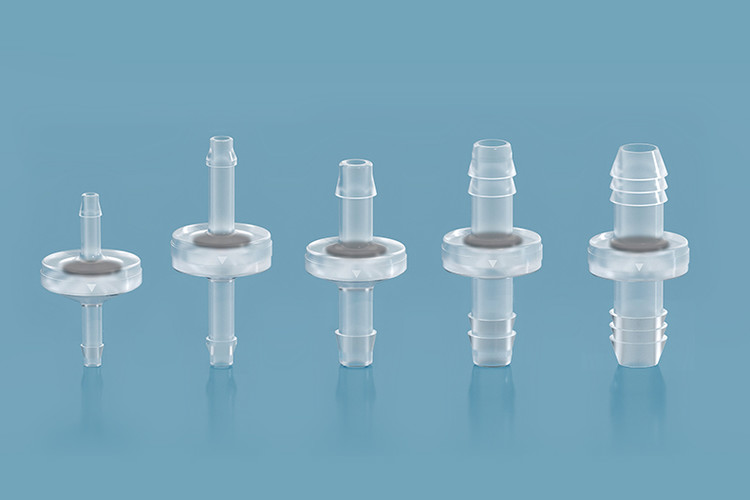

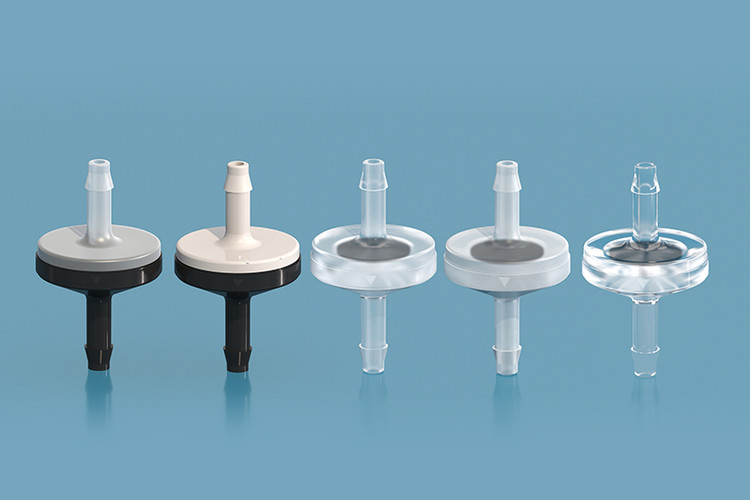

  | 1008040142 | Diaphragm check valve | RZ-CV018ABS | 1/8〞호환；ABS2colorBody재질；실리콘 다이어프램 | Piece | ABS valve body, Silicon sealing | ID2.5-4.0mm |
| 1008040147 | Diaphragm check valve | RZ-CV018PAF | 1/8〞호환；Nylon2colorBody재질；불소고무다이어프램 | Piece | Nylon valve body, Fluorine rubber sealing | ID2.5-4.0mm | |
| 1008040152 | Diaphragm check valve | RZ-CV018PCF | 1/8〞호환；PCClearBody재질；불소고무다이어프램 | Piece | PC valve body, Fluorine rubber sealing | ID2.5-4.0mm | |
| 1008040151 | Diaphragm check valve | RZ-CV018PDF | 1/8〞호환；PVDFBody재질；불소고무다이어프램 | Piece | PVDF valve body, Fluorine rubber sealing | ID2.5-4.0mm | |
| 1008040150 | Diaphragm Check Valve | RZ-CV018PPE | 1/8〞호환；PPBody재질；EPDM다이어프램 | Piece | PP valve body, EPDM sealing | ID2.5-4.0mm | |
| 1008040138 | Diaphragm check valve | RZ-CV018PPF | 1/8〞호환；PPBody재질；불소고무다이어프램 | Piece | PP valve body, Fluorine rubber sealing | ID2.5-4.0mm | |
| 1008040158 | Diaphragm check valve | RZ-CV316ABS | 3/16〞호환；ABS2colorBody재질；실리콘 다이어프램 | Piece | ABS valve body, Silicon sealing | ID4.0-5.5mm | |
| 1008040153 | Diaphragm check valve | RZ-CV316PAF | 3/16〞호환；Nylon2colorBody재질；불소고무다이어프램 | Piece | Nylon valve body, Fluorine rubber sealing | ID4.0-5.5mm | |
| 1008040157 | Diaphragm check valve | RZ-CV316PCF | 3/16〞호환；PCClearBody재질；불소고무다이어프램 | Piece | PC valve body, Fluorine rubber sealing | ID4.0-5.5mm | |
| 1008040156 | Diaphragm check valve | RZ-CV316PDF | 3/16〞호환；PVDFBody재질；불소고무다이어프램 | Piece | PVDF valve body, Fluorine rubber sealing | ID4.0-5.5mm | |
| 1008040154 | Diaphragm check valve | RZ-CV316PPF | 3/16〞호환；PPBody재질；불소고무다이어프램 | Piece | PP valve body, Fluorine rubber sealing | ID4.0-5.5mm | |
| 1008040143 | Diaphragm check valve | RZ-CV014ABS | 1/4〞호환；ABS2colorBody재질；실리콘 다이어프램 | Piece | ABS valve body, Silicon sealing | ID6.0-7.5mm | |
| 1008040160 | Diaphragm check valve | RZ-CV014PAF | 1/4〞호환；Nylon2colorBody재질；불소고무다이어프램 | Piece | Nylon valve body, Fluorine rubber sealing | ID6.0-7.5mm | |
| 1008040162 | Diaphragm check valve | RZ-CV014PCF | 1/4〞호환；PCClearBody재질；불소고무다이어프램 | Piece | PC valve body, Fluorine rubber sealing | ID6.0-7.5mm | |
| 1008040163 | Diaphragm check valve | RZ-CV014PDF | 1/4〞호환；PVDFBody재질；불소고무다이어프램 | Piece | PVDF valve body, Fluorine rubber sealing | ID6.0-7.5mm | |
| 1008040161 | Diaphragm check valve | RZ-CV014PPF | 1/4〞호환；PPBody재질；불소고무다이어프램 | Piece | PP valve body, Fluorine rubber sealing | ID6.0-7.5mm | |
| 1008040184 | Diaphragm Check Valve | RZ-CV014-316PPF | 3/16*1/4호환；PP다이어프램밸브 | Piece | PP valve body, Fluorine rubber sealing | ID(6.0-7.5)/(4.0-5.0)mm | |
| 1008040167 | Diaphragm check valve | RZ-CV516ABS | 5/16〞호환；ABS2colorBody재질；실리콘 다이어프램 | Piece | ABS valve body, Silicon sealing | ID7.0-9.0mm | |
| 1008040165 | Diaphragm check valve | RZ-CV516PAF | 5/16〞호환；Nylon2colorBody재질；불소고무다이어프램 | Piece | Nylon valve body, Fluorine rubber sealing | ID7.0-9.0mm | |
| 1008040146 | Diaphragm check valve | RZ-CV516PCF | 5/16〞호환；PCClearBody재질；불소고무다이어프램 | Piece | PC valve body, Fluorine rubber sealing | ID7.0-9.0mm | |
| 1008040166 | Diaphragm check valve | RZ-CV516PDF | 5/16〞호환；PVDFBody재질；불소고무다이어프램 | Piece | PVDF valve body, Fluorine rubber sealing | ID7.0-9.0mm | |
| 1008040164 | Diaphragm check valve | RZ-CV516PPF | 5/16〞호환；PPBody재질；불소고무다이어프램 | Piece | PP valve body, Fluorine rubber sealing | ID7.0-9.0mm | |
| 1008040186 | Diaphragm Check Valve | RZ-CV516ABSN | 5/16-호환-ABS2colorBody재질-실리콘 다이어프램 | Piece | ABS valve body, Silicon sealing | ID7.0-9.0mm | |
| 1008040173 | Diaphragm check valve | RZ-CV038ABS | 3/8〞호환；ABS2colorBody재질；실리콘 다이어프램 | Piece | ABS valve body, Silicon sealing | ID8.5-10.5mm | |
| 1008040168 | Diaphragm check valve | RZ-CV038PAF | 3/8〞호환；Nylon2colorBody재질；불소고무다이어프램 | Piece | Nylon valve body, Fluorine rubber sealing | ID8.5-10.5mm | |
| 1008040172 | Diaphragm Check Valve | RZ-CV038PCF | 3/8〞호환；PCClearBody재질；불소고무다이어프램 | Piece | PC valve body, Fluorine rubber sealing | ID8.5-10.5mm | |
| 1008040144 | Diaphragm check valve | RZ-CV038PDF | 3/8〞호환；PVDFBody재질；불소고무다이어프램 | Piece | PVDF valve body, Fluorine rubber sealing | ID8.5-10.5mm | |
| 1008040170 | Diaphragm check valve | RZ-CV038PPF | 3/8〞호환；PPBody재질；불소고무다이어프램 | Piece | PP valve body, Fluorine rubber sealing | ID8.5-10.5mm | |
  | 1008040002 | Barbed Check Valve | RZ-BV018PPFVMQ | Coned1/8PP | Piece | PP valve body, Fluorosilicone sealing | ID1.6-2.4mm |

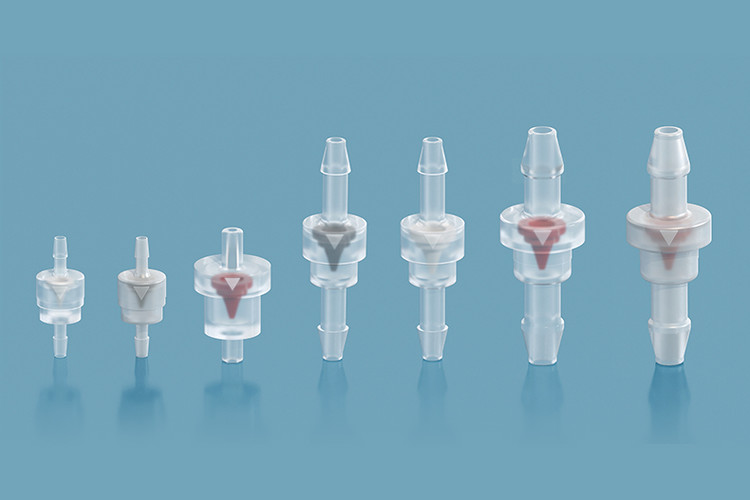

| 1008040176 | Coned check valve | RZ-BV018PPS | 1/8〞호환；PPBody재질；Silicone Coned Valve | Piece | PP valve body, Silicon sealing | ID2.5-4.0mm | |
| 1008040177 | Coned Check Valve | RZ-BV018PPF | RZ-BV018PPF | Piece | PP valve body, Fluorine rubber sealing | ID2.5-4.0mm | |
| 1008040178 | Coned check valve | RZ-BV316PPFVMQ | 3/16〞호환；PPBody재질；fluorineSilicone Coned Valve | Piece | PP valve body, Fluorosilicone sealing | ID4.5-6.0mm | |
| 1008040179 | Diaphragm Check Valve | RZ-BV316PDFVMQ | 3/16〞호환；PVDFBody재질；fluorineSilicone Coned Valve | Piece | PVDF valve body, Fluorosilicone sealing | ID4.5-6.0mm | |
| 1008040183 | Diaphragm Check Valve | RZ-BV116PDE | 1/16〞호환；PVDF Body재질；EPDM Conded valve | Piece | PVDF valve body, EPDM sealing | ID1.0-1.6mm | |
| 1008040188 | Coned check valve | RZ-BV116PPS | 1/6-호환-PPBody재질-Silicone rubber Conded valve | Piece | PP valve body, Silicon sealing | ID1.0-1.6mm |

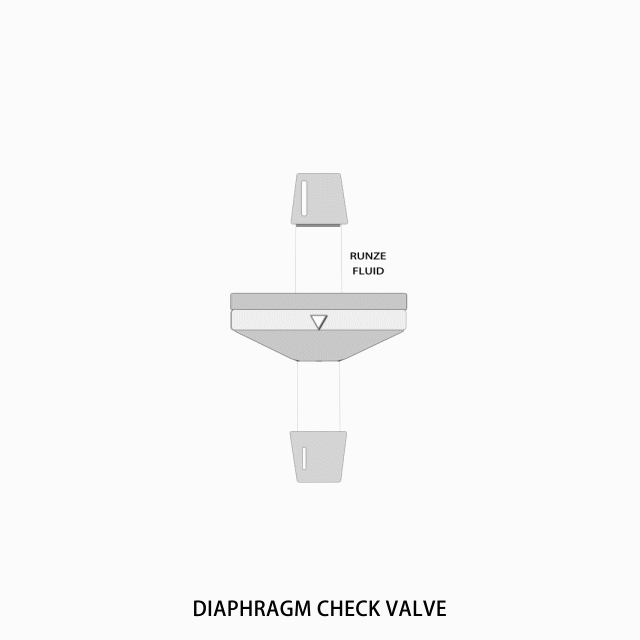

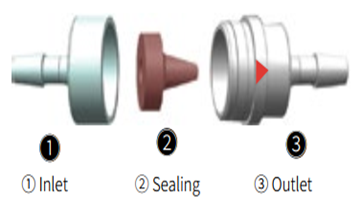

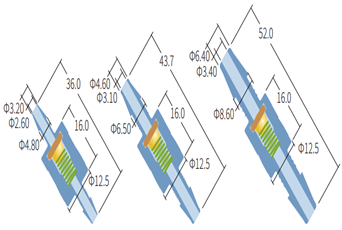

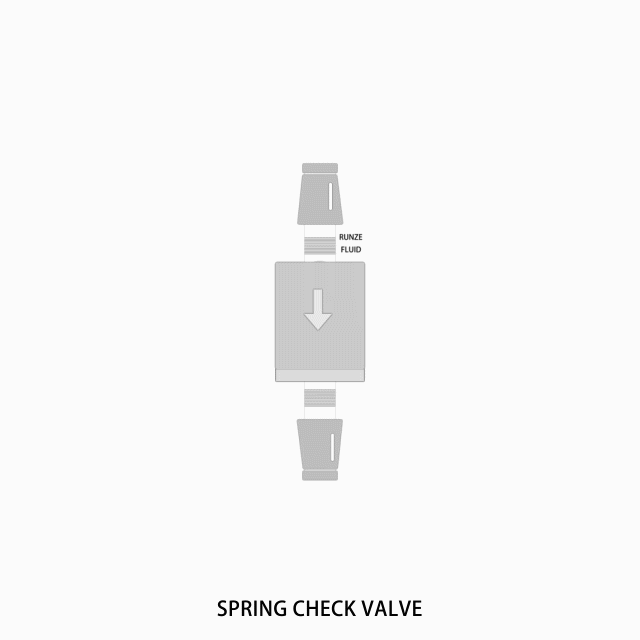

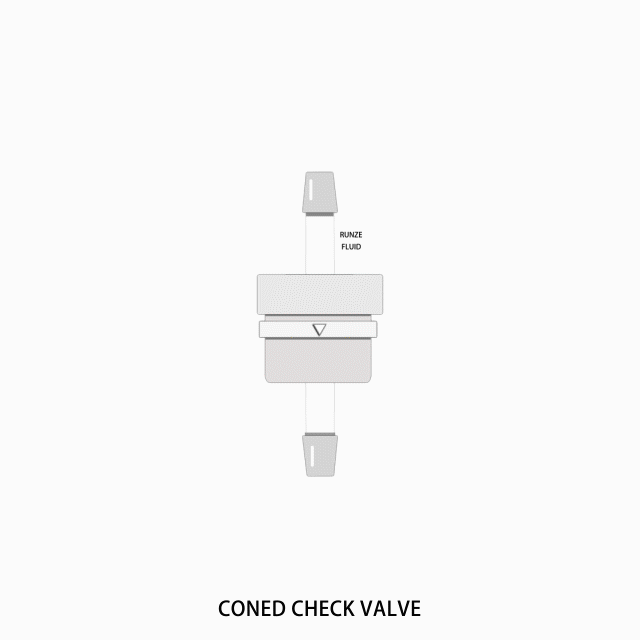

Barbed Check Valves Structure Diagram & Working Principle
Barbed Check Valves Video
