corrosion and various organic substances
Function: Flexible tube connection
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |
[Fitting] Panel Mount Elbow Barbed Bulkhead Connector 니플피팅 fitting 벌크헤드 판넬마운트피팅 PP피팅

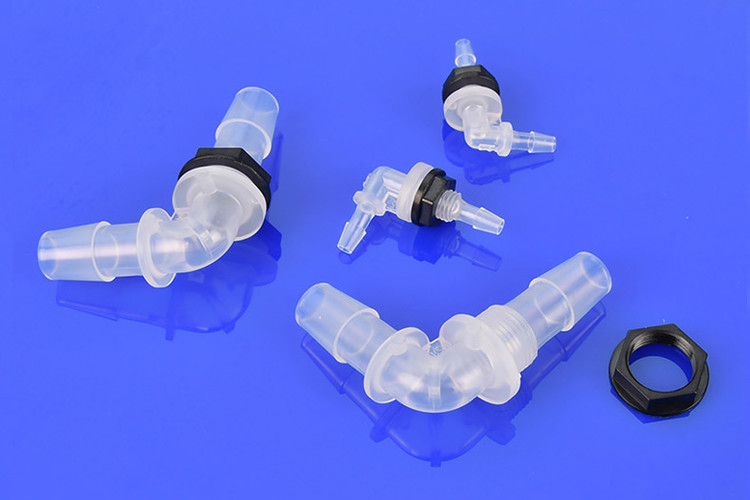

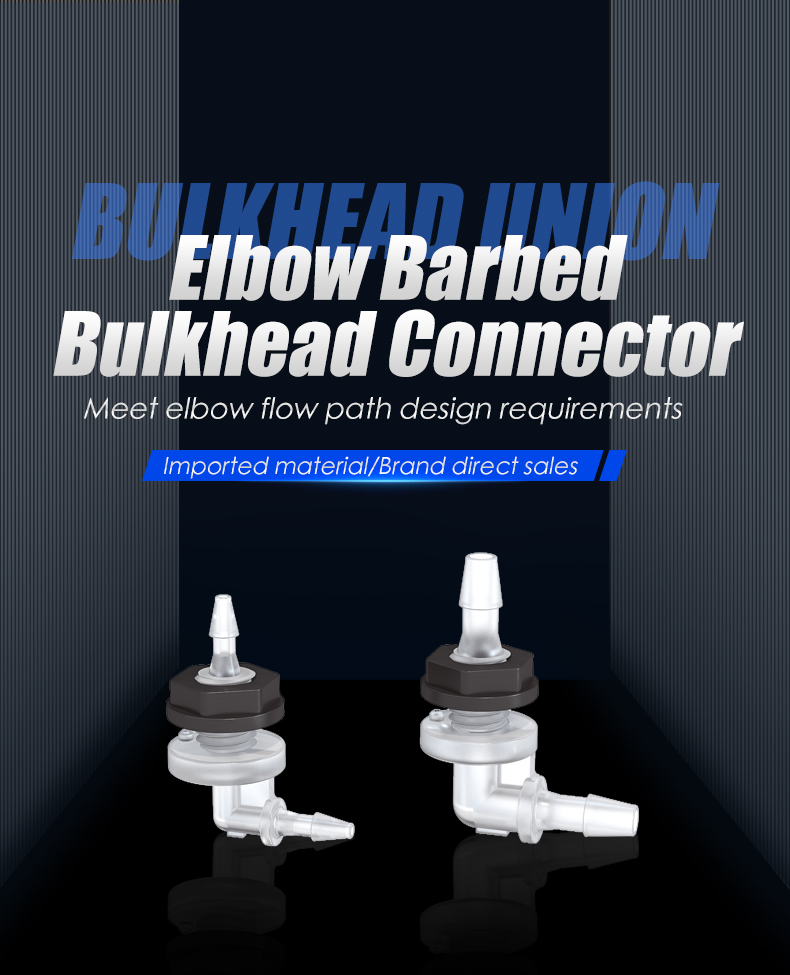

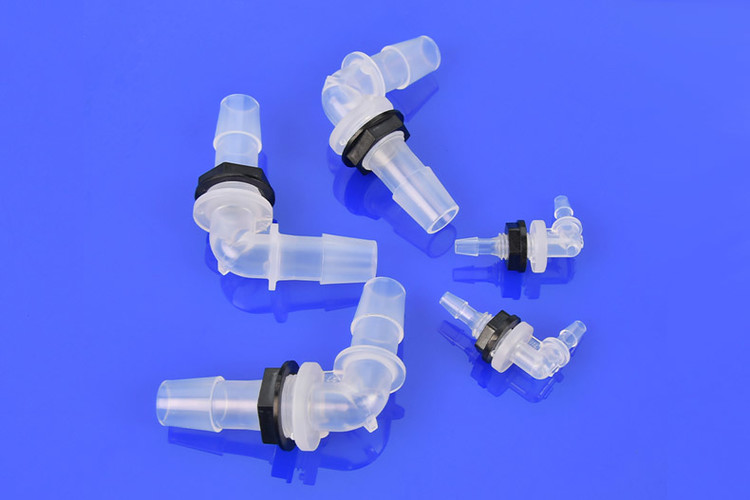

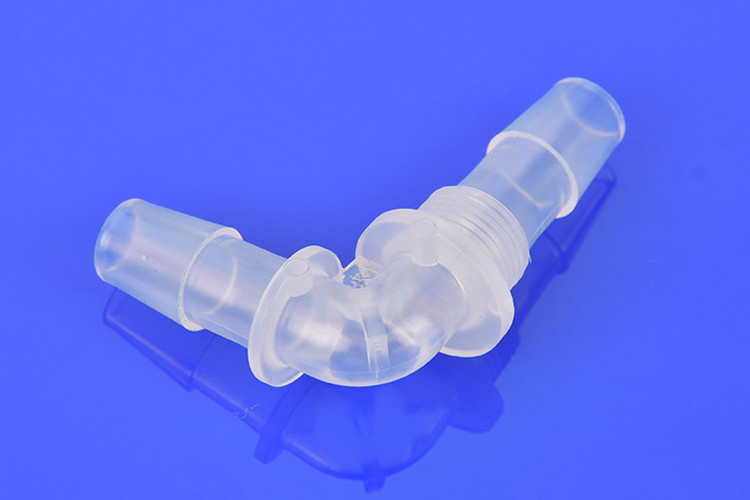

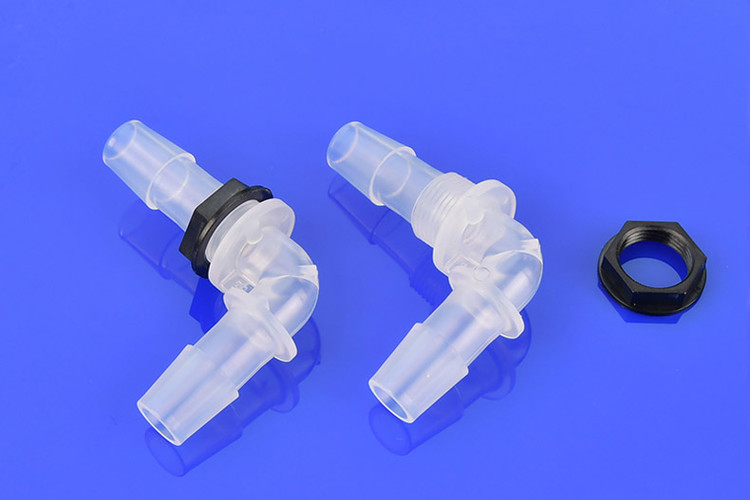

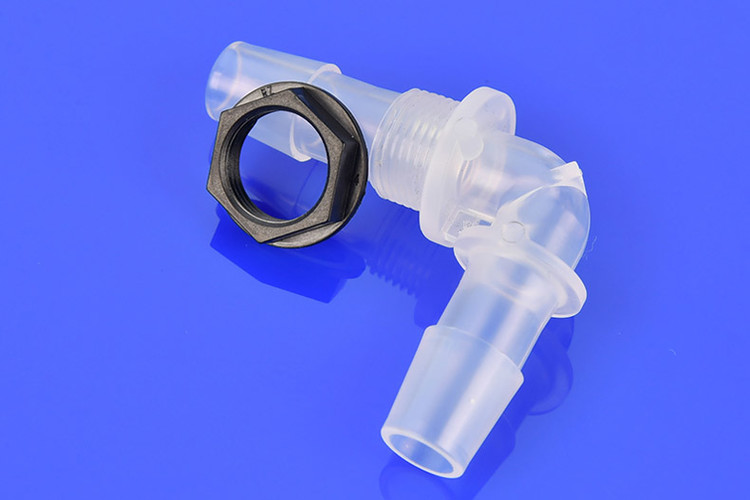

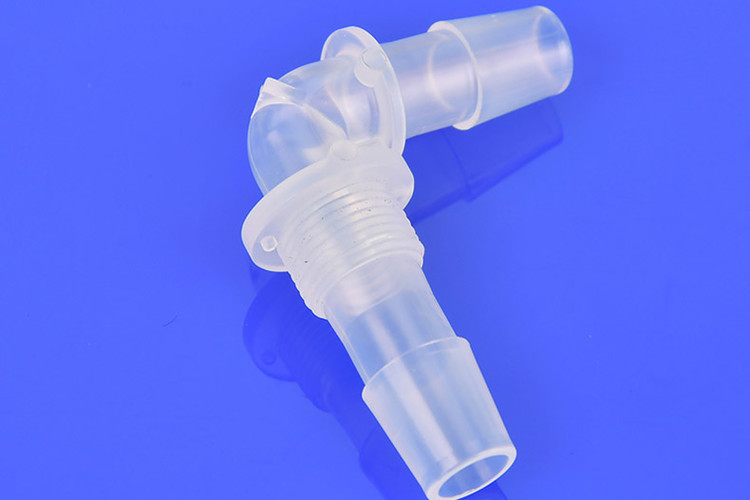

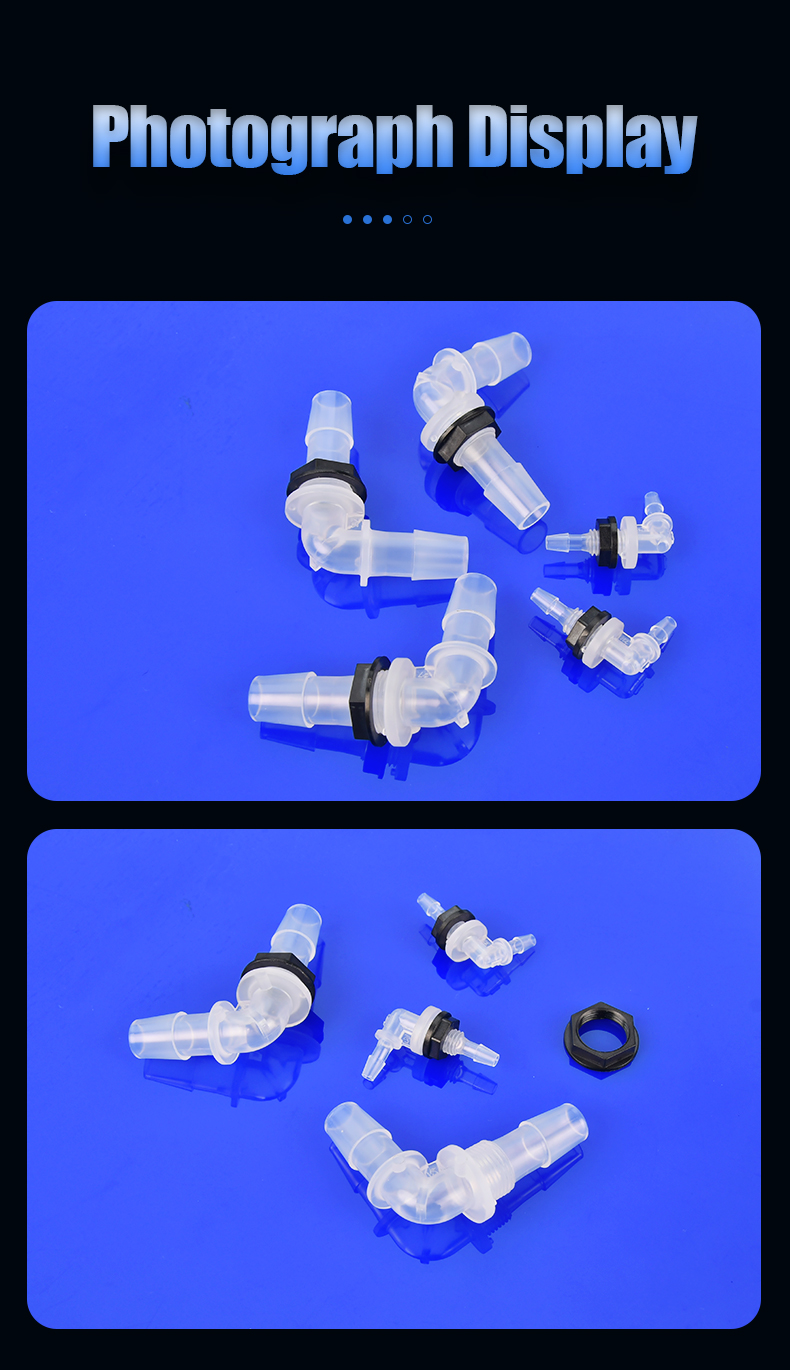

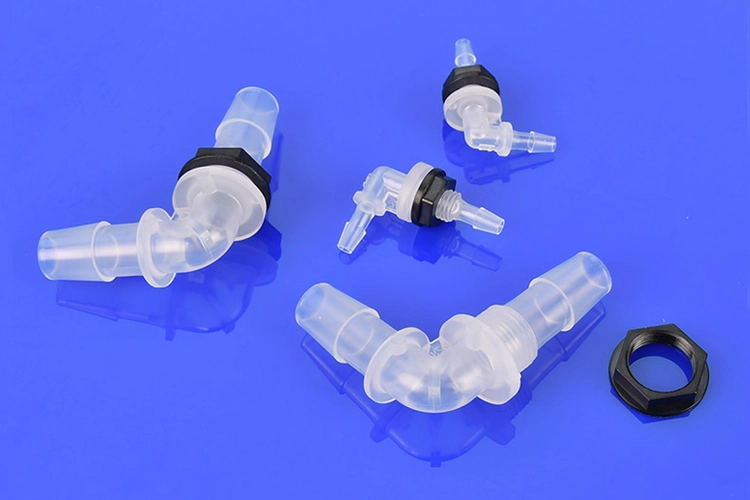

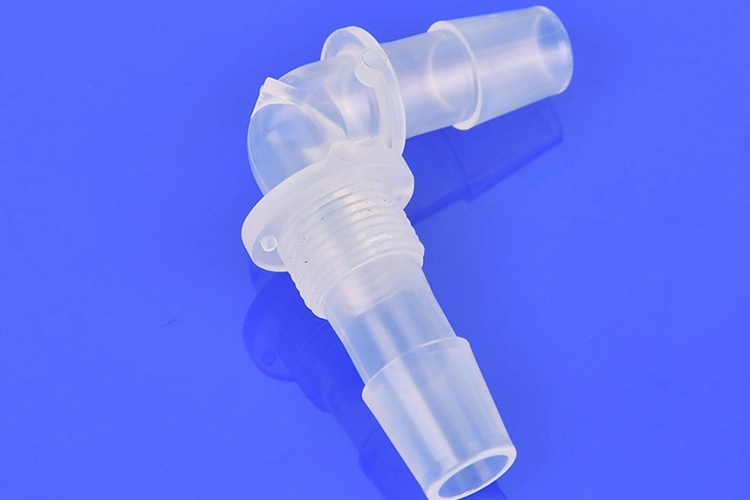

Elbow Barbed Bulkhead Connector

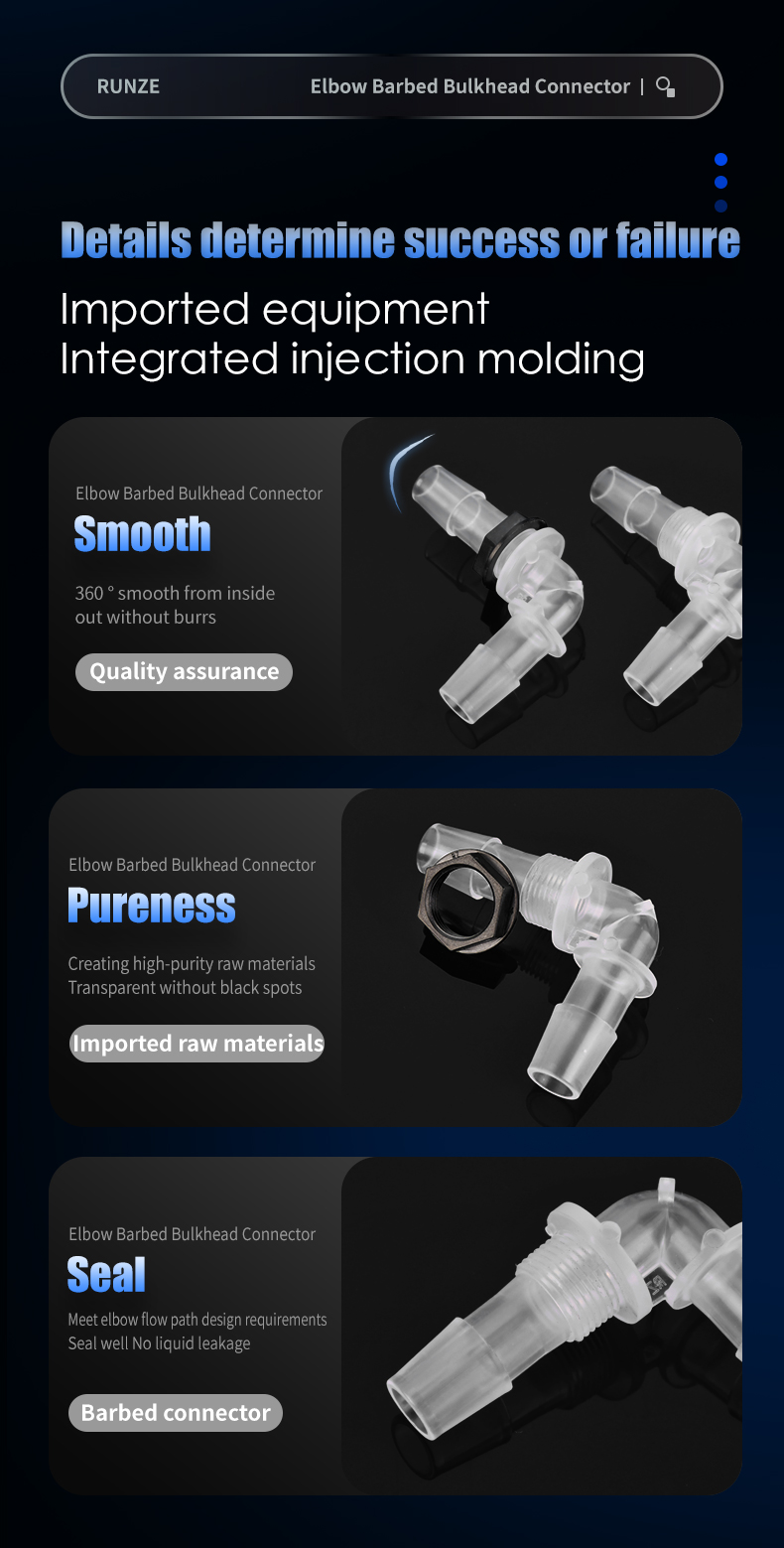

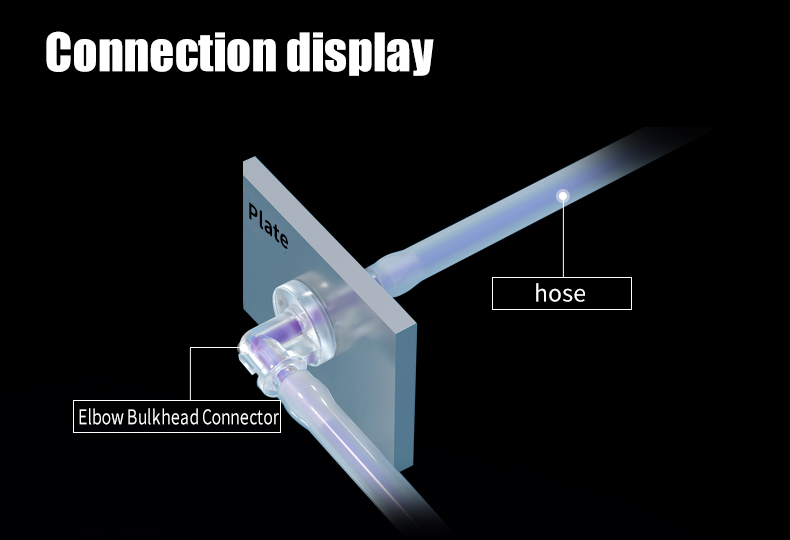

Elbow Barbed Bulkhead Connector,meet elbow flow path design requirements.Made of imported PP material, with precise dimensions and no burrs or black spots.We can meet the needs of various fields, such as laboratories, medical analysis, environmental testing, petroleum analysis, etc.

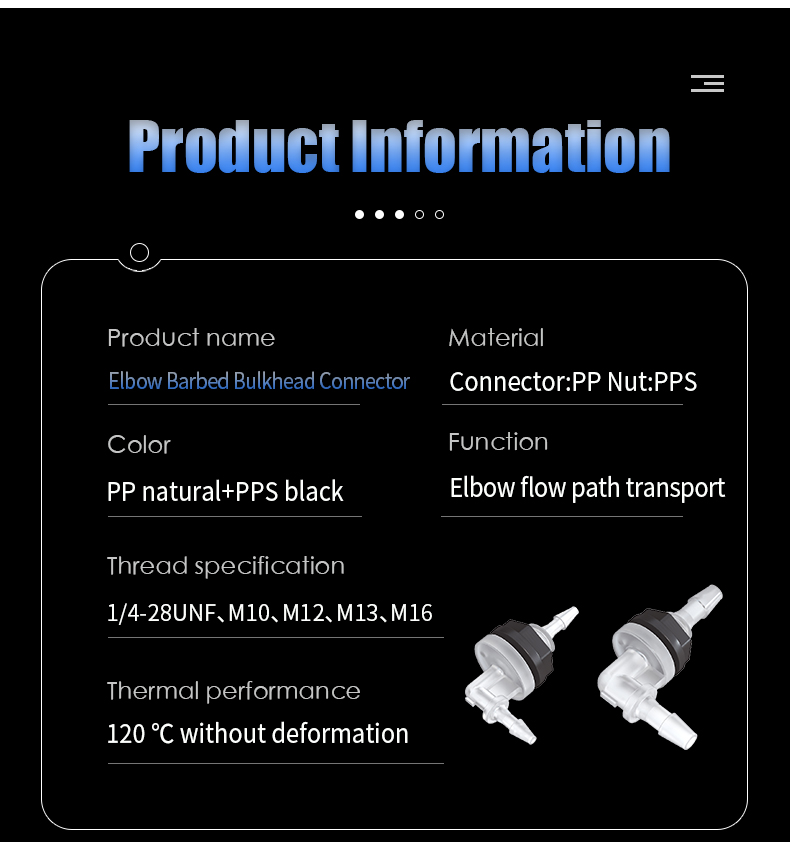

Specification of Elbow Barbed Bulkhead Connector
| Product Name | Elbow Barbed Bulkhead Connector |

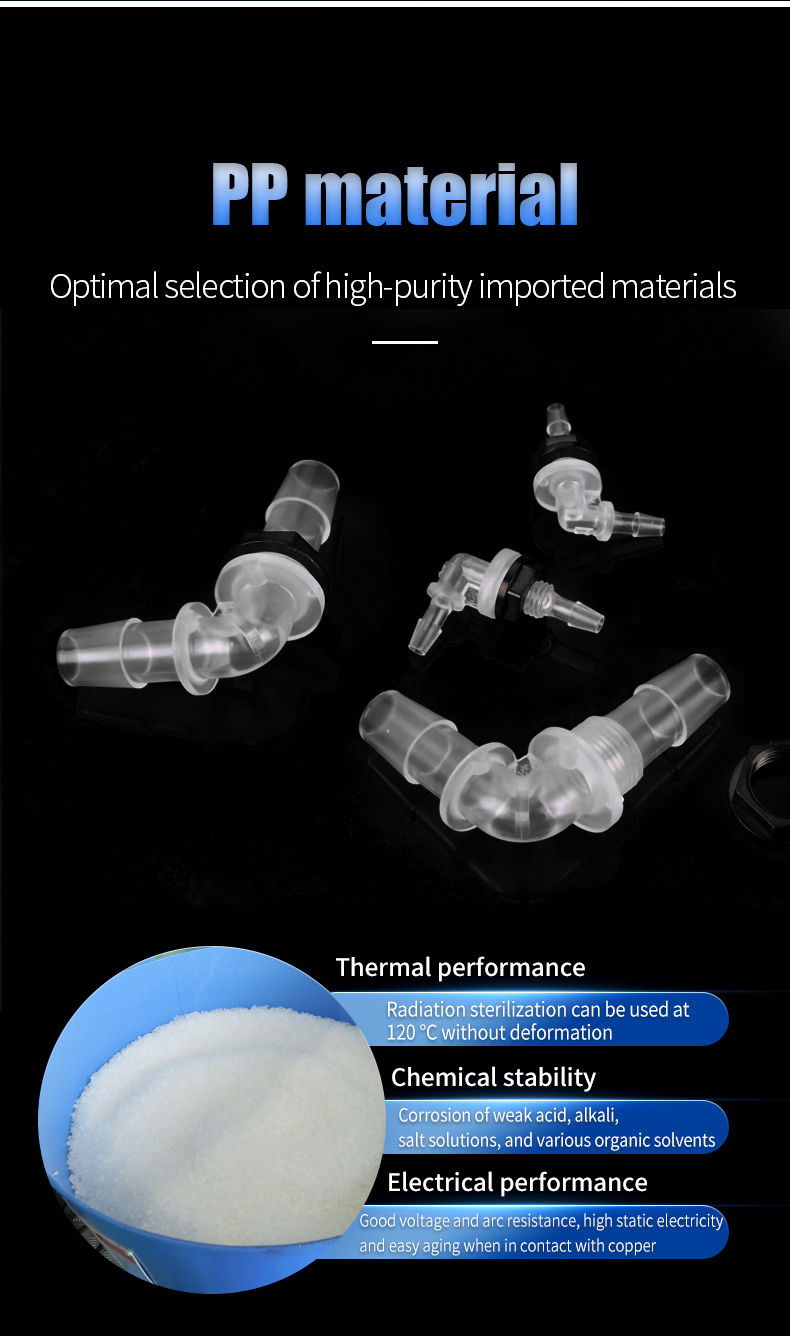

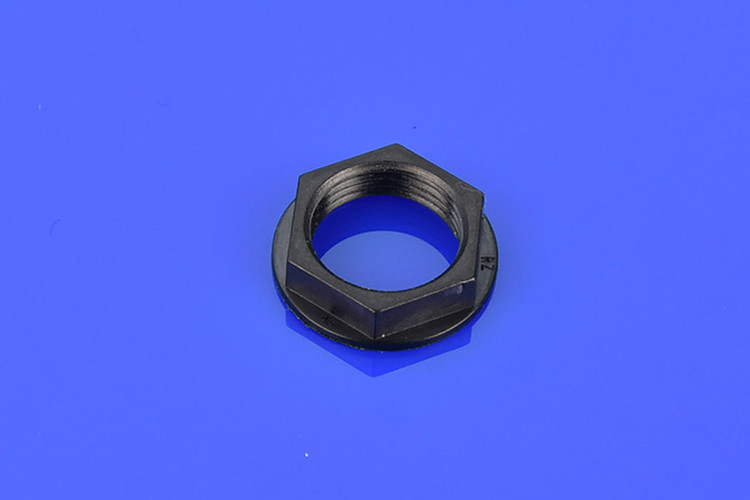

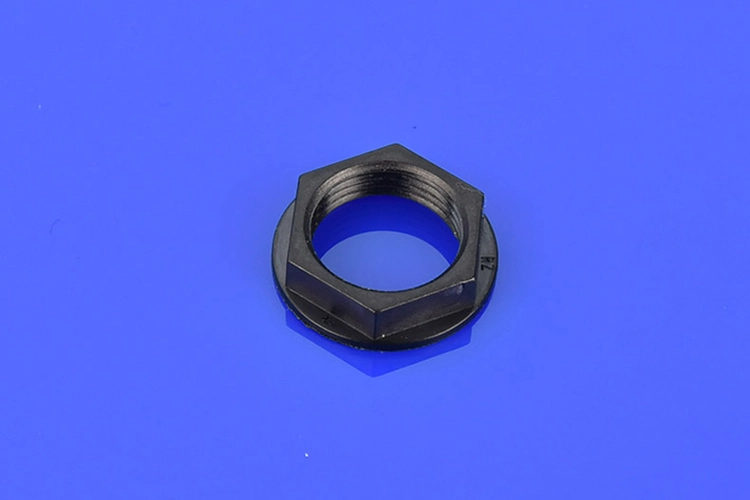

| Material | Connector:PP Nut:PPS |
| Color | PP natural+PPS black |
| Thread | 1/4-28UNF、M10、M12、M13、M16 |
| Thermal performance | 120℃ without deformation |
| Function | Elbow flow path transport |
| Photo | Product Code | Product Name | Model No. | Unit | Material |
 | 1008090011 | Elbow Barbed Bulkhead Connector | LDC-016-1/4-28-016P+1/4-28-S | set | PP |
| 1008090012 | Elbow Barbed Bulkhead Connector | LDC-024-1/4-28-024P+1/4-28-S | set | PP | |
| 1008090013 | Elbow Barbed Bulkhead Connector | LDC-032-1/4-28-032P* 1/4-28-S | set | PP | |
| 1008090014 | Elbow Barbed Bulkhead Connector | LDC-040-M8-040P * M8*1.25-S | set | PP | |
| 1008090015 | Elbow Barbed Bulkhead Connector | LDC-048-M10-048P+M10*1-S | set | PP | |
| 1008090016 | Elbow Barbed Bulkhead Connector | LDC-064-M10-064P* M10*1-S | set | PP | |
| 1008090017 | Elbow Barbed Bulkhead Connector | LDC-087-M12-087P* M12*1-S (not on sale for the moment) | set | PP | |
| 1008090018 | Elbow Barbed Bulkhead Connector | LDC-095-M13-095P+M13*1-S | set | PP | |
| 1008090019 | Elbow Barbed Bulkhead Connector | LDC-127-M16-127P* M16*12.5-S (not on sale for the moment) | set | PP |

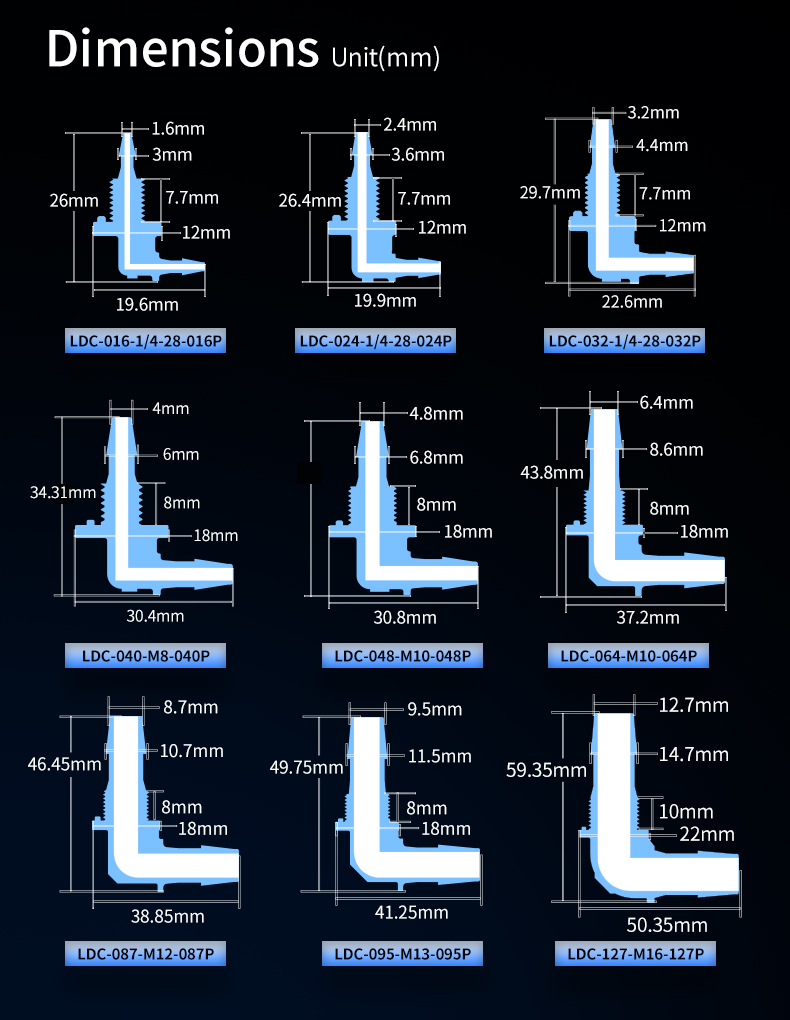

Dimension (unit: mm) of Elbow Barbed Bulkhead Connector
