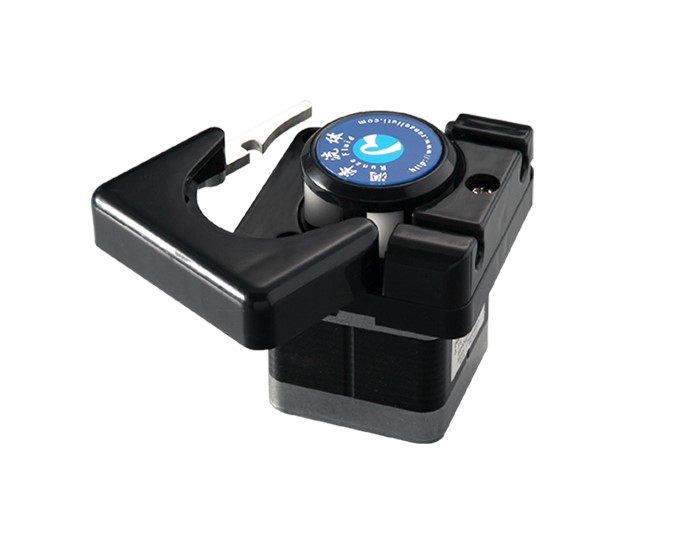

Small peristaltic pump BJ-RZ1030-4 was composed of high precision stepper motor to achieve reliable performance on small flow rate transfer and flip-top mechanism pump head to achieve fast tube loading, one-touch installation and small footprint make it very popular in compact space-saving instrument to dispense few milliliter fluids.

안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. |
[RUNZE FLUID] RZ1030-4 Mini Peristaltic Pump

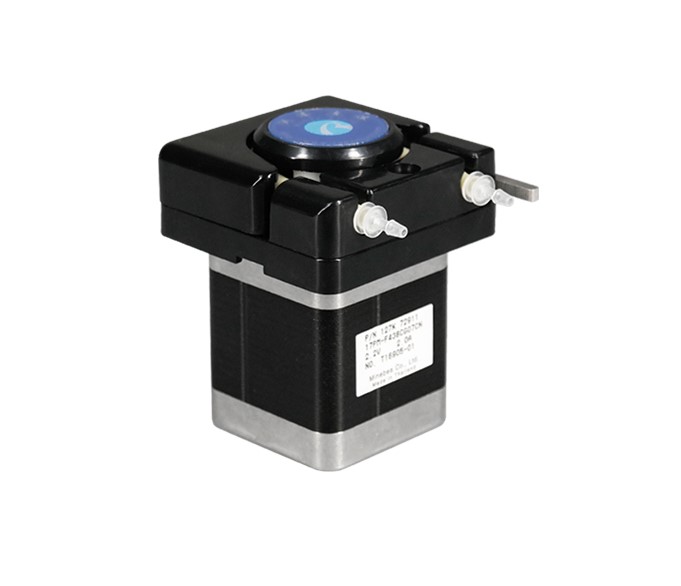

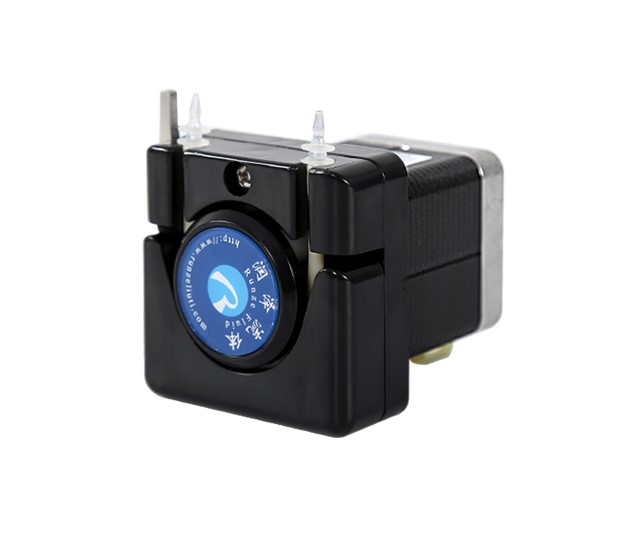

Small peristaltic pump BJ-RZ1030-4 was composed of high precision stepper motor to achieve reliable performance on small flow rate transfer and flip-top mechanism pump head to achieve fast tube loading, one-touch installation and small footprint make it very popular in compact space-saving instrument to dispense few milliliter fluids.
| Model No. | BJ-RZ1030-4 | BJ-RZ1030B |

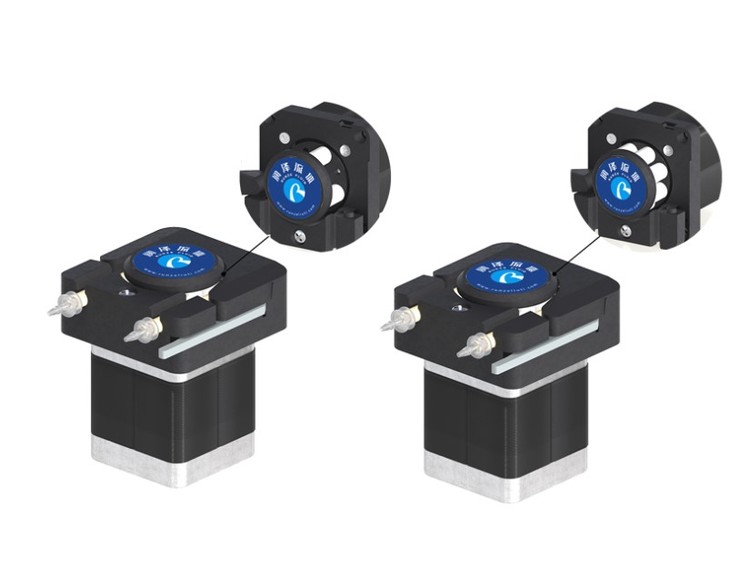

| Pump Roller | POM 4 rollers (low pulse) | POM 4 / 8 rollers (low pulse) |
| Pump Head Material | ABS engineering plastic | PPS |
| Motor type | NMB 1.8° 42 stepper motor | NMB 1.8° 42 stepper motor |
| Input voltage | 24V DC | 24V DC |
| Rated Current | 1.1A | 1.1A |
| Max Power | 9.2W | 9.2W |
| Motor Speed | 0-400rpm | 0-400rpm |
| Flow Range | 12.5-170ml/min | 9-183ml/min |
| Tubing Size | ID0.64-3.0mm WT0.8-1.0mm OD≤5mm | ID0.64-3.0mm WT0.8-1.0mm OD≤5mm |
| Tubing Life | Silicone≥200H BPT Rubber≥1000H Viton≥1000H | Silicone≥200H BPT Rubber≥1000H Viton≥1000H |
| Pressure Rating | Up to 2 bar(30psi) | Up to 2 bar(30psi) |
| Working Environment | 0-40℃, ≤80% non-condensing | 0-40℃, ≤80% non-condensing |
| Max DB | 70db | 70db |
| Suction | About 5 meters | About 5 meters |

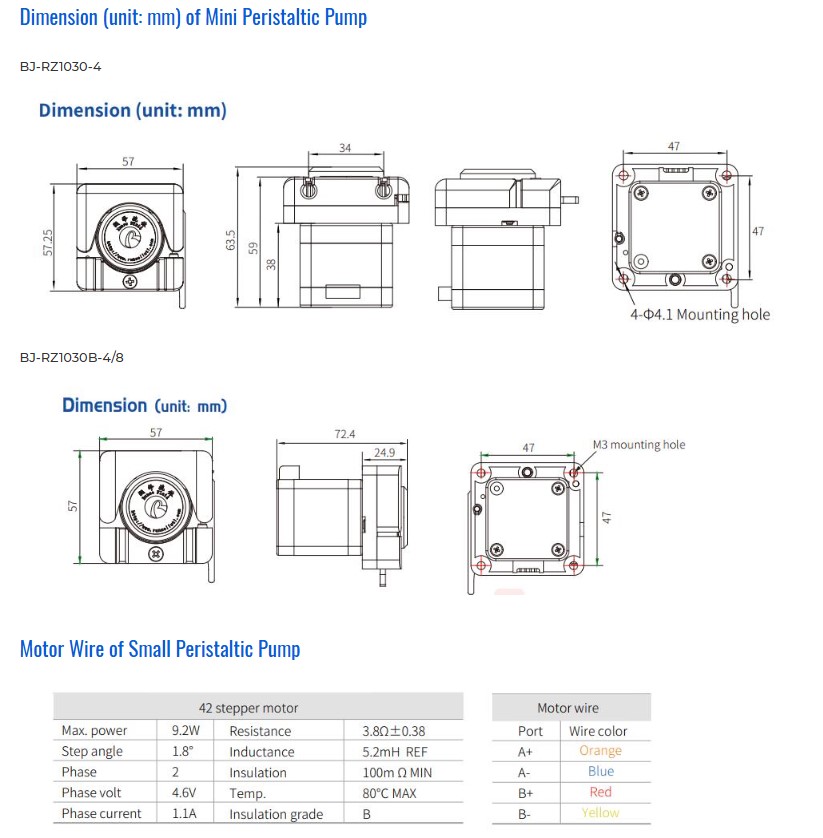

| Dimension (L*W*H) | 57*57*63.5mm | 57*57*72.4mm |
| Net Weight | 424g | 432g |


Flow Rate for Reference of Small Peristaltic Pump
| Model | Tubing | BPT Rubber Tube | Silicone Tube | |||||||||||||||
| RZ-1030-4 | ID(mm) | 0.8mm | 1.0mm | |||||||||||||||
| WT(mm) | 0.64 | 0.76 | 0.89 | 1.02 | 1.14 | 1.3 | 1.42 | 1.52 | 1.65 | 1.85 | 2.06 | 2.29 | 2.54 | 2.79 | 1 | 2 | 3 | |
| Max flow rate (ml/min) | 12.5 | 17.3 | 22 | 28.2 | 33.4 | 42.5 | 51.9 | 59.4 | 72.2 | 89 | 101.9 | 112.6 | 137.6 | 146.9 | 26.1 | 105 | 170 | |
| RZ-1030B | ID(mm) | 0.8mm | 1.0mm | |||||||||||||||
| WT(mm) | 0.64 | 0.76 | 0.89 | 1.02 | 1.14 | 1.3 | 1.42 | 1.52 | 1.65 | 1.85 | 2.06 | 2.29 | 2.54 | 2.79 | 1 | 2 | 3 | |
| 4 rollers | Max flow rate (ml/min) | 12 | 15 | 18 | 25 | 32 | 38 | 47 | 50 | 56 | 70 | 87 | 94 | 113 | 128 | 24 | 74 | 183 |
| 8 rollers | 9 | 14 | 14 | 21 | 27 | 32 | 38 | 42 | 43 | 55 | 61 | 71 | 77 | 81 | 17 | 57 | 114 | |
*Note: Test under room temperature 20℃ and no external pressure (water), Flow rate may vary from different media, condition, pressure, humidity, temperature, etc. The data is for reference only.
