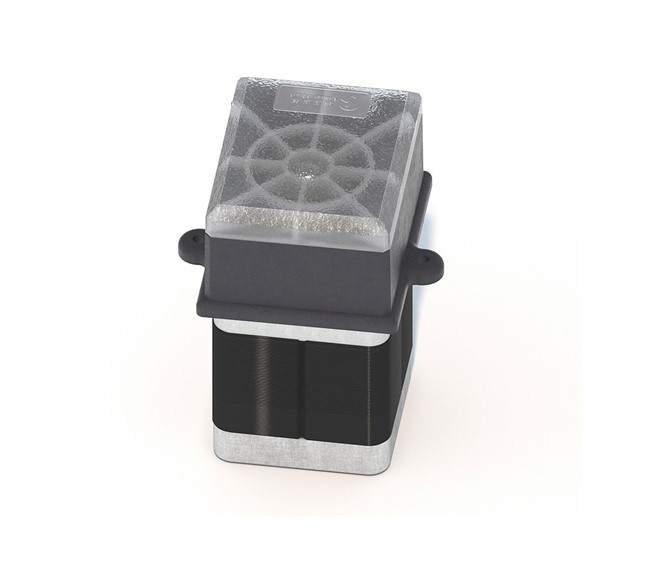

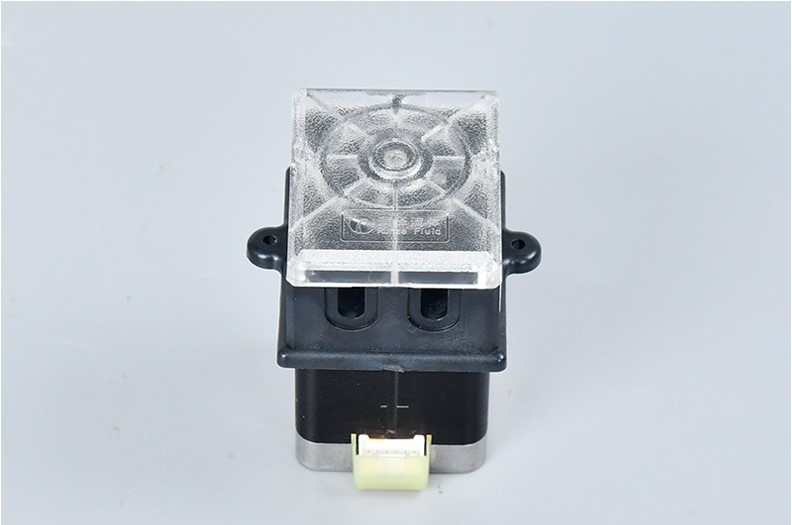

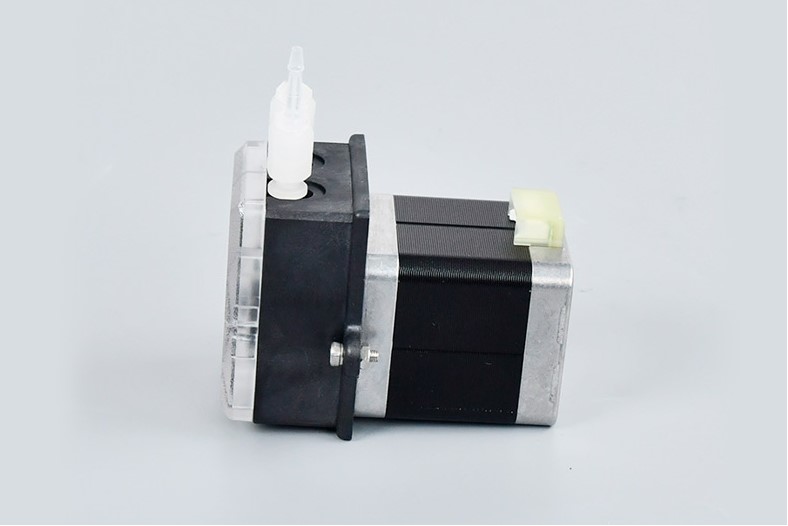

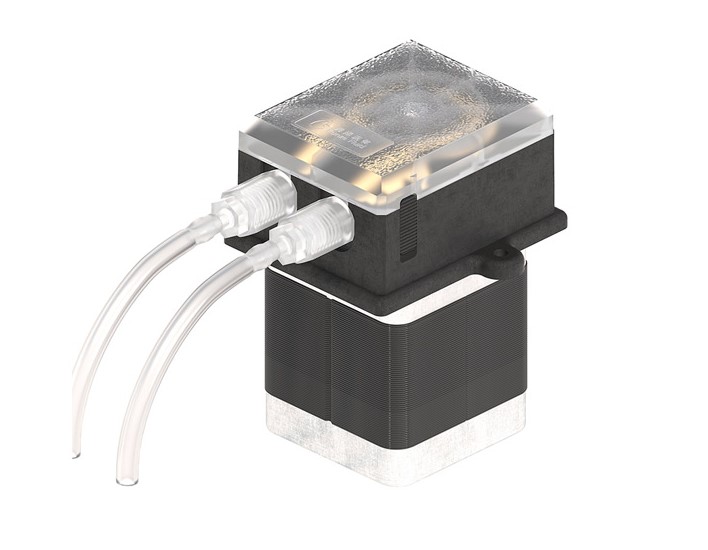

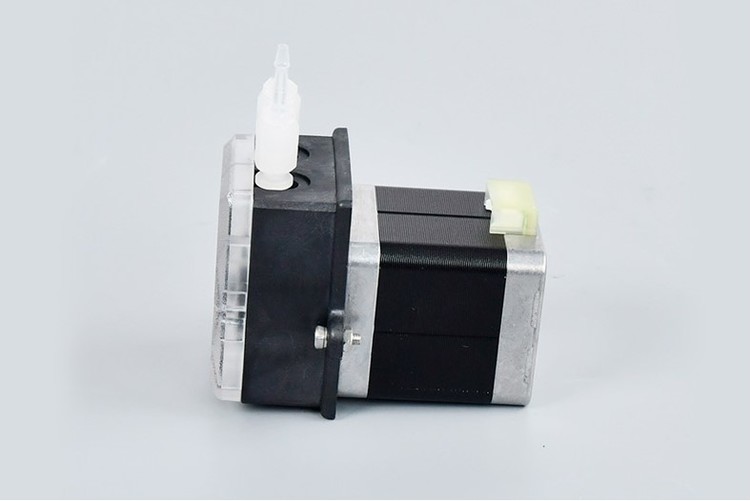

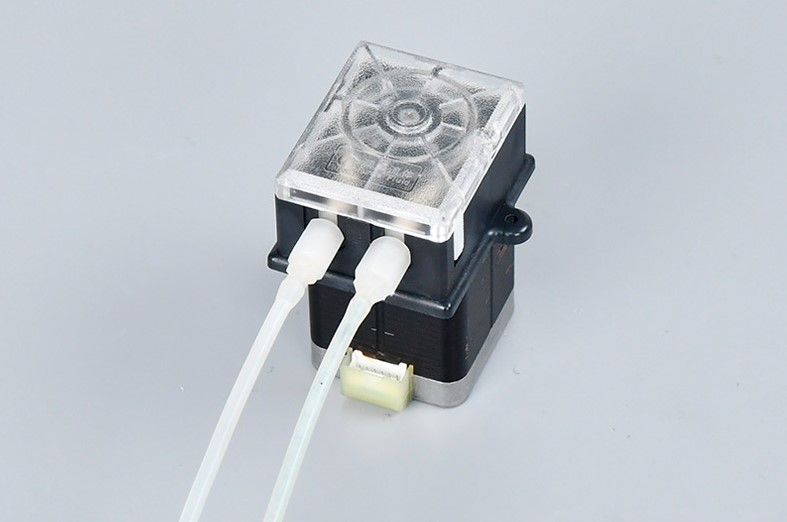

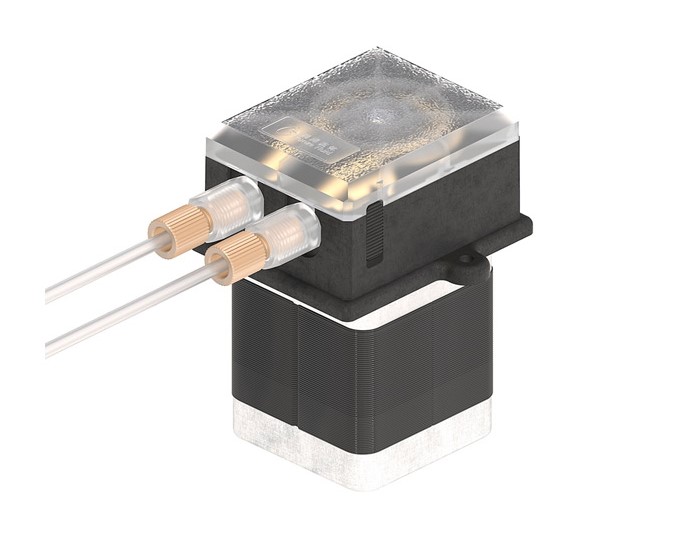

[RUNZE FLUID] Small Peristaltic Pump BJ-RZ-01

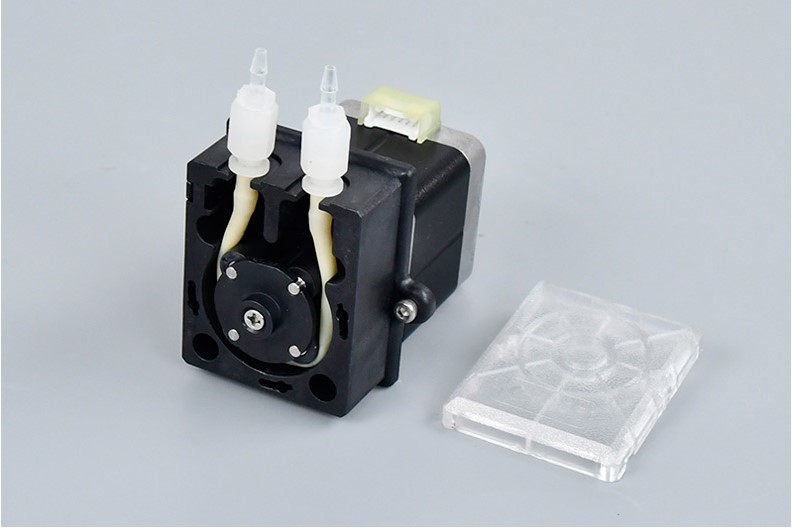

RZ01, A small peristaltic pump head with 3 rollers or 6 rollers, is developed for clients OEM needs. Suitable for wide pump head tubes.
Product Features of Small Peristaltic Pump BJ-RZ-01

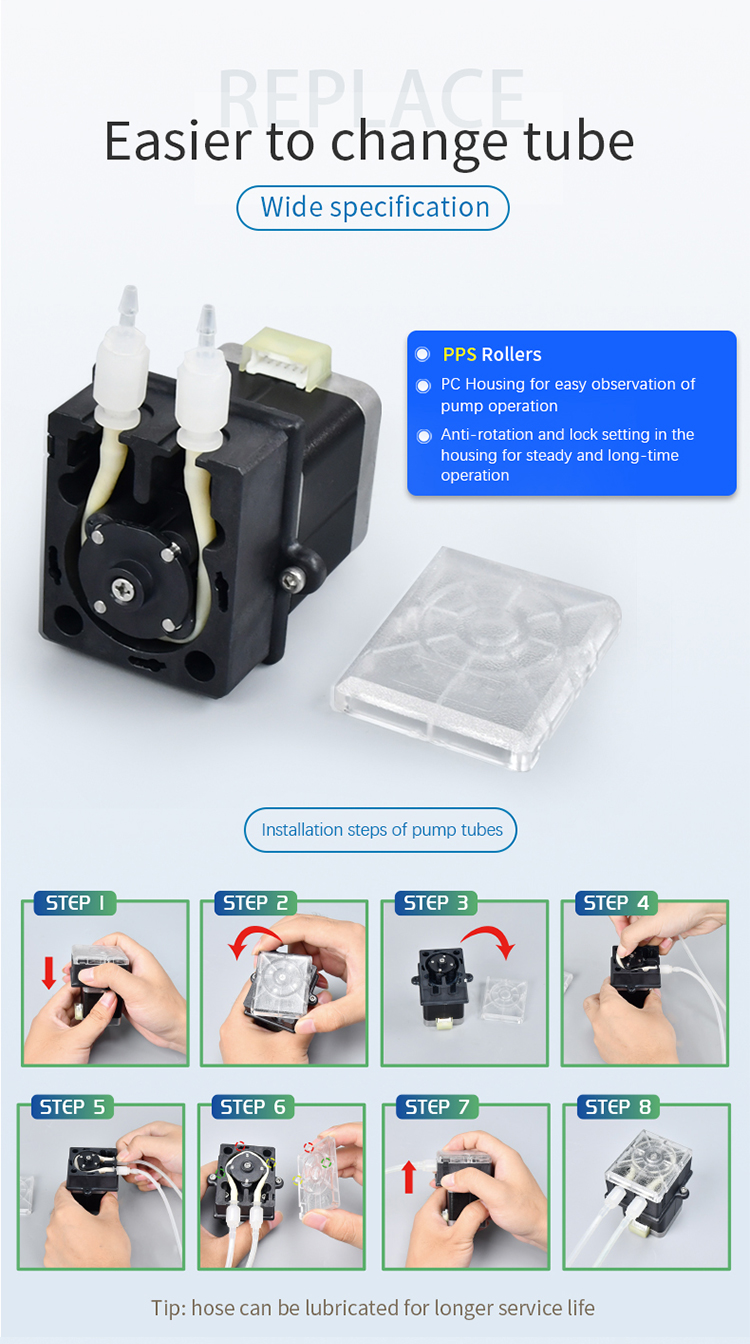

-Rollers made of PPS with excellent structural properties.
-PPS housing, high temperature and corrosion resistant.

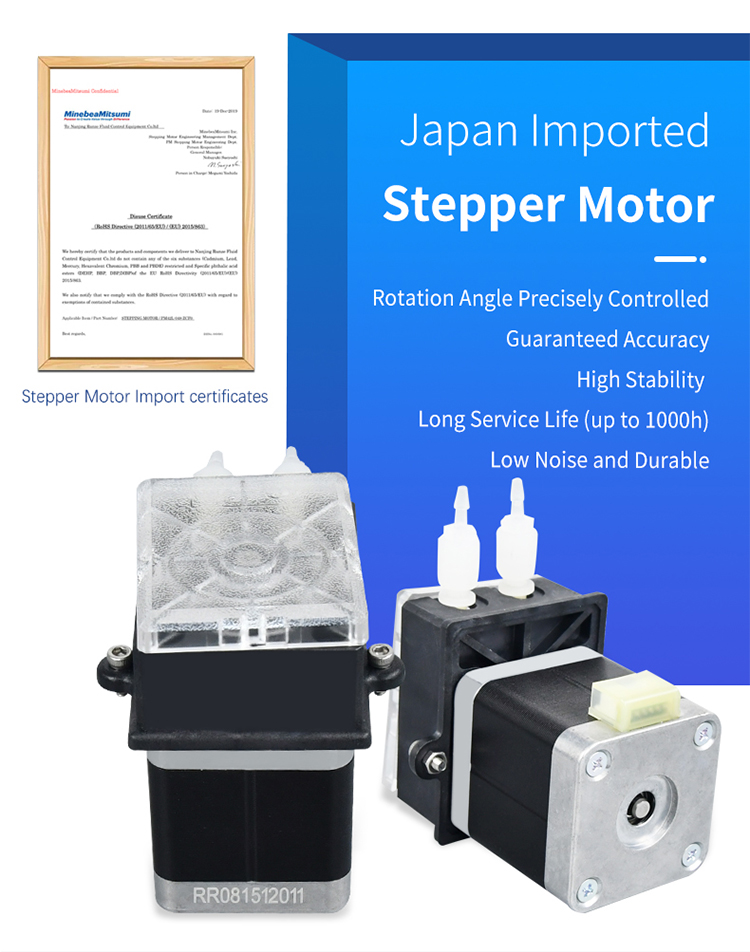

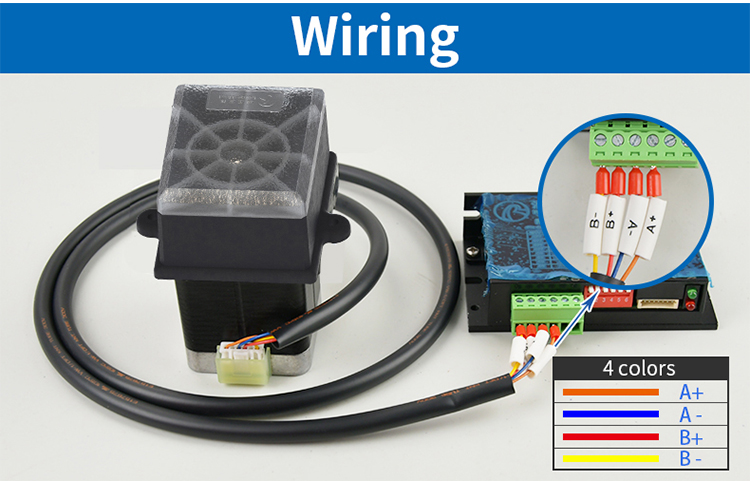

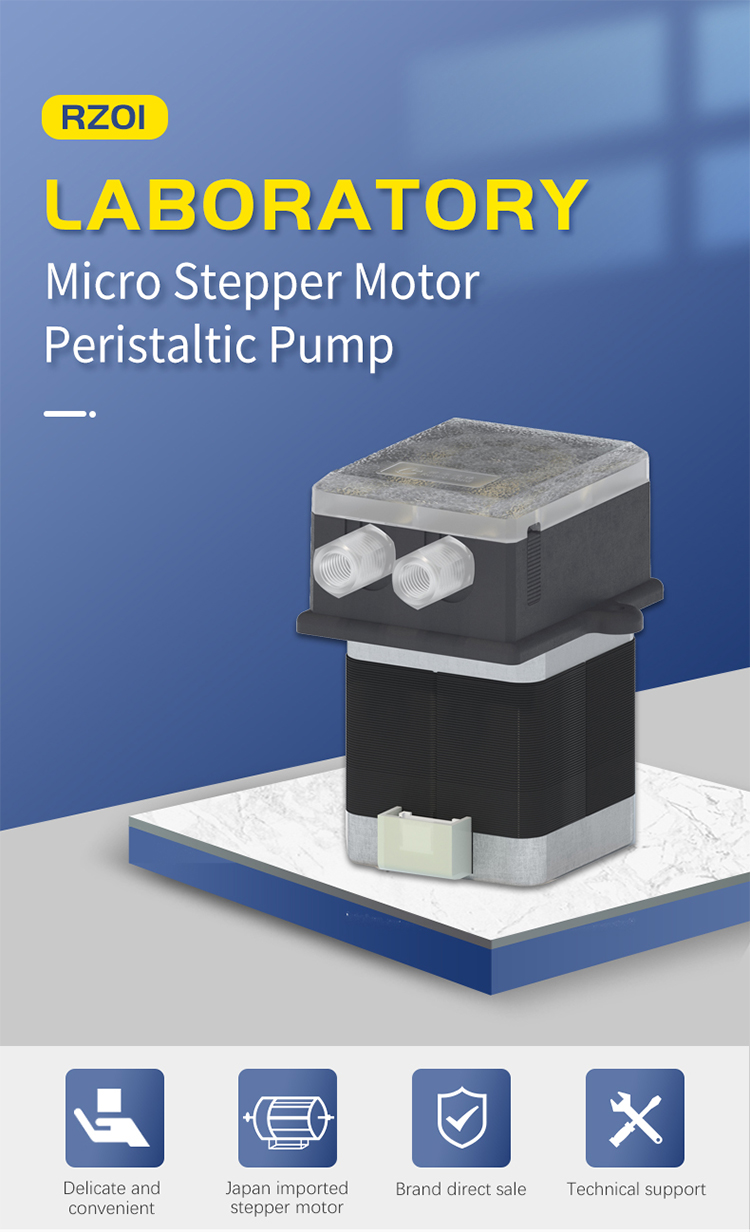

-Imported 42 stepper motors for low noise, high stability, long service life, and assured accuracy.
-Outlet pressure at 0.2MPa, head (piezometric head of approx. 20m).
-Suction range = atmospheric pressure (standard 10.33m) - cavitation margin of the pump -tube inlet loss - safety margin (0.5) - cavitation pressure of the medium.

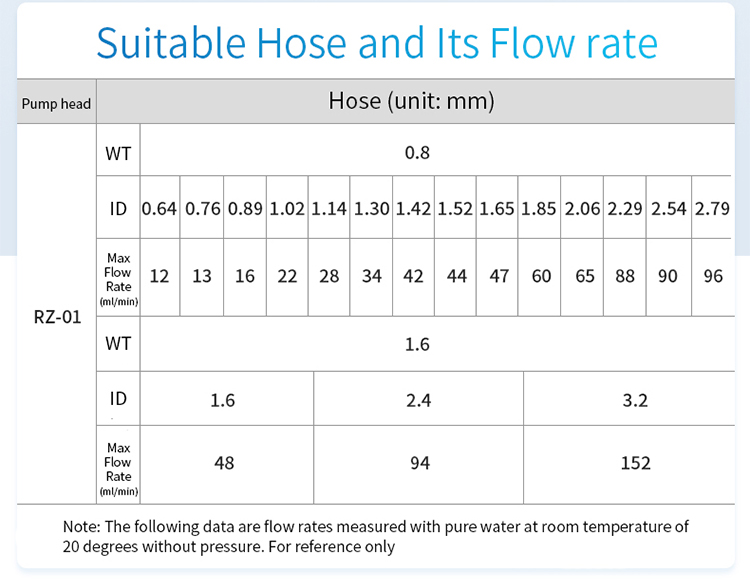

Max.Flow Rate Table
| Tubing (ID * WT mm) | Peristaltic Pump ( ml/min) | |
| RZ01-0.8-4 | RZ01-1.6-4 | |
| 0.64*0.8 | 12 | — |
| 0.76*0.8 | 13 | — |
| 0.89*0.8 | 16 | — |
| 1.02*0.8 | 22 | — |
| 1.14*0.8 | 28 | — |
| 1.30*0.8 | 34 | — |
| 1.42*0.8 | 42 | — |
| 1.52*0.8 | 44 | — |
| 1.65*0.8 | 47 | — |
| 1.85*0.8 | 60 | — |
| 2.06*0.8 | 65 | — |
| 2.29*0.8 | 88 | — |
| 2.54*0.8 | 90 | — |
| 2.79*0.8 | 96 | — |
| 1.6*1.6 | — | 48 |
| 2.4*1.6 | — | 94 |
| 3.2*1.6 | — | 152 |
