Flow Rate: 0.0015-480mL/min
- BT100M Basic Peristaltic Pump offers low flow rate realizing constant fluid transferring. Self-primming and compact size. Used for terminal cleaning machines.
- Precise speed control. Support multi-channle. Easy load peristaltic pump head.
- Digital peristalticic pump. Adjust the knob to control the speed and flow rate.
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. |

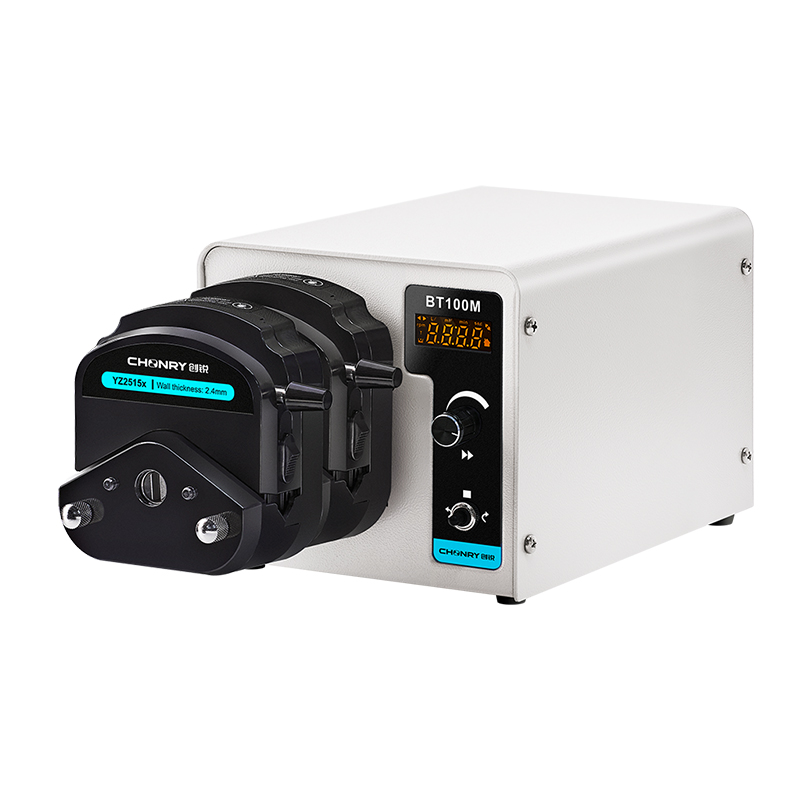

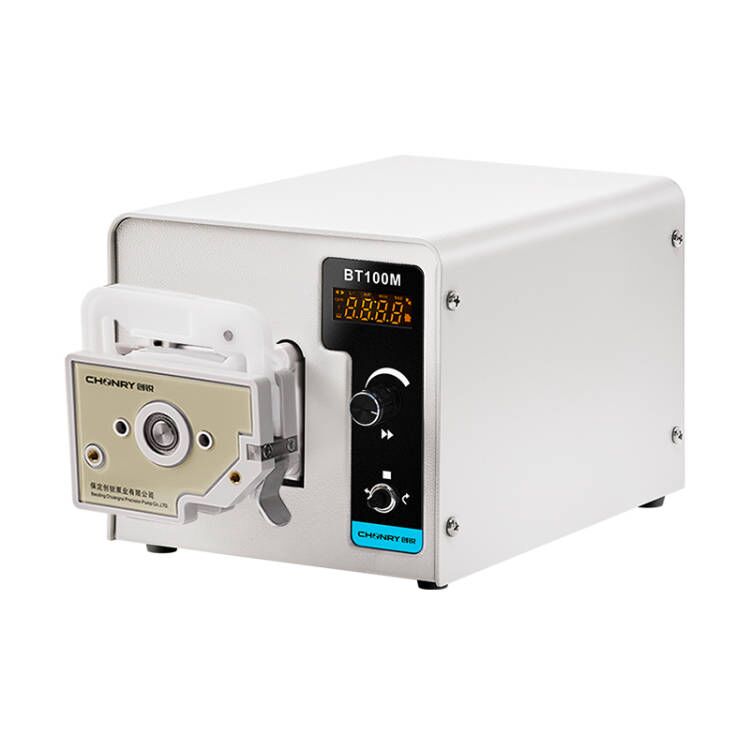

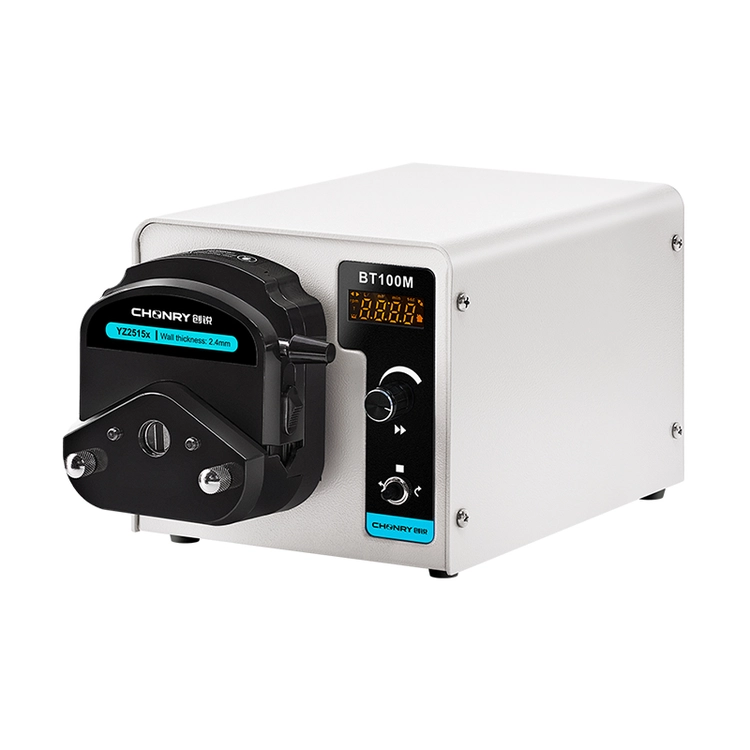

[CHONRY] BT100M Basic Peristaltic Pump
BT100M basic peristaltic pump is a low flow rate peristaltic pump.
It is used for constant liquid transfer.
Flow rate: 480mL/min. Easy load pump head and a digital display of rpm. BT100M low flow pump adopts easy knob operation.
Smart flow calibration function offers precise flow delivers. Fewer tubing changes.

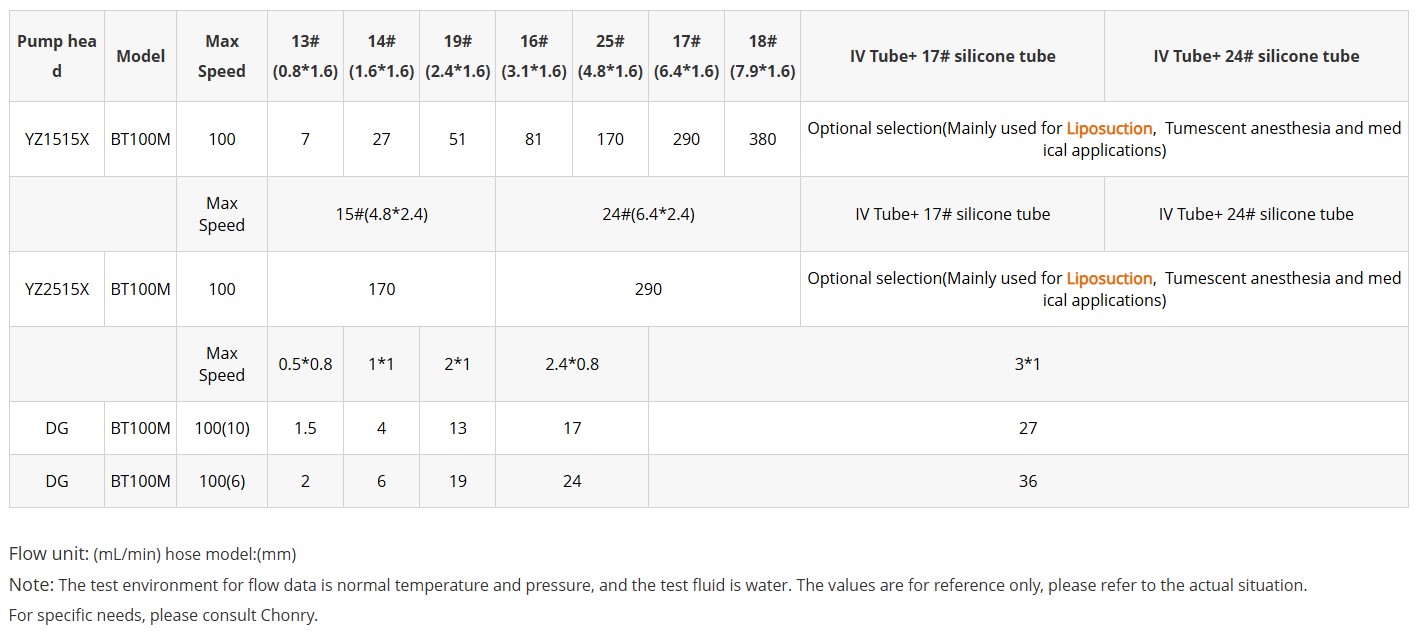

It can be loaded with YZ1515X, YZ2515X and DG series pump heads.
Support RS485/MODBUS communication protocol,
simple operation, and convenience.
Features:
Minimalist operation: Low power consumption motor, the digital knob is easy to operate, long life
External control operation: With RS485/MODBUS communication protocol, analog control
Flow calibration: Multiple calibrations can be performed to reduce flow rate errors and ensure flow accuracy
Adapt to multiple pump heads: Various pump heads such as YZ series, DG series and TX series can be installed
Power-off memory: Can automatically save the control parameters when the last power failure
Full speed function: Features a convenient full-speed button for quickly filling or emptying the hose
Application

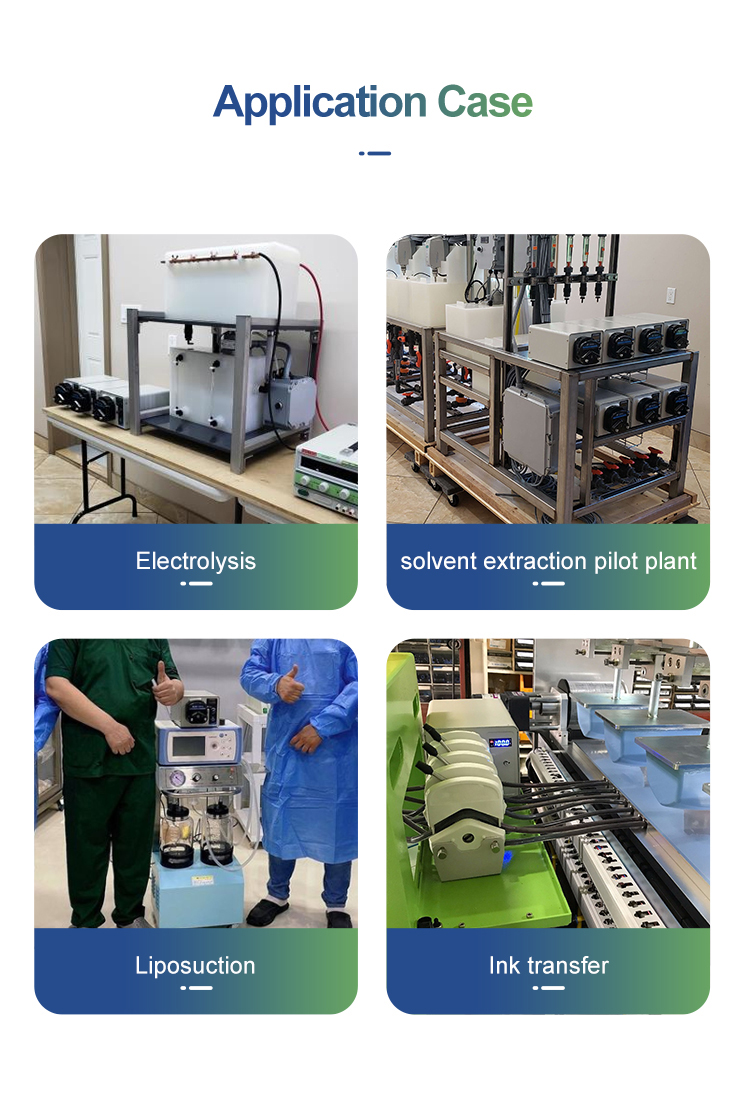

It can be used in solvent extraction plants, leaching pumps, flotation, sapphire grinding, polishing fluid transfer, endoscopic cleaning, lab chemical transferring and liposuction pumps.

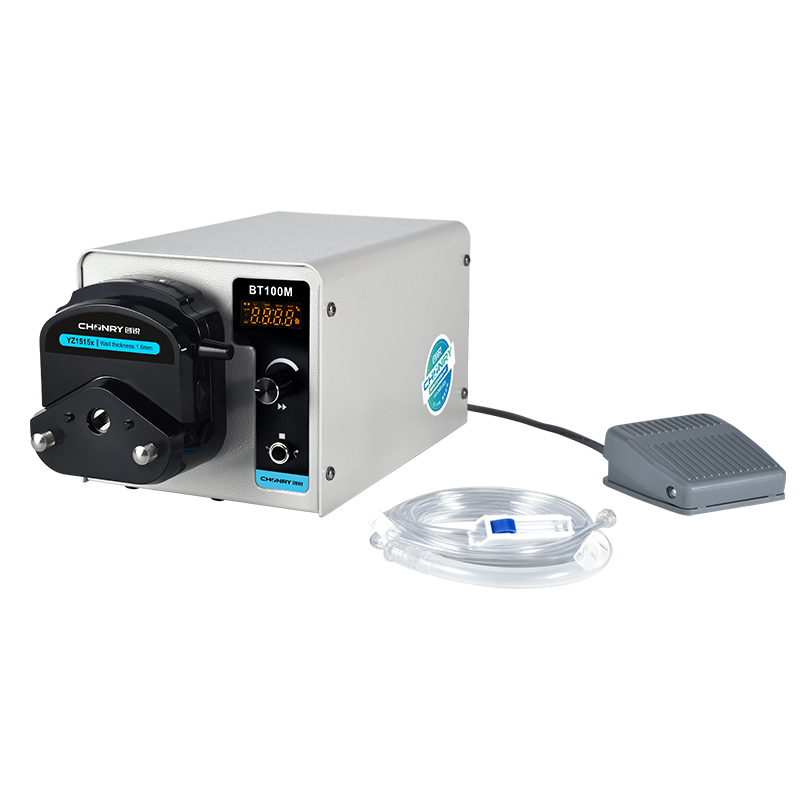

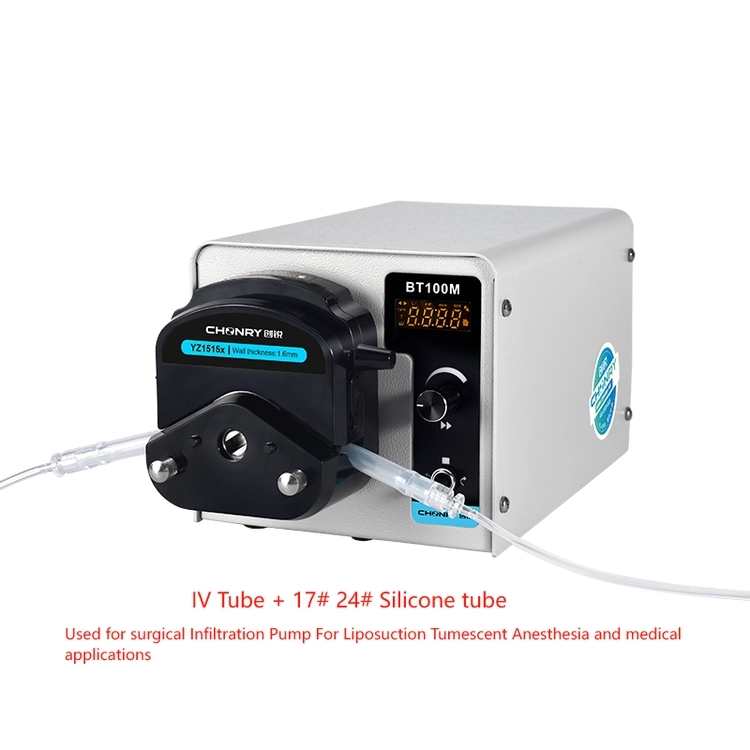

BT100M low-flow peristaltic liquid pump is used in liposuction surgery for Saline transfer / tumescent fluid transfer.
M Series_Chonry Peristaltic Pump
