Flow Rate: 1.3-12000mL/min
- Suitable for industrial production, pilot scale tests, ultrafiltration supporting and liquid transfer with large flow and high precision.
- Simple servo motor. Stable flow rate.
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. |

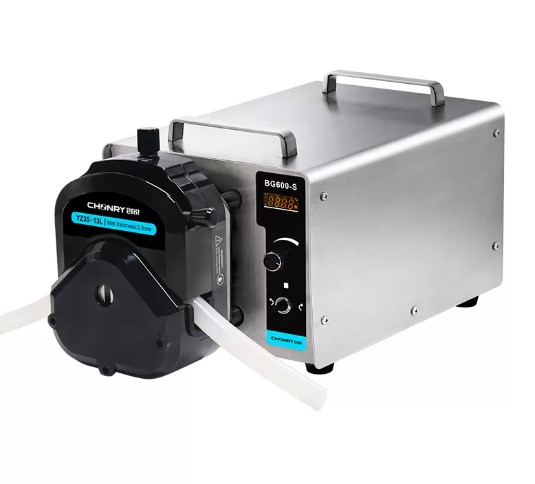

[CHONRY] BG600-S High Peristaltic Pump

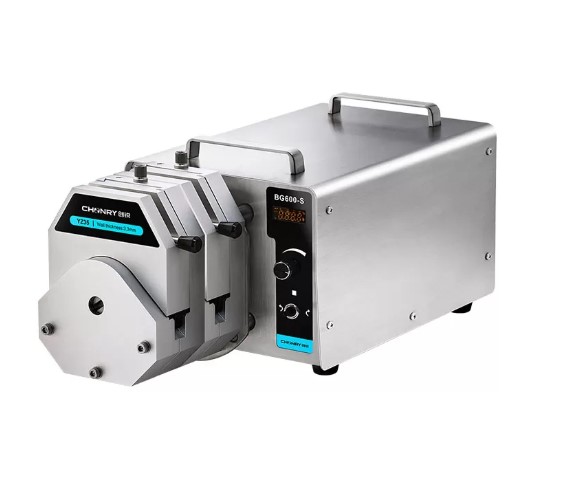

BG600-S peristaltic pump is high-flow and multi-channel. Adopting a simple servo motor ensures a stable flow rate.
This is a high flow peristaltic dosing pump with a flow rate range from 1.3 to 12000mL/min.

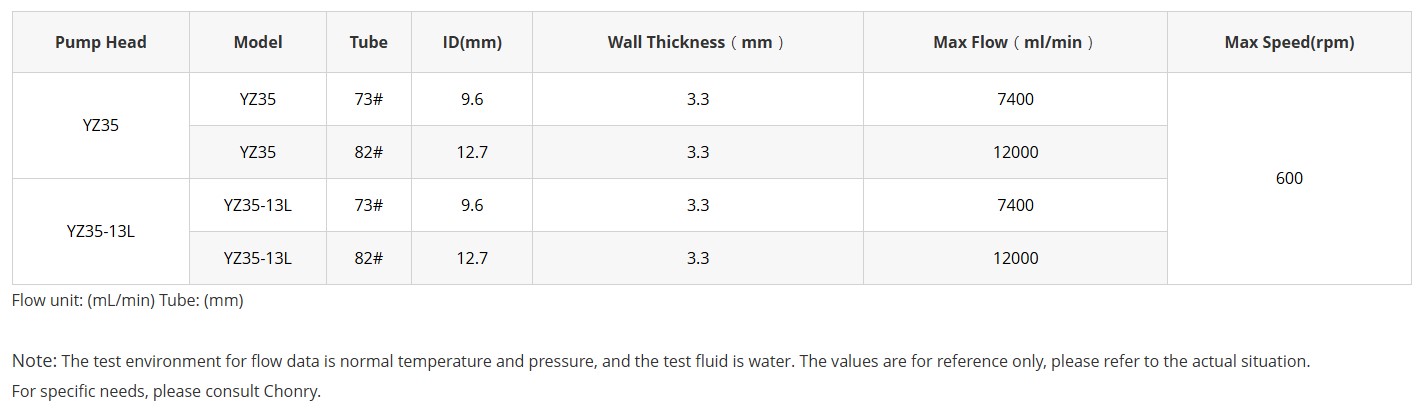

It is equipped with pump heads such as YZ35 and YZ35-13L: easy digital knob adjustment, and two-way large torque.

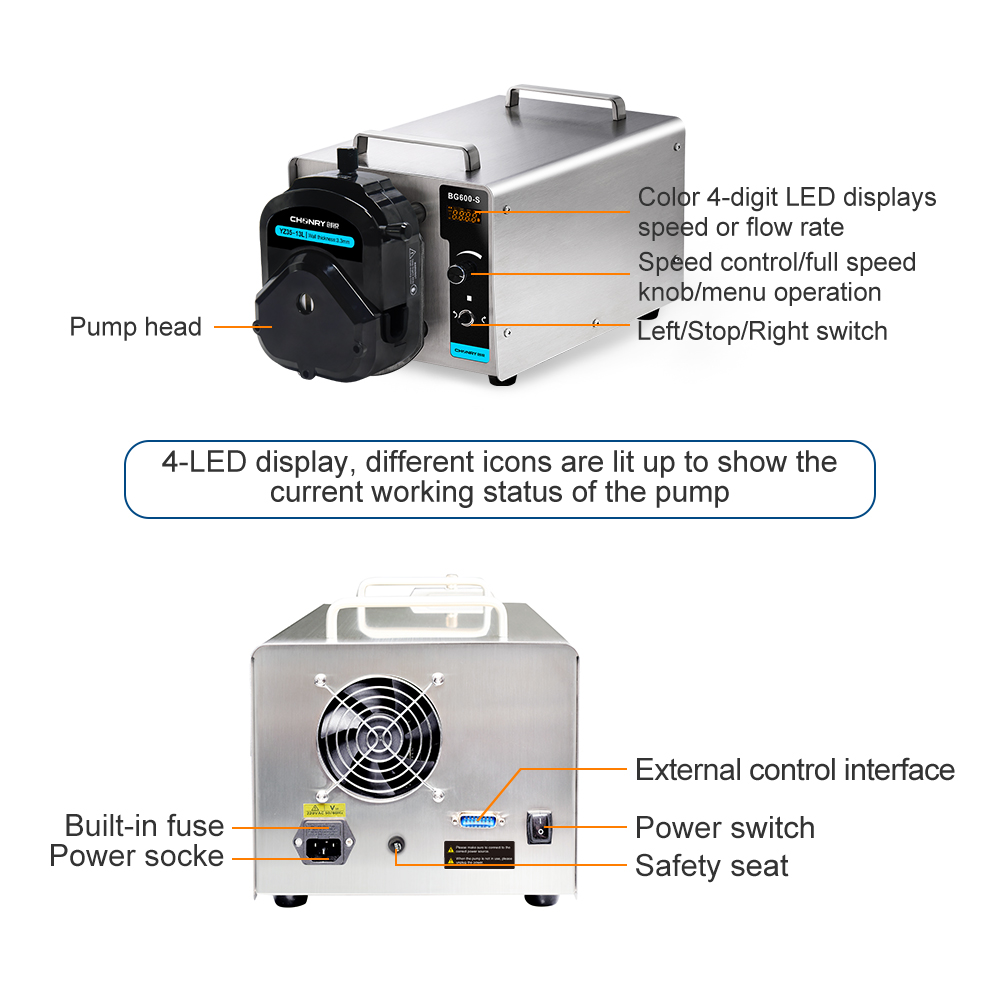

The current flow or speed is displayed through a 4-digit LED, and the liquid volume can be calibrated.
It supports the RS485/MODBUS communication protocol, and the knob adjusts the parameters. The operation is simple and convenient.

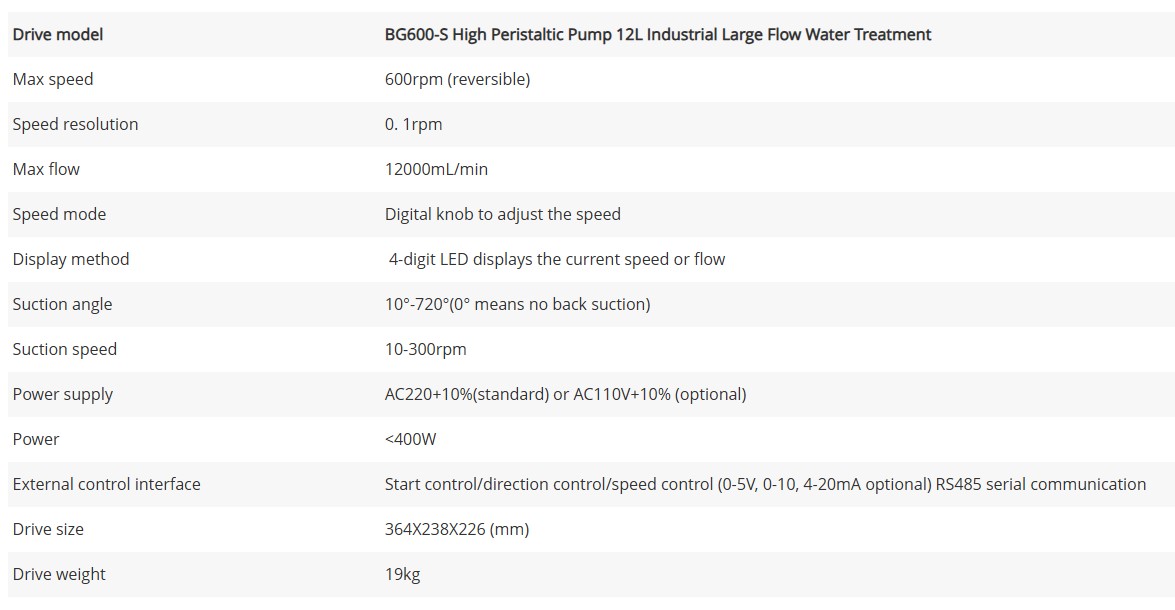

Specification
Power off save
Can automatically save the control parameters when the last power failure
One key full speed
For quick cleaning, filling, and emptying of pipes. Save time.
Flow calibrationAfter setting the target flow, input the actual flow value, and the system will automatically perform flow correction
Suction function
The pump can be customized to reverse operation after shutdown to prevent liquid from dripping
External control function
Support RS485/MODBUS communication protocol, the protocol can also be customized according to customer needs
Can be cascaded
Bidirectional high torque, low power consumption motor, can cascade multiple pump heads
Application
It is suitable for industrial production, water treatment, Solvent extraction, mining Flotation, pilot scale tests, ultra filtration supporting and liquid transfer with large flow and high precision.
How to use the BG600-S Multichannel Peristaltic Pump?
