Flow rate: 1.3-12000mL/min
BG600FJ-S is an industrial peristaltic pump that can switch the transmission and distribution modes by adjusting the key position.
Simple servo motor. High flow peristaltic pump. Smart flow calibration
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. |

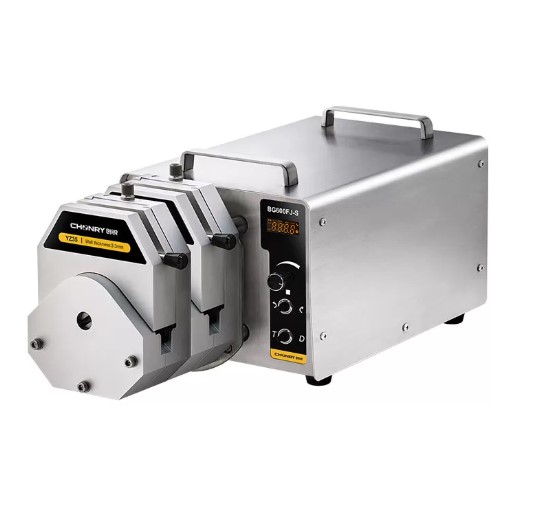

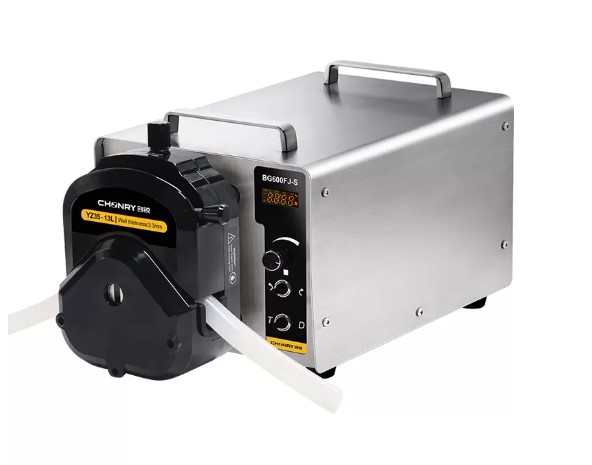

[CHONRY] BG600FJ-S Industrial Peristaltic Pump
BG600FJ-S industrial peristaltic pump high flow rate liquid dosing pump 12L/min.
It is a type of large flow digital peristaltic pump.
It can switch the transmission mode and distribution mode by adjusting the key position to different working environments.
It can be installed with YZ35, YZ35-13L, and YZ35LS pump heads. It supports multichannel. Simple digital knob adjustable and bidirectional high torque.
The current flow or speed is displayed through a 4-digit LED, and the liquid volume can be calibrated.
It supports the RS485/MODBUS communication protocol, and the knob adjusts the parameters.
The operation is simple and convenient
Features
Mode switch
Two modes of transmission or distribution can be switched by adjusting the key position.
Servo motor
Driven by servo motor, powerful and more accurate control.
Power off save
Can automatically save the control parameters when the last power fails.
Flow calibration
After setting the target flow, input the actual flow value, and the system will automatically perform flow correction.
Can be cascaded
YZ35, YZ35-13 L, and YZ35LS pump heads can be installed, and multiple pump heads can be cascaded.
External control function
Support RS485/MODBUS communication protocol. the protocol can also be customized according to customer needs
Application
It is used in industrial fermentation, and fluid transportation such as superplasticizers and admixtures, and is suitable for large-flow sub-packaging environments.
