2800-33000mL/min
LG350FJ is a high-flow peristaltic pump.
It can switch the transmission mode and distribution mode by adjusting the key position, adapting to different working environments, and installing a KZ50 pump head, the maximum flow can reach 33L, digital knob adjustment, and two-way large torque.
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. |

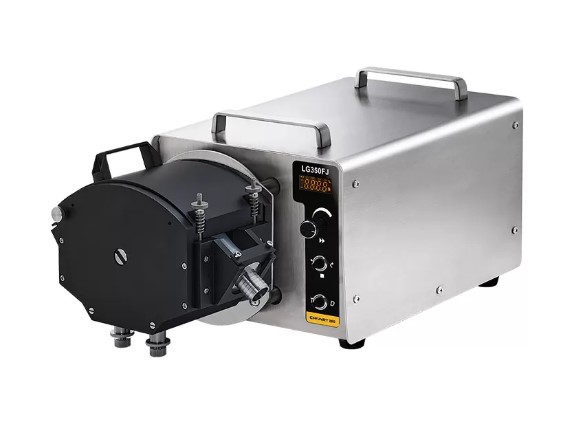

[CHONRY] LG350FJ High Flow Peristaltic Pump
LG350FJ is a peristaltic pump with a high large flow.
It can switch the transmission mode and distribution mode by adjusting the key position and adapting to different working environments.
It is installed with a KZ50 pump head and the maximum flow can reach 33L. Digital knob adjustment, and two-way large torque.
The current flow or speed is displayed through a 4-digit LED, and the liquid volume can be calibrated.
It supports the RS485/MODBUS communication protocol, and the knob adjusts the parameters.
The operation is simple and convenient.

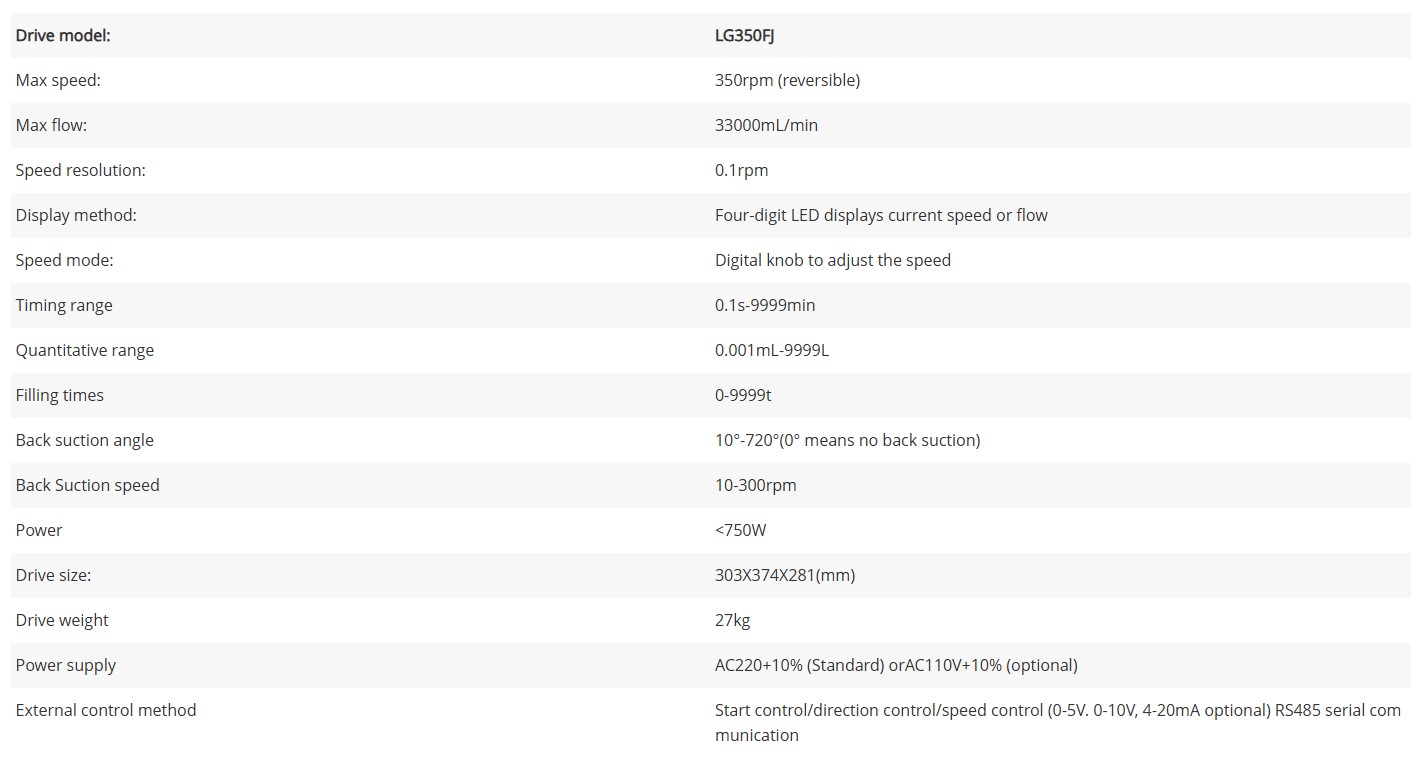

Specification
• By adjusting the key position, the two modes of transmission or distribution can be switched.
• Quick cleaning, filling and emptying of pipes.
• It can automatically save the control parameters when the last power fails.
• After setting the target flow, input the actual flow value, and the system will automatically perform flow correction.
• Support RS485/MODBUS communication protocol, the protocol can also be customized according to customer needs.
• KZ50 pump head can be installed, the maximum transmission is 33L.
Application
It is used in industrial fermentation, fluid transportation such as superplasticizers and admixtures, and is suitable for large-flow sub-packaging environments.
모바일 환경에서는 표를 좌·우로 스크롤해주세요.
고객센터
배송안내
배송기간
주의사항
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. |
[CHONRY] LG350FJ High Flow Peristaltic Pump
LG350FJ is a peristaltic pump with a high large flow.
It can switch the transmission mode and distribution mode by adjusting the key position and adapting to different working environments.
It is installed with a KZ50 pump head and the maximum flow can reach 33L. Digital knob adjustment, and two-way large torque.
The current flow or speed is displayed through a 4-digit LED, and the liquid volume can be calibrated.
It supports the RS485/MODBUS communication protocol, and the knob adjusts the parameters.
The operation is simple and convenient.
Specification
• By adjusting the key position, the two modes of transmission or distribution can be switched.
• Quick cleaning, filling and emptying of pipes.
• It can automatically save the control parameters when the last power fails.
• After setting the target flow, input the actual flow value, and the system will automatically perform flow correction.
• Support RS485/MODBUS communication protocol, the protocol can also be customized according to customer needs.
• KZ50 pump head can be installed, the maximum transmission is 33L.
Application
It is used in industrial fermentation, fluid transportation such as superplasticizers and admixtures, and is suitable for large-flow sub-packaging environments.
