Motor type:Stepping motor
Speed range:0.1-600 rpm
Flow range:0.007~2280ml/min（Max）
Maximum power:400W
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. |

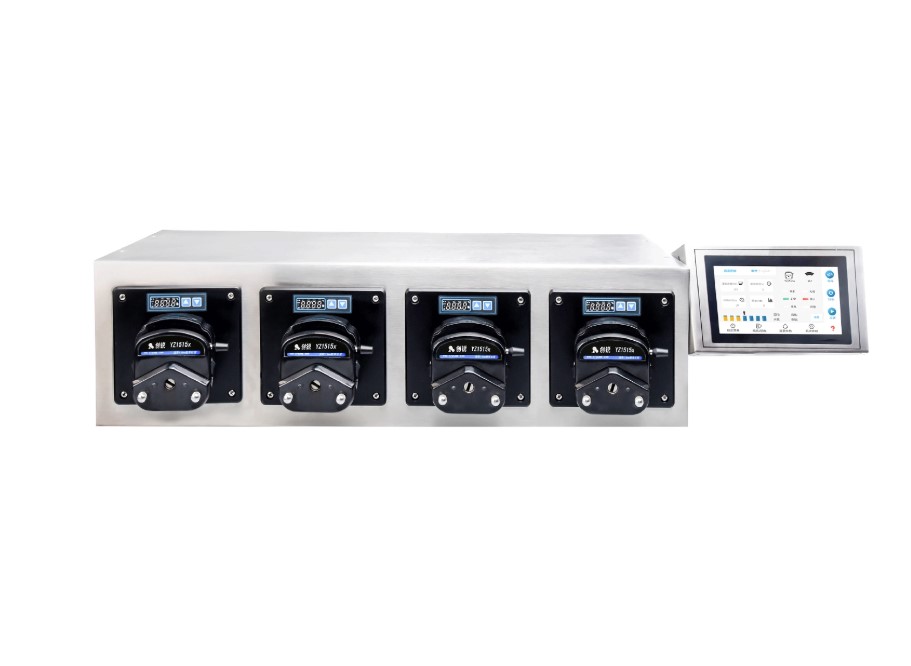

[CHONRY] UTF01-YZ1515x Peristaltic Tube Pump
UTF01-YZ1515x Peristaltic Tube Pump Liquid Dispensing Filling Systems 4 Channels Pharmaceutical Chemical

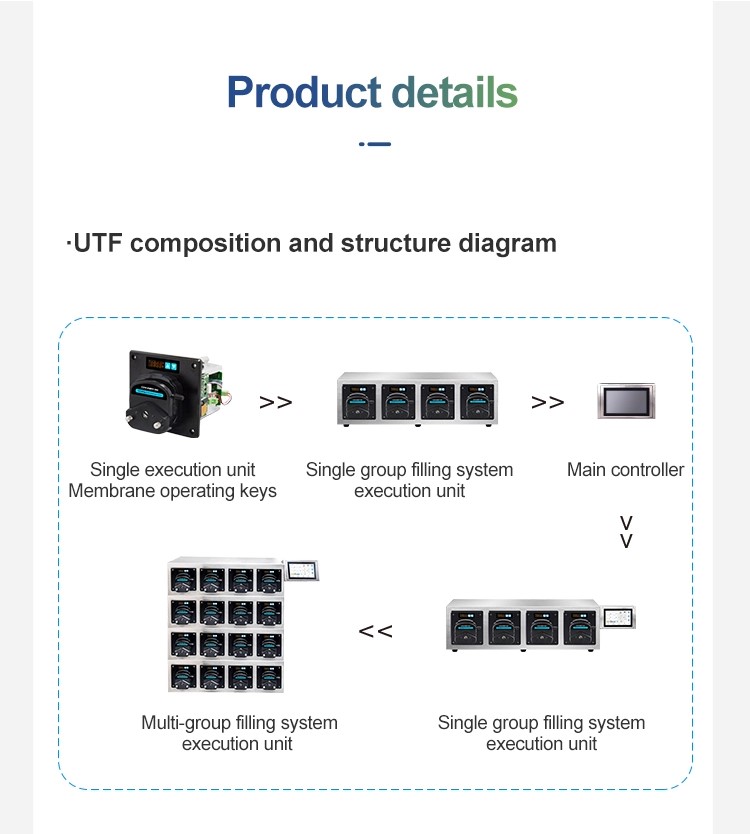

UTF01 liuqid dispensing & filling system peristaltic pumps have 4 channnels. 2280ml/min/channel. Varibale speed peristaltic pump 600rpm. Touch screen operation, precision control. It consists of an intelligent filling system and the main controller.The standard drive unit is 4channels,which can be expanded up to 32 channels and has a suck back function to prevent dripping,Can be adapted to 7 dif-ferent tubes,（The default 17# pump tube, if you need other types of pump tubes, please consult customer service.）which can fully meet customer application needs and provide more flow selection.
1.Specification:UTF01/YZ1515x peristaltic tube pump. flowrate range is 0.007~2280ml/min,maximum power: 400W, voltage: 110V-220(Send 110V by default),speed range: 0.1-600rpm.Controller-AC90-260V/50/60Hz;Single group system-AC180-260V/50/60Hz;
2.LCD screen:The controller adopts a 7-inch touch screen, the menu interface is practical and friendly, and the operation is simple and convenient.
3.Customer data saving function: Support saving and recalling of customer parameter schemes.can save 20 sets of data for customers.
4.The peristaltic pump has high liquid filling accuracy and stability.The lower shearing effect is more suitable for filling biologically active liquids.When filling the liquid,the liquid only contacts the tube,which eliminates the risk of the pump contaminating the liquid or the liquid contaminating the pump.By choosing a corrosion-resistant tube, it can be used to fill various corrosive liquids. By choosing a wear-resistant soft The tube can be used to fill liquids containing solid particles.
5.Control mode:Manually operate on the touch screen;the upper computer operates through communication commands,and it is also equipped with a foot switch that can be used to control the start and stop.With a variety of control methods,RS485 communication interface and MODBUS communication protocol are available.Users can request custom PC software for remote control.(If you need an external control line,please contact us for remarks.)
Application:
UTF01 peristaltic pump liquid dispensing filling system handle the transmission and production filling of various liquids, mainly used in food, beverage, pharmaceutical reagents, chemical, biopharmaceutical etc.

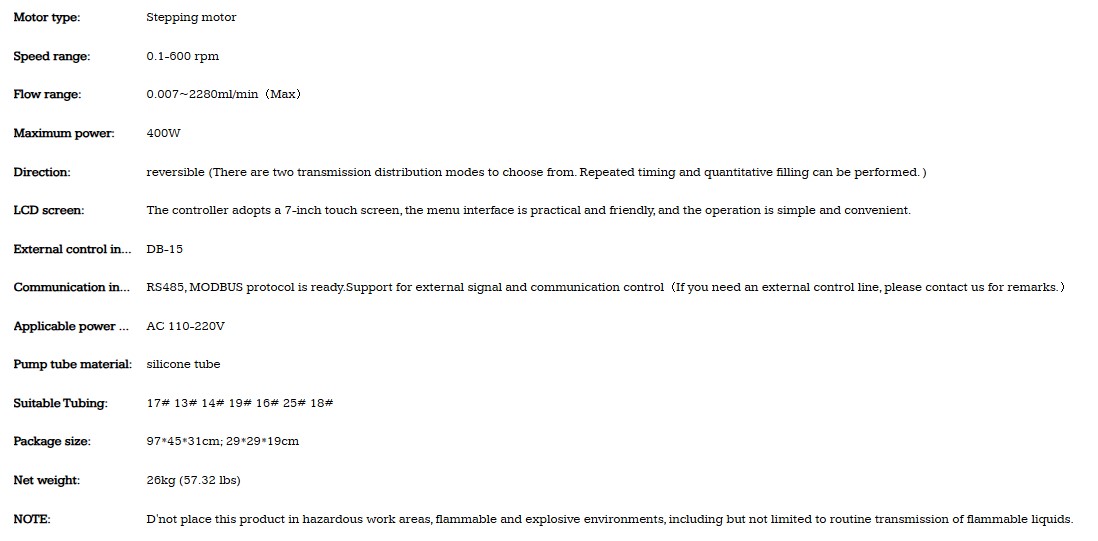

Product Specification
Motor Type | Stepper motor |
Speed range | 0.1-600 rpm |
Flow range | 0.007~2280ml/min（Max） |
Maximum power | 400W |
Direction | reversible (There are two transmission distribution modes to choose from. Repeated timing and quantitative filling can be performed. ) |
LCD screen: | The controller adopts a 7-inch touch screen, the menu interface is practical and friendly, and the operation is simple and convenient |
External control interface | DB-15 |
Communication interface | RS485, MODBUS protocol is ready.Support for external signal and communication control（If you need an external control line, please contact us for remarks. |
Applicable power supply | AC 110-220V（110v is sent by default, if you need 220v, please consult customer service in advance.） |
Pump tube material | silicone tube |

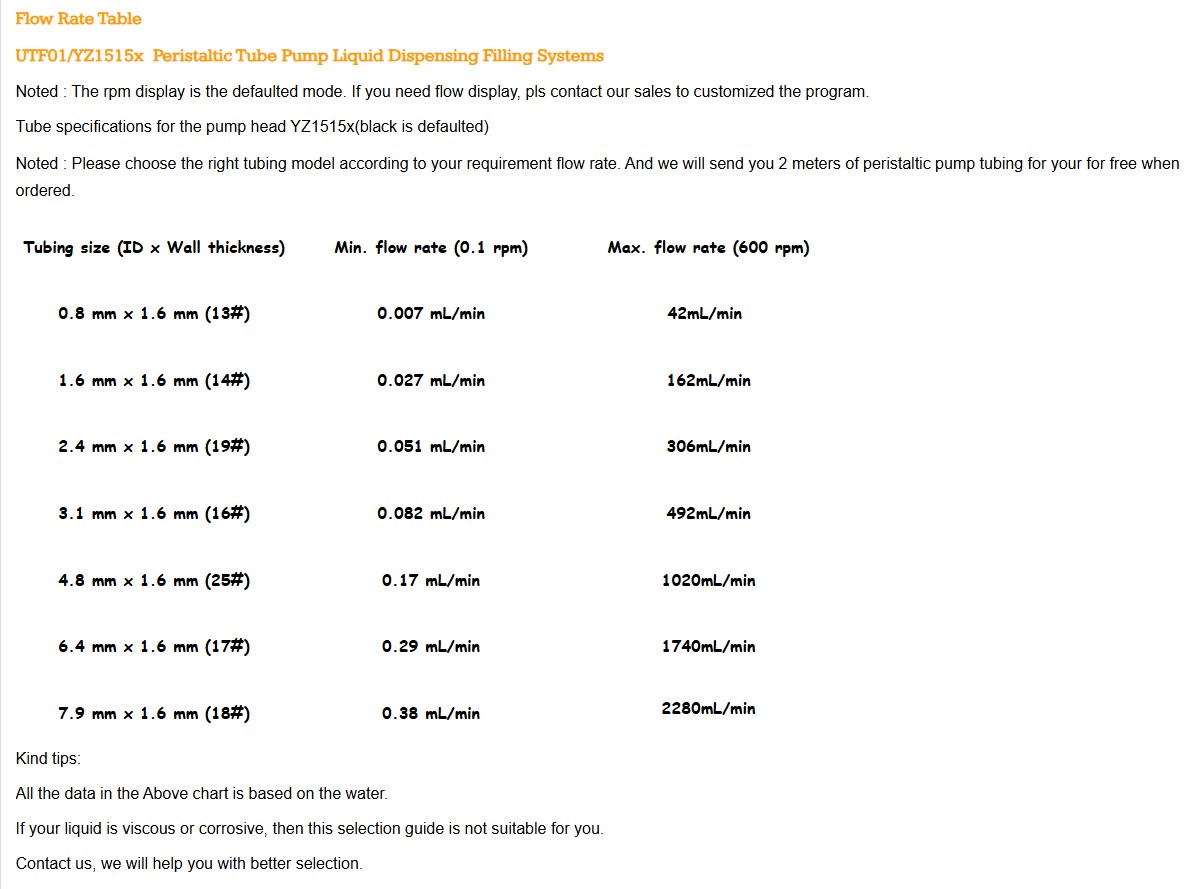

Suitable Tubing | 17# 13# 14# 19# 16# 25# 18#（The default 17# pump tube, if you need other types of pump tubes, please consult customer service.） |

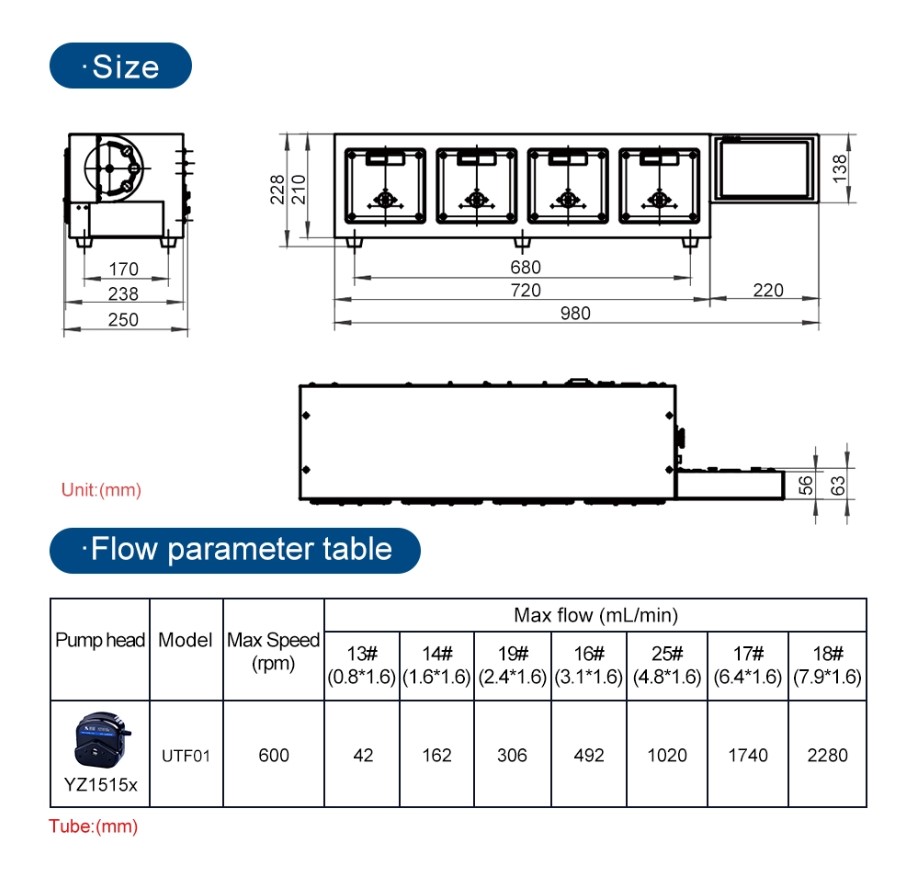

Package size | 97*45*31cm |
Net weight | 26kg |

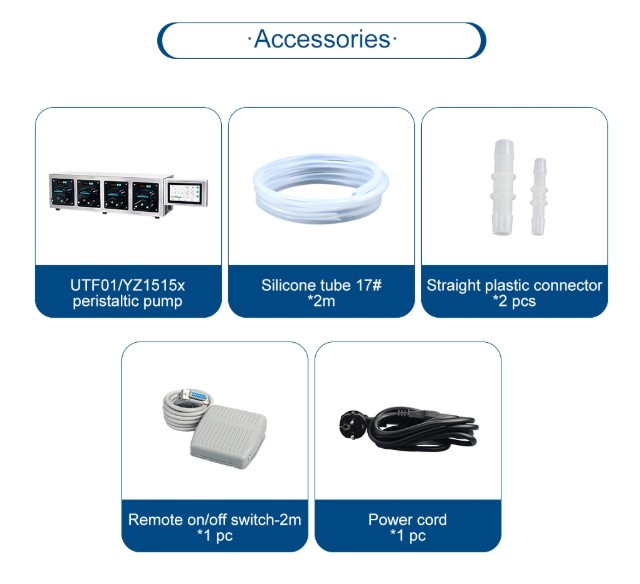

Package: | 1* Peristaltic pump |
