CATEGORY：DSC series split-body type
Reference flow：0.96pl/min~506.55ul/min
Product features:One driven 4 structures, 4 drives independent control; 4 channel control,work,calibrate independently. high-precision; Low pulsation; Suitable for a variety of complex application combinations. Full touch screen,fit μ L standard injector. The vertical installation structure can be conveniently used together with biological instruments such as micromanipulator, brain stereolocator, and is widely used in various biological experimental fields.
원산지 CHINA
제조사 ACMER
브랜드 ACMER
무게 1kg
103,015 포인트 적립예정 적립예정
택배 · 기본 무료
120,000원 이상 구매 시 무료배송
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |

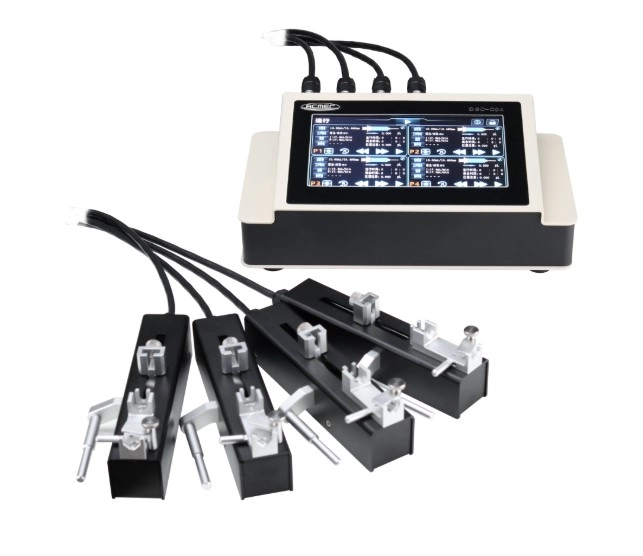

[ACMER] 4Channel split-body syringe pump - DSC-D04/4xSL70B
1、Working mode：【injection】、【suction】、【injection/suction】、【suction/injection】、【multiple injection】、【continuous】
2、Touch screen display：7-inch high-definition touch screen, simple, clear, easy to understand and use.
3、Syringe option:built-in mainly used syringe produced by major manufacturers , and can be customized.
4、Calibration: Syringe calibration is available and can store calibration parameters .
5、Scheduled start ：can set delay time of each channel
6、Speed adustment on line: Current flow rate is adjustable during operation
7、Power-on operation: The current dynamic operation parameters are stored when the power is off, and the operation continues when the power is on
8、Parameter settings: liquid volume, flow rate, injection time, suction time, interval time, injection times can be setted on each channel and stored indenpendently
9、Prompt function: real-time display of the Max/Min flow rate；display of running parameters dynamically
10、Reminder function: Sound alarm when run to the target liquid volume
11、Pushing force : The appropriate thrust can be set according to the syringe specification
12、External control start/stop: external control level signal (5-24v) or contact signal to realize start/stop
13、Communication control: RS485/USB optional, touch setting address and baud rate
14、Status output: output start/stop and direction status
Channel： 4
Precision： Repeat precision0.05%
Stroke length：max Max70mm
Syringe specification：0.5ul-250ul
Linear thrust range： >25N
Linear speed range：0.12um/min~121.92mm/min
Steping resolution：0.190um/ustep
Scheduled start time：0-6553.5 s (min hr)
Interval time： 0-65535 s
Touch screen display：1024*600 7"high-definition touch screen
Power supply： AC90-264V 50/60Hz
Working environment： temperature 0-40℃ Humidity 20%-80% RH no dewing
IP rating： IP31
Measurement： Controller 240*149*87.5(mm) executive unit 163*34*34（mm）
Flow rate table
| Syringe | Inner diameter of syringe（mm） | Flow rate（nl/min~ml/min） | Syringe | Inner diameter of syringe （mm） | Flow rate （nl/min~ml/min） |
| 0.5ul | 0.103 | 0.0007~0.0013 | 500ul | 3.256 | 0.6658~1.3322 |
| 1ul | 0.146 | 0.0013~0.0027 | 1ml | 4.73 | 1.4060~2.8110 |
| 2ul | 0.206 | 0.0027~0.0053 | 2ml | 8.92 | 4.9990~9.9980 |
| 5ul | 0.343 | 0.0074~0.0148 | 2.5ml | 8.92 | 4.9990~9.9980 |
| 10ul | 0.485 | 0.0148~0.0295 | 5ml | 12.4 | 9.6620~19.3220 |
| 25ul | 0.729 | 0.0334~0.0668 | 10ml | 14.87 | 13.8940~27.7860 |
| 50ul | 1.03 | 0.0667~0.1333 | 20ml | 19.07 | 22.8500~45.6990 |
| 100ul | 1.457 | 0.1334~0.2668 | 50ml | 28.95 | 52.6600~105.3190 |
| 250ul | 2.304 | 0.3335~0.6671 | 60ml | 29.47 | 54.5680~109.1360 |
