It is suitable for accurate transmission of flow in laboratories and industrial fields.
The speed can reach 300rpm and the flow can reach 1140ml/min.
The plastic-sprayed metal shell is stable and generous,
and can be used in harsh industrial production environments.
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. |

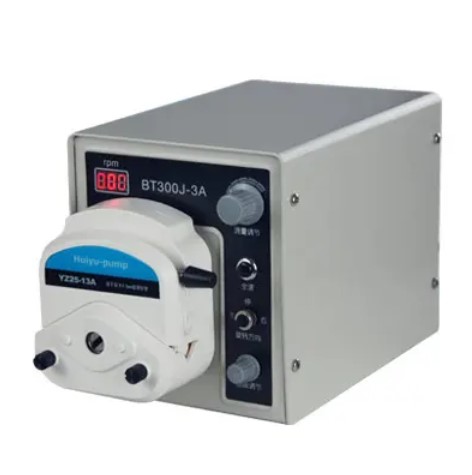

[HUIYU] BT300J-3A
[ compact size peristaltic pump / high precision peristaltic pump / Peristaltic Pump ]
Features
◇ Membrane buttons can control start and stop, direction and speed
◇ Can quickly fill and empty function
◇ It can communicate with the host computer
◇ External control signal can control start and stop, direction and speed
◇ Power-down memory function
◇ Leakage protection function
◇ Overheat protection function
Technical parameter
◇ Speed range: 1-300rpm, resolution 1rpm
◇ Direction of rotation: forward/reverse
◇ Adjustment method: membrane button and knob adjustment
◇ Display mode: three-digit LED digital tube displays the current speed
◇ External control interface: start-stop control, direction control, speed control (0-5V/0-10V voltage signal, 4-20mA current signal, 0-10kHz pulse signal are all available)
◇ Communication mode: RS485 half duplex
◇ Applicable power supply: 90-260V AC, 50/60Hz
◇ Work rate: ≤50W
◇ Working environment: ambient temperature 0-40℃, relative humidity <80℃
◇ Dimensions: 237×148×170 (length×width×height) mm
◇ Weight: 3.5kg
◇ Degree of protection: IP31
