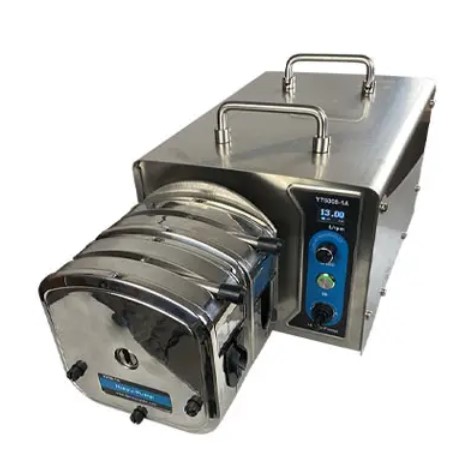

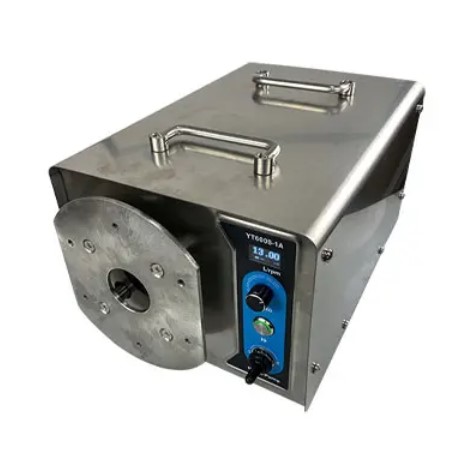

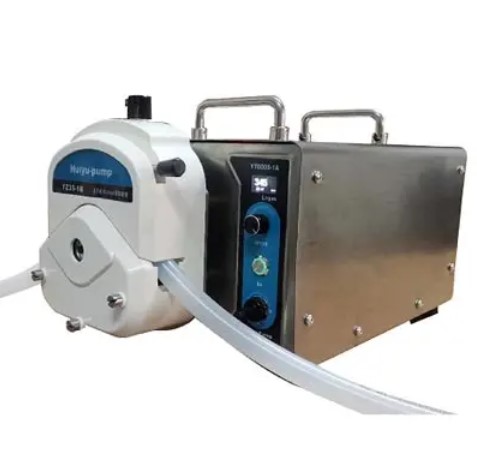

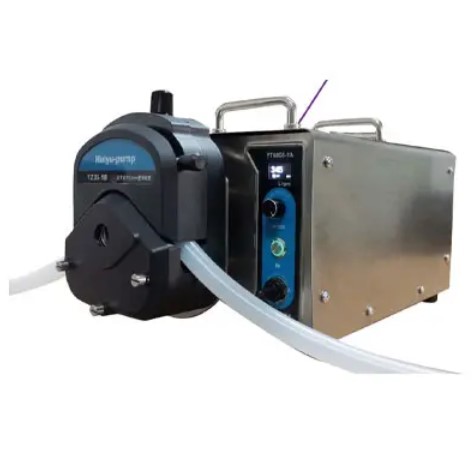

[HUIYU] YT600S-1A
[ Industrial Peristaltic Pump / large flow rate pump / stainless steel housing peristaltic pump ]
Product description
Driven by stepping motor, lower speed and higher flow stability
One-key switch flow status (take 82# tube flow as reference)
Support Modbus communication protocol
Lighter weight, add RS485 communication function
Features

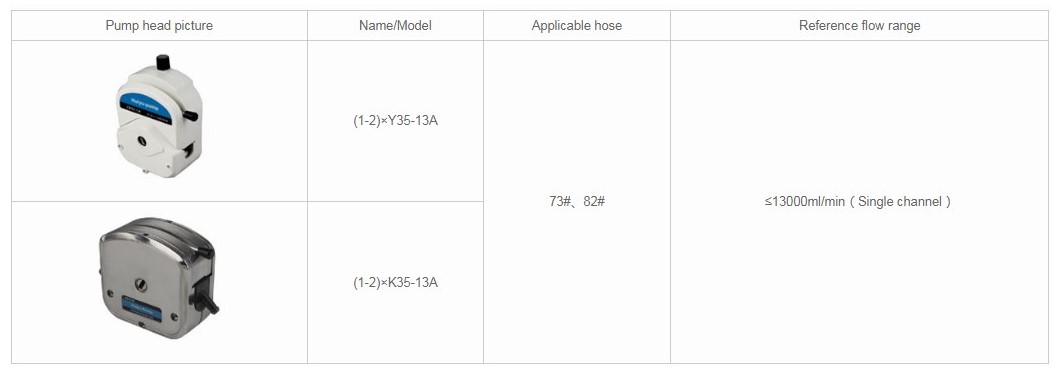

◇ A variety of pump heads can be adapted: YZ35, KZ35
◇ Suitable for industrial production, large flow conveying
◇ It is mostly used in the food and pharmaceutical packaging machinery industry, with a stainless steel pump head integrated with the body
◇ When equipped with a single-channel pump head, it can cooperate with the sub-assembly controller for cyclic control and timing start-stop function
Technical parameter
◇ Speed range: 1-650rpm, reversible forward and reverse
◇ Control method: knob combined with button, support external signal control
◇ Speed adjustment mode: the speed of the pump is adjusted by the digital knob
◇ Start-stop mode: left/stop/right control is completed by the panel switch
◇ External control function: start-stop control, direction control, speed control (4-20mA, 0-5V, 0-10V)
◇ Applicable power supply: AC 220 ±10%
◇ Power rate: ≤400W
◇ Working environment temperature: 0-40℃
◇ Relative humidity: <80%

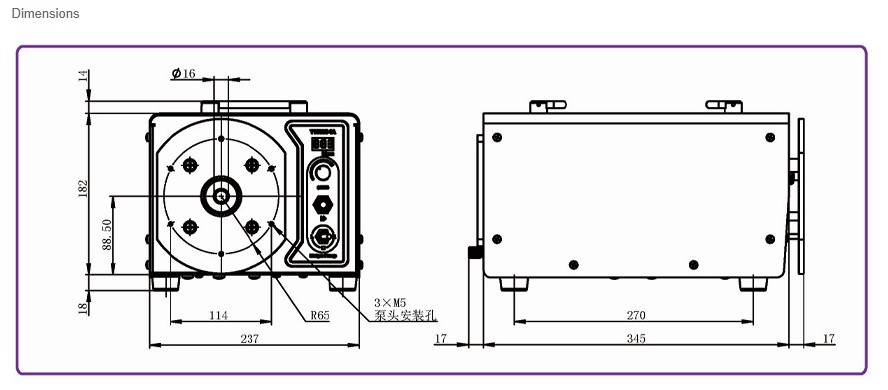

◇ Dimensions: 360x240x200 (length x width x height) mm
◇ Degree of protection: IP31
◇ Weight: 15.22Kg
