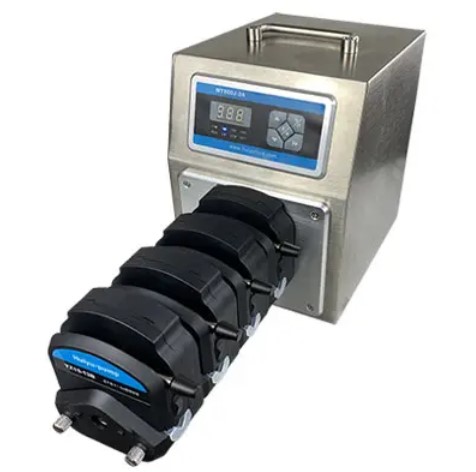

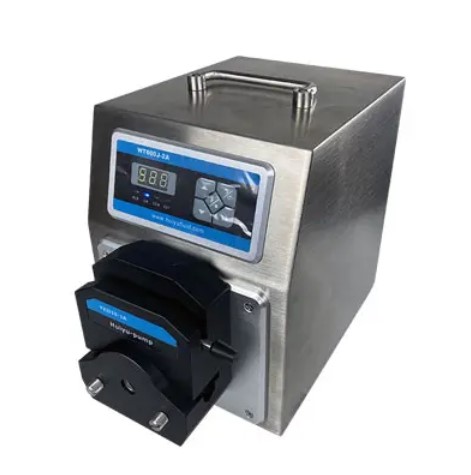

[HUIYU] WT600J-2A
[ DC brushless motor pump / high IP rate peristaltic pump / large flow rate pump ]
Product description
This product has a high degree of protection and can be adapted to multi-channel applications
Main features: large output torque, low vibration, high efficiency, maintenance-free; using DC brushless motor drive, dedicated integrated circuit closed-loop control
Can drive a variety of multi-channel pump heads, single-channel flow range: 4.2-6000ml/min
Features
◇ High protection level: suitable for harsh environments with more humidity and dust
◇ Full speed function key: fast cleaning, emptying function
◇ Memory function: automatic storage of speed, running direction, machine number
◇ Communication function: with RS485 communication function, control the work of the pump
◇ Display function: 3-digit LED digital tube speed display function
◇ External control interface input function: you can control the speed, start and stop, and the direction of rotation

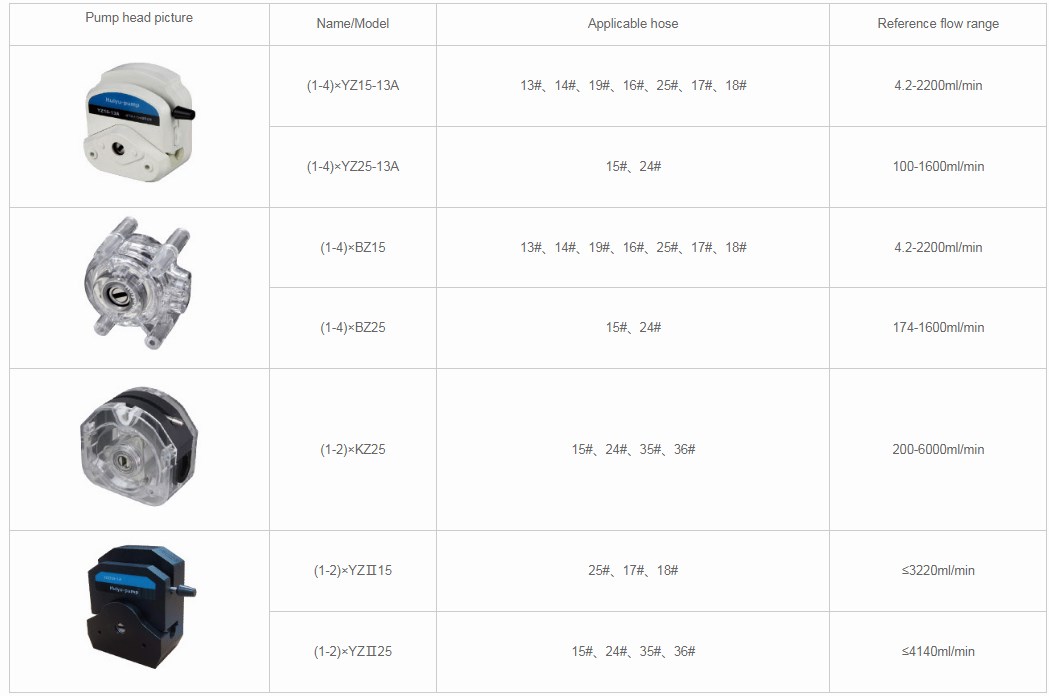

◇ A variety of pump heads and hoses can be installed, which expands the scope of use and is convenient for customers
◇ Large torque output, which can drive multi-channel pump head to work
◇ Driven by DC brushless motor, large output torque, maintenance-free
◇ Switch button operation mode, simple and practical
Technical parameter
◇ Speed range: 60-600pm
◇ Speed control accuracy: ≤±1.0%
◇ Speed resolution: 1.0rpm
◇ Output torque: 1.5N.m
◇ Display mode: 3 LEDs display the current speed; 4 LEDs respectively indicate the working status
◇ Memory function: automatically save operating parameters
◇ External control speed regulation function: 0.5-5V/1-10V/4-20mA/1-10KHz corresponding to 60-600rpm optional
◇ Communication interface: RS485 mode
◇ Working environment: ambient temperature 0-40℃
◇ Relative humidity: <80%
◇ Power supply mode: 220V AC±20% 50Hz/60Hz
◇ Power consumption: ≤200W

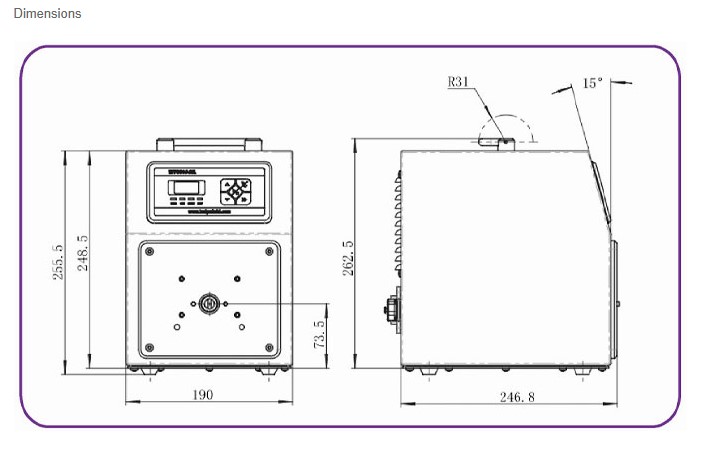

◇ Dimensions: 250×190×260 (length×width×height) mm

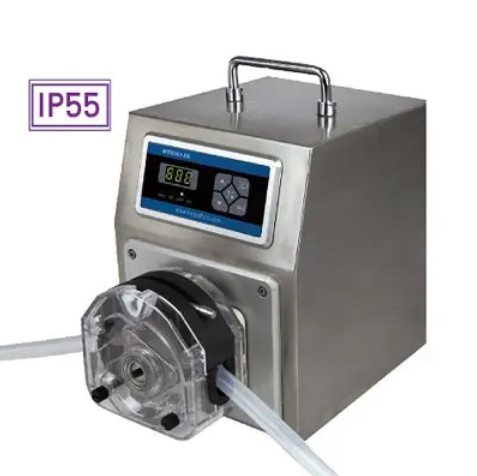

◇ Degree of protection: IP55
◇ Drive weight: 8kg
