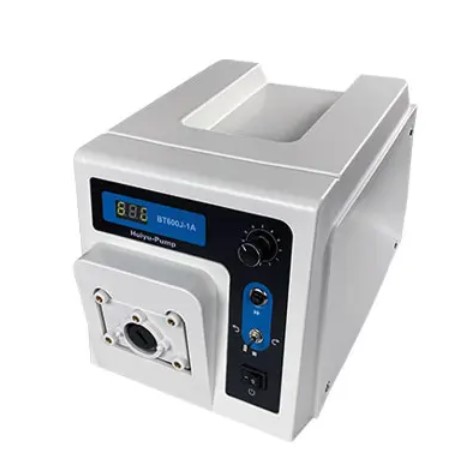

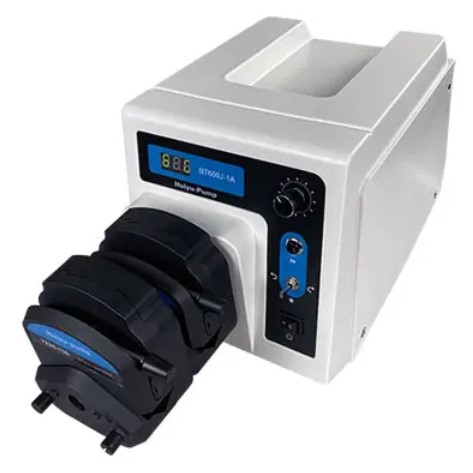

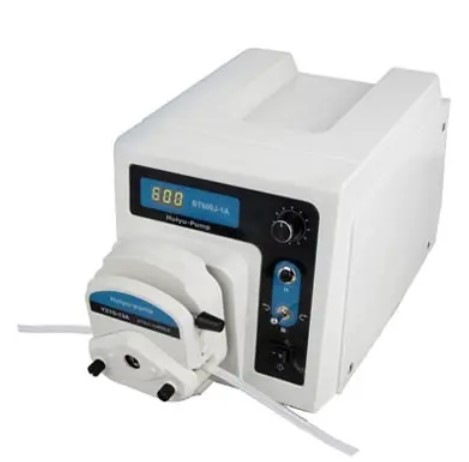

[HUIYU] BT600J-1A
[ basic peristaltic pump / Factory Peristaltic Pump / high precision peristaltic pump / Peristaltic Pump ]
Product description
The stepper motor is subdivided and driven, and the speed is 600 rpm, which can provide a flow of 2200ml/min; the top of the casing is designed with a handle, which is convenient for moving and carrying the body. This pump is used in conjunction with the sub-packing controller FK-1A, which can realize the filling function, and the operation is simple and intuitive
Features
◇ MAX key: with filling and emptying functions
◇ Rotation speed can be adjusted manually or controlled by external control interface
◇ Power-down memory function: After power-on again, it will work according to the state of the last power-off
◇ With RS485 communication function, external control analog quantity and pulse control function
Technical parameter
◇ Speed range: 1-600 rpm forward and reverse reversible
◇ Speed resolution: 1 rpm
◇ Control mode: knob combined with button, support external signal control and communication control
◇ Display mode: 3-digit LED speed display
◇ External control function: start-stop control, direction control, speed control ((0-5V, 0-10V, 0-10KHZ optional)
◇ Communication interface: RS485
◇ Power-down memory: After power-on, it can continue to work according to the state before power-off
◇ Full speed function: One key to control full speed work, used for filling, emptying, etc.
◇ Dimensions: 290×210×186 (length×width×height) mm
◇ Applicable power supply: AC 90V-260V
◇ Work rate: ≤100W
◇ Working environment: temperature 0℃-40℃, relative humidity <80%
◇ Degree of protection: IP31
◇ Weight: 3.8Kg
