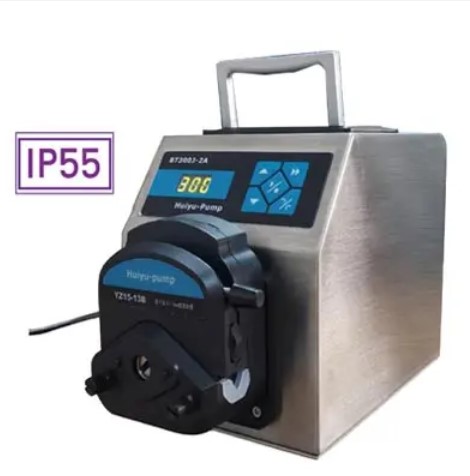

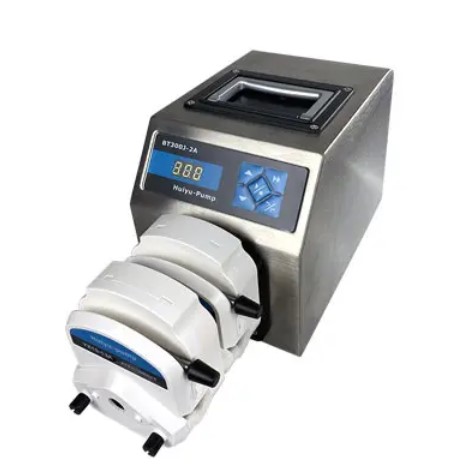

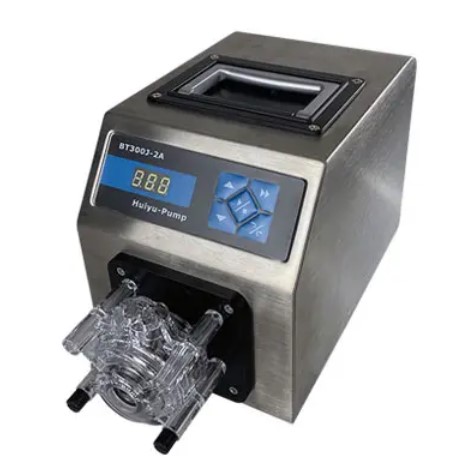

[HUIYU] BT300J-2A
[ high IP rate peristaltic pump / Industrial Peristaltic Pump / IP55 peristaltic pump / Peristaltic Pump / stainless steel housing peristaltic pump ]
Product description
Industrial peristaltic pump, high protection level
Suitable for industrial production environments such as dampness and heavy sinking
Product Features
◇ Membrane buttons can control start and stop, direction and speed
◇ Can quickly fill and empty function
◇ It can communicate with the host computer
◇ External control signal can control start and stop, direction and speed
◇ Power-down memory function
◇ Leakage protection function
◇ Overheat protection function
Technical parameter
◇ Speed range: 1-300rpm, resolution 1rpm
◇ Direction of rotation: forward/reverse
◇ Adjustment method: membrane button and knob adjustment
◇ Display mode: three-digit LED digital tube displays the current speed
◇ External control interface: start-stop control, direction control, speed control (0-5V/0-10V voltage signal, 4-20mA current signal, 0-10kHz pulse signal are all available)
◇ Communication method: RS485 half duplex
◇ Applicable power supply: 90-260V AC, 50/60Hz
◇ Work rate: ≤50W
◇ Working environment: ambient temperature 0-40℃, relative humidity <80℃

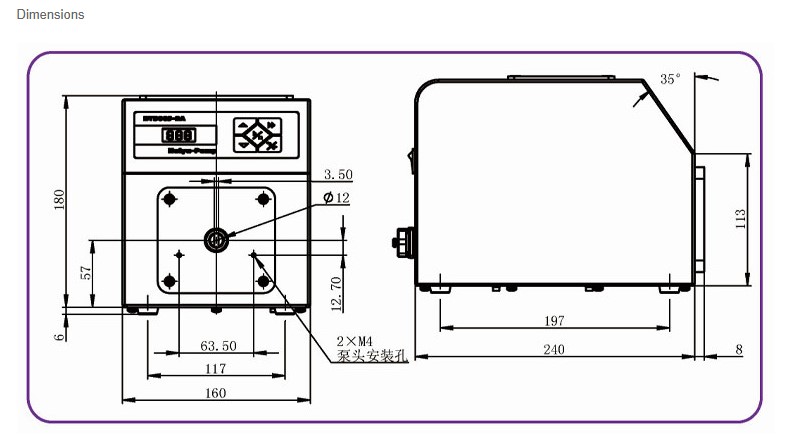

◇ Dimensions: 250x160x190 (length x width x height) mm
◇ Weight: 4.32kg
◇ IP: 55
