Flow rate≤380ml/min
The most popular peristaltic pump used in laboratory
Accurate quantitive filling fuction, automatic calibration
Remote control by PLC or host computer
Compact size and exquisite appearnce ,stable performance
The operation panel with 18° angle make the pump easy to use
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. |
[HUIYU] BT100F-1A
[ Buy Peristaltic Pump / Intelligent Peristaltic Pump / Lab Peristaltic Pump / Longer Peristaltic Pump / Mini Peristaltic Pump / Peristaltic Hose Pump / Peristaltic Liquid Pump / Peristaltic Metering Pump / Peristaltic Pump Tubing / Peristaltic Tube Pump / Portable Peristaltic Pump ]
Max flow rate：380ml/min
Technical parameter
Speed: 0.1-100 rpm, reversible
Speed precision: 0.1 rpm
Dispensing volume: 0.01mL to 9.99L
Copy number: 1 to 9999, 0 means unlimited cycle.
Pause time : 0.1sec to 99.9 min
Speed control: membrane keypad and rotary encoded switch
External control: 0 – 5V , 0 – 10V , 4 – 20 mA , 0 – 10KHz optional
communication control: RS485
Output signal: start/stop, direction output and speed, OC gate output mode
Operating condition: Temperature 0 to 40°C, Relative humidity < 80%

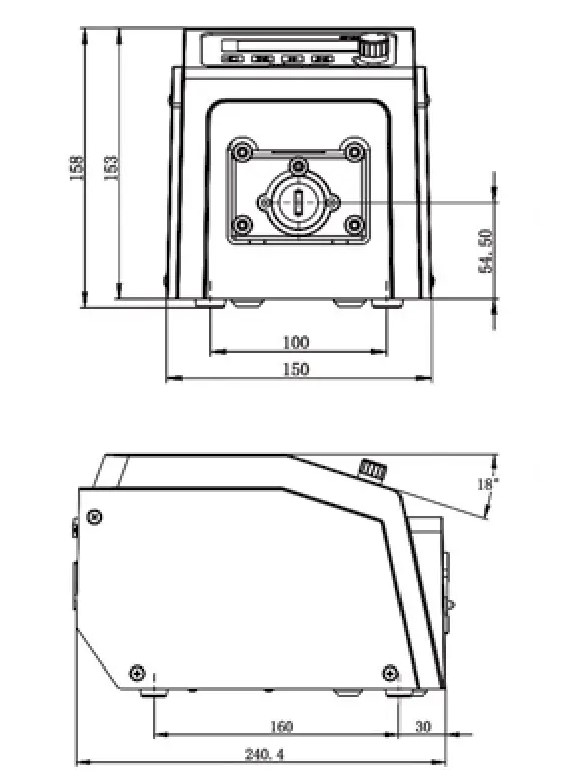

Dimensions (L × W × H): 243×151×157 (mm)
Power: 90-260V AC，50/60Hz
Power consumption: < 40W
Drive Weight: 3.5 kg
IP rating: IP 31
