[HUIYU] CT100-1A
[ Buy Peristaltic Pump / Intelligent Peristaltic Pump / Lab Peristaltic Pump / Longer Peristaltic Pump / Mini Peristaltic Pump / Peristaltic Hose Pump / Peristaltic Liquid Pump / Peristaltic Metering Pump / Peristaltic Pump Tubing / Peristaltic Tube Pump / Portable Peristaltic Pump ]
Detailed introduction
Reference flow range: 0.0002-900ml/min
product description

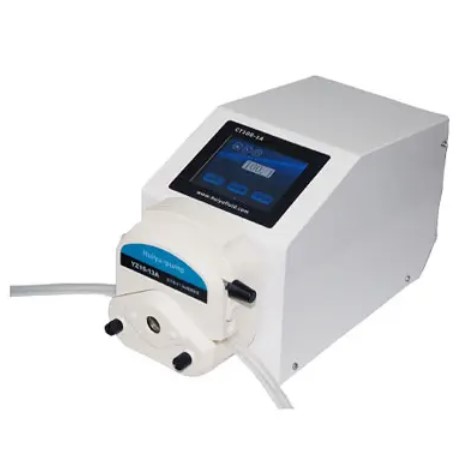

The metal casing design, the buttons and display are designed with advanced ergonomics and at an angle of 30° to the horizontal. Acid and alkali resistant, corrosion resistant.
In English and Chinese, the speed is increased to 200 rpm and the touch screen is controlled.
It can realize simple dispensing, timing quantitative, continuous packaging, flow testing and other functions.
Features

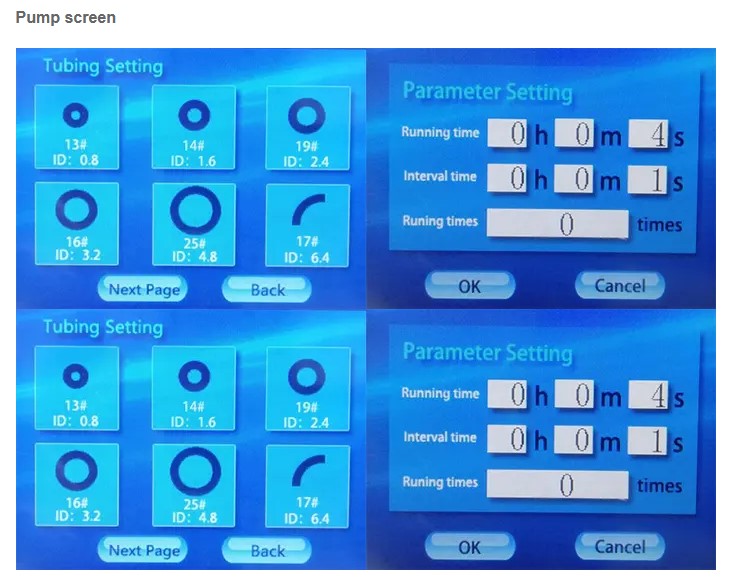

Touch screen operation
◇ Start and stop functions
Clockwise and counterclockwise operation, LED indication operation
Speed adjustment function (increasing speed and deceleration), which can display the speed and direction
◇ Full speed function (to achieve fast filling and draining of pipes) Communication with the host computer (computer)
◇ External control function (standard current, voltage, pulse signal control speed; level signal control start and stop, direction)
Power-down memory function
Leakage and overheat protection
Simple dispensing function, which can set running time, intermittent time, running times, realize timing quantitative, continuous packing, flow test, etc.
◇ With suckback function, effectively prevent liquid dripping
Technical Parameters
Speed range: 0.1-200 rpm, resolution 0.1 rpm
Timing running time: 0.1~999 seconds/min/hour
Intermittent time: 0.1~999 seconds/min/hour
Number of cycles: 0~999 times (0 is an infinite loop)
◇ External control interface: start-stop control, direction control, speed control (0-5V/0-10V, 4-20mA, 0-10kHz)
Communication method: RS485 half duplex
◇ Applicable power supply: suitable for a wide range of voltages 90-260V AC, 50/60Hz
◇ Maximum power: <40W
◇ Working environment: ambient temperature 0-40 ° C, relative humidity <80%
◇ Weight: 2.5kg
Dimensions: 228 × 130 × 160 (length × width × height) mm
Protection level: IP31
