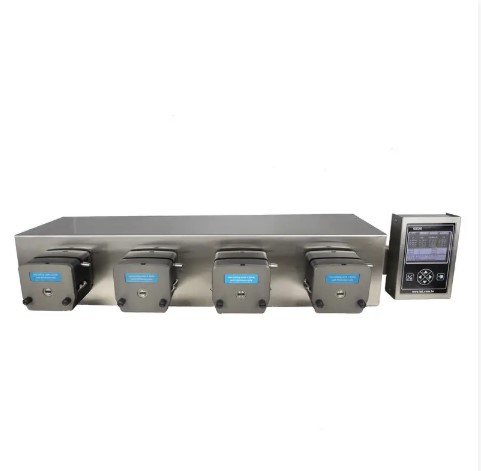

[HUIYU] GZ30-1A
[ Buy Peristaltic Pump / Intelligent Peristaltic Pump / Lab Peristaltic Pump / Longer Peristaltic Pump / Mini Peristaltic Pump / Peristaltic Hose Pump / Peristaltic Liquid Pump / Peristaltic Metering Pump / Peristaltic Pump Tubing / Peristaltic Tube Pump / Portable Peristaltic Pump ]

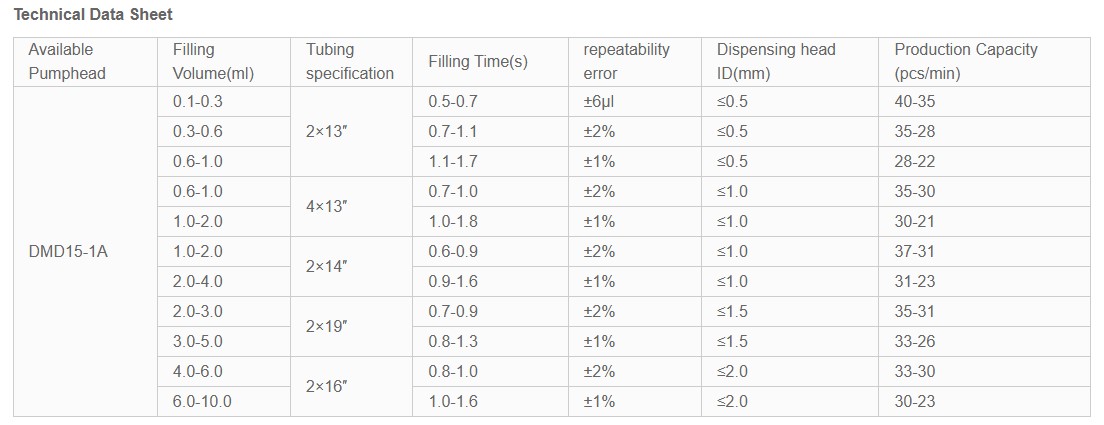

Technical Parameter
Volume range of filling: 0.1ml—30ml
Time range of filling: 0.5—30s
Speed range: Calculate automatically according to the volume and time of filling.
Back Suction Angle: 0—1000°
Speed range of Tubing wash: Tubing wash and pre-filling, 15—350 rpm(13#, 14#, 19#, 16#)
Calibration: put the actual volume into the pump, it can make a calibration automatically.
Adjust solution amount online: Users can adjust the solution amount and percentage online
Number of filling: can set the filling times without signal control, 1—60000, “0″ means infinite loop way.
Start/stop control (stop—filling when lack of bottles): 4 pairs of contacts input, corresponding to 4 channels.
Memory Function: Repower the pump, it can keep the parameters before power—down.
Communication Interface: RS485, Support Modbus Rlues.
Dimension: 640×265×130 (mm)
Available Power: 220VAC±10%/150W
Working condition temperature: 0℃—40℃
Relative Humidity : ＜80%
IP Grade: IP31
