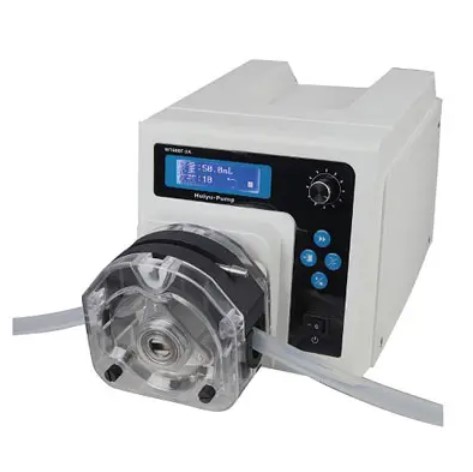

[HUIYU] WT600F-2A
[ Buy Peristaltic Pump / Intelligent Peristaltic Pump / Lab Peristaltic Pump / Longer Peristaltic Pump / Mini Peristaltic Pump / Peristaltic Hose Pump / Peristaltic Liquid Pump / Peristaltic Metering Pump / Peristaltic Pump Tubing / Peristaltic Tube Pump / Portable Peristaltic Pump ]
Technical paremeter
● Speed : 10-600 rpm, reversible
● Speed precision: 1 rpm
● Speed control: toggle switch and rotary encoded switch, accept external control and communication control
Display: LCD
● Dispensing volume: 0.1 mL to 99.9 L
● Calibration function: The flow rates and the dispensing volume can be calibrated to increase the accuracy
● Copy number: 1 to 9999 , 0 means unlimited cycle
● Pause time : 0.1 s to 99 min
● External control: start/stop control, direction control, speed control (0 – 5V ,0 -10V , 4 – 20 mA , 0 – 10KHz optional )
● running mode signal output: 166.7Hz-10kHz
● corresponding10rpm-600rpm
● Start and stop status signal output: OC gate signal output
● Direction status signal output: OC gate signal output
● Communication interface: RS 485
● Memory function: repower the pump, user can choose whether to continue in accordance with the state before the power-down
● Prime button for fast filling and emptying
● Power: AC 90V-260V/40W
● Operating condition: Temperature 0 to 40°C, relative humidity < 80%
● Dimensions (L × W × H): 285 × 207 × 180 (mm)
● IP rating: IP 31
● Drive weight: 5.2 kg
