Mainly used in laboratory,industry,research institute and college for liquid filling
User-friendly operation interface
Various control modes,standard external control port and RS485 communication
Upper handle and knob in front, convenient to use
max flow rate :1140ml/min
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. |

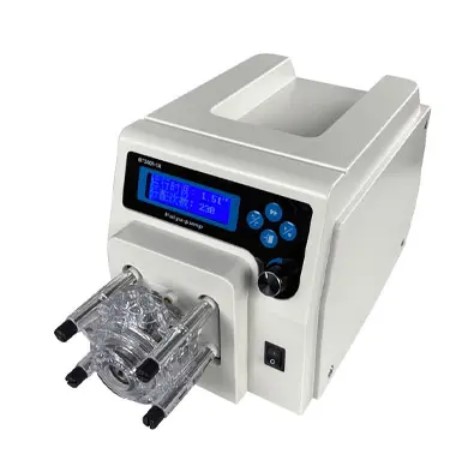

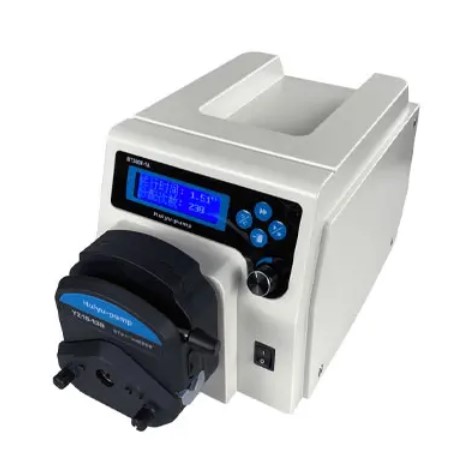

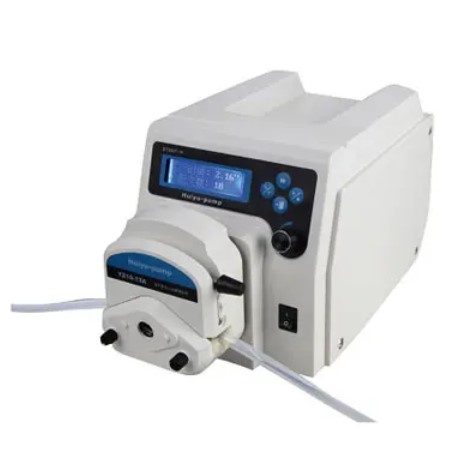

[HUIYU] BT300F-1A
[ Buy Peristaltic Pump / Intelligent Peristaltic Pump / Lab Peristaltic Pump / Longer Peristaltic Pump / Mini Peristaltic Pump / Peristaltic Hose Pump / Peristaltic Liquid Pump / Peristaltic Metering Pump / Peristaltic Pump Tubing / Peristaltic Tube Pump / Portable Peristaltic Pump ]
Technical parameter
● Speed: 1-300 rpm, reversible Speed precision: 1 rpm
● Speed control: membrane keypad and rotary encoded switch
● Display: LCD displays flow rate, speed or dispensing mode
● Copy number: 1 to 999, 0 means unlimited cycle
● Dispensing volume: 0.1 mL to 99.9 L
● Pause time : 1 to 999 sec
● Back suction angle: 0 to 360°, 18° increments
● External control: 0 – 5V , 0 – 10V , 4 – 20 mA , 0 – 10KHz optional
● Communication: RS485
● Output signal: start/stop, direction output and speed, OC gate output mode
● Power: 90-260V AC，50/60Hz
● Power consumption: < 50W
● Operating condition: Temperature 0 to 40°C, Relative humidity < 80%

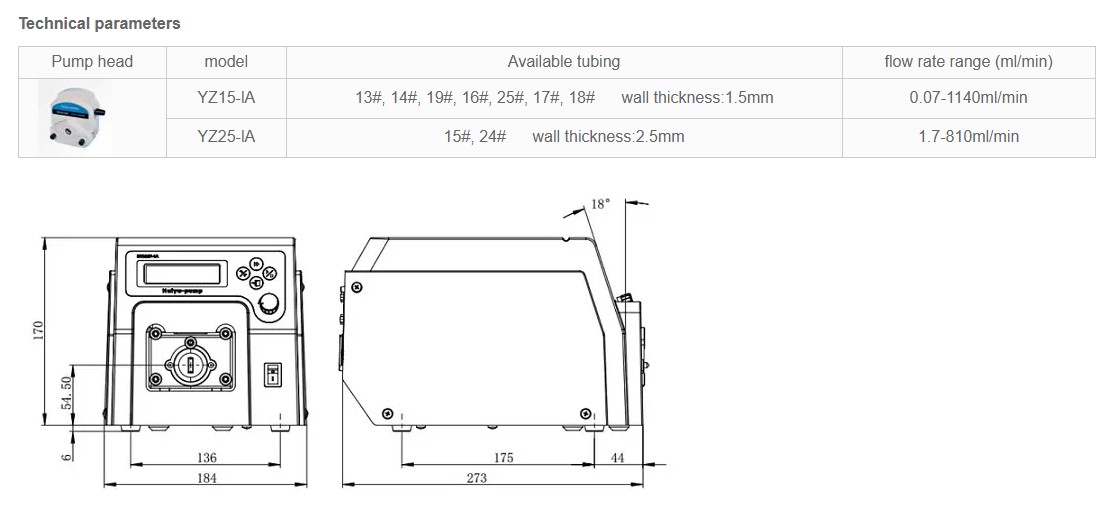

● Dimensions (L × W × H): 276×184×175 (mm)
● Drive Weight: 3.5 kg
