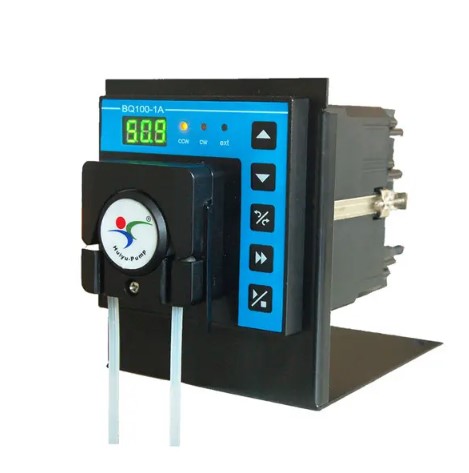

[HUIYU] BQ100J-1A
[ Buy Peristaltic Pump / Intelligent Peristaltic Pump / Lab Peristaltic Pump / Longer Peristaltic Pump / Mini Peristaltic Pump / Peristaltic Hose Pump / Peristaltic Liquid Pump / Peristaltic Metering Pump / Peristaltic Pump Tubing / Peristaltic Tube Pump / Portable Peristaltic Pump ]
Details
Flow rate range: 0.0003-150mL/min
Optional multiple pump heads: TH10 series, JZ15 series stepper motor driver, 128 times subdivision, high precision, low vibration, ultra-quiet. The standard stand is convenient for desktop use. The bracket can also be removed and used in the device.
Feature
Full speed function: fill, empty
Power-down memory: storage status
Specially designed for OEM: small size, light weight, can be used as a set
Installation method: embedded installation, bracket installation
Technical parameter
● Speed: 1 to 100 rpm, reversible
● Speed precision: 0.1 rpm
● Speed control: Membrane keypad cw(green light)/ ccw(blue light) control
● Display: 3-digit LED displays current rpm
● External control: Start/stop, cw/ccw control and speed control 0-5 V/10 V, 4-20 mA and 0-10KHz
● Communication interface: RS485
● Power supply: AC 220V 50/60 Hz
● Power consumption: ≤30 W
● Operating condition: Temperature 0 to 40 ℃, Relative humidity < 80%
● Drive weight: 0.6 kg kg
● Dimensions (L×W×H): 185 × 110 × 140 (mm)
● IP rating: IP 31
