[HUIYU] OEMSK60-02 WX10-1A
[ Buy Peristaltic Pump / High Flow Peristaltic Pump / Industrial Peristaltic Pump / Lab Peristaltic Pump / Mini Peristaltic Pump / OEM Peristaltic Pump / Peristaltic Pump Pressure / Peristaltic Pump Tubing / Welco Peristaltic Pump ]
Introduction

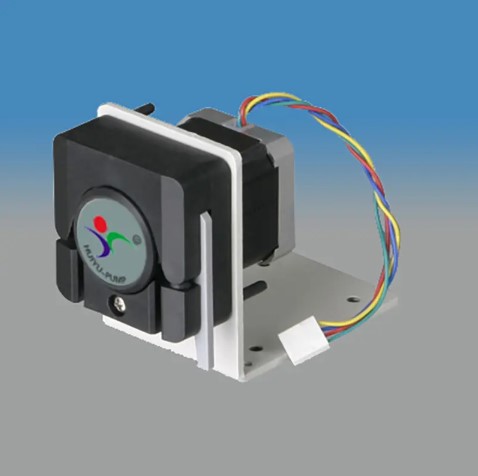

Peristaltic pump by the micro-WX10-14 pump head with 42 stepper motor composed of small size, simple structure of the peristaltic pump products. Mainly in the equipment, equipment supporting the use of 24mL / min to achieve the following fluid transmission. Directly driven by the user stepper motor to control the work process, the use of floor or panel installation, and can be customized according to user requirements panel installation of the product.
Parameters
★ Motor speed：≤60rpm
★ Max flow rate：24ml/min
★ Suitable tubing：ID≤3.17mm Wall thickness:0.8-1.0mm
★ Working relative humidity：＜80%
★ Working termperature：0℃-40℃

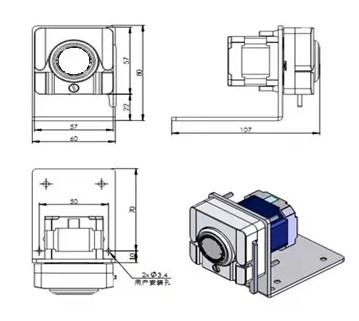

★ Measurement107*60*60mm
