[HUIYU] LST02-1B
[ Dual Channel Syringe Pump / laboratory injection pump / touch screen syringe pump ]
Product description

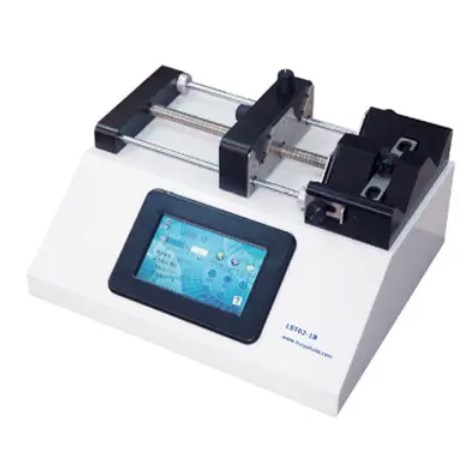

LST02-1B syringe pump is a perfusion/extraction type, dual-channel push-pull syringe pump, touch screen control, integrated structure.
Applicable occasions: biological laboratory field, long-term animal drug microinjection experiment, electrostatic spinning, chemical reaction injection experiment, etc.
Technical index

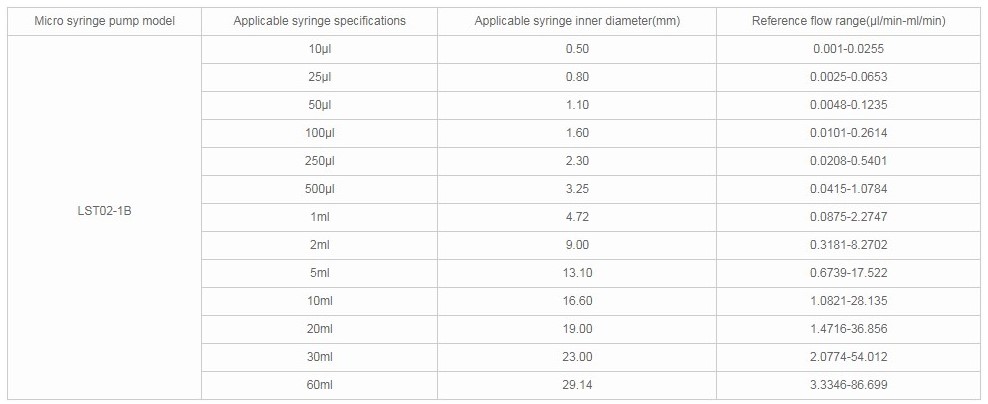

Flow range: 0.001μl-86.699ml/min
Five working modes: perfusion, extraction, first perfusion and then extraction, first extraction and then perfusion, continuous work.
Number of channels: 2
Maximum stroke: 140mm
Travel resolution: 0.156μm
Linear speed range: 5μm/min-130mm/min (flow rate = linear speed × cross-sectional area inside the syringe)
Linear speed adjustment resolution: 5μm/min
Stroke control accuracy: error≤±0.5% (when stroke≥30% of maximum stroke)
Rated linear thrust: >180N
Syringe protection function: By adjusting the position of the limit block, the syringe can be prevented from being damaged
Power-down memory function: 1. EEPROM saves the setting parameters, after re-power on, no need to reset. 2. The power is cut off when running in the flow mode, after the power is restored, it can continue to run or stop according to the set parameters
Traffic jam protection function: when the propulsion mechanism of the syringe pump is blocked during work, the syringe pump will stop the propulsion mechanism and sound the alarm
Communication interface: RS485
Power supply: AC 90V-260V/20W
Working environment temperature: 0℃-40℃
Relative humidity of working environment: <80%
Dimensions: 280×210×150(mm)
Weight: 3.8kg
