Precision: ≤5‰
Stroke length: 1000 steps (30mm)
Control precision: 1 step （0.03mm）
Speed: 0.5-15mm/s
Single stroke operating time：2–60s
Compatible Syringe: 500ul、1ml、2.5ml、5ml
Valve type: two position three way electromagnetic valve
Turn time: ≤100ms
Max pressure: 0.1MPa
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. |

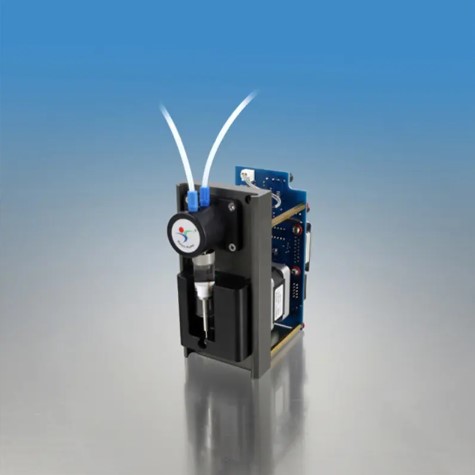

[HUIYU] MSP30-2A
[ single-channel injection pump ]
Technical parameter
● Precision: ≤5‰
● Stroke length: 1000 steps (30mm)
● Control precision: 1 step （0.03mm）
● Speed: 0.5-15mm/s
● Single stroke operating time：2–60s
● Compatible Syringe: 500ul、1ml、2.5ml、5ml
● Valve type: two position three way electromagnetic valve
● Turn time: ≤100ms
● Max pressure: 0.1MPa
● Fluid Path: borosilicate glass, PTEF, PEEK
● Valve fitting: 1/4″-28UNF inner thread interface
● Output signal: one OC gate
● Communication interface: RS232/485 options
● The rate of communication: 9600/38400bps options
● Set up pump address: through 16 digit dial switch
● Dimensions : 100mm×65mm×127mm
● Power: 24V DC/1.5A
● Operating condition: Temperature 15 to 40℃(the temperature effect syringe much)
● Relative humidity 80%
● Weight: 0.85KG
Optional accessories
Syringe
Tubing
Power adapter
Programmable Capabilities: Ramps, cutoff velocity, backlash compensation, syringe speeds, loops, terminate moves and delays, error detection, valve rotation selection, enhanced “h” factor capabilities including valve rotation CW and CCW
