Precision: ≤5‰
Stroke length: 3000 steps (30mm)
Control precision: 1 step（0.01mm）
Speed: 0.025-25mm/s
Single stroke operating time：1.2–1200s
Compatible Syringe: 50ul、100ul、250ul、500ul、1ml、2.5ml、5ml
Valve type: two position three way electromagnetic valve
Turn time: ≤100ms
Fluid Path: borosilicate glass, PTEF, PEEK
Max pressure: 0.1MPa
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. |

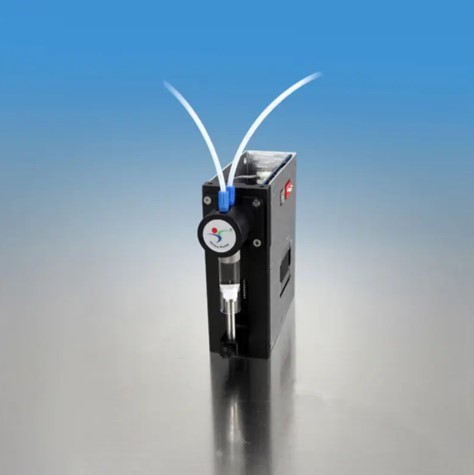

[HUIYU] MSP30-1A
[ single-channel injection pump ]
Technical parameter
Precision: ≤5‰
Stroke length: 3000 steps (30mm)
Control precision: 1 step（0.01mm）
Speed: 0.025-25mm/s
Single stroke operating time：1.2–1200s
Compatible Syringe: 50ul、100ul、250ul、500ul、1ml、2.5ml、5ml
Valve type: two position three way electromagnetic valve
Turn time: ≤100ms
Fluid Path: borosilicate glass, PTEF, PEEK
Max pressure: 0.1MPa
Valve fitting: 1/4″-28UNF inner thread interface
Output signal: three OC gate
Communication interface: RS232/485 options
The rate of communication: 9600/38400bps options
Set up pump address: through 16 digit dial switch

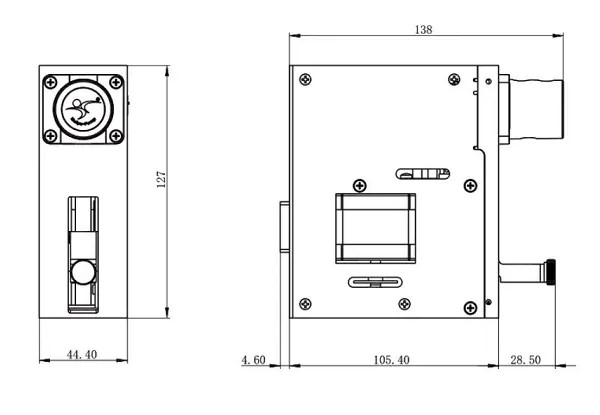

Dimensions : 100mm×65mm×127mm
Power: 24V DC/1.5A
Operating condition: Temperature 15 to 40℃(the temperature effect syringe much)
Relative humidity 80%
Weight: 0.95KG
Optional accessories
Syringe
Tubing
Power adapter
Programmable Capabilities: Ramps, cutoff velocity, backlash compensation, syringe speeds, loops, terminate moves and delays, error detection, valve rotation selection, enhanced “h” factor capabilities including valve rotation CW and CCW
모바일 환경에서는 표를 좌·우로 스크롤해주세요.
고객센터
배송안내
배송기간
주의사항
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. |

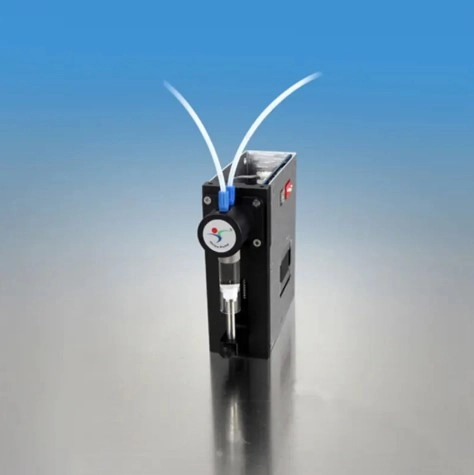

[HUIYU] MSP30-1A
[ single-channel injection pump ]
Technical parameter
Precision: ≤5‰
Stroke length: 3000 steps (30mm)
Control precision: 1 step（0.01mm）
Speed: 0.025-25mm/s
Single stroke operating time：1.2–1200s
Compatible Syringe: 50ul、100ul、250ul、500ul、1ml、2.5ml、5ml
Valve type: two position three way electromagnetic valve
Turn time: ≤100ms
Fluid Path: borosilicate glass, PTEF, PEEK
Max pressure: 0.1MPa
Valve fitting: 1/4″-28UNF inner thread interface
Output signal: three OC gate
Communication interface: RS232/485 options
The rate of communication: 9600/38400bps options
Set up pump address: through 16 digit dial switch
Dimensions : 100mm×65mm×127mm
Power: 24V DC/1.5A
Operating condition: Temperature 15 to 40℃(the temperature effect syringe much)
Relative humidity 80%
Weight: 0.95KG
Optional accessories
Syringe
Tubing
Power adapter
Programmable Capabilities: Ramps, cutoff velocity, backlash compensation, syringe speeds, loops, terminate moves and delays, error detection, valve rotation selection, enhanced “h” factor capabilities including valve rotation CW and CCW
