Max Flow: 1740ml/min
Matching Motor: Stepper motor, AC motor / Synchronous motor, DC motor
Adopting the YZ1515X pump head, the max flow rate is up to 1740ml/min and the speed is 600rpm. Ideal for machine builders seeking dependable dosing functionality as an integral part of their products.

안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. |

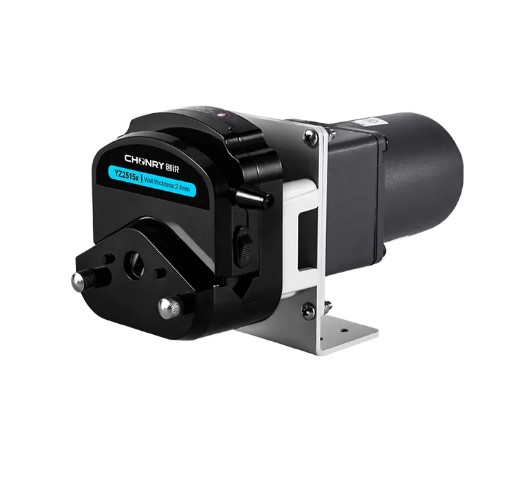

[CHONRY] OEM202 Small Peristaltic Pump

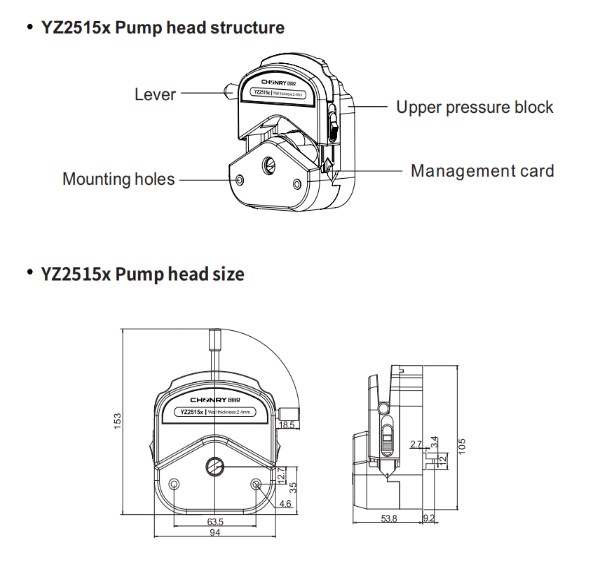

OEM202 small peristaltic pump is equipped with the YZ2515x pump head,
which is simple to operate and easy to load and unload the hose. The small peristaltic pumps are compact design,
easily integrated into machines, instruments or cabinets. Ideal for the liquid transfer and dispensing.
The tubing can be easily installed through the lever. The roller is made of stainless steel, which is wear-resistant,

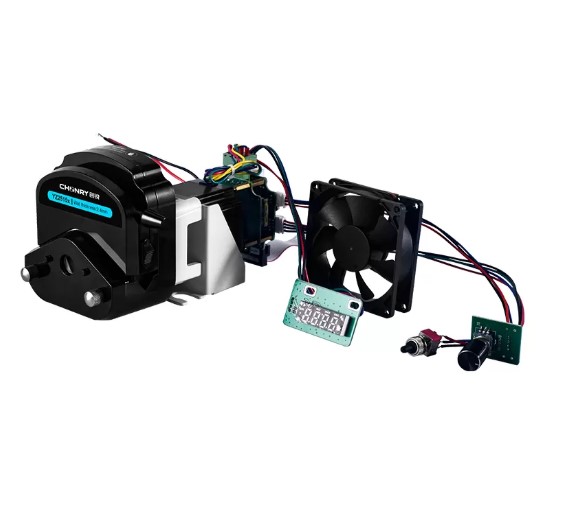

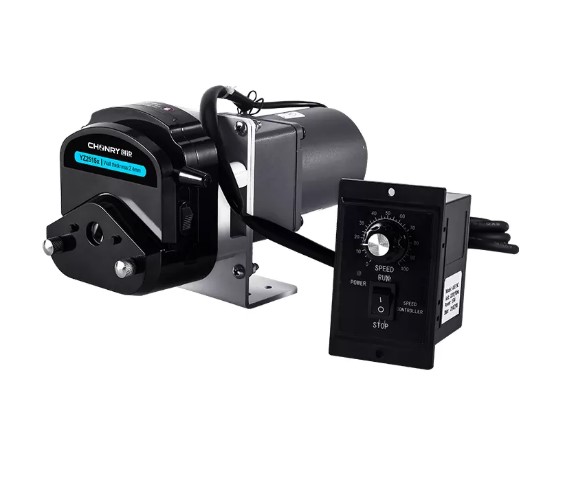

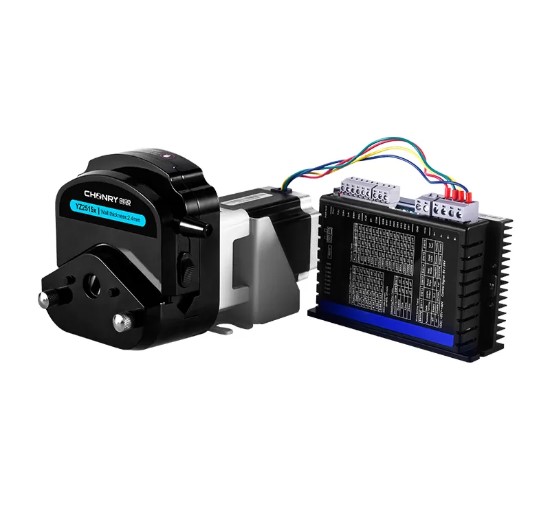

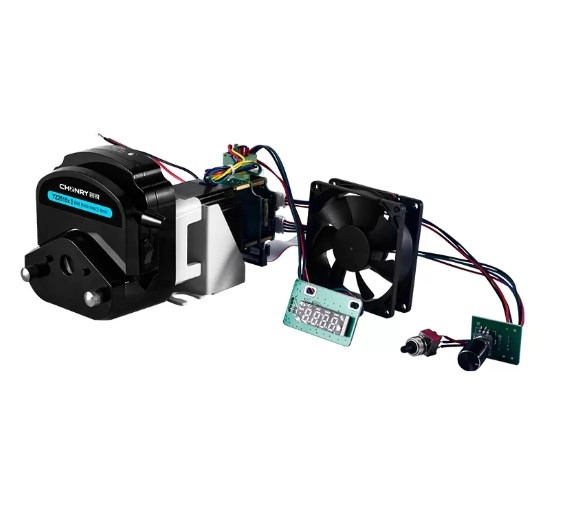

corrosion-resistant and has a long life. It can be equipped with DC motor, AC motor and stepper motor to meet different working needs.
Applications:
OEM202 small peristaltic pump can be integrated into instruments and machines for various industrial applications including the food manufacturing, Biotechnology, liquid filling, vending machine and industrial processes.



모바일 환경에서는 표를 좌·우로 스크롤해주세요.
고객센터
배송안내
배송기간
주의사항

안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. |
[CHONRY] OEM202 Small Peristaltic Pump




OEM202 small peristaltic pump is equipped with the YZ2515x pump head,
which is simple to operate and easy to load and unload the hose. The small peristaltic pumps are compact design,
easily integrated into machines, instruments or cabinets. Ideal for the liquid transfer and dispensing.
The tubing can be easily installed through the lever. The roller is made of stainless steel, which is wear-resistant,
corrosion-resistant and has a long life. It can be equipped with DC motor, AC motor and stepper motor to meet different working needs.
Applications:
OEM202 small peristaltic pump can be integrated into instruments and machines for various industrial applications including the food manufacturing, Biotechnology, liquid filling, vending machine and industrial processes.



모바일 환경에서는 표를 좌·우로 스크롤해주세요.
고객센터
배송안내
배송기간
주의사항
