Precision, compact and compact in structure, easy to install and operate
Dual protocol control: ASCII protocol, custom protocol
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |

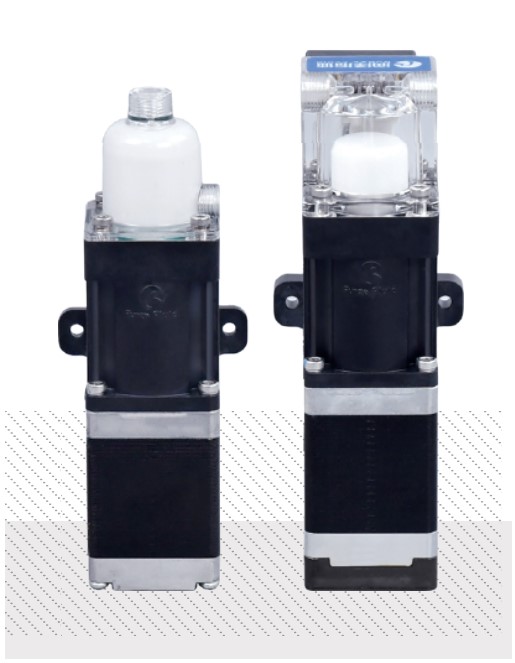

[RUNZEFLUID] RP-01 Piston Pump

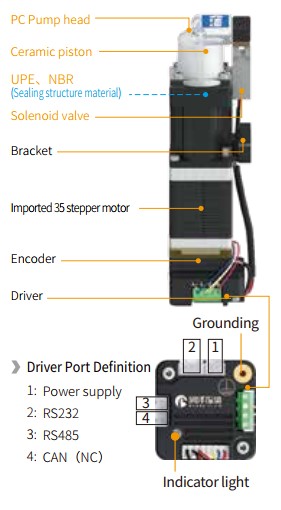

Product Structure
Technical Parameters
| Accuracy | ≤1%@100 (rated stroke) | ||
| Precision (Repeatability) | 0.3%~0.7%@100% (rated stroke) | ||
| Service life | 3 million times no leakage (media: water, 1 rated stroke = one time) | ||
| Initial position detection | Photoelectric detects original piston position | ||
| Volume | 6ml | ||
| Valve head | Single hole | L-type Double Channel | Double-hole with valve |
| Dead volume | 1.45ml | 1.387ml | 1.716ml |
| Wetted material | PC, Ceramics, UPE, NBR | PC, Ceramics, UPE, NBR Solenoid valve (PEEK/EPDM/FKM) | |
| Maximum pressure (hold time 1min) | Positive air pressure 0~0.5Mpa Negative air pressure 0~0.06Mpa | -0.075~0.15Mpa (COM→NC, NO) | |
| Rated Stroke (control steps) | 19.1mm (3820 steps) | ||
| Maximum speed | 500rpm | ||
| Linear speed | 0.017~8.33mm/s | ||
| Running time (per rated stroke) | 2.292s (500rpm) | ||
| Resolution | 0.005mm / 1.5707μl | ||
| Cylinder ID | 20mm | ||
| Actuator | Trapezoidal screw (Lead 1mm) | ||
| Connection | 1/4-28UNF | ||
| Power supply | DC24V/1.5A | ||
| Operating temperature | 5℃~55℃ | ||
| Operating humidity | <80% relative humidity, non condensing | ||
| Dimension (L*W*H) | 51*45.8*160mm (With Driver/Encoder) | ||
| Net weight | 0.462kg (With Driver/Encoder) | ||
Application Note
Piston pump is recommended for forward installation: it is more convenient for inspec- tion, maintenance, and cleaning, and can effectively reduce pipeline resistance and pressure force loss

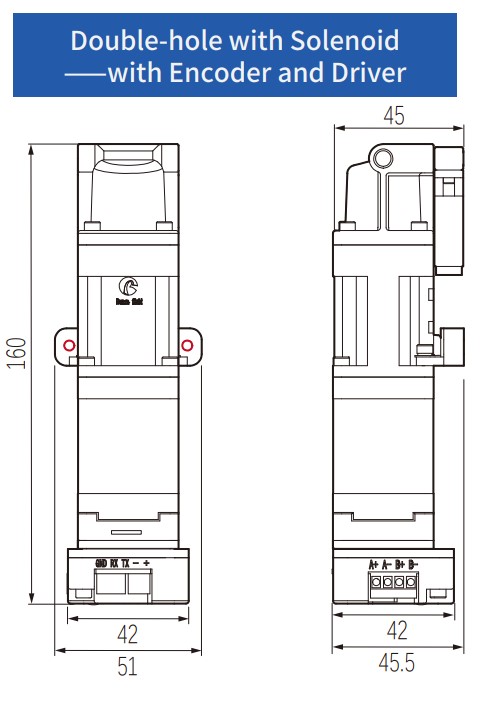

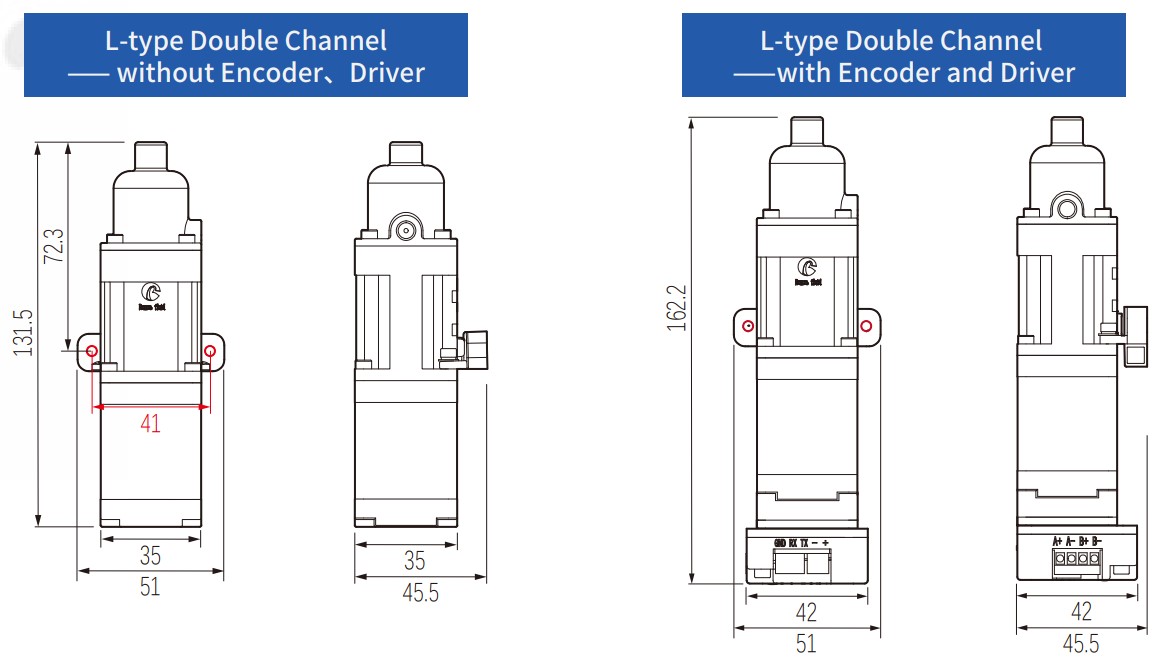

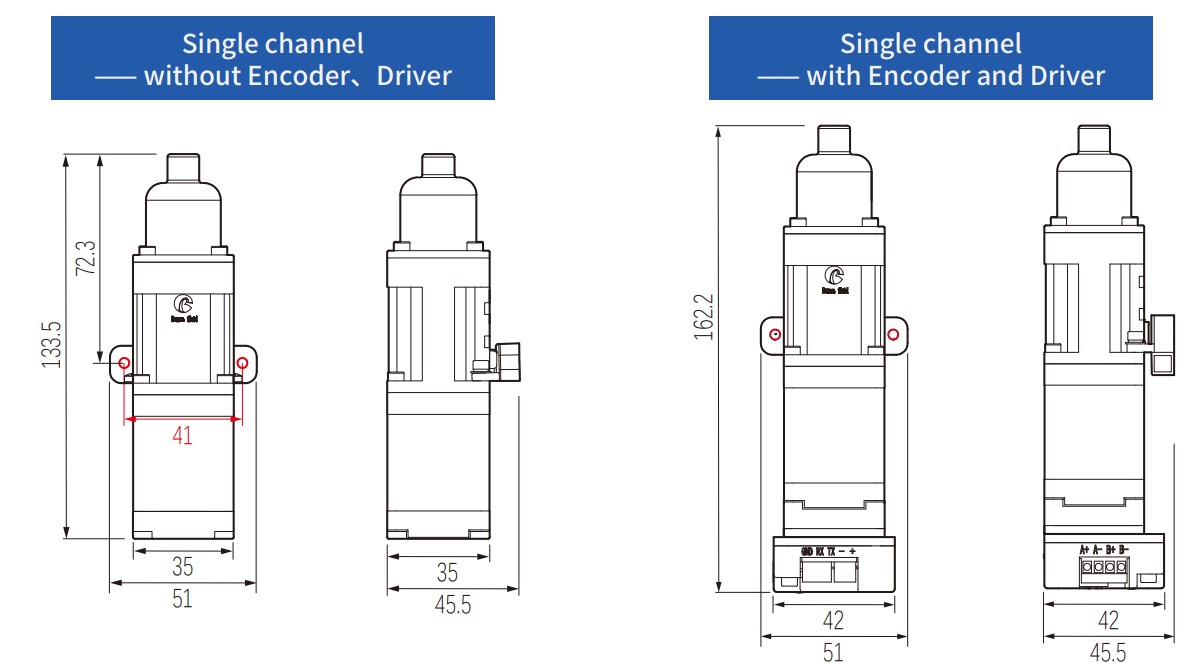

Dimensions(Unit:mm)
