[RUNZEFLUID] SY-03B T-DK Syringe Pump
개요
Integrating multiple valve heads into one product reduces volume while enhancing functionality; In specific application scenarios,
one unit (same drawing and same row) can replace multiple units to improve efficiency
Replacing and maintaining multiple valve head components is more convenient
As a core accessory,
it is applied in fluid transmission systems with high precision and stability,
such as laboratory instrument solutions, medical in vitro diagnostic analysis equipment, chromatographic analyzers,
automatic biochemical analyzers, blood analyzers, trace element analyzers, electrolyte analyzers,
food and beverage detection and analysis systems, water quality online analyzers, petroleum detection equipment,
biopharmaceutical extraction devices, etc.

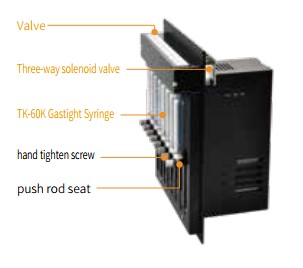

Product Structure
Technical Parameters(ASCII Code)
| Accuracy | ≤1%@100 (rated stroke) |
| Precision (Repeatability) | 0.3%~0.5%@100% (rated stroke) |
| Rated stroke | 60mm |
| Control Steps | 6000 steps (standard mode), 48000 steps (standard mode) |
| Maximum speed | 900rpm |
| Linear speed | 0.01mm/s ~ 60mm/s |
| Running time (per rated stroke) | 1s ~ 6000s |
| Resolution | 0.01mm/1 step |
| Valve type | 3-way solenoid valve |
| Syringe configuration (Optional) | 50μl, 100μl, 250μl, 500μl, 1ml, 2.5ml, 5ml Optional Runze K60 Syringe |
| Max. Pressure Rating | 0.15Mpa |
| Wetted Material | Borosilicate glass, PTFE, FKM, PPS, PEEK |
| Actuator | Trapezoidal screw |
| Connection | 1/4-28UNF |
| Baud rate | RS232/RS485: 9600bps, 38400bps CAN |
| Communication address | Up to 15 individual addresses can be provide |
| Power supply | DC24V/3A |
| Operating temperature | 5°C~55°C |
| Operating humidity | <80% relative humidity, non condensing |
| Dimension (L*W*H) | 196*157.5*254mm |
| Net weight | 3.8kg |

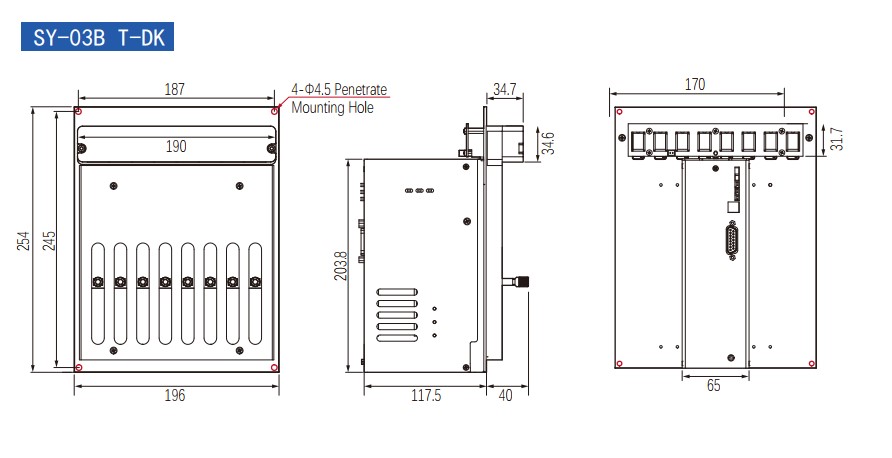

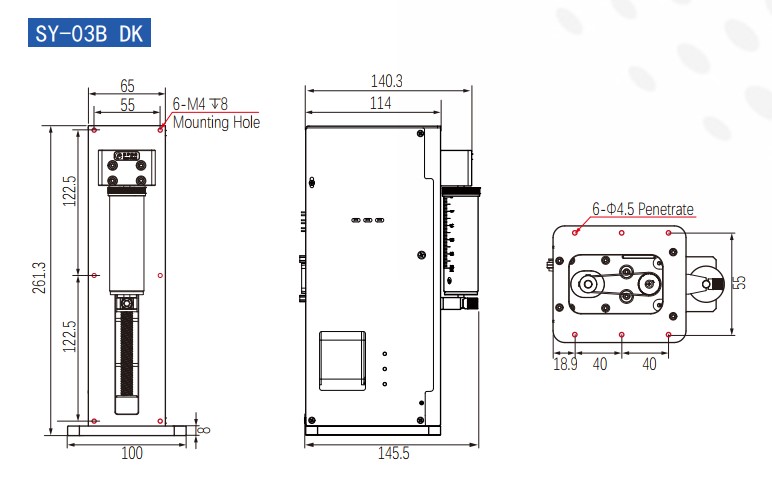

Dimensions(Unit:mm)
