Small size, saving installation space; Can run for a long time, free of consumables and maintenance, high cost-effectiveness
High precision continuous liquid transferring instead of peristaltic pump
RS232/RS485/CAN communication driver optional
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |

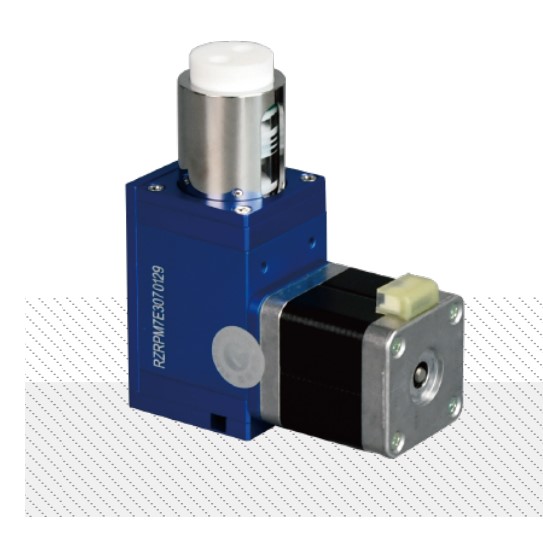

[RUNZEFLUID] Rpm-01 Syringe Pump

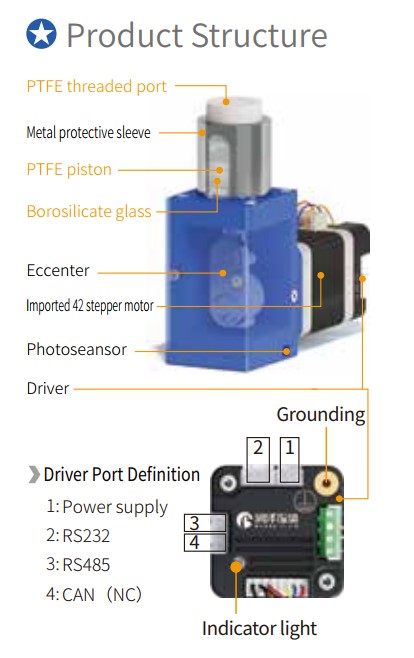

Product Structure
Product Components：
Rpm-01 eccentric syringe pump was made of PTFE piston, borosilicate syringe, 42stepper motor, eccentric inset, crank web,pushrod, Panasonic photosensor, other mechnical parts.

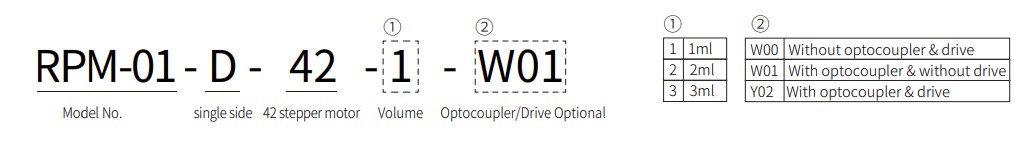

Product classification:
Rpm-01-D 1ml 2ml 3mI syringe pump aspiration and discharge 1ml 2ml 3ml when motor runs 1 circle (360°).
Photosensor(Optional):
lnset Panason- ic photosensor (optional) helps to p rotect the syringe pump from collision and anti external interference.
Technical Parameters
| Rated volume | 1ml, 2ml, 3ml |
| Resolution | 1ml |
| Accuracy | ±1%@100 reciprocal stroke |
| Precision(Repeatability) | 0.3%~0.7%(100% stroke) |
| Pressure rating Max | 0.3Mpa |
| Service life | 3 million times no leakage (media: water; 1 rated stroke = one time) |
| Max. speed | 180rpm/min |
| Min. speed | 1rpm/min |
| Actuator | Eccenter |
| Wetted Material | Borosilicate glass, PTFE |
| Connection | 1/4-28UNF |
| Communication | RS485/RS232/CAN |
| Power supply | DC24V/1.5A |
| Operating temperature | 5℃~55℃ |
| Operating humidity | <80% relative humidity, non condensing |
| Dimension (L*W*H) | 98.6*42*117.4mm |
| Net weight | 0.8kg |

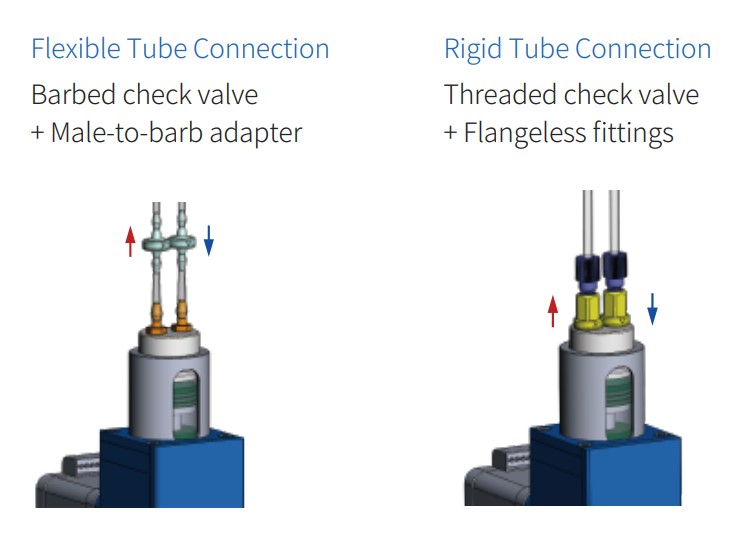

Application

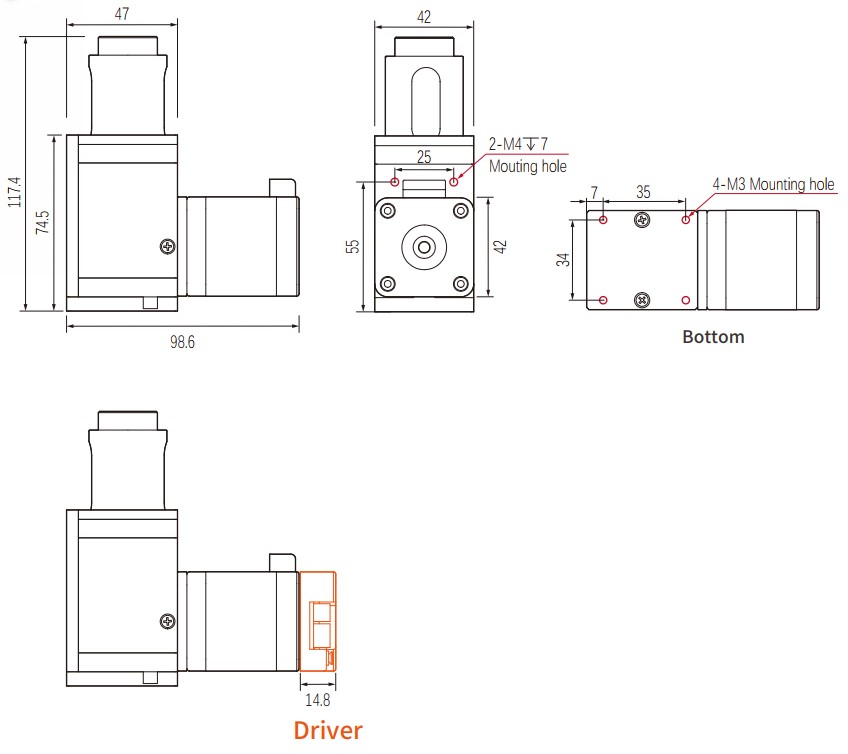

Dimensions(Unit:mm)
