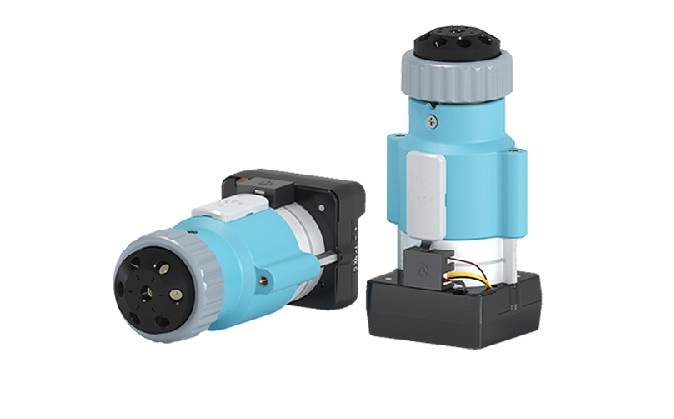

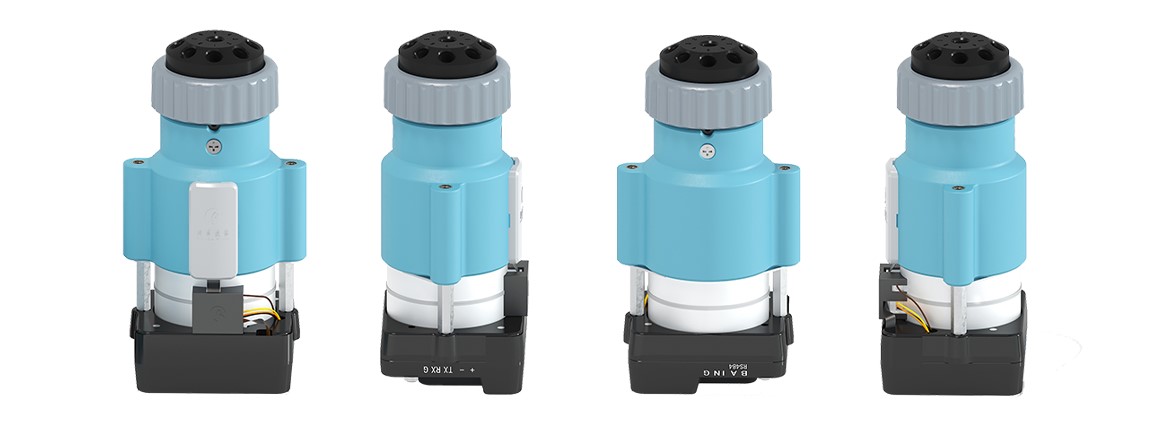

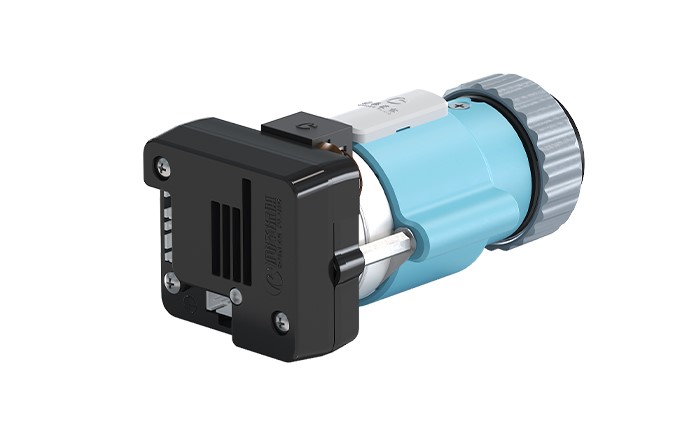

[RUNZEFLUID] Smart SV04M-B Selector Valve
Description
- Spool structure: the spool adopts multi-direc- tional adaptive plane fitting mode, which can effectively extend.the product life.
(This structure has applied for(Utility Model Patent, Patent No. CN204852471U)
- Power: The valve body rotation adopts NMB imported planetary gearbox motor as the power device, with high reliability.
- Valve hole positioning: Adopt absolute position encoder positioning, which can effectively solve the problem.of not being able to accurately position the valve hole after the gearbox is worn out; And has the advantage of anti-pollution and anti-dust.
Technical Parameters

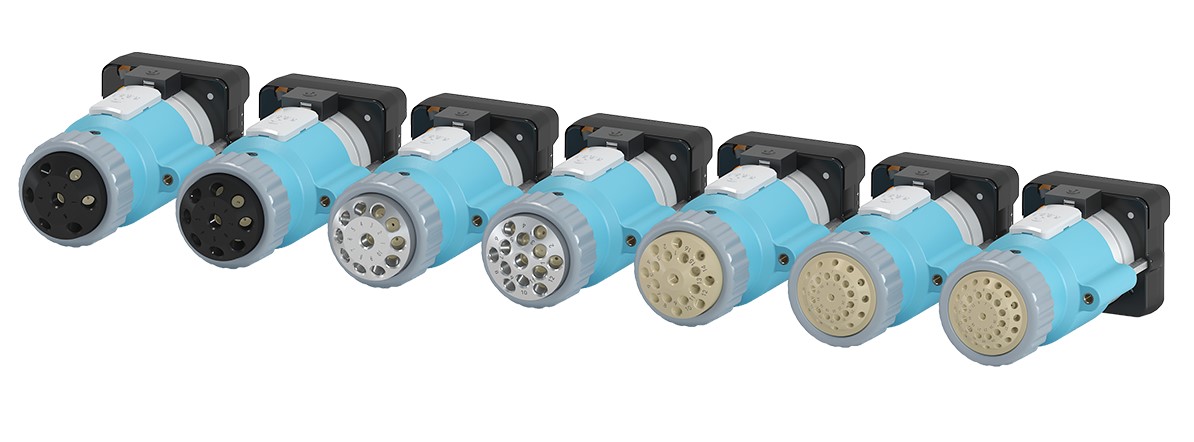

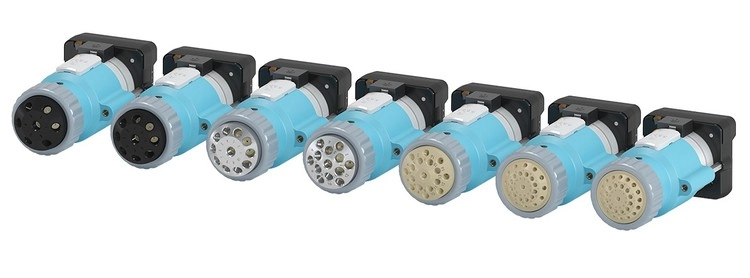

| Parameter | 6/8/10-Port | 12-Port | 16-Port | 24-Port | 28-Port |
| Runner Diameter(default) | 1.2mm | 1.2mm | 1.0mm | 0.6mm | 0.6mm |
| Rotor Slot Volume (Dead Volume) | 5μl | 5μl | 3.1μl | 1.3μl | 1.55μl |
| Port to port volume (Dead Volume) | 27.5μl | 26.3/27μl | 24.1/25.1μl | 4.4μl | 4.7μl |
| Interface Thread | 1/4-28UNF | 1/4-28UNF | 10-32UNF | 6-40UNF | 6-40UNF |
| Dimension(L*W*H) | 63.75*1.21*121 | 63.75*1.21*120.8 | 63.75*1.21*120.8 | 63.75*1.21*116.2 | 63.75*1.21*116.8 |
| Tactile material | Aluminum oxide ceramic | ||||
| Pressure rating | 0~0.6Mpa(air)/0~1.0Mpa(water) | ||||
| Initial position detection | Set the initial position to be detected automatically after power on (this function can be optionally turned on or off) | ||||
| Valve head over-liquid | Maximum test temperature 100°C | ||||
| Replaceable parts | Replace stator and rotor seals | ||||
| Transposition | Random start to any specific port | ||||
| Valve drive | ≤4s/circle (All valve heads are the same) | ||||
| Maximum drive force / torque | 4N·m | ||||
| Baud rate | RS232/RS485: 9600bps, 19200bps, 38400bps, 57600bps, 115200bps | ||||
| Communication protocols | Custom protocol, ASCII protocol, Modbus protocol (customized), CAN protocol (customized) | ||||
| Address&Parameter setting | Via communication | ||||
| Power supply | DC24V/3A | ||||
| Work environment | Temperature: 0°C to +50°C; Humidity: ≤ 80% without condensation state | ||||
| Net Weight | 0.442kg | ||||

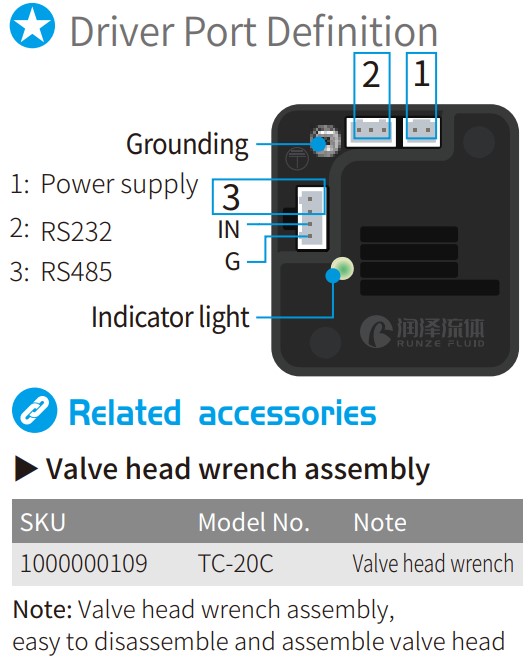

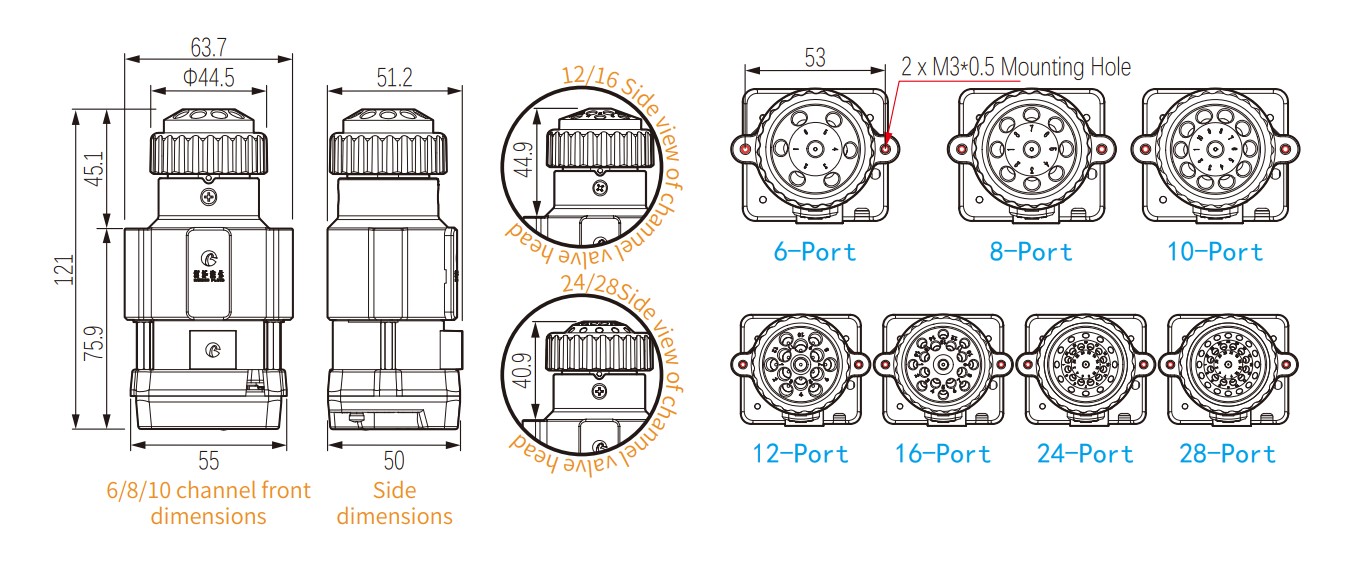

Dimensions(Unit:mm)

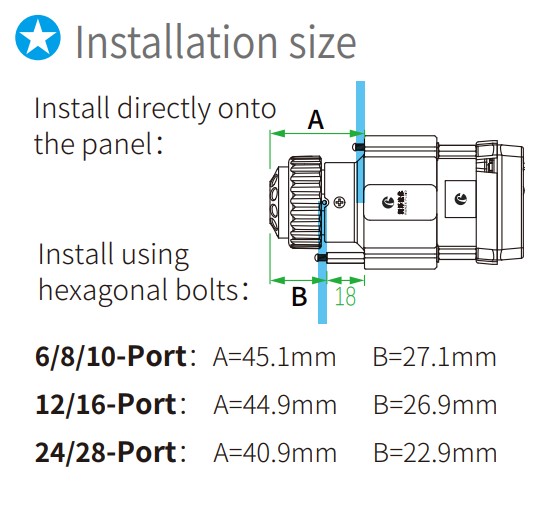

Notes:All models have the same mounting holes and installation dimensions.
6/8/10-way diverter valves are 121 cm high, 12/16-way diverter valves are 120.8 cm high, and 24/28-way diverter valves are 116.8 cm high.
