Name: [RUNZEFLUID] SV07M-20P/20SP
Brand: RUNZEFLUID
Price: 500000 KRW
Availability: InStock

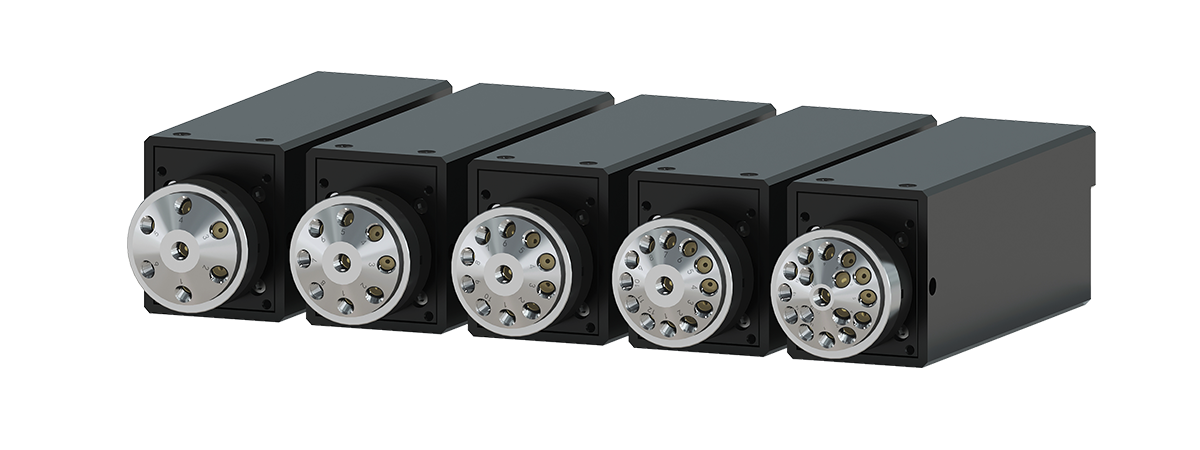

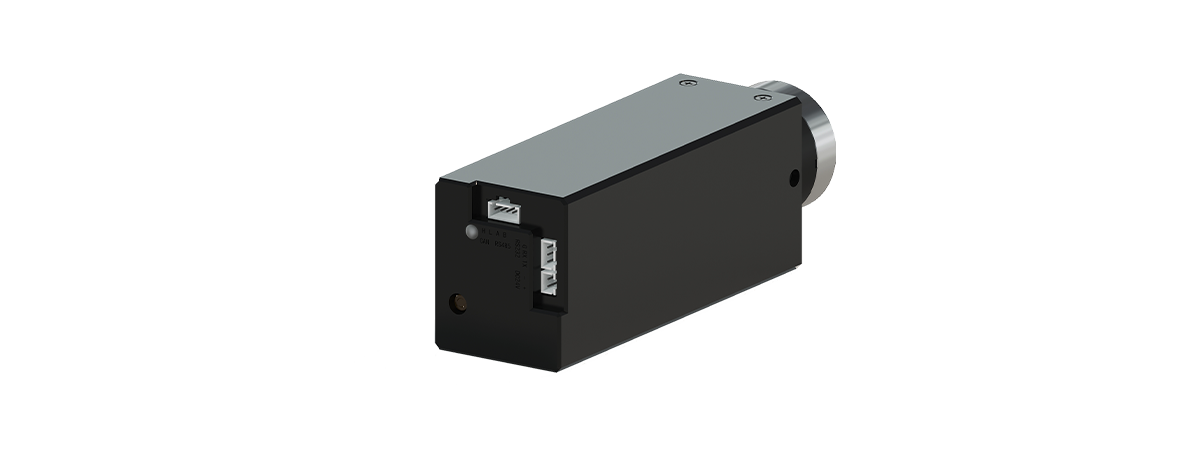

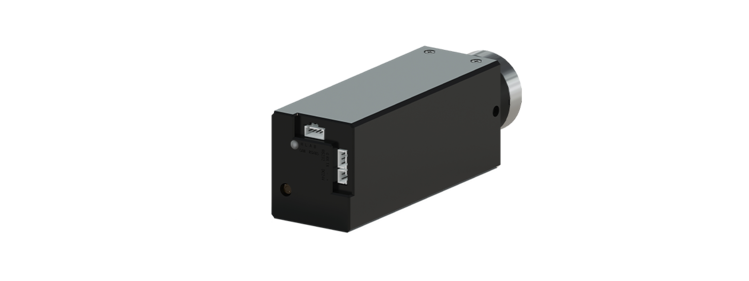

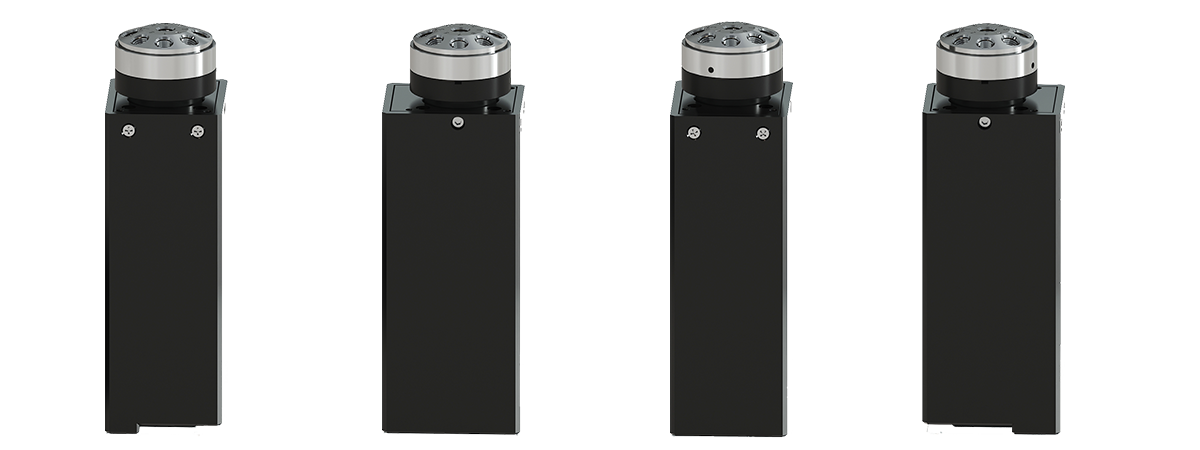

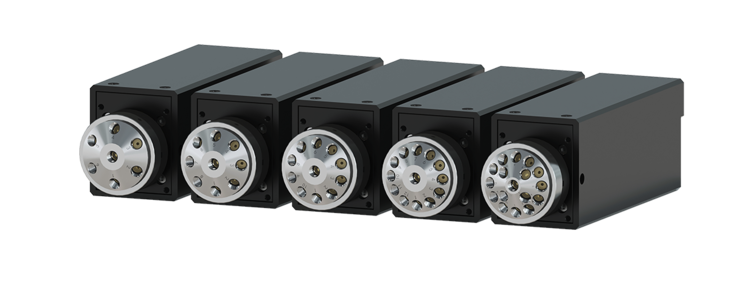

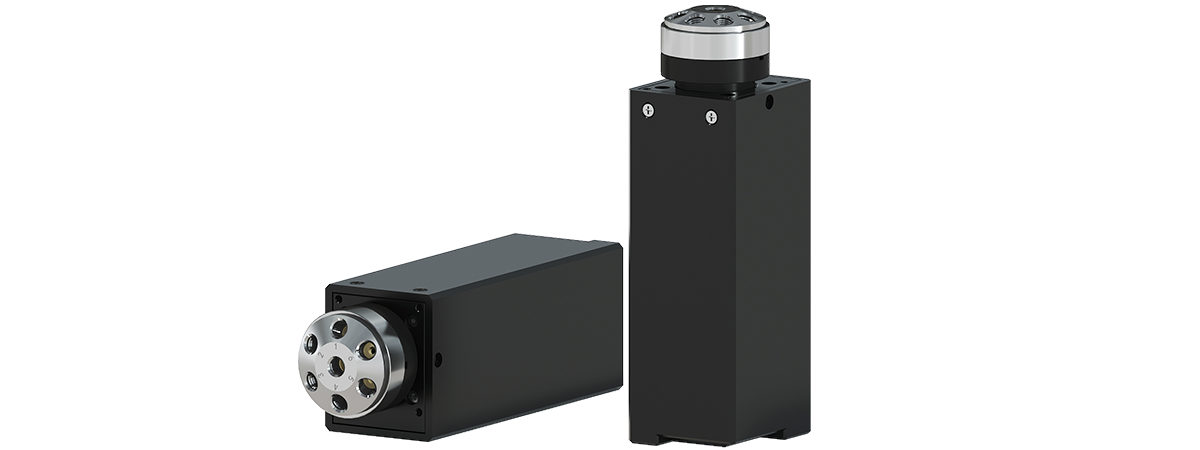

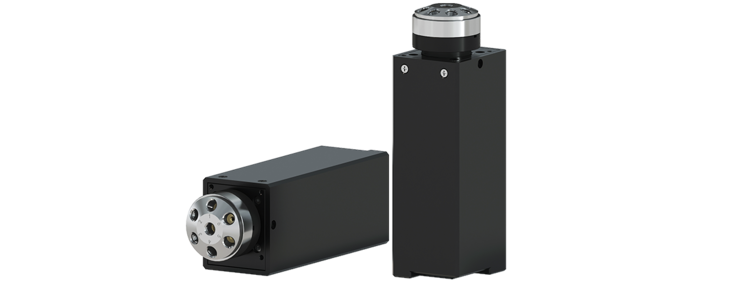

[RUNZEFLUID] SV07M-20P/20SP

가격문의(상세정보 참조)

Touch ﬂuid material: aluminum oxide ceramic, corrosion resistance, high temperature resistance, high pressure resistance, ultra-high wear resistance, applicable to a variety of special media.
Serial communication protocol: support RS232/RS485 bus.
Control protocol: ASCII code protocol, custom protocol, Modbus protocol, CAN protocol can be customized.
Applicable occasions: ﬂexible adaptation, suitable for rapid switching of the ﬂowchannel, the internal ﬂow channel residual and volume requirements of the higher occasions. Widely used in water quality analysis instruments, experimental analysis instruments, medical analysis instru- ments and other equipment.

구매평

Q&A

반품/교환

구매평

Q&A

반품/교환

상품이 없습니다.

Valve head model	TC20P	TC20P	TC20SP

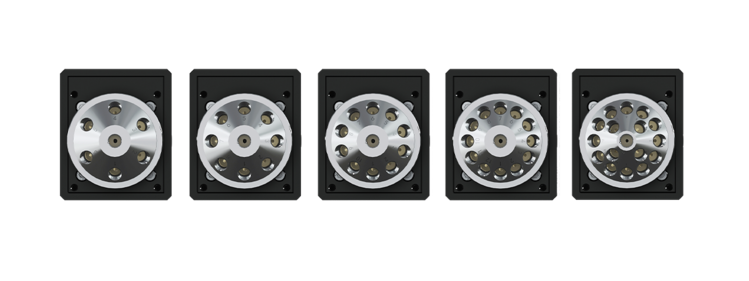

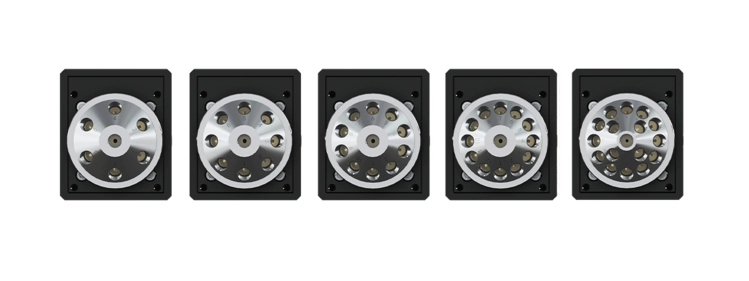

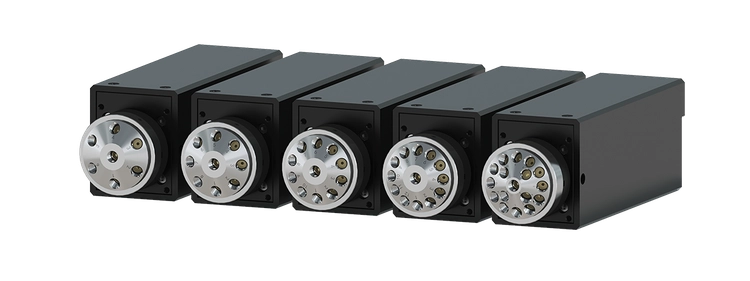

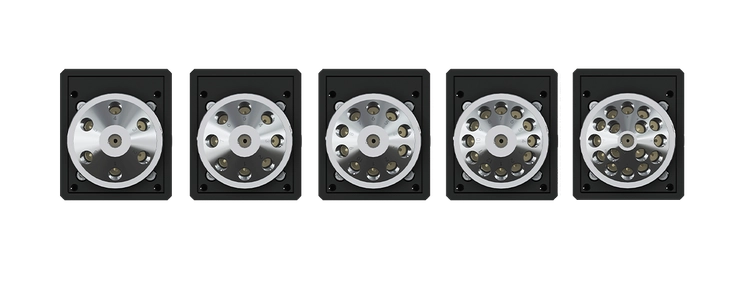

Configuration	6/8/10/12-Port	16-Port	6/8-Port
Runner Diameter(default)	1.5mm	2.0mm	3.0mm

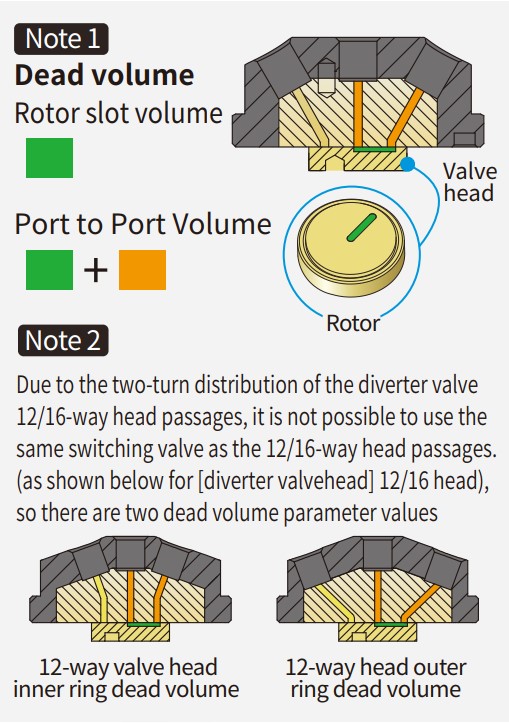

Rotor Slot Volume (Dead Volume)	18.3μl	31.7μl	81.4μl
Port to port volume (Dead Volume)	47.8μl	84.2μl	199.8μl
Interface Thread	1/4-28UNF	1/4-28UNF	5/16-24UNF, 1/4-28UNF
Tactile material	Aluminum oxide ceramic
Pressure rating	0~0.6Mpa(air)/0~1.0Mpa(water)
Initial position detection	Set the initial position to be detected automatically after power on (this function can be optionally turned on or oﬀ)
Valve head over-liquid	Maximum test temperature 100°C
Replaceable parts	Replace stator and rotor seals
Transposition	Random start to any specific port
Valve drive	≤4s/circle
Maximum drive force / torque	8N·m
Baud rate	RS232/RS485 BUS: 9600bps, 19200bps, 38400bps, 57600bps, 115200bps
Communication protocols	Custom protocol, ASCII protocol, Modbus protocol (customized), CAN protocol (customized)
Address&Parameter setting	Via communication
Power supply	DC24V/3A
maximum power	60W
work environment	Temperature: 0°C to +50°C; Humidity: ≤80% without condensation state

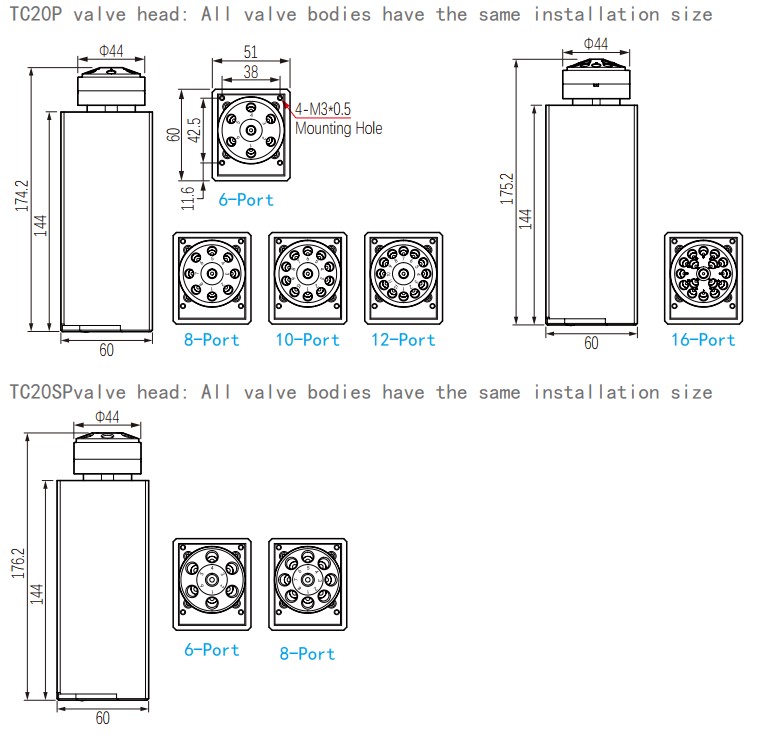

Dimension(LWH)	6051174.2mm	6051175.2mm	6051176.2mm
Net Weight	0.85 kg
