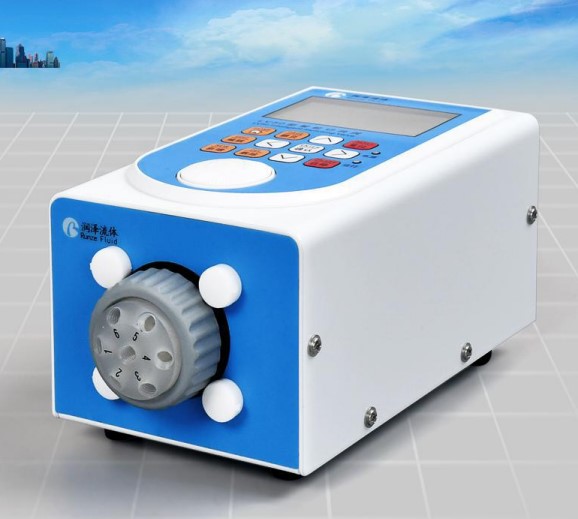

Name: [RUNZEFLUID] LV50 intelligent multi-channel switching valve
Brand: RUNZEFLUID
Price: 500000 KRW
Availability: InStock

[RUNZEFLUID] LV50 intelligent multi-channel switching valve

가격문의(상세정보 참조)

Simple programming can be performed through the key panel, and the logical sequence, dwell time, number of cycles, etc. can be preset to achieve valve position switching according to the preset logical sequence
LED display screen, clear and intuitive interface function
Wetted material: alumina ceramic, corrosion-resistant, high temperature and high pressure resistant, ultra-high wear resistance, suitable for a variety of special media
Serial communication protocol supports RS232/RS485 bus
CE certiﬁcate available

구매평

Q&A

반품/교환

구매평

Q&A

반품/교환

상품이 없습니다.

Valve head model	TC20C
Configuration	6, 8, 10-Port	12-Port	16-Port
Runner Diameter(default)	1.2mm	1.2mm	1.0mm
Rotor Slot Volume (Dead Volume)	5μl	5μl	3.1μl
Port to port volume (Dead Volume)	27.5μl	26.3/27μl	24.1/25.1μl
Interface Thread	1/4-28UNF	1/4-28UNF	10-32UNF
Tactile material	Alumina ceramic
Valve head over-liquid	Test maximum temperature 100°C
Valve head	Compatible with all RUNZE switching valves
Number of cycles	Supports up to 9999 cycles, or 0000 for infinite cycles
Number of valve members	Supports up to 999 members, at least one member For human-computer interaction
Rotary encoder control interface	DC24V ±10%
Power supply	20W
Power consumption	Ambient temperature 0~ 40°C Relative humidity < 80%
Working environment	IP31

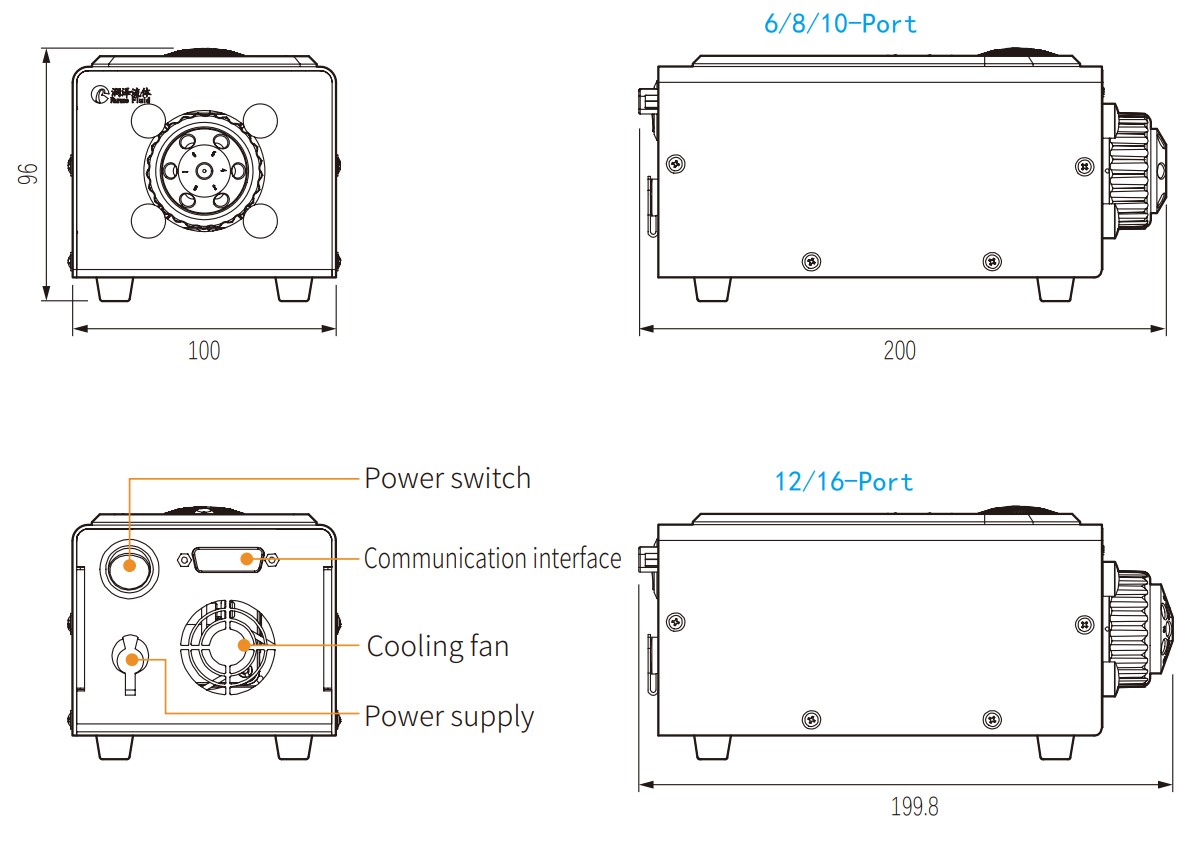

Protection level	20010096mm
Dimensions (L * W * H)	1.58kg~1.68kg	204.510096mm	209.510096mm
Net weight	-
