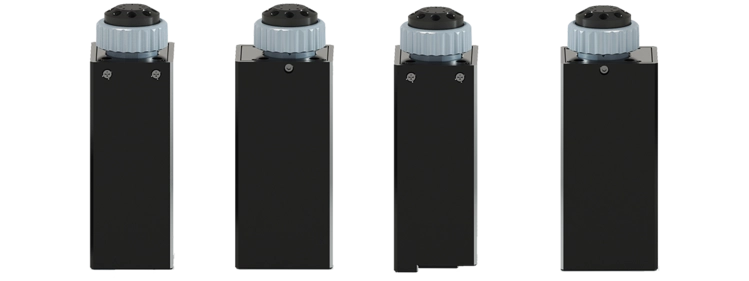

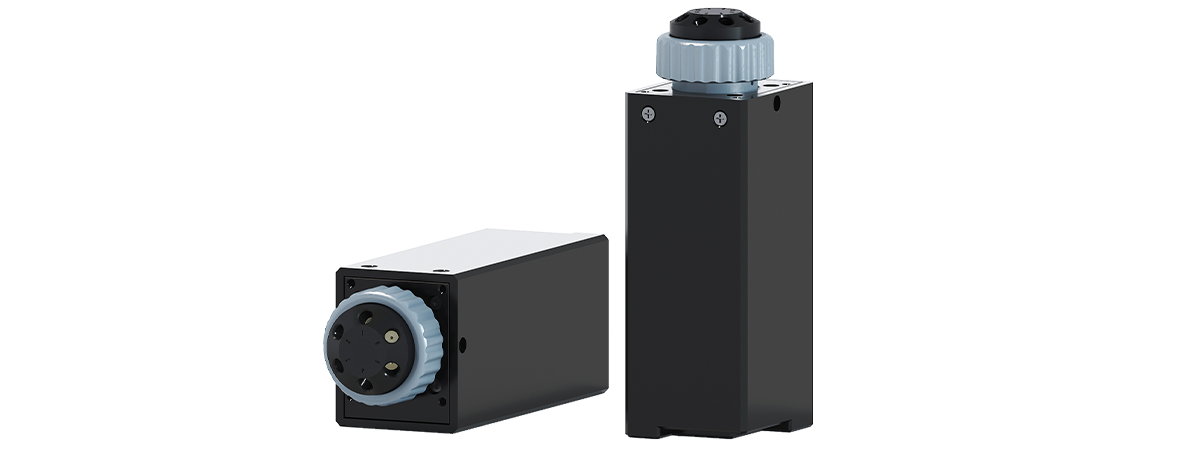

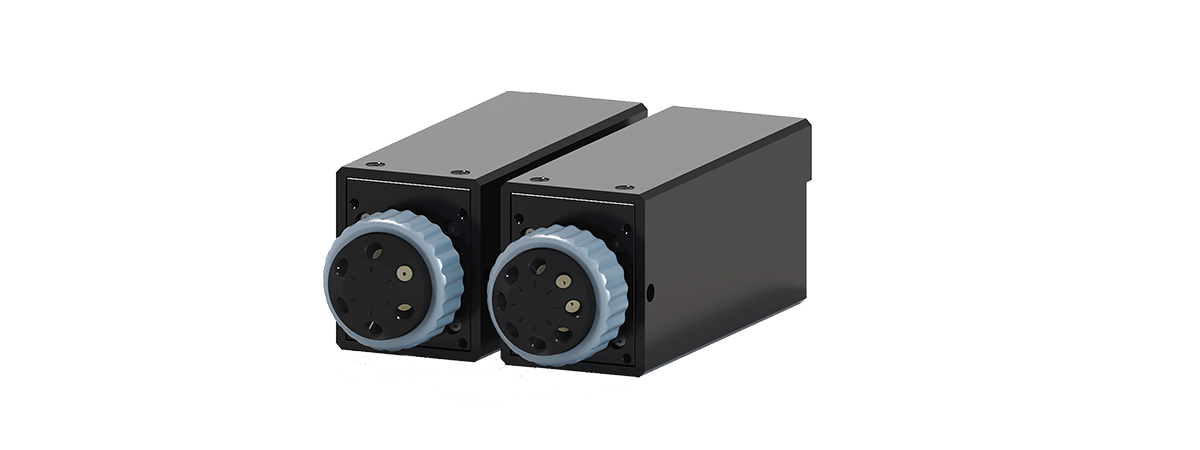

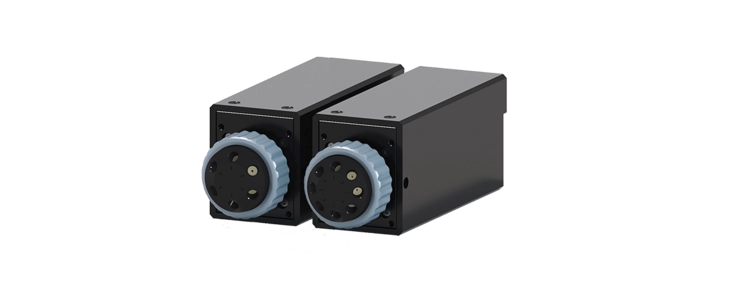

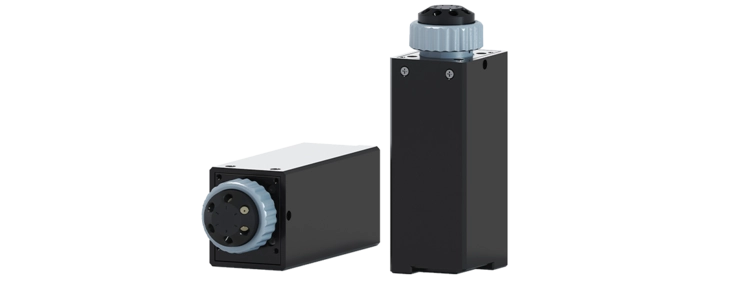

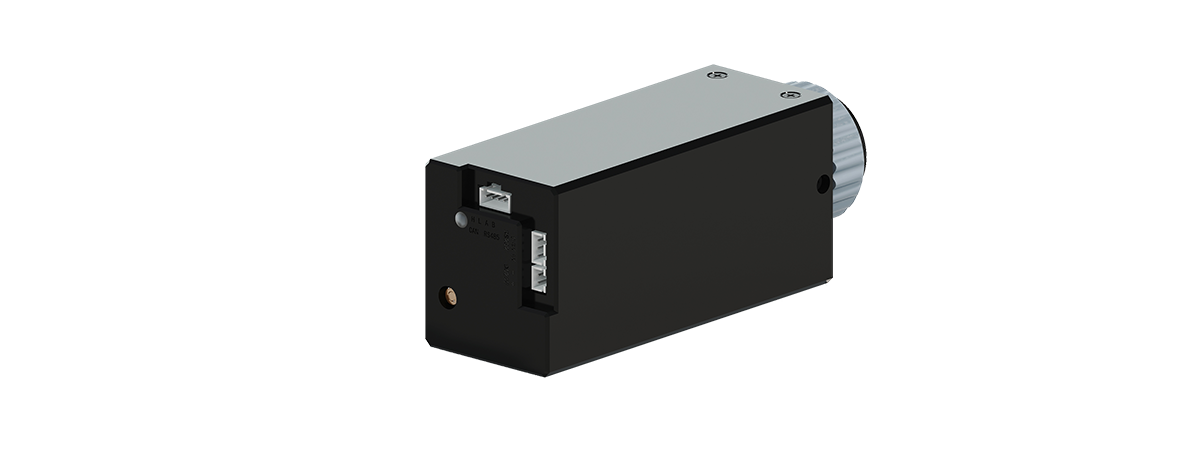

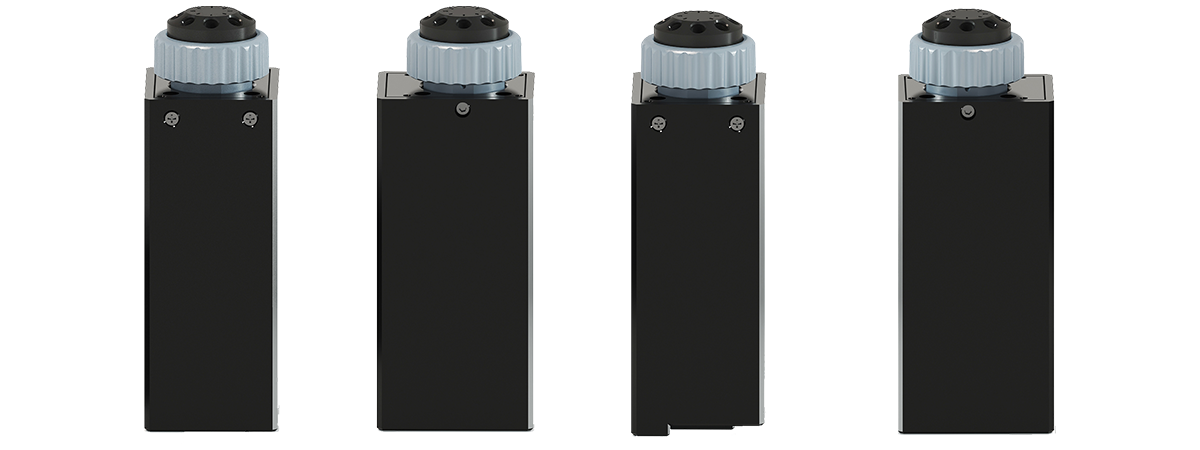

[RUNZEFLUID] SV07B-M Injector Valve

가격문의(상세정보 참조)

Touch ﬂuid material: aluminum oxide ceramic, corrosion resistance, high temperature resistance, high pressure resistance, ultra-high wear resistance, applicable to a variety of special media.
Serial communication protocol: support RS232/RS485 bus.
Control protocol: ASCII code protocol, custom protocol, Modbus protocol, CAN protocol can be customized.
Applicable occasions: ﬂexible adaptation, suitable for rapid switching of the ﬂowchannel, the internal ﬂow channel residual and volume requirements of the higher occasions. Widely used in water quality analysis instruments, experimental analysis instruments, medical analysis instru- ments and other equipment.

원산지 CHINA

5,000 포인트 적립예정 적립예정

택배 · 기본 무료

120,000원 이상 구매 시 무료배송

반품/교환

반품/교환

상품이 없습니다.

Valve head model	TC20C-B

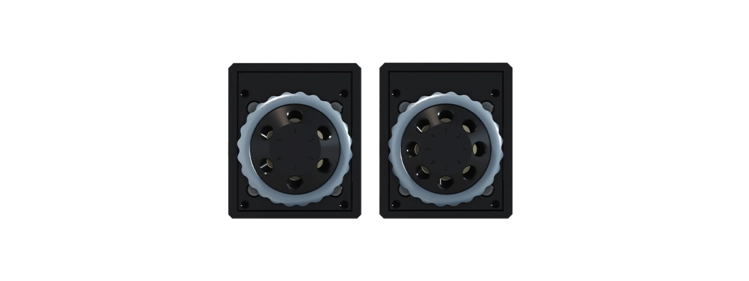

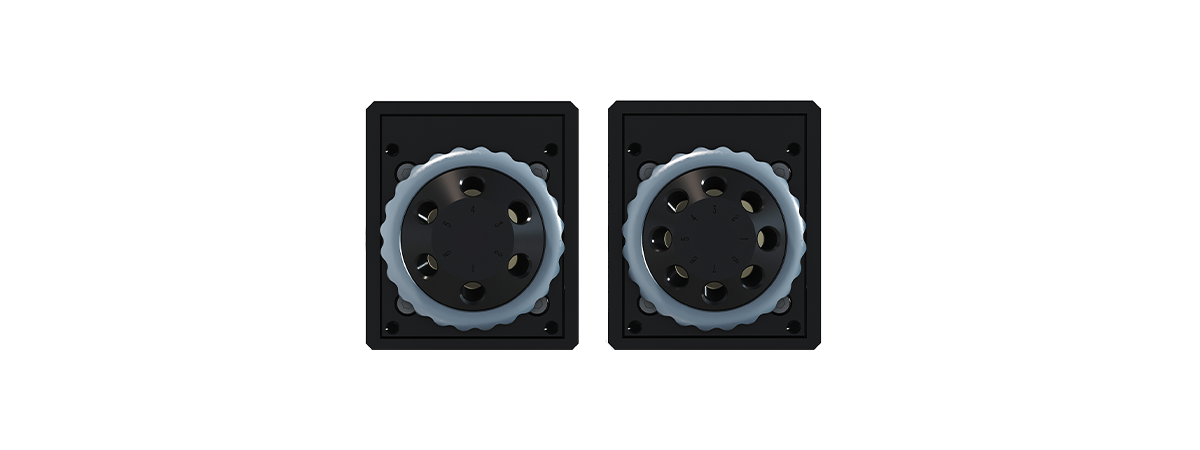

Conﬁguration	6-Port	8-Port
Runner Diameter (default)	1.2mm	1.2mm
Rotor Slot Volume (Dead Volume)	6.5μl	5.3μl
Port to port volume (Dead Volume)	28.8μl	27.6μl
Interface Thread	1/4-28UNF	1/4-28UNF
Tactile material	Aluminum oxide ceramic
Pressure rating	0~0.6Mpa(air)/0~1.0Mpa(water)
Initial position detection	Set the initial position to be detected automatically after power on (this function can be optionally turned on or off)
Valve head over-liquid	Maximum test temperature 100°C

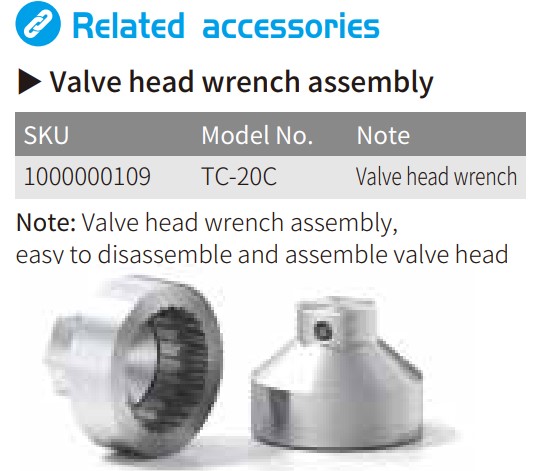

Replaceable parts	Replace stator and rotor seals
Transposition	Random start to any specific port
Optional driver board	NO
Valve drive	≦4s/circle (All valve heads are the same)
Maximum drive force / torque	8N/m
Baud rate	RS232/RS485: 9600bps, 19200bps, 38400bps, 57600bps, 115200bps
Communication protocols	Custom protocol, ASCII protocol, Modbus protocol (customized), CAN protocol (customized)
Address&Parameter setting	Via communication
Power supply	DC24V/3A
work environment	Temperature: 0 °C to+50 °C; Humidity: ≦ 80% without condensation state

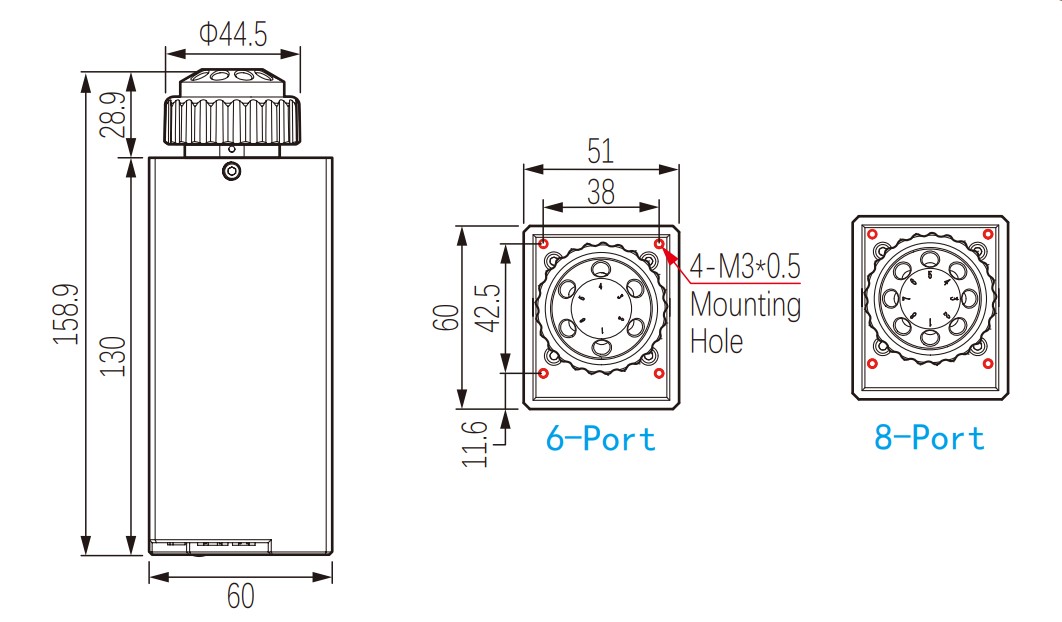

Dimension (LWH)	6051158.9mm
Net Weight	0.85 kg
