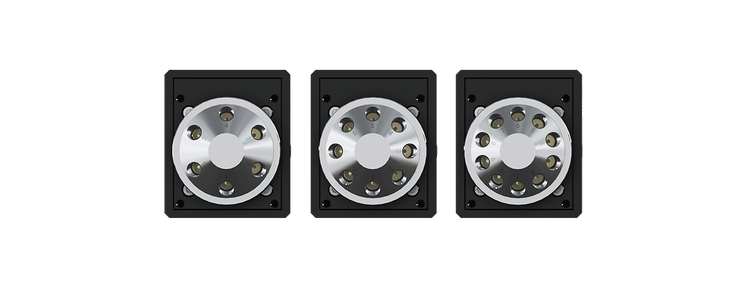

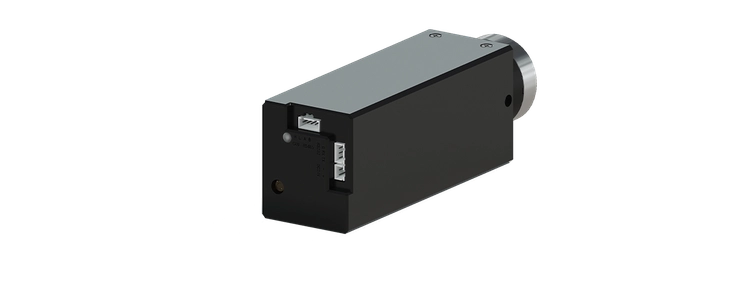

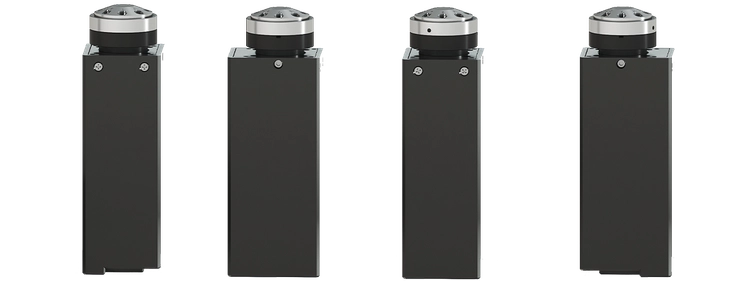

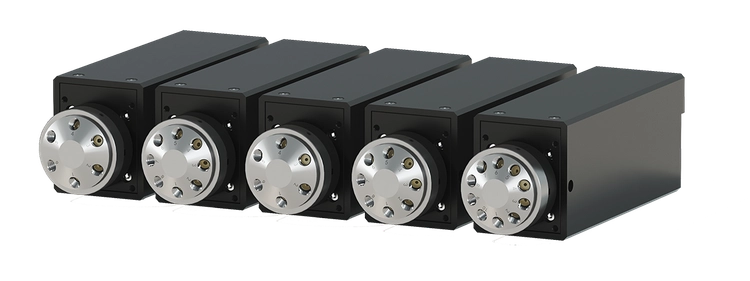

[RUNZEFLUID] SV07B-M20P/20SP Injector Valve
Description
- Spool structure: the spool adopts multi-direc- tional adaptive plane fitting mode, which can effectively extend.the product life.
(This structure has applied for(Utility Model Patent, Patent No. CN204852471U)
- Power: The valve body rotation adopts NMB imported planetary gearbox motor as the power device, with high reliability.
- Valve hole positioning: Adopt absolute position encoder positioning, which can effectively solve the problem.of not being able to accurately position the valve hole after the gearbox is worn out; And has the advantage of anti-pollution and anti-dust.
Technical Parameters

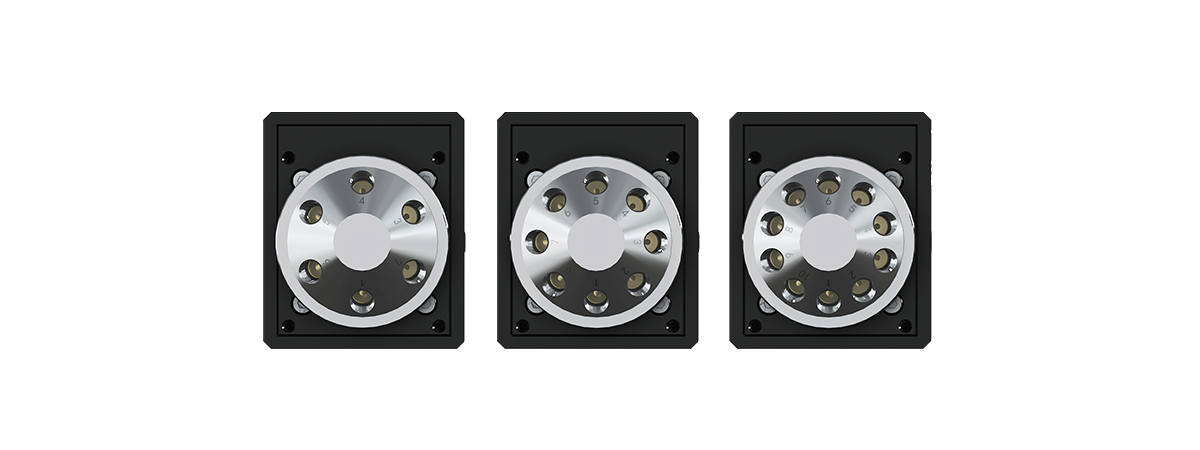

| Valve head model | TC20P-B | TC20SP-B | |||||
| Configuration | 6-Port | 8-Port | 10-Port | 6-Port | 8-Port | 6-Port | 8-Port |
| Runner Diameter (default) | 1.5mm | 1.5mm | 1.5mm | 2.0mm | 2.0mm | 3.0mm | 2.0mm |

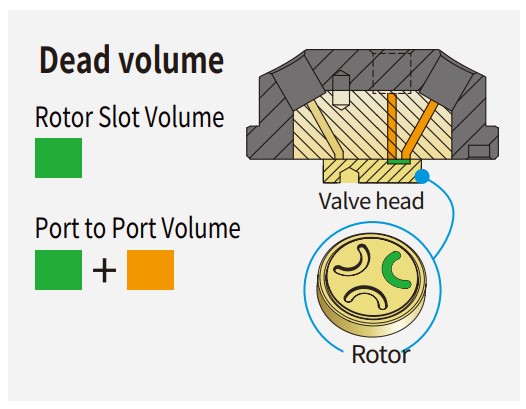

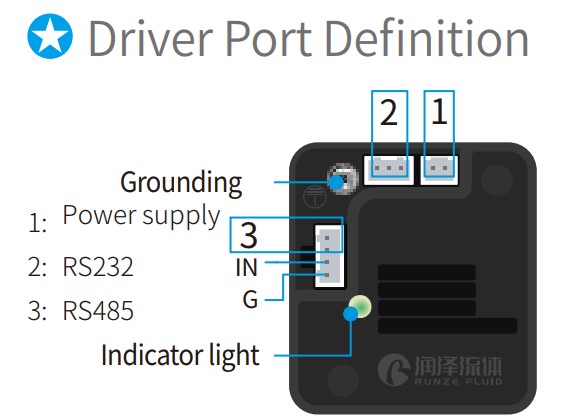

| Rotor Slot Volume (Dead Volume) | 27.8μl | 21.9μl | 19.1μl | 38.2μl | 30.4μl | 99.9μl | 86.1μl |
| Port to port volume (Dead Volume) | 55.8μl | 49.9μl | 47μl | 88μl | 80.2μl | 212.9μl | 199.1μl |
| Interface Thread | 1/4-28UNF | 5/16-24UNF、1/4-28UNF | |||||
| Tactile material | Aluminum oxide ceramic | ||||||
| Pressure rating | 0~0.6Mpa(air)/0~1.0Mpa(water) | ||||||
| Initial position detection | Set the initial position to be detected automatically after power on (this function can be optionally turned on or off) | ||||||
| Valve head over-liquid | Maximum test temperature 100°C | ||||||
| Replaceable parts | Replace stator and rotor seals | ||||||
| Transposition | Random start to any specific port | ||||||
| Valve drive | ≦4s/circle (All valve heads are the same) | ||||||
| Maximum drive force / torque | 8N/m | ||||||
| Baud rate | RS232/RS485:9600bps、19200bps、38400bps、57600bps、115200bps | ||||||
| Communication protocols | Custom protocol, ASCII protocol, Modbus protocol (customized),CAN protocol (customized) | ||||||
| Address&Parameter setting | Via communication | ||||||
| Power supply | DC24V/3A | ||||||
| work environment | Temperature: 0 °C to+50 °C; Humidity: ≦ 80% without condensation state | ||||||
| Dimension (L*W*H) | 60*51*174.2mm | ||||||
| Net Weight | 0.95kg | ||||||
Dimensions(Unit:mm)
모바일 환경에서는 표를 좌·우로 스크롤해주세요.
