Name: [RUNZEFLUID] Three-way Solenoid Valve
Brand: RUNZEFLUID
Price: 500000 KRW
Availability: InStock

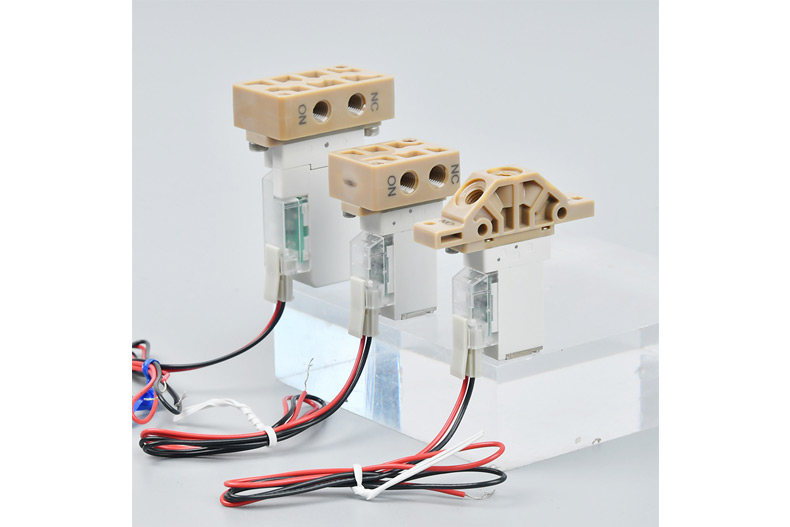

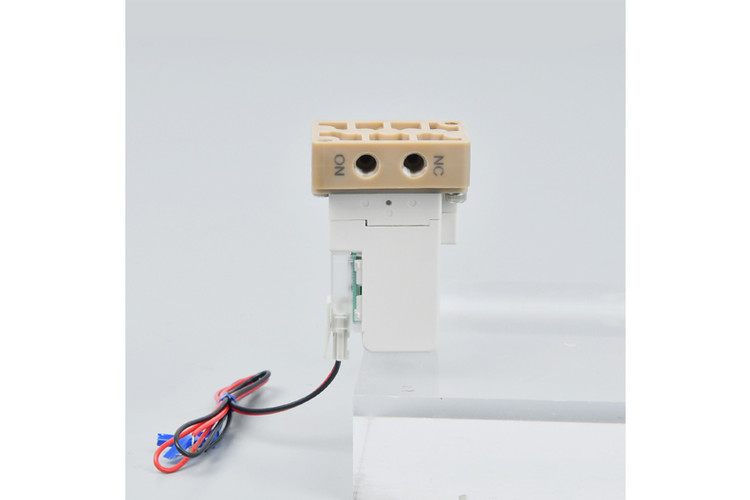

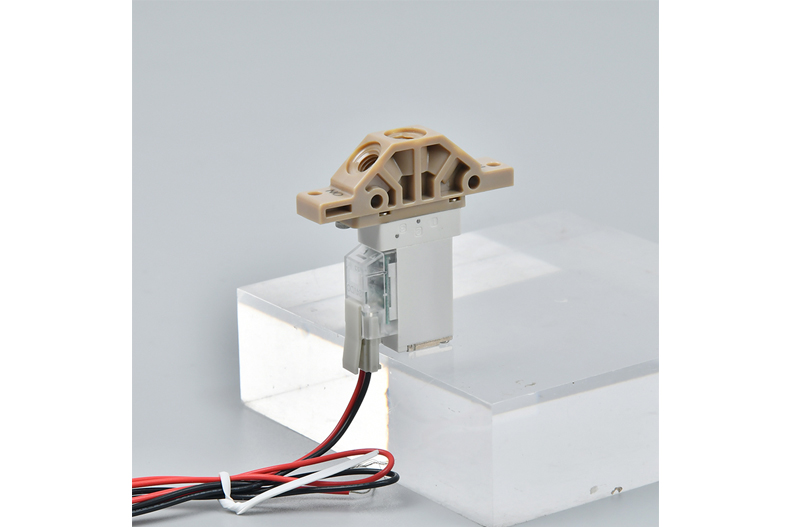

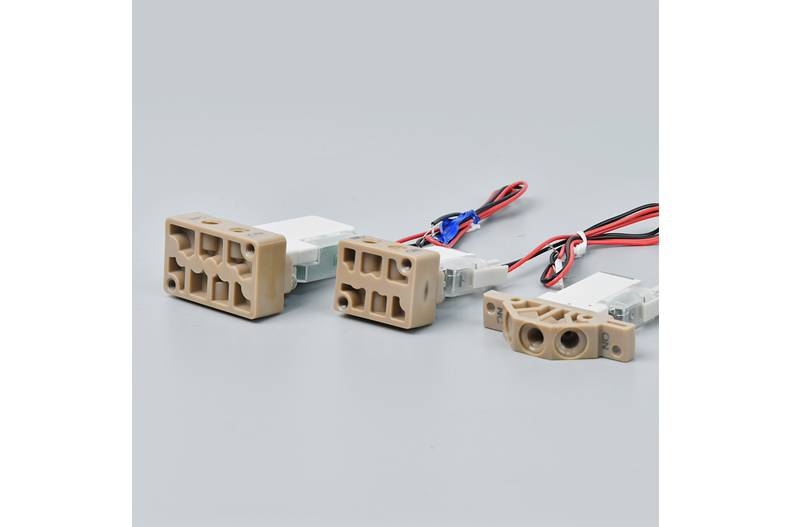

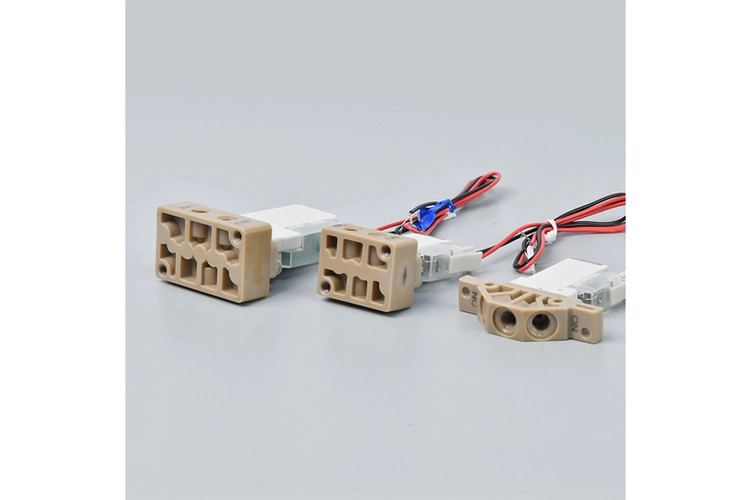

[RUNZEFLUID] Three-way Solenoid Valve

가격문의(상세정보 참조)

Thread:1/4-28UNF
Oriﬁce diameter:1.6/2.0mm

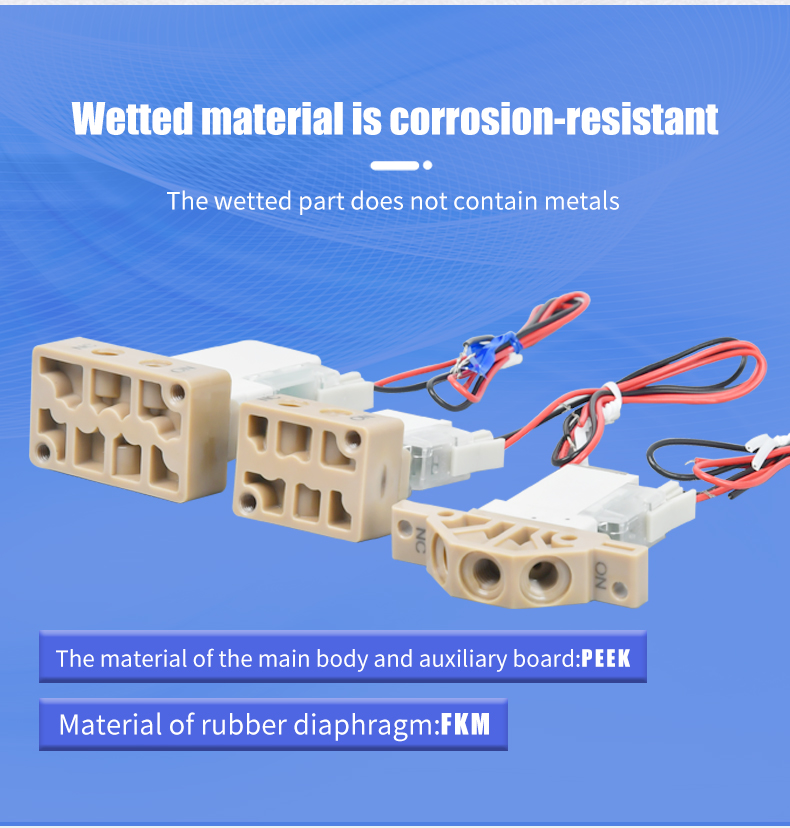

Wetted material:PEEK+FKM

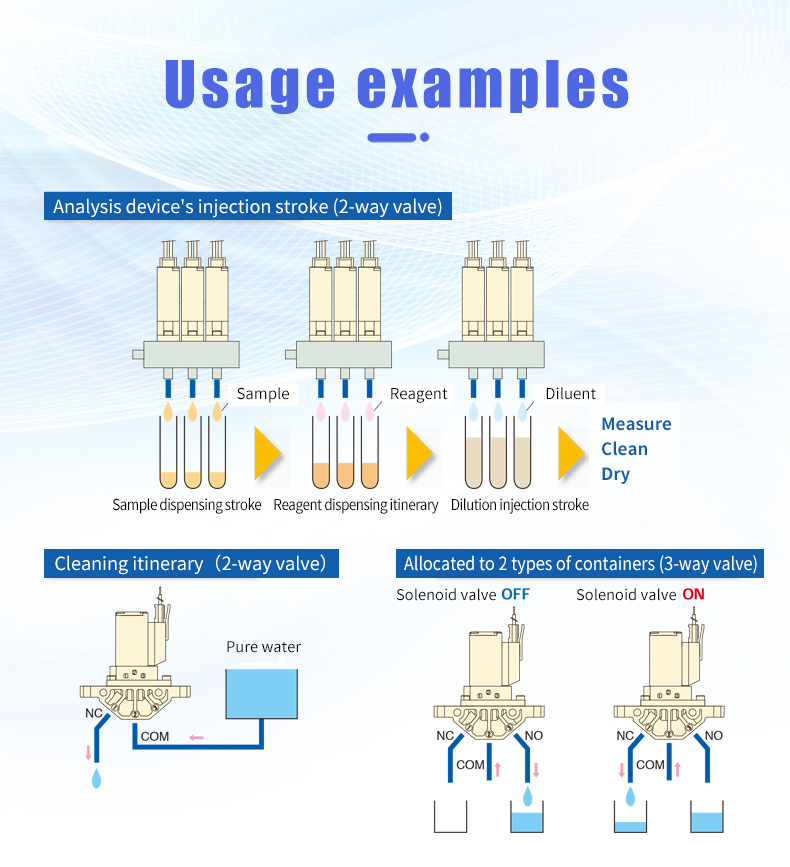

Application scenarios：Environmental testing instruments, experimental analysis instruments, medical analysis instruments.

구매평

Q&A

반품/교환

구매평

Q&A

반품/교환

상품이 없습니다.

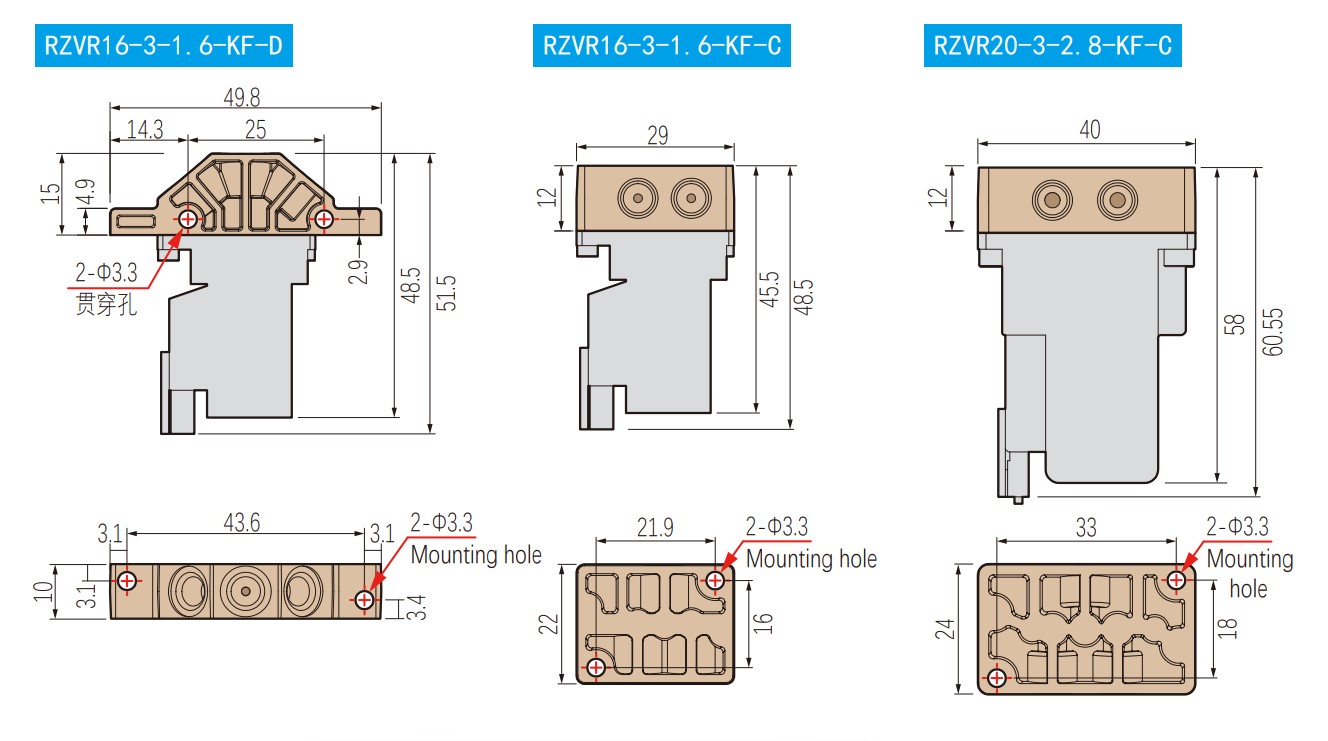

Model	RZVR16-3-1.6-KF-D	RZVR16-3-1.6-KF-C	RZVR20-3-2.8-KF-C
Valve action mode	Solenoid valve (direct action type)

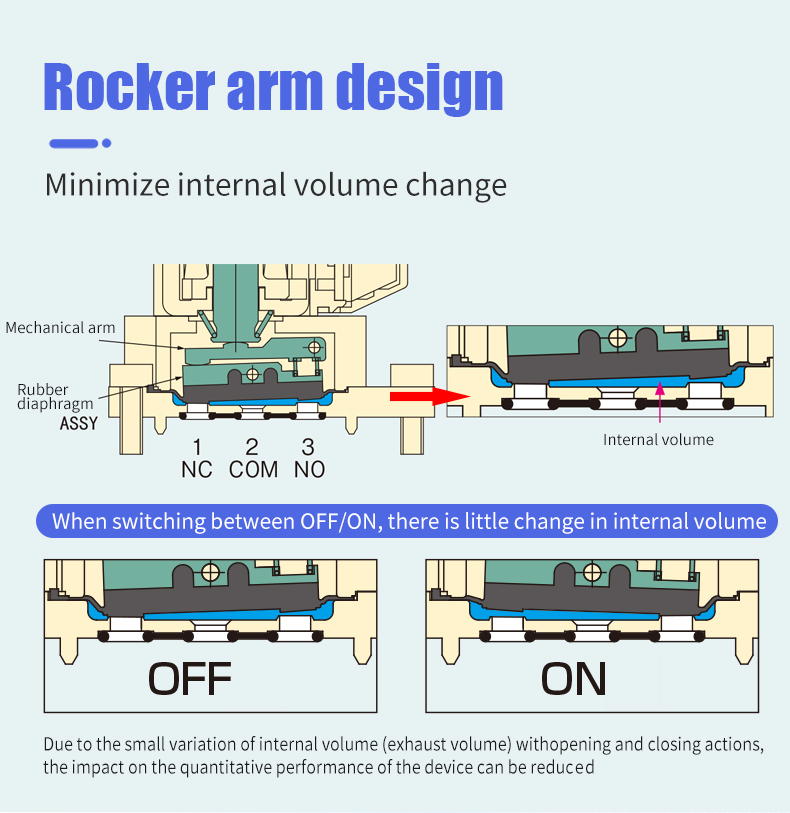

Valve structure	Rubber diaphragm type direct acting lifting valve (rocker arm type)
Valve ports	3
Body material	PEEK
Rubber material	FKM
Base interface	1/4-28UNF
Using fluids	Air, Water, Pure water, Liquid medicine
Voltage resistance	0.15 Mpa	0.2 Mpa	0.3 Mpa
Orifice diameter	1.6 mm	1.6 mm	2.0 mm
Internal volume	35 µl	35 µl	60 µl

Model	RZVR16-3-1.6-KF-D	RZVR16-3-1.6-KF-C	RZVR20-3-2.8-KF-C
Valve action mode	Solenoid valve (direct action type)
Valve structure	Rubber diaphragm type direct acting lifting valve (rocker arm type)
Valve ports	3
Body material	PEEK
Rubber material	FKM
Base interface	1/4-28UNF
Using fluids	Air, Water, Pure water, Liquid medicine
Voltage resistance	0.15 Mpa	0.2 Mpa	0.3 Mpa
Orifice diameter	1.6 mm	1.6 mm	2.0 mm
Internal volume	35 µl	35 µl	60 µl
