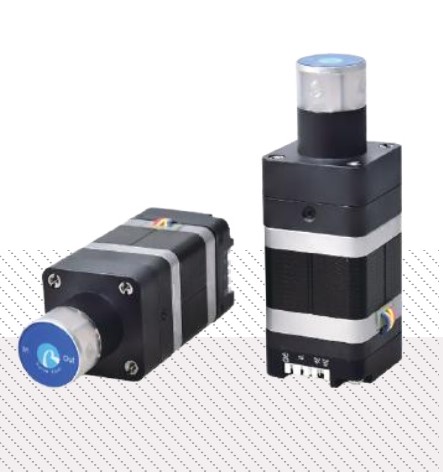

[RUNZEFLUID] Mrv-01B High Pressure Valve

가격문의(상세정보 참조)

High pressure resistance, positive pressure 1.2Mpa, negative pressure 0.06Mpa, with status feedback
Valve body can be heated up to 80 ℃
When switching valves, there will be no ﬂuctuation or pulsation of the liquid, ensuring the stability of the liquid outlet
Stepper motor driver, compared to solenoid valves, can be opened or closed for a long time
High pressure valves are widely used for the collection and distribution of ﬂuid samples, suitable for environmental detection instruments, experimental anal- ysis instruments, medical analysis instruments, chromatographs and other equipment

원산지 CHINA

5,000 포인트 적립예정 적립예정

택배 · 기본 무료 · 도서산간 배송비 popover

120,000원 이상 구매 시 무료배송

반품/교환

반품/교환

상품이 없습니다.

Flow Passage Diameters	1.5mm
Wetted material	Ceramics

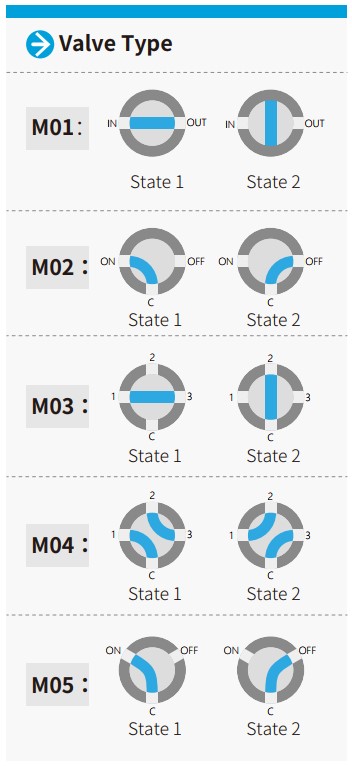

Valve model	M01	M02	M03	M04	M05
Dead Volume	52.93µl	50.68µl	52.93µl	101.35µl	51.32µl
Pressure rating	0~1.0Mpa(air)/0~1.2Mpa(water)
Liquid temperature	0~80℃
Connection	1/4-28UNF
Replaceable parts	Replace stator and rotor seals
Transposition	X
Driver	≤530ms (response time)
Transposition	Two states, random start

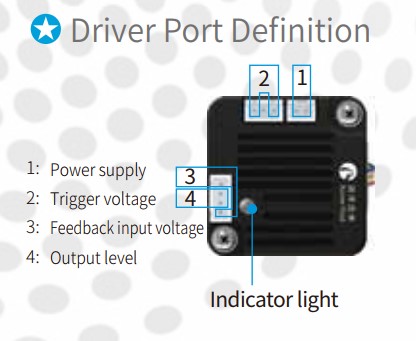

Trigger signal	DC7-33V
Feedback input signal	DC3.3V~24V high low level output
Power supply	DC24V/1A
Max. current	2A
Power	15W
Operating temperature	0℃~50℃
Operating humidity	<70% relative humidity, non-condensing

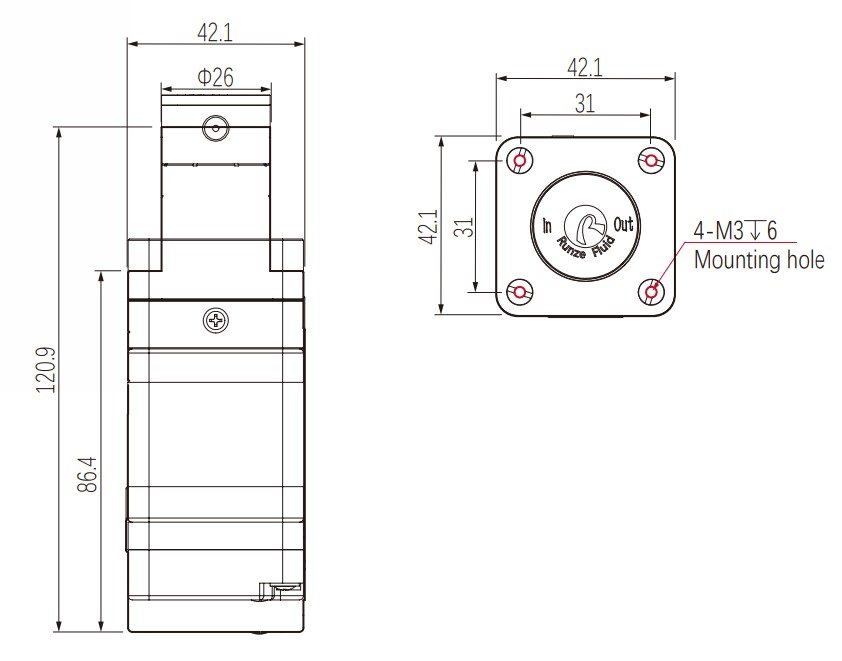

Dimension(LWH)	42.142.1120.9mm
Net Weight	0.487kg
