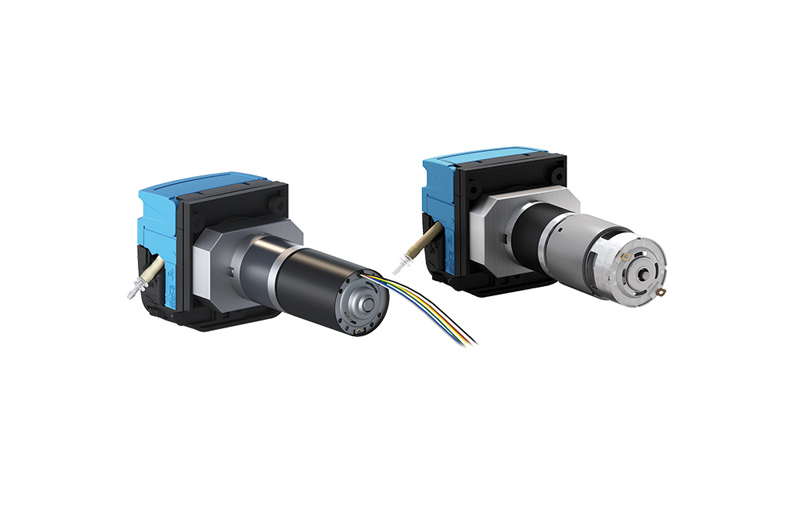

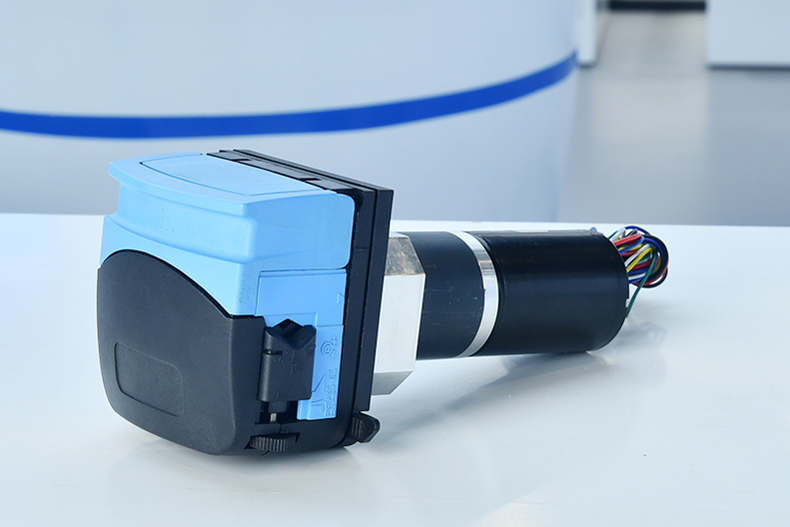

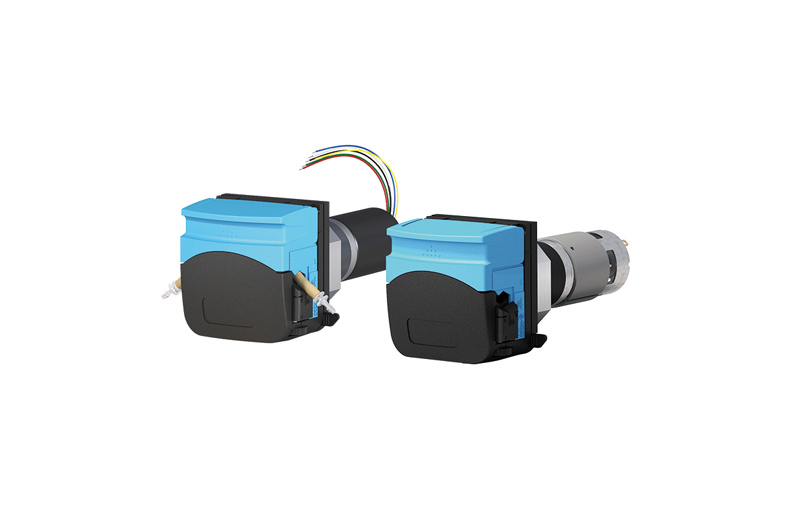

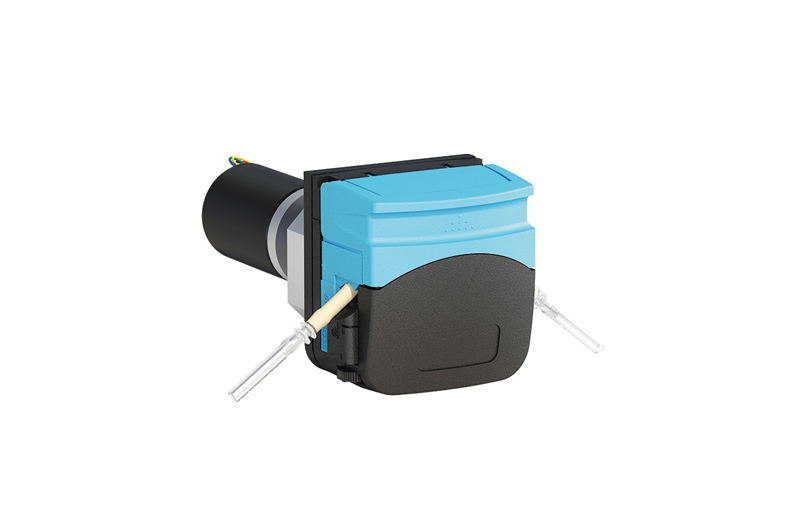

[RUNZE FLUID] ZL(YS)-FG-16
DC Motor Peristaltic Pump
Standard FG-16 pump head, PPS housing, 304 SST3/6 rollers,

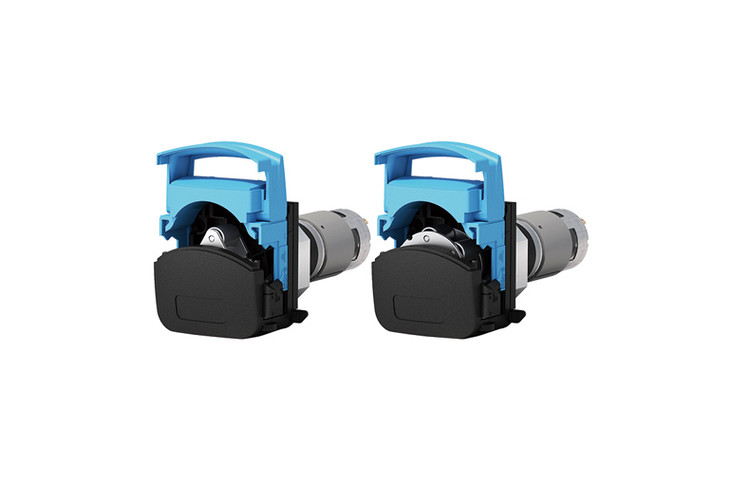

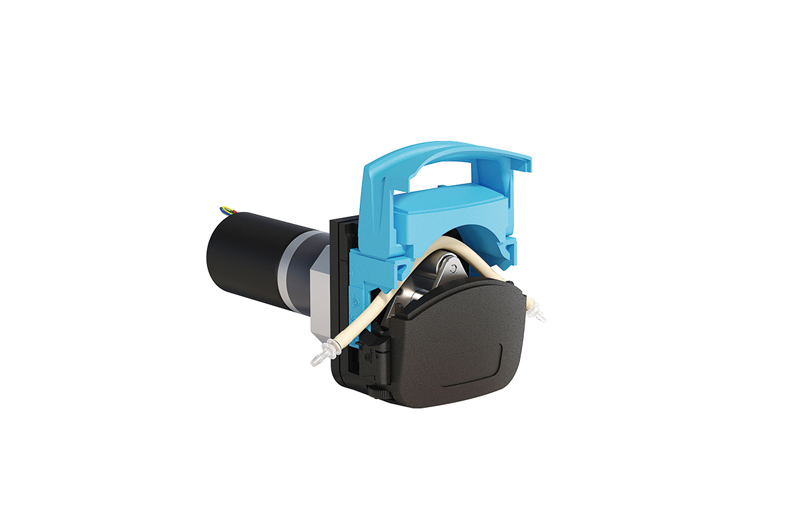

withstand high temperatures; Flip cover design, easy to replace tube
3/6 rotors are optional
24V brushless DC motor/brushed DC motor optional,
small size, low power consumption, low cost
Easy to operate, low noise
Max.Flow 1539ml/min

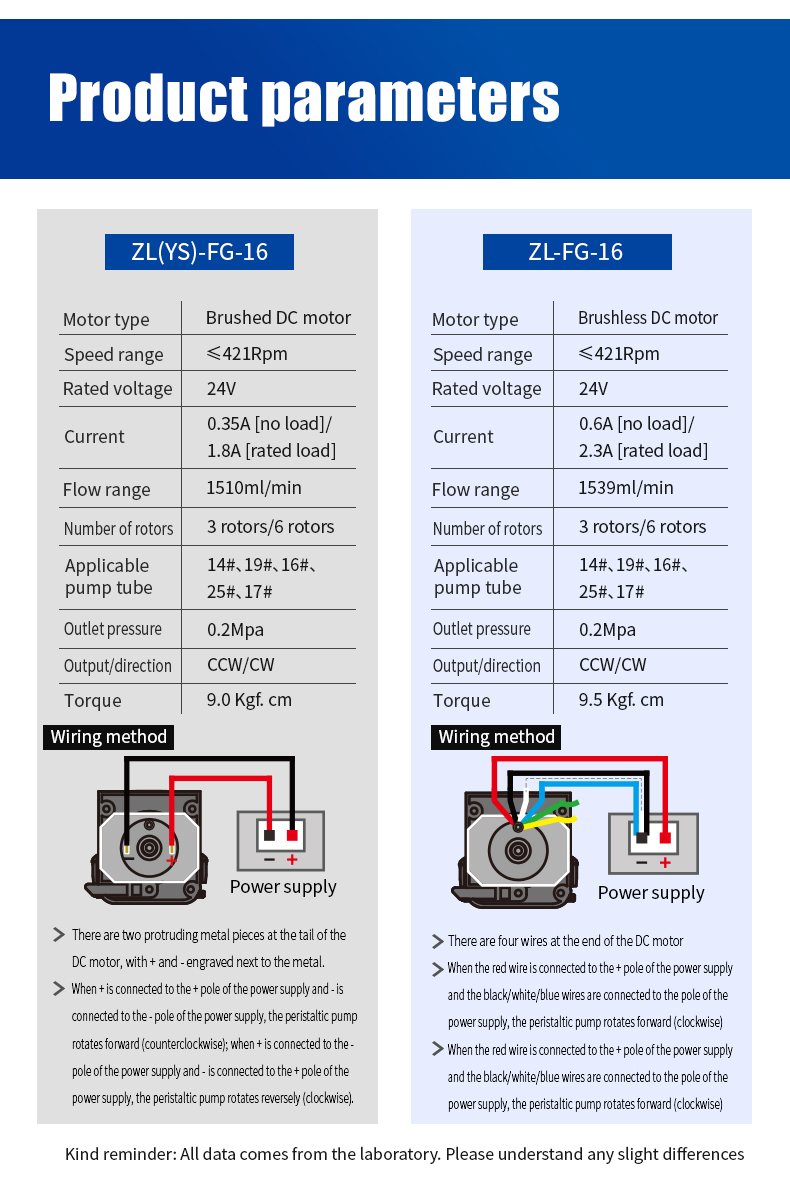

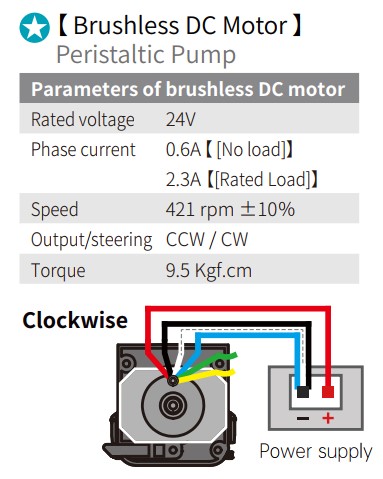

- The DC motor has four wires.
- Connecting red to positive and black, white, blue to negative makes the pump rotate clockwise.
- Connecting red to positive and black, blue to negative makes it rotate counterclockwise

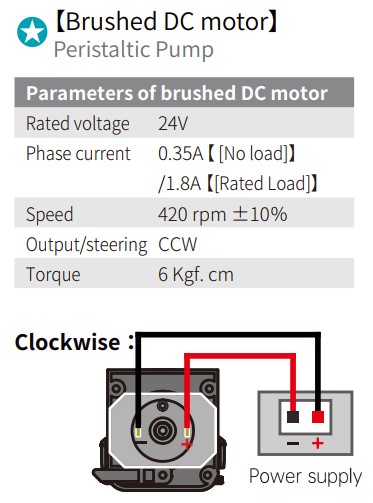

- The DC motor has two protruding metal pieces at the rear, marked with "+" and "-".
- When the "+" is connected to the positive terminal of the power supply and the "-" is connected to the negative terminal, the peristaltic pump rotates forward (counterclockwise). When the "+" is connected to the negative terminal of the power supply and the "-" is connected to the positive terminal, the peristaltic pump rotates in reverse (clockwise).
Max.Flow Rate Table
| Tubing (D*WT mm) | Peristaltic Pump ( ml/min) | |||
| ZL-FG-16-3L | ZL-FG-16-6L | ZL(YS)-FG-16-3L | ZL(YS)-FG-16-6L | |
| 14# (1.6*1.6) | 113 | 107 | 110 | 97 |
| 19# (2.4*1.6) | 226 | 215 | 243 | 215 |
| 16# (3.2*1.6) | 374 | 379 | 495 | 425 |
| 25# (4.8*1.6) | 978 | 619 | 1000 | 742 |
| 17# (6.4*1.6) | 1539 | 942 | 1510 | 1040 |

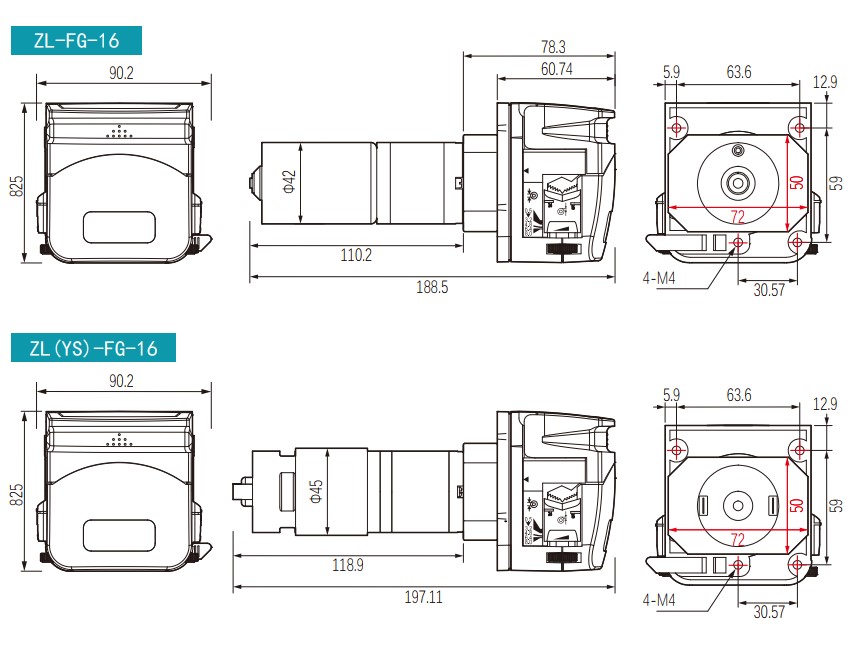

Dimensions(Unit:mm)
