[RUNZE FLUID] LM60 Series _ Box-type Peristaltic Pump

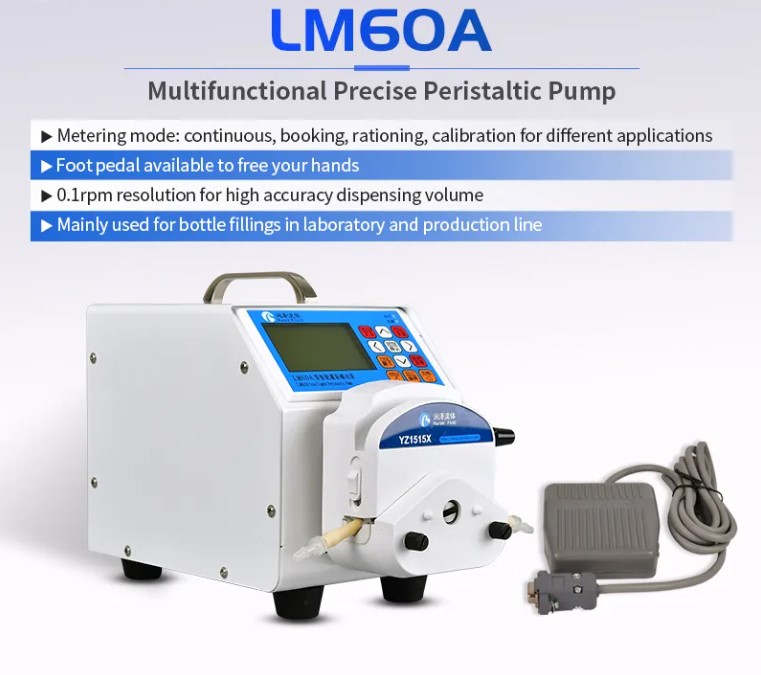

<LM60A>
<LM60B>
Working mode
1. Calibration Mode: For ensure accuracy of dispensing volume and flow rate before starting any other working mode or when pump/tubing get replaced
2. Continuous Mode: For continuous liquid transfer with no specific requirements
3. Rationing Mode : Realize one-off liquid dispensing in specific volume within spe- cific period of time under specific speed
4. Reservation Mode : Realize liquid dispensing in specific volume at N times under specific speed

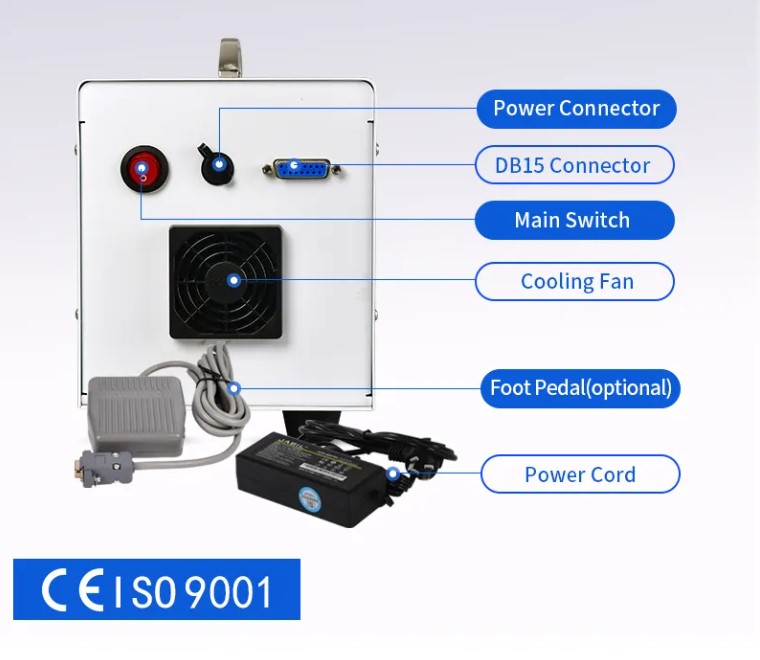

Control mode (Interface)
1. Keyboard control mode
Foot input interface; Foot pedal control start stop
2.External control mode
External control speed control signal input interface；Supports multiple speed control signals
External control turn signal input interface； Support steering switching control External control start signal input interface； Support start/stop switching control
3.Communication control mode:
External communication control interface： RS232/RS485
Please refer to the installation steps of a stepper motor peristaltic pump with the same pump head for the installation of the pump tube
Technical Parameter
| Model No. | LM60A | LM60B |
| Rotary coding port | - | Can rotate to change editing position and content |
| Power | 35W | 20W |
| Dimension (L*W*H) | 143*205.8*199.3mm (without pump head) | 100*175.5*96mm (without pump head) |
| Net weight | 3.5kg (without pump head) | 1.45kg (without pump head) |
| Speed range | 0.1rpm ~ 300/400rpm(Maximum speed vary from different pump heads,tube type and tube sizes) | |
| Speed resolution | ±0.1rpm | |
| Working mode | Continuous mode, Rationing mode, Booking mode, Calibration mode | |
| Power supply | DC24V±10% | |
| Operating temperature | 0 ~ 40℃ | |
| Operating humidity | <80% | |
| Protection level | IP31 | |
Max.Flow Rate Table

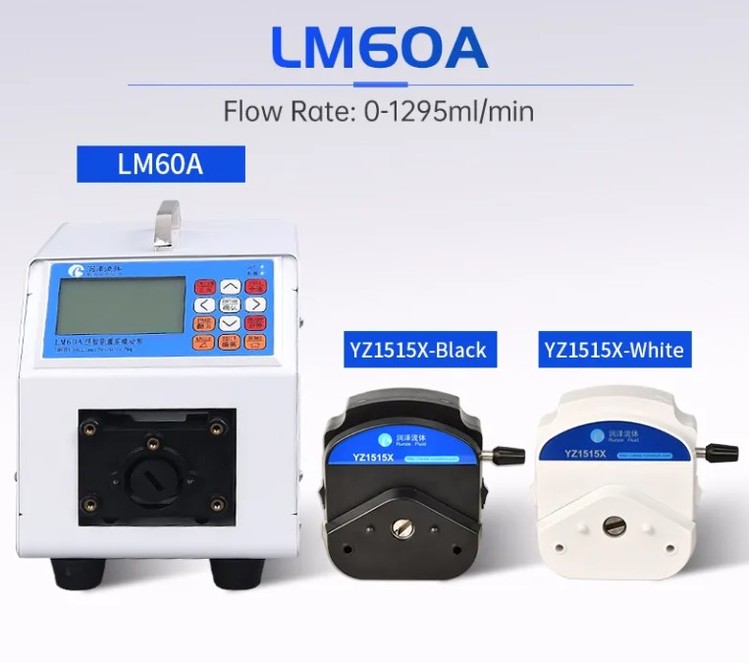

◆ LM60A ⸺Max.Flow Rate Table（ml/min）
| Tubing (ID*WT mm) | Pump head | ||||||||||
| SN15-3-14# | SN15-3-16# | SN15-3-25# | SN15-3-17# | SN15-6-14# | SN25-3-15# | YZ1515X-3 | YZ1515X-6 | YZ2515X-3 | FG-16-3L | FG-16-6L | |
| 14# (1.6*1.6) | 68 | — | — | 56 | — | — | 117 | 76 | — | 120 | 108 |
| 19# (2.4*1.6) | — | — | — | — | — | — | — | — | — | 257 | 216 |
| 16# (3.2*1.6) | — | 270 | — | — | 192 | — | 389 | 244 | — | 441 | 363 |
| 25# (4.8*1.6) | — | — | 573 | — | — | — | 752 | — | — | 790 | 583 |
| 17# (6.4*1.6) | — | — | — | 997 | — | — | 1249 | — | — | 1212 | 900 |
| 15# (4.8*2.5) | — | — | — | — | — | — | 517 | — | — | 783 | — |
| 24# (6.4*2.4) | — | — | — | — | — | — | 1295 | — | — | — | — |
◆ LM60B ⸺Max.Flow Rate Table（ml/min）
| Tubing (ID*WT mm) | Pump head | ||||||||
| BJ-RZ1030-4 | BJ-RZ1030B-4 | BJ-RZ1030B-8 | RZ01-0.8-4 | RZ01-1.6-4 | RZ02-0.8-3 | RZ02-0.8-6 | RZ02-1.6-3 | RZ02-1.6-6 | |
| 0.64*0.8 | 12 | 12 | 9 | 12 | 16 | 13 | — | — | — |
| 0.76*0.8 | 15 | 15 | 14 | 13 | 18 | 16 | — | — | — |
| 0.89*0.8 | 18 | 18 | 17 | 16 | 27 | 21 | — | — | — |
| 1.02*0.8 | 25 | 25 | 22 | 20 | 30 | 26 | — | — | — |
| 1.14*0.8 | 28 | 28 | 28 | 22 | 37 | 31 | — | — | — |
| 1.30*0.8 | 32 | 32 | 32 | 24 | 41 | 33 | — | — | — |
| 1.42*0.8 | 40 | 40 | 36 | 32 | 59 | 45 | — | — | — |
| 1.52*0.8 | 47 | 47 | 43 | 41 | 74 | 51 | — | — | — |
| 1.65*0.8 | 56 | 56 | 50 | 43 | 77 | 55 | — | — | — |
| 1.85*0.8 | 70 | 70 | 57 | 50 | 94 | 61 | — | — | — |
| 2.06*0.8 | 84 | 84 | 65 | 55 | 101 | 66 | — | — | — |
| 2.29*0.8 | 94 | 94 | 77 | 61 | 120 | 86 | — | — | — |
| 2.54*0.8 | 104 | 104 | 90 | 75 | 153 | 105 | — | — | — |
| 2.79*0.8 | 128 | 128 | 96 | 96 | 161 | 114 | — | — | — |
| 1.0*1.0 | 26 | 24 | 17 | — | — | — | — | 23 | 19 |
| 2.0*1.0 | 105 | 99 | 84 | — | — | — | — | 57 | 51 |
| 3.0*1.0 | 170 | 170 | 114 | — | — | — | — | 112 | 105 |
| 0.8*1.6 | — | — | — | — | — | — | — | 14 | — |
| 1.6*1.6 | — | — | — | — | — | — | — | 48 | — |
| 2.4*1.6 | — | — | — | — | — | — | — | 94 | — |
| 3.2*1.6 | — | — | — | — | — | — | — | 152 | — |
| — | — | — | — | — | — | — | 236 | 183 | |
Note: SN series pump head speed 300rpm, other pump head speed 400rpm, tested with water at room temperature and pressure, flow rate data is for reference only.

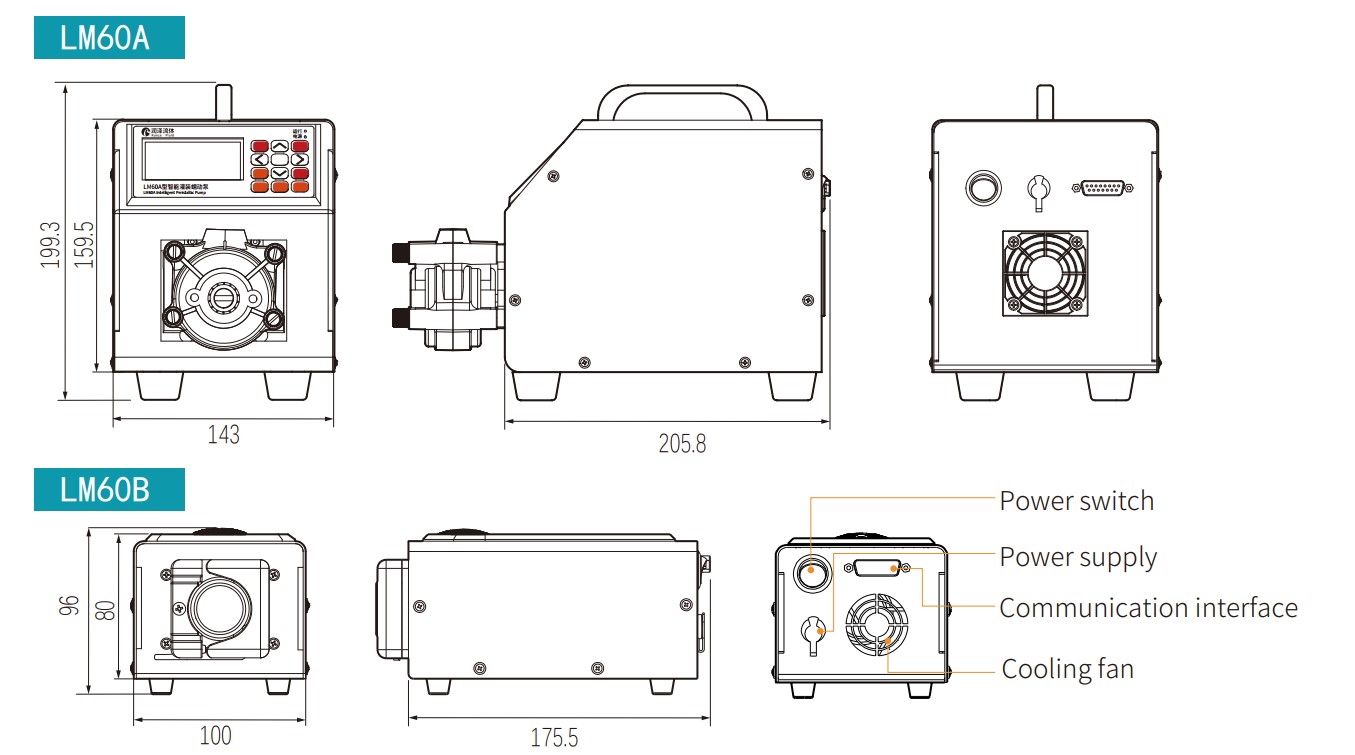

Dimensions(Unit:mm)
