The thermal cycler is basic instrument in molecular laboratories and is mainly used for gene amplification in scientific research and clinical area, qualitative PCR gene amplification, gene chip or other gene analysis applications.
The gradient thermal cycler has gradient function, which can quickly increase and decrease the temperature.
lt can achieve temperature uniformity in a single process and can quickly and stably complete polymerase chain reaction (PCR) experiments.
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |

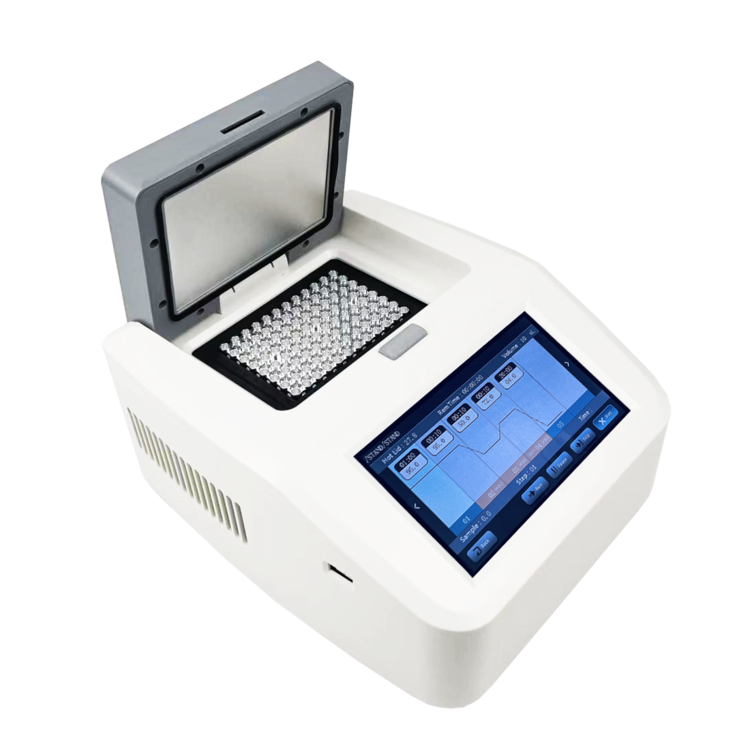

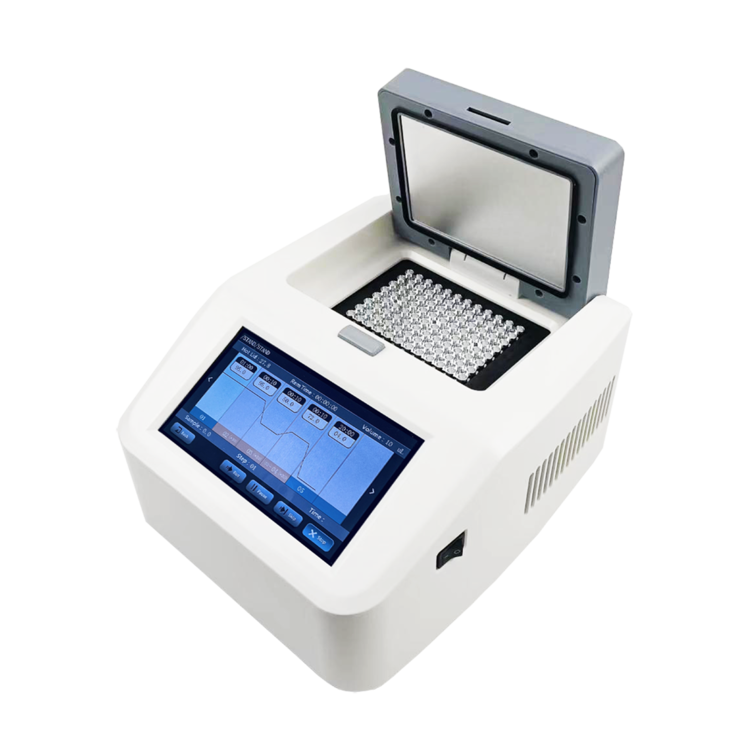

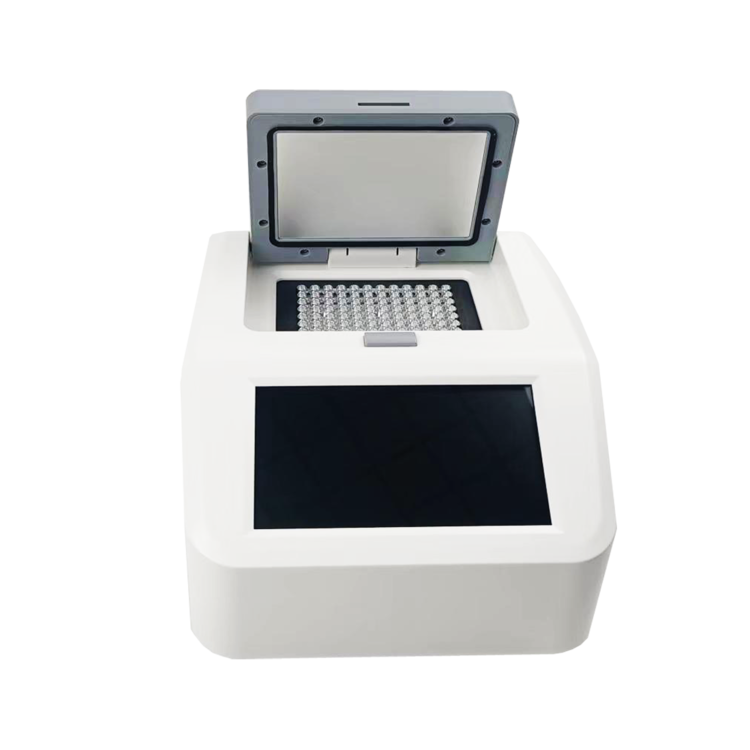

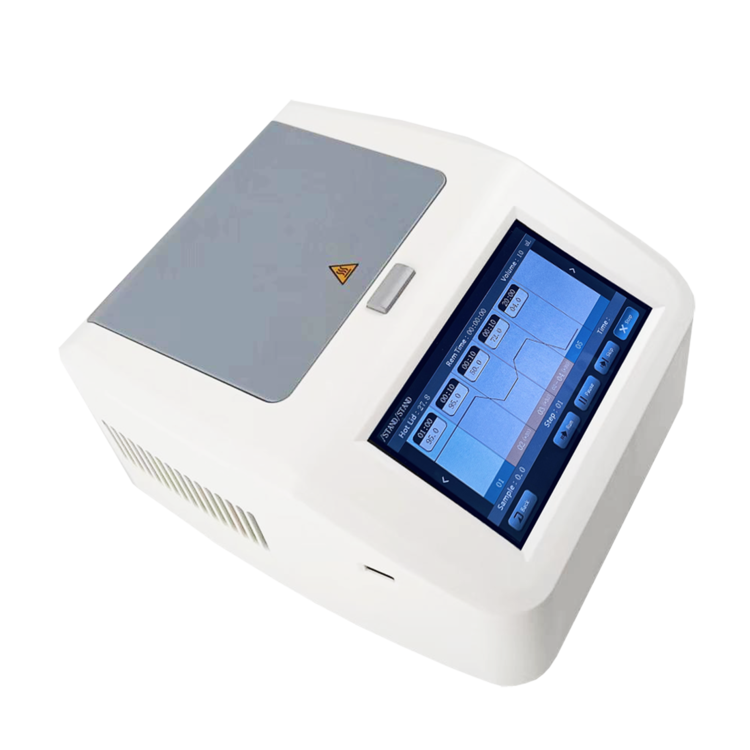

Thermal Cycler TC96S/TC96G
TC96S/TC96G
- Portable and compact design;
- Elastic structure hot lid design, adaptable to 96-well microplate or 0.1 /0.2ml PCR tube;
- Using high-quality peltier, ensure excellent temperature uniformity;
- The heating and cooling rate can reach to 5.5°C/s, saving experimental time;
- Humanized standard program file template, which can quickly edit experimental files;
- Automatic fault detection and alarm function.
| Model | TC96S | TC96G |
| Temp mode | Standard | Gradient |
| Sample capacity | 96×0.1/0.2mL PCR tube/96-wells PCR plate | |
| Reaction volume | 1-100 ul | |
| Block temp control range | 4~105°C | |
| Hot lid temp control range | 30~110°C | |
| Temp. display accuracy | ±0.1°C | |
| Temp. control accuracy | ±0.3°C | |
| Temp. uniformity | ±0.3°C at 55℃ | |
| Max. heating/cooling rate | 5°C/s | |
| Gradient setting range | / | 30~105°C |
| Gradient spread | / | 1~42°C |
| Gradient temp. uniformity | / | ±0.3℃ at 55℃ |
| Gradient temp. accuracy | / | ±0.3℃ at 55℃ |
| Heating and cooling system | Petier temperature control | |
| Display | 7-inch color touch screen | |
| Memory capacity | 700 files | |
| Max. number of cycle | 100 | |
| Power outage protection | Yes | |
| Dimension | L270×W240×H150mm | |
| Weight | 4.8kg | |
| Voltage/Frequency | 100~240V;50/60Hz | |
모바일 환경에서는 표를 좌·우로 스크롤해주세요.
고객센터
배송안내
배송기간
주의사항
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |

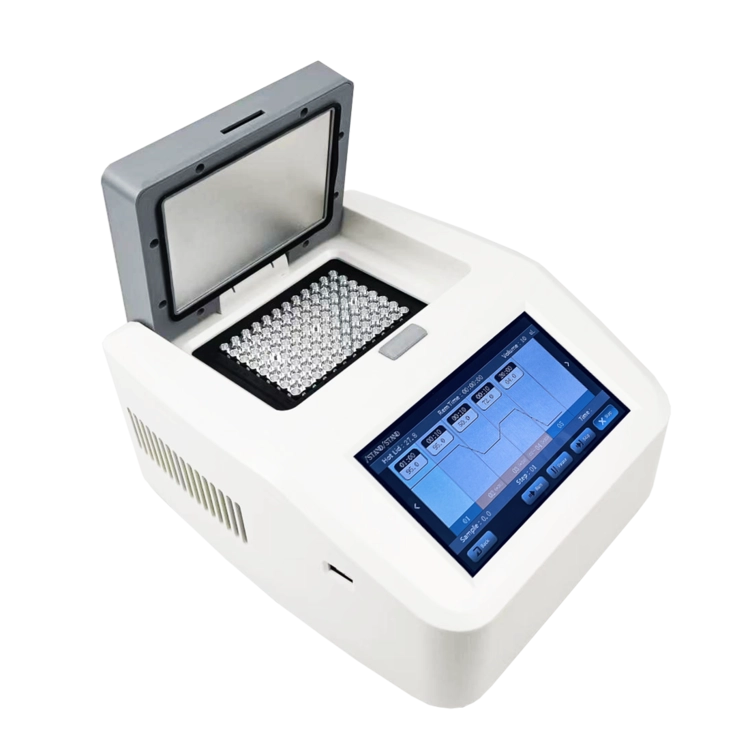

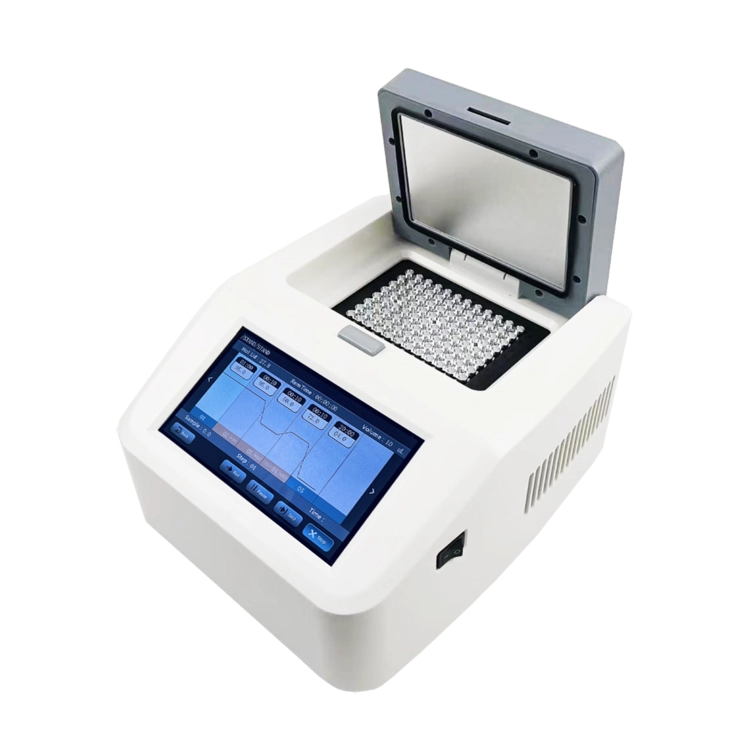

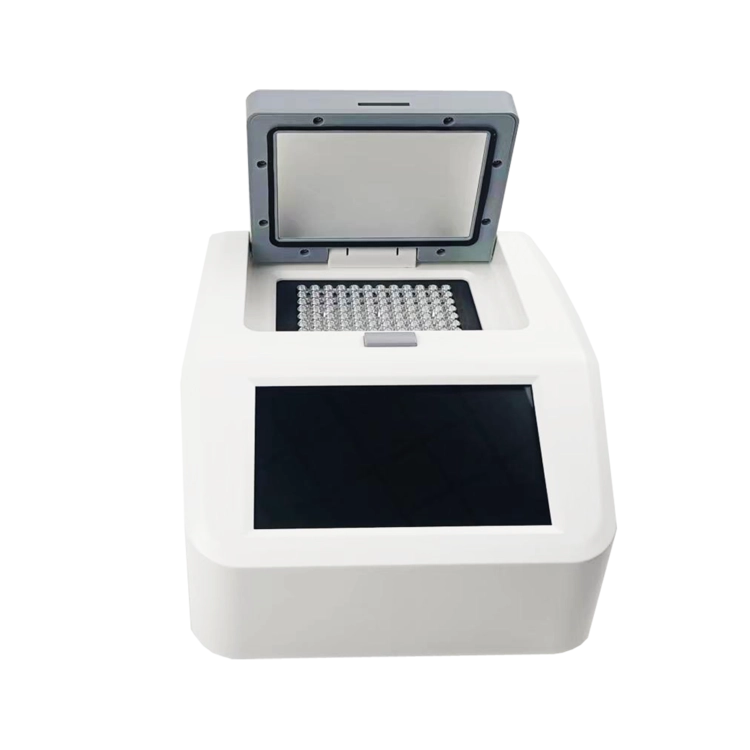

Thermal Cycler TC96S/TC96G
