As an important detection method for molecular biology detection, real-time fluorescence quantitative PCR has been widely used in many fields such as scientific research, clinical detection and diagnosis and forensic applications.
원산지 CHINA
제조사 VISION MED
브랜드 VISION MED
무게 1kg
500,000 포인트 적립예정 적립예정
택배 · 기본 무료
120,000원 이상 구매 시 무료배송
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |

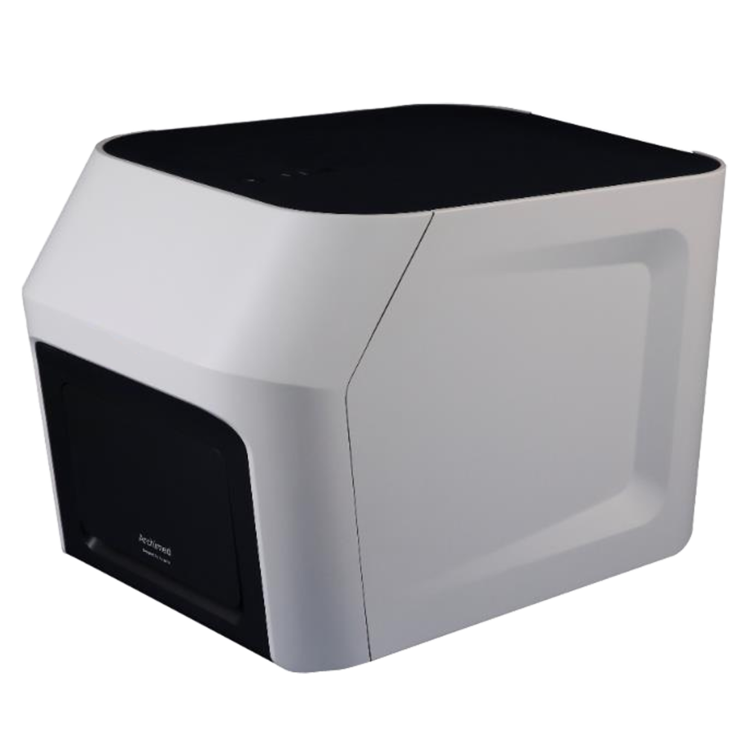

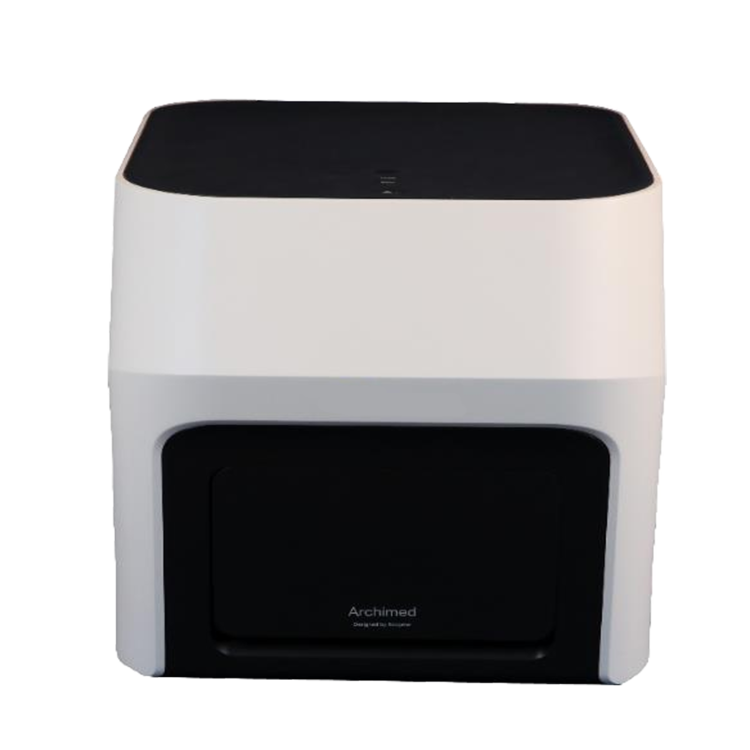

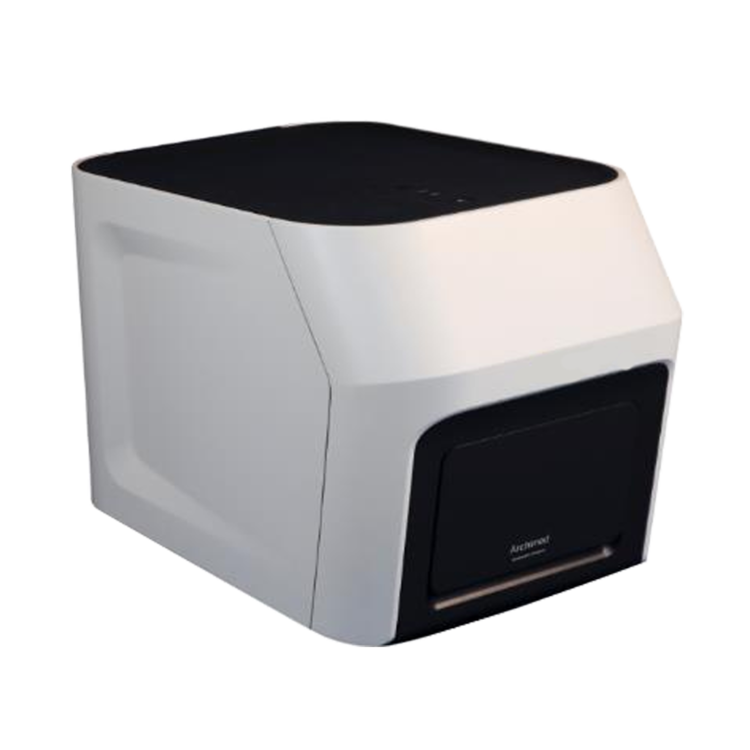

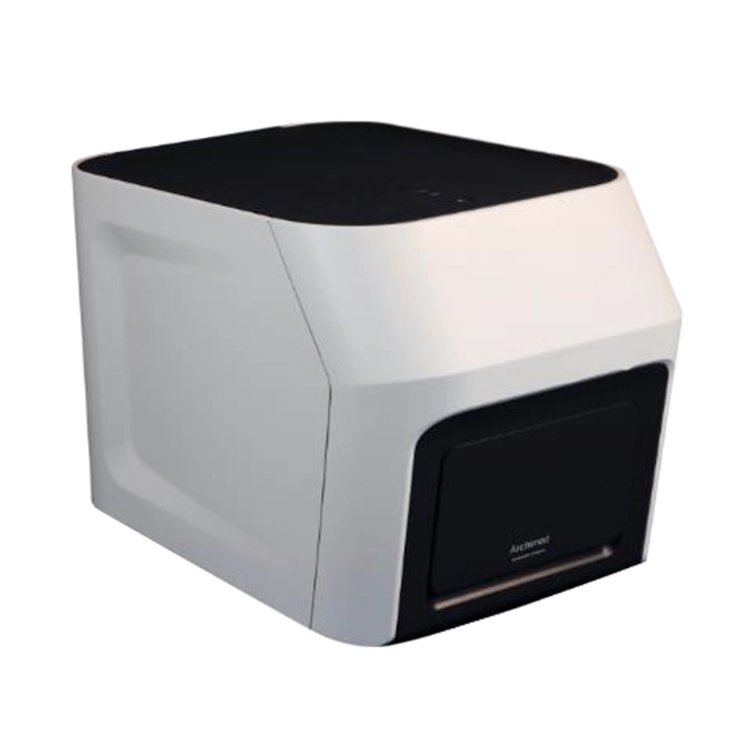

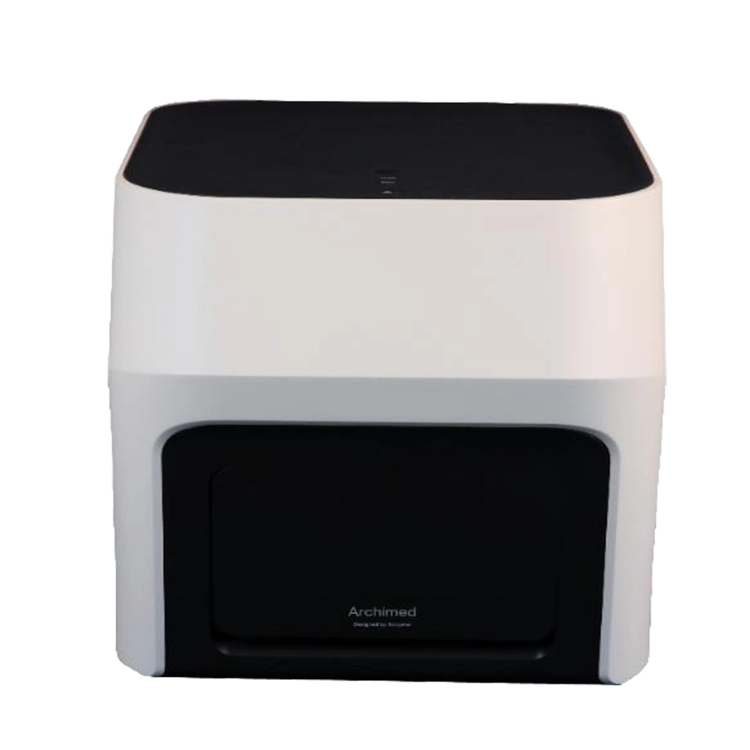

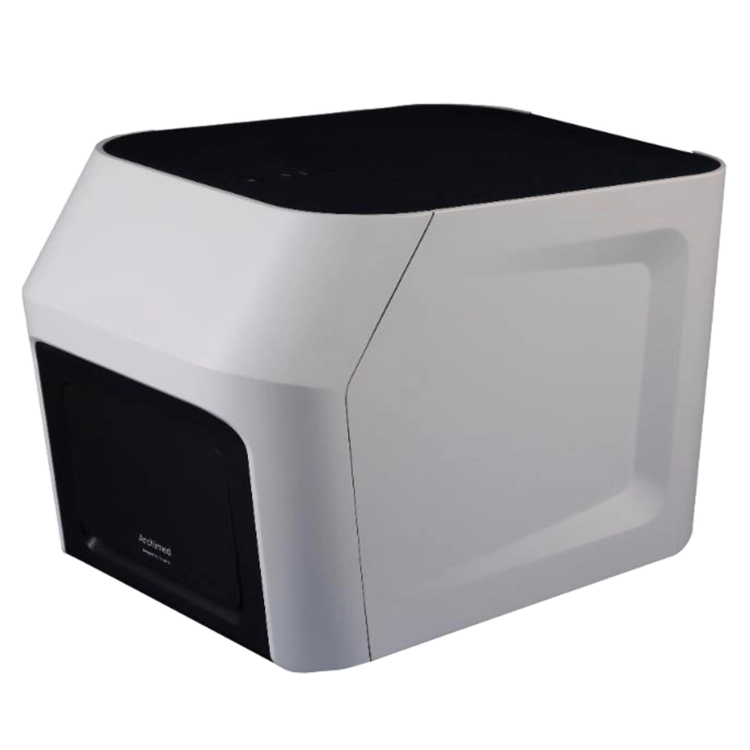

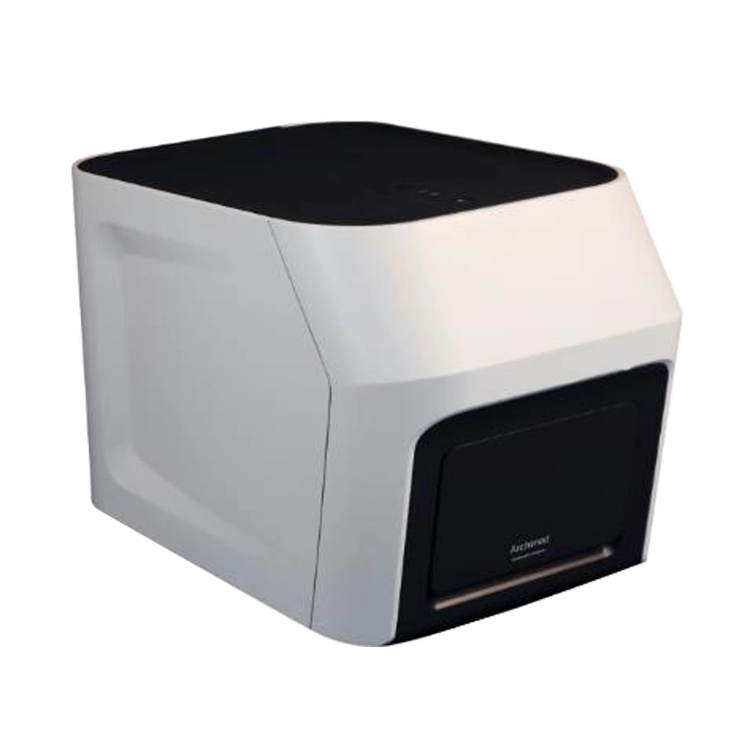

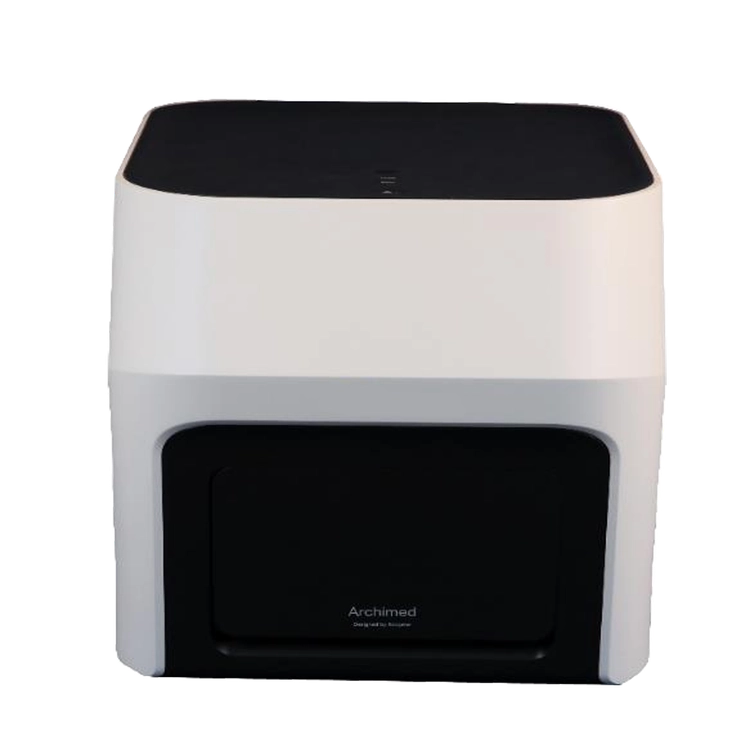

Quantitative Real-time PCR-96-wells QP96C4/QP96C6
QP96C4/QP96C6
- Four channels and six channels cover most fluorescence;
- Effectively reduces multi-color crosstalk and edge effects without fluorescence correction;
- Innovative scanning method and time-resolved signal separation technology ;
- Optical scanning detection system, high sensitivity and resolution, accurateidentification of negative and positive;
- Unique zoned temperature control and edge temperature compensation technology ensures temperature uniformity.
Model | QP96C4 | QP96C6 |
Sample capacity | 96x0.1ml PCR tube/12x0.1ml 8-strip tube/96-well microplate | |
Reaction volume | 10~50μl | |
Thermal cycling | Peltier(6 temperature control modules) | |
Maximum ramp rate | 6℃/s | |
Temperature setting range | 4~100℃ | |
Temperature accuracy | ≤ ±0.1℃ | |
Temperature uniformity | ≤±0.1℃ | |
Gradient zone | 12 columns | |
Gradient range | 1~40°C | |
Excitation light source | 4pcs LED | 6pcs LED |
Detection module | MPPC | |
Scanning principle | Time-resolved scanning technology | |
Excitation/detection range | 415-685nm/455-745nm | |
Fluorescence channel | 4 channels | 6 channels |
Detection sensitivity | 415-685nm/455-745nm | |
Excitation/detection range | 1 copy of the target sequence | |
System sensitivity | 1.33-fold copy number differences in singleplex reactions | |
Dynamic range | 10 orders of magnitude | |
Dye compatibility | F1: FAM/SYBR Greenl F2: VIC/HEX/TET/JOE/TAMRA F3: ROX/Texas Red F4: Cy5/LIZ F5: Quasar 705/AlexaFluor 680/Cy5.5 F6: ATTO425 | |
Dimension | L500xW360xH380mm | |
Weight | 25kg | |
Power supply | 100-240V，50-60Hz | |
