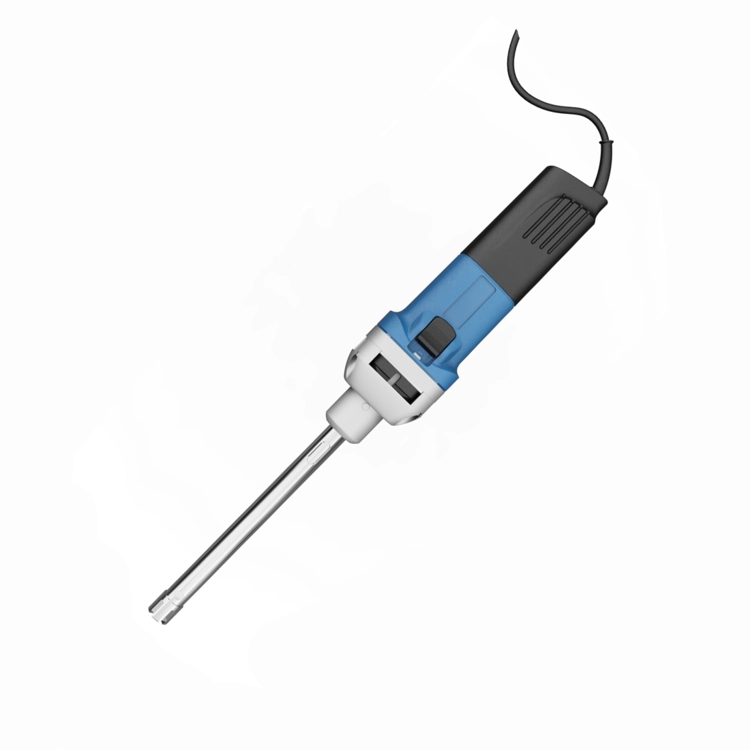

High Shear Homogenizer TH500
TH500
- High quality 316L stainless steel, corrosion/ high temperature resistance
- Rotor with simple design can be dismounted, cleaned, and applicable for sample with viscosity up to 10000 mPa·s
- Replaceable rotors and stators sharing the same shaft, cost-effective
- Automatic overload protection mechanism maximizes the smooth motor start, stable acceleration without spillage risk
| Model | TH500 |
| Power | 550W |
| Speed range | 10000~30000rpm |
| Max linear velocity | 22.7~36m/s |
| Speed level | 6 levels |
| Dispersion probe material | SS316L stainless steel, PTFE |
| Sample capacity | 10~40000mL |
| Max viscosity | 10000mPas |

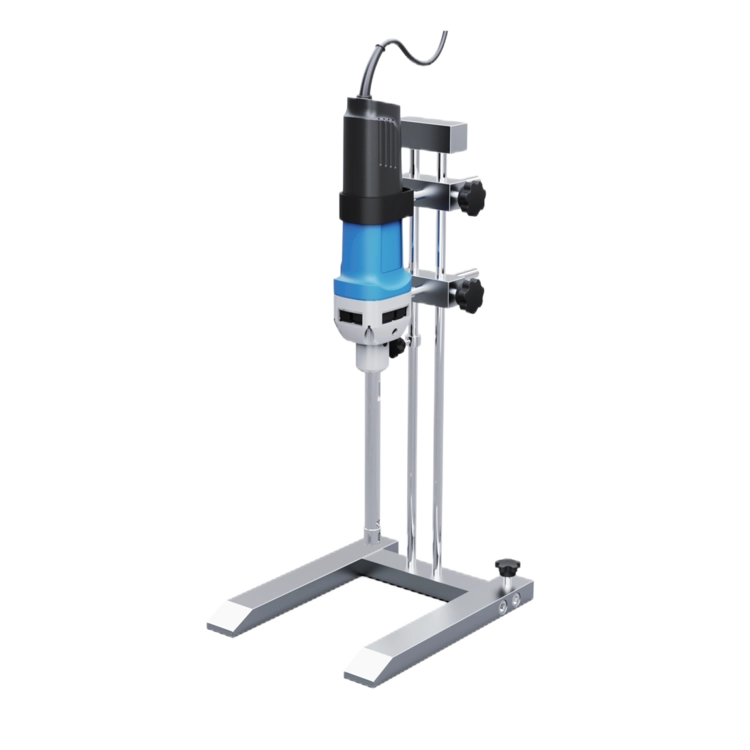

| Dimension (with workbench) | L350×W300×H600mm |
| weight | 1.7kg |
| Power supply | 110V/220V;50/60Hz |

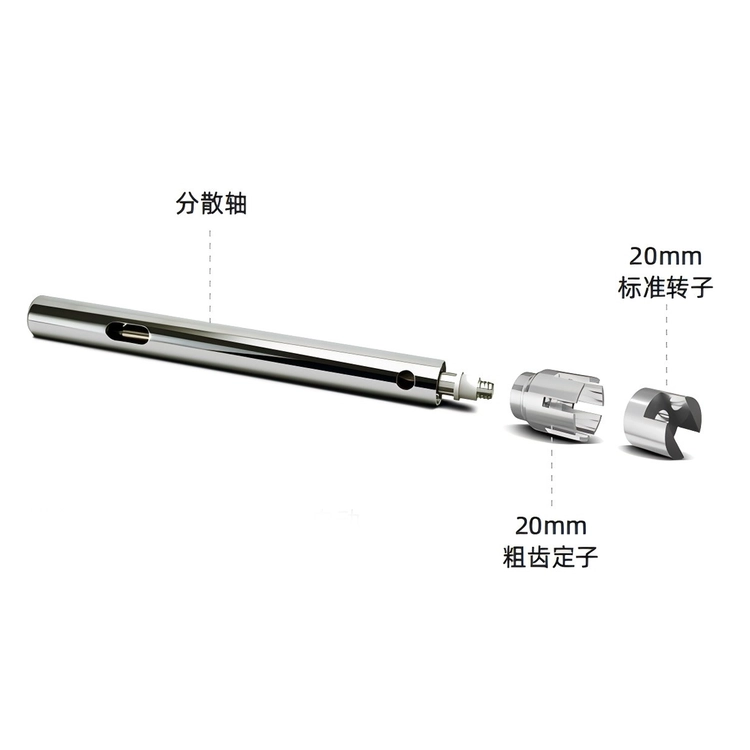

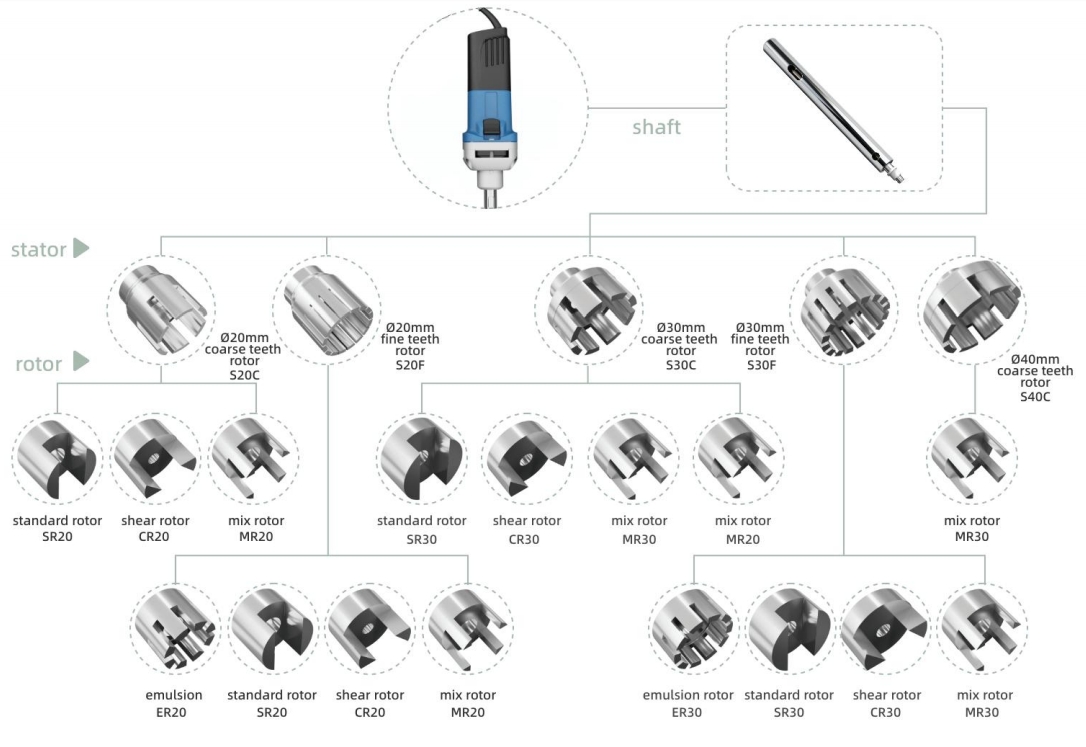

Dispersion probe Select:
Material : All dispersion head components are made of high quality; 316L stainless steel to ensure the
mechanical performance while rotating at high speed of 30000rpm;
Bearing : Made of excellent material the bearing is sturdy, durable and corrosion resistance. lts mechanical
performance and chemical characteristics are stable;
Easy to clean : The dispersion head is designed to be easily dismantled and thus cleaned. The components
can be cleaned manually or automatically, and can be autoclaved. Even the precision components can
peremoved to clean.
Widely applied for histocyte lysis, cell homogenization, emulsion, nanometer scale dispersion process in biology, pharmaceutical, genetic and pathology study, diary product or fruit homogenization, production of fragrance, cosmetics, textile auxiliary, food, ink, paints, asphalt, fine chemicals, agricultural chemicals, and analysis in mineral exploration, environmental protection and energy resource exploration.
- Routine homogenization, emulsion,depolymerization, dispersion application
- Disperse substance to form suspension and emulsion
- Disperse pigment and resin
- Disperse animal or human tissue into various solution
- Facilitate the dissolve of solid substances
- Sample preparation for quality control test
- Animal or plant cell lysis
- Emulsion, cream cosmetics and food formulation study
- Extraction of active pharmaceutical ingredientfrom pills and tablet
