The sample concentrator is a high-precision temperature control instrument that combines microcomputer processing and PlD control. It is suitable for the concentration or preparation of large batches of samples. By blowing nitrogen into the surface of the heated sample, the solvent in the sample is quickly evaporated and separated, thereby achieving the purpose of oxygen-free concentration of the sample and keeping the sample purer.The gas needle channels of the heating module can be used in combination or individually.

안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |

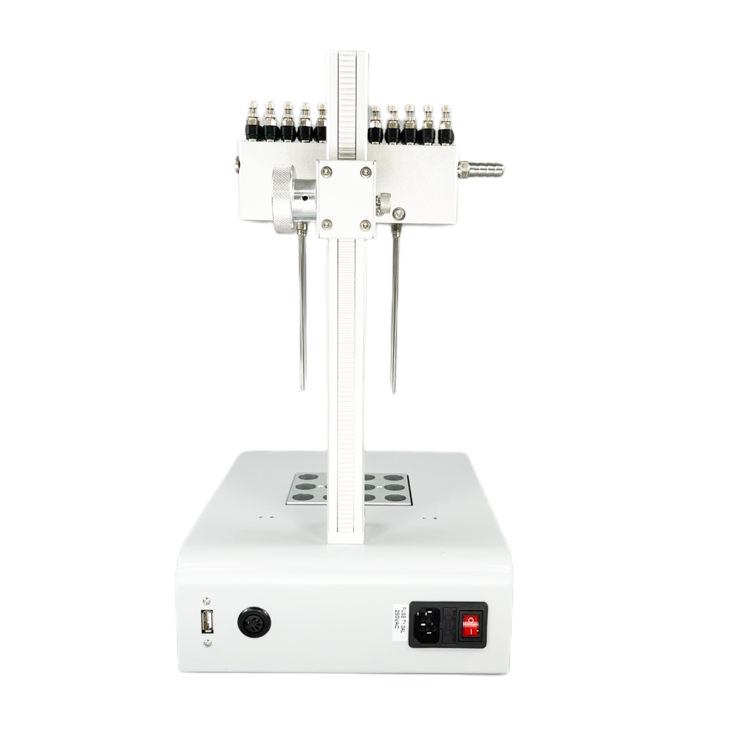

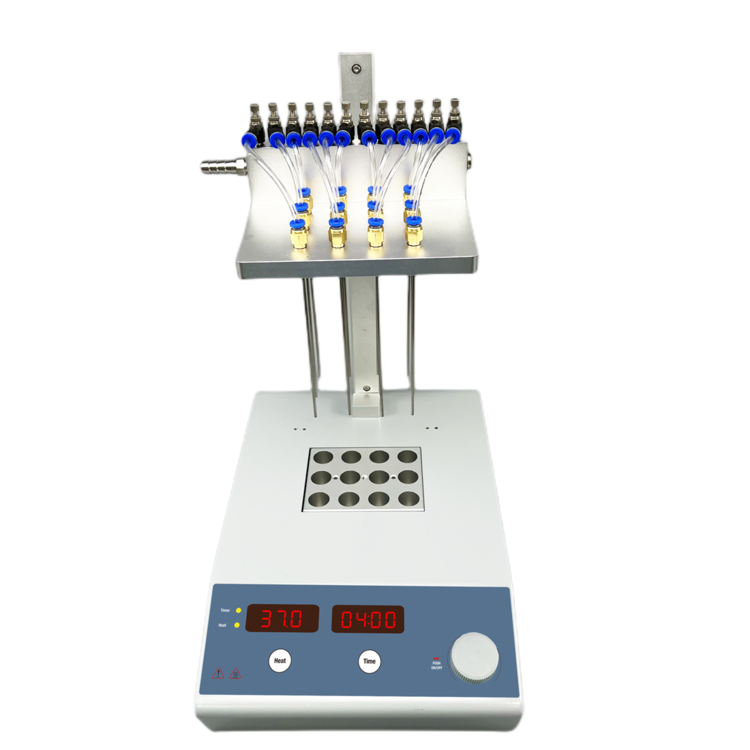

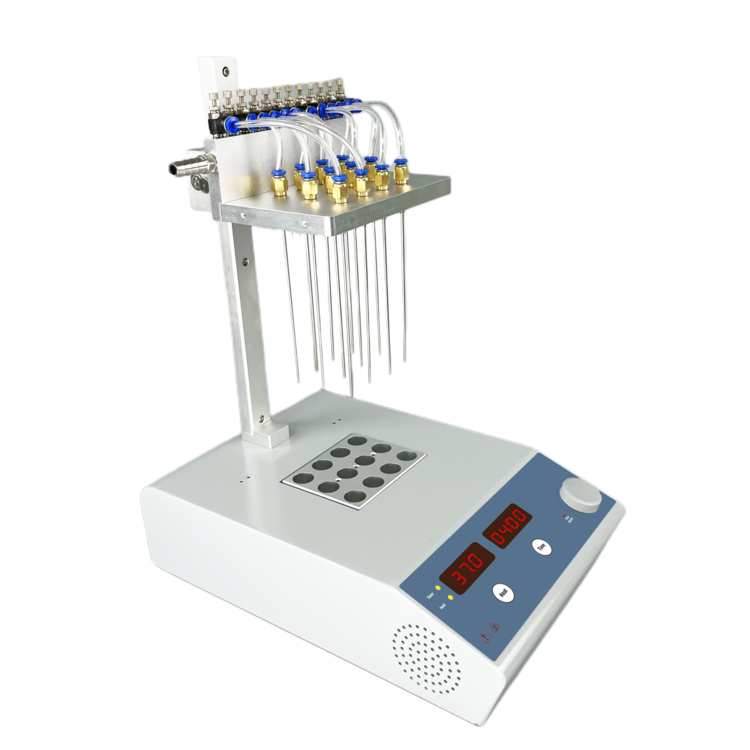

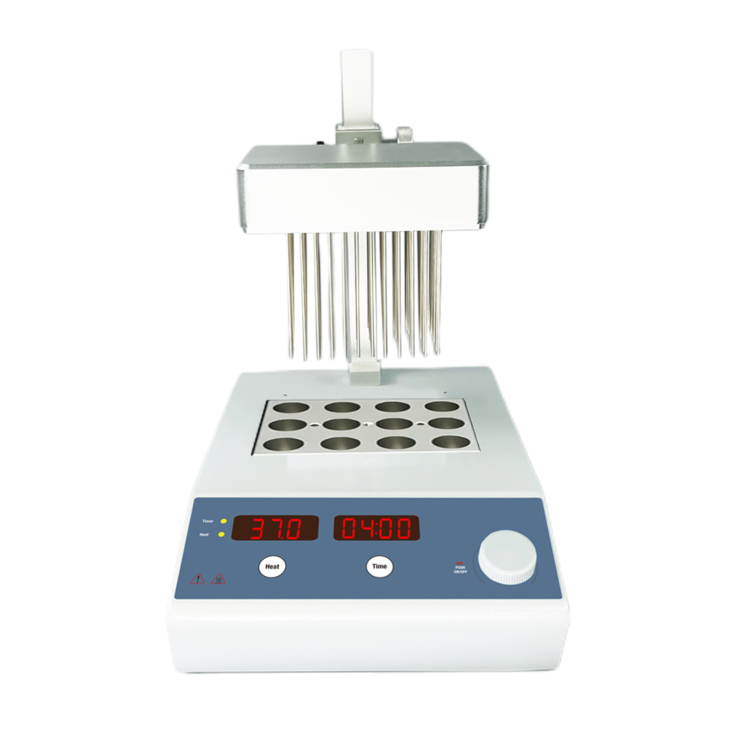

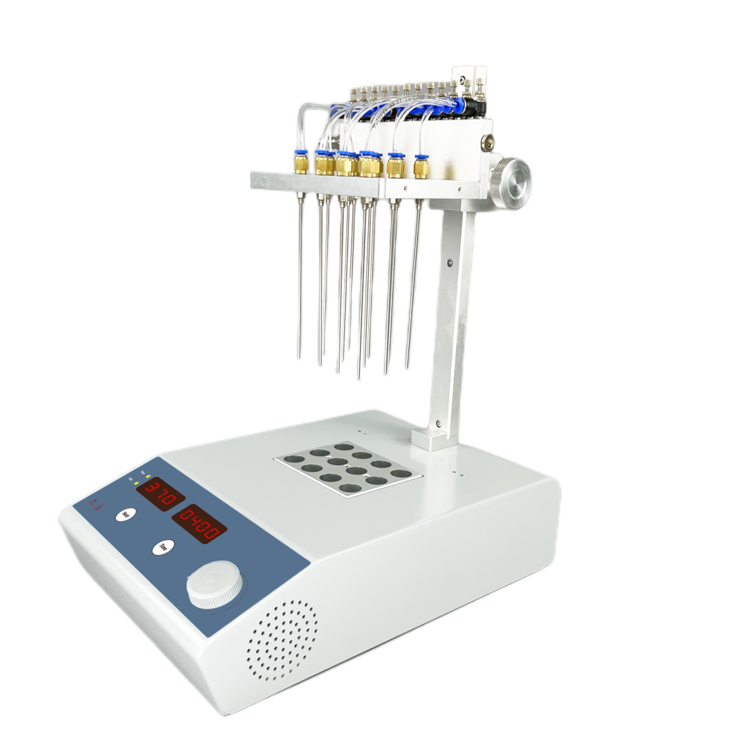

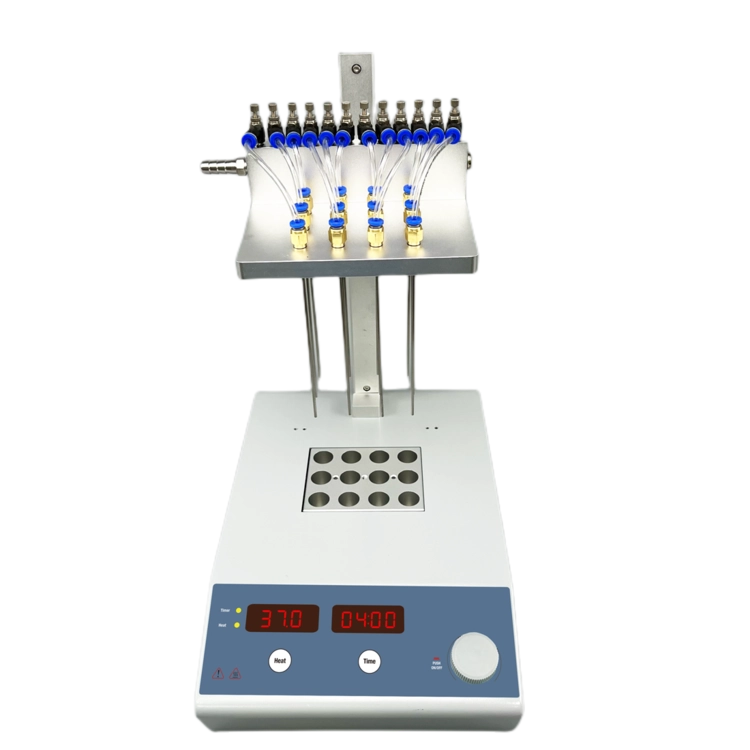

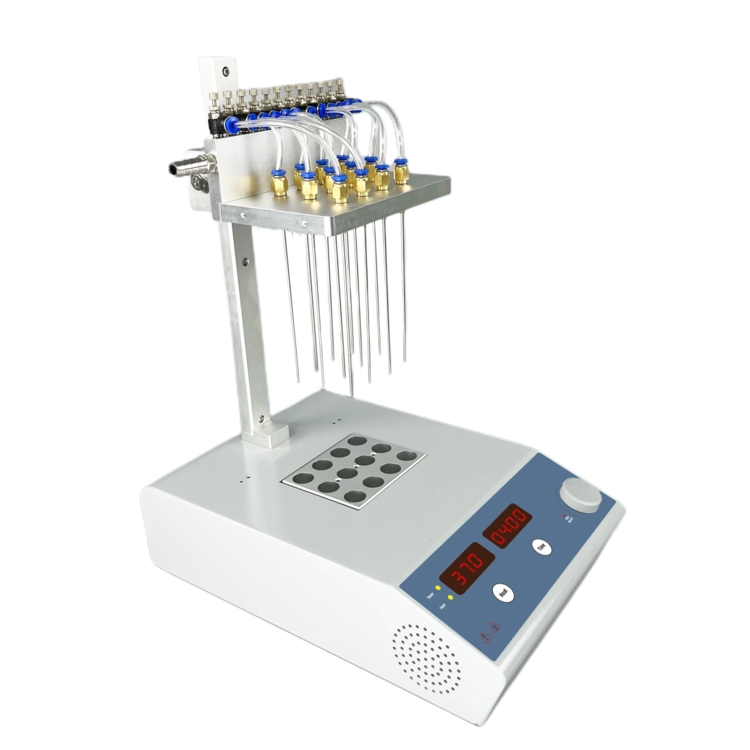

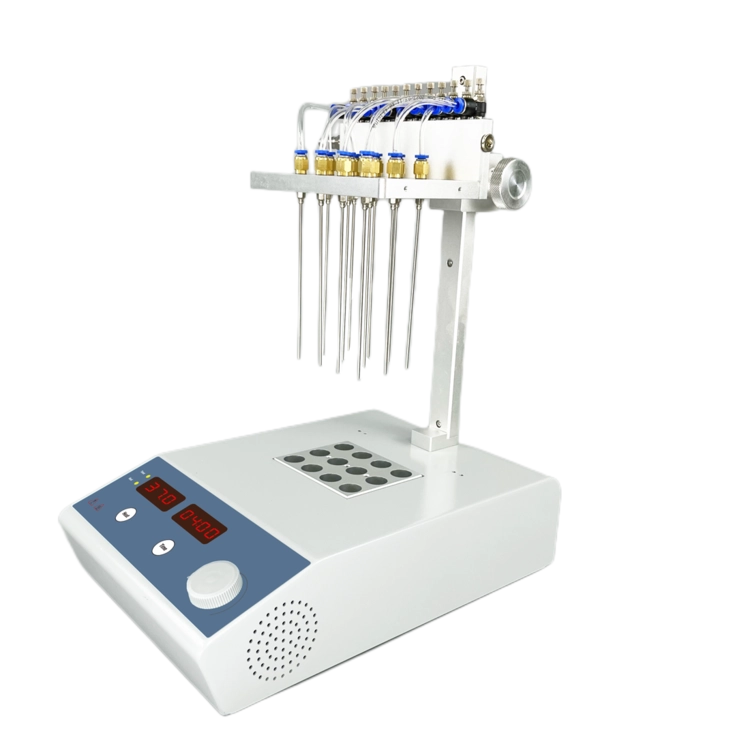

Sample Concentrator TSC12/TSC12E (12-well)
TSC12/TSC12E
- LED display, convenient for monitoring temperature and time;
- Built-in over-temperature protection, safe operation;
- Aviation aluminum heating module, uniform heat transfer, rapid temperature control;
- There is a alarm reminder when reach to set temperature and time;
- The height of the air chamber can be adjusted for various tubes;
- The blow pipes are independent and will not cause cross contamination;
- When concentrating toxic solvents, the entire system can be placed in a fume hood;
- Various heating modules can be customized.
Model | TSC12 | TSC12E |
Air needle channel | independent | public |
Temp setting range | 25~105℃ | |
Temp stability | ±0.3℃@25~90℃ ±0.6℃@90~105℃ | |
Temp uniformity | ±0.2℃ | |
Temp accuracy | 0.1℃ | |
Time range | 0min~99h59min | |
Max lifting stroke | 205mm | |
Gas joint outer diameter | Φ12mm | |
Nitrogen pressure | ≤0.1MPa | |
Nitrogen flow | 0~10L/min | |

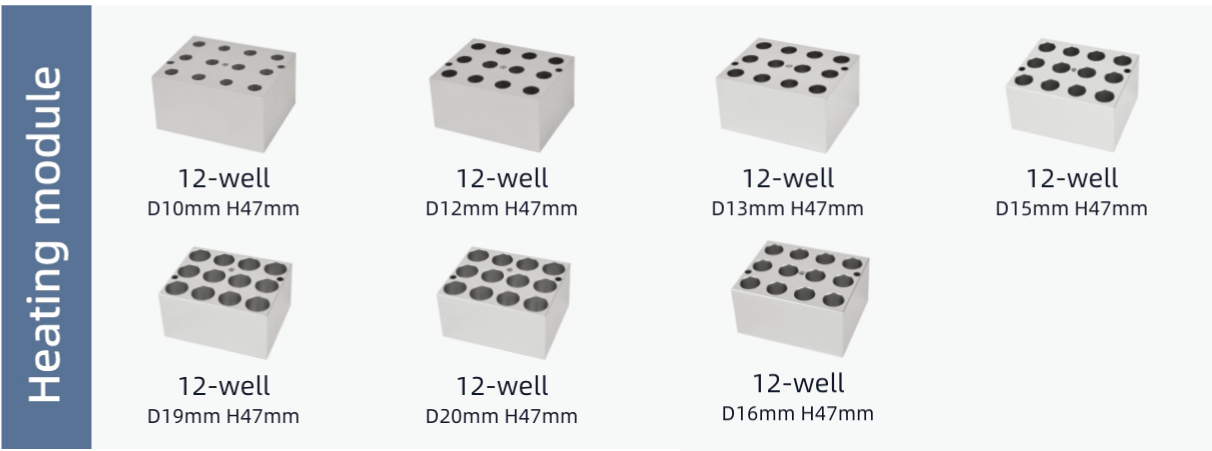

Heating module | 1x12-well | |
Power | 100W | |
Dimension | L290×W210×H400mm | |
Weight | 6kg | |
Power supply | 110V/220V;50/60Hz | |

- Pharmaceutical drug testing
- Food and beverages
- Pesticide residue analysis
- Environmental analysis
- Bioanalysis
모바일 환경에서는 표를 좌·우로 스크롤해주세요.
고객센터
배송안내
배송기간
주의사항

안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |

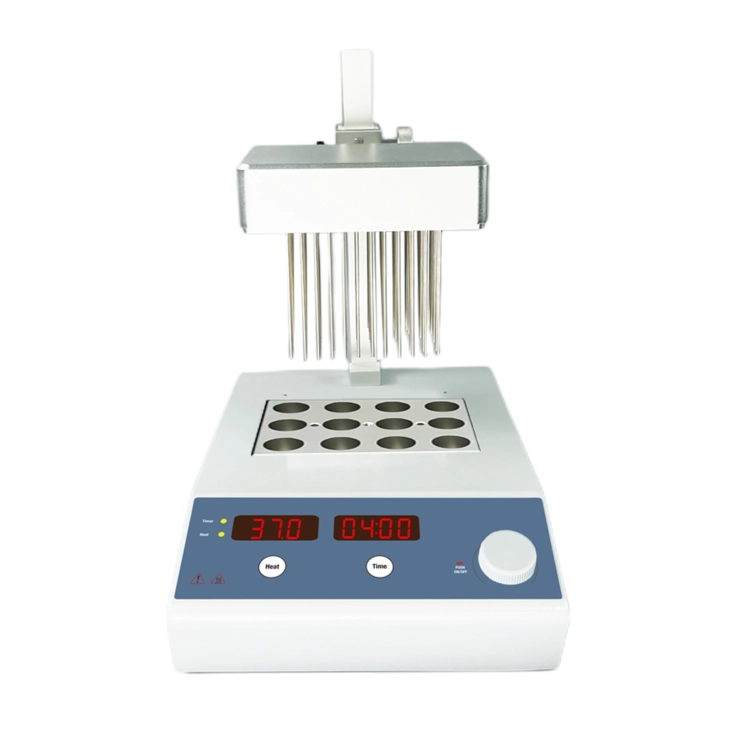

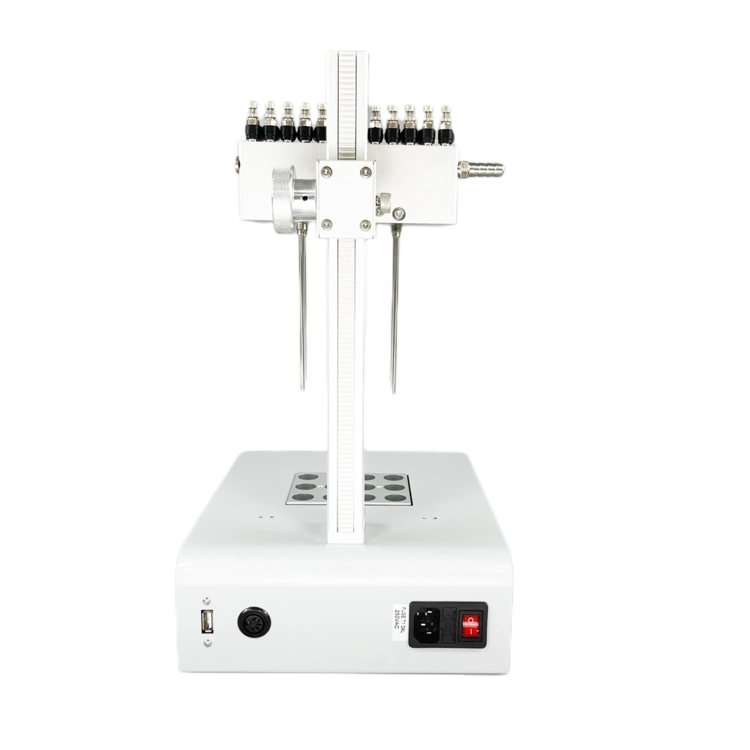

Sample Concentrator TSC12/TSC12E (12-well)
