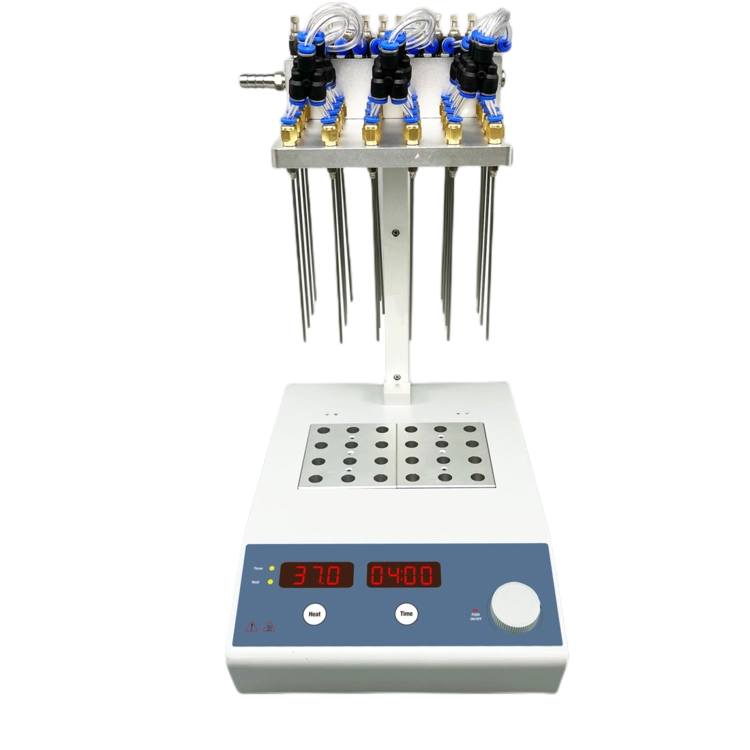

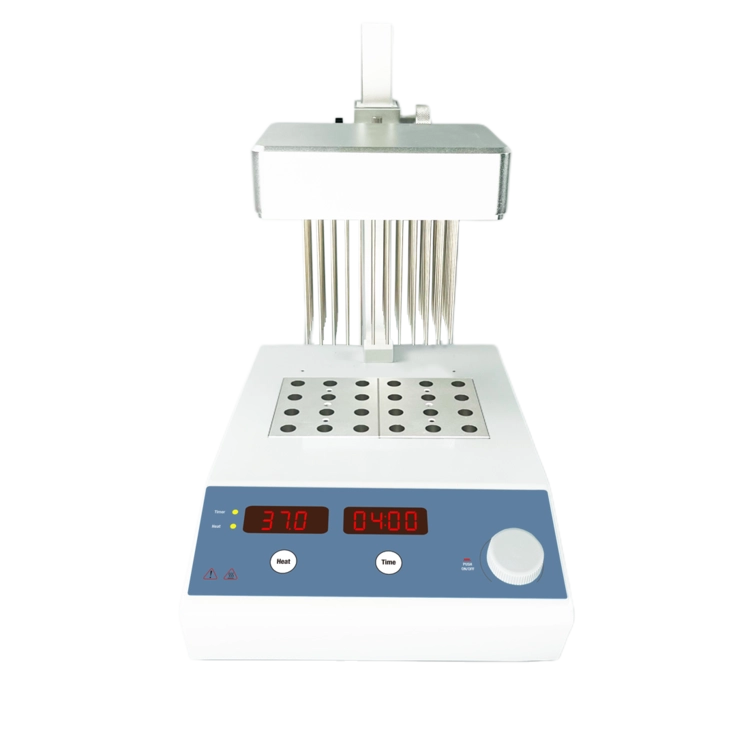

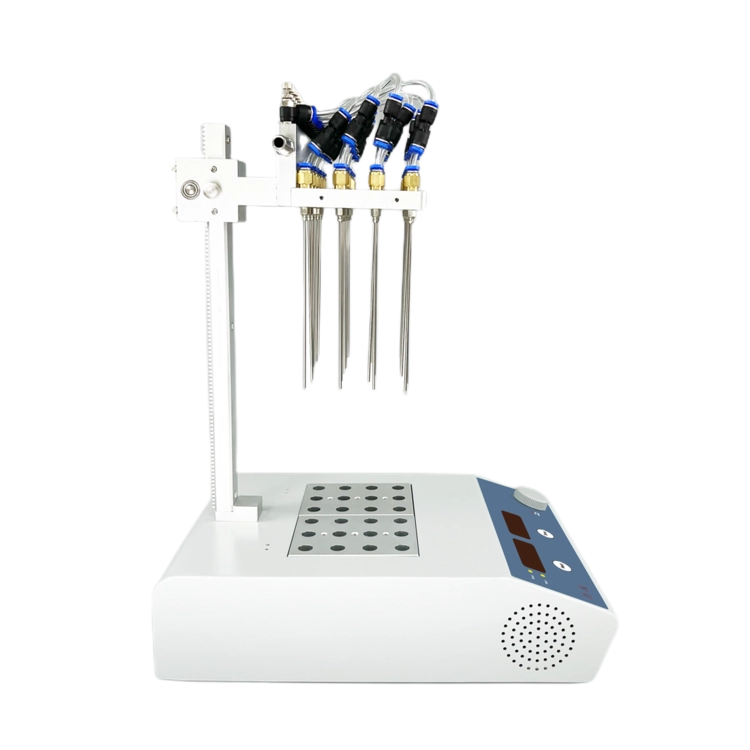

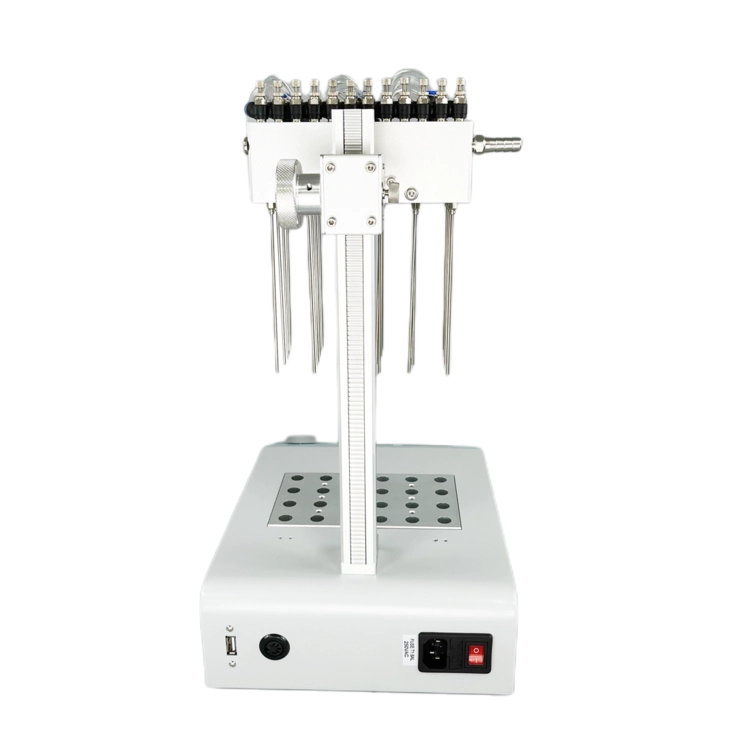

Sample Concentrator TSC24/TSC24E (24-well)
TSC24/TSC24E
- LED display, convenient for monitoring temperature and time;
- Built-in over-temperature protection, safe operation;
- Aviation aluminum heating module, uniform heat transfer, rapid temperature control;
- There is a alarm reminder when reach to set temperature and time;
- The height of the air chamber can be adjusted for various tubes;
- The blow pipes are independent and will not cause cross contamination;
- When concentrating toxic solvents, the entire system can be placed in a fume hood;
- Various heating modules can be customized.
| Model | TSC24 | TSC24E |
| Air needle channel | Independent | Public |
| Temp setting range | 25~105℃ | |
| Temp stability | ±0.3℃@25~90℃;±0.6℃@90~105℃ | |
| Temp uniformity | ±0.2℃ | |
| Temp accuracy | 0.1℃ | |
| Time range | 0min~99h59min | |
| Max lifting stroke | 205mm | |
| Gas joint outer diameter | Φ12mm | |
| Nitrogen pressure | ≤0.1MPa | |
| Nitrogen flow | 0~10L/min | |
| Heating module | 2×12-well | |
| Power | 200W | |
| Dimension | L290×W210×H400mm | |
| Weight | 6kg | |
| Power supply | 110V/220V;50/60Hz | |

- Pharmaceutical drug testing
- Food and beverages
- Pesticide residue analysis
- Environmental analysis
- Bioanalysis
