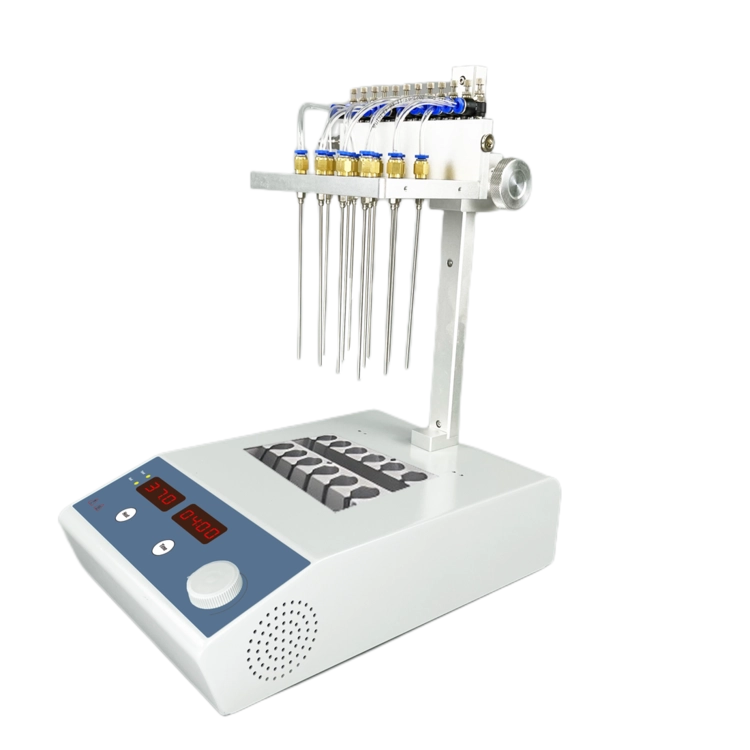

Sample Concentrator TSC12V (visible)
TSC12V
- The progress of sample concentration can be directly observed；
- LED display, convenient for monitoring temperature and time;
- Built-in over-temperature protection, safe operation;
- Aviation aluminum heating module, uniform heat transfer, rapid temperature control;
- There is a alarm reminder when reach to set temperature and time;
- The height of the air chamber can be adjusted for various tubes;
- The blow pipes are independent and will not cause cross contamination;
- When concentrating toxic solvents, the entire system can be placed in a fume hood;
- Various heating modules can be customized.
| Model | TSC12V |
| Air needle channel | Independent |
| Temp setting range | 25~105℃ |
| Temp stability | ±0.3℃@25~90℃ |
| Temp uniformity | ±0.2℃ |
| Temp accuracy | 0.1℃ |
| Time range | 0min~99h59min |
| Max lifting stroke | 205mm |
| Gas joint outer diameter | Φ12mm |
| Nitrogen pressure | ≤0.1MPa |
| Nitrogen flow | 0~10L/min |

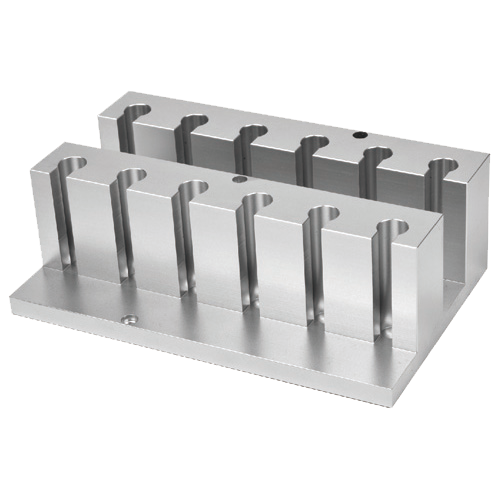

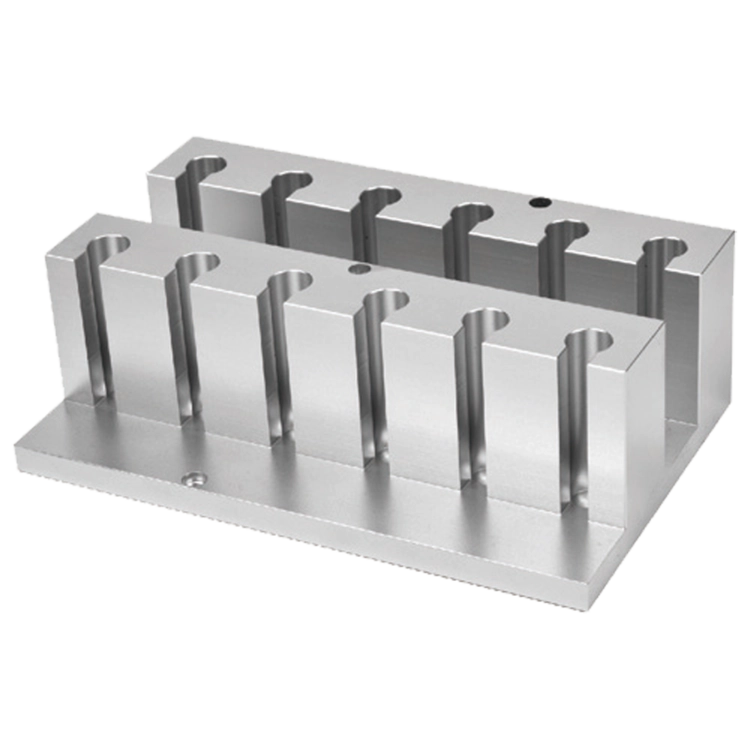

| Heating module | 1×12-well（visible） |
| Power | 100W |
| Dimension | L290×W210×H400mm |
| Weight | 6kg |
| Power supply | 110V/220V;50/60Hz |
Module configuration:
- Pharmaceutical drug testing
- Food and beverages
- Pesticide residue analysis
- Environmental analysis
- Bioanalysis
