The horizontal electrophoresis tank is mainly used for rapid separation and electrophoresis of agarose gel of DNA and RNA samples.
Special glue filling palte, multiple trays can be freely combined, easy to use. It includes gel tray, lower tank, upper tank, gel maker, comb etc.
Can apply for agarose gel electrophoresis of different sizes and sample amounts.
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |

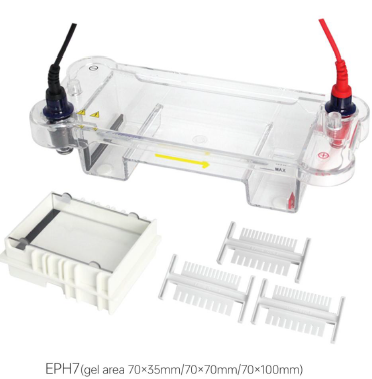

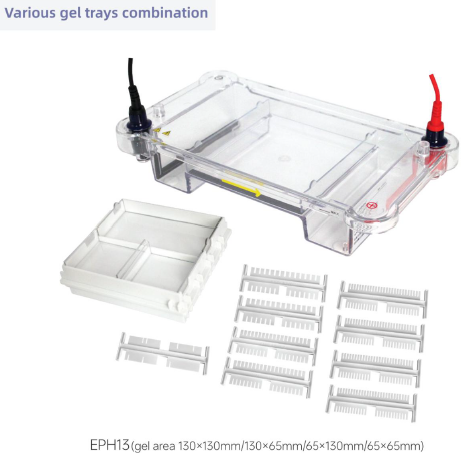

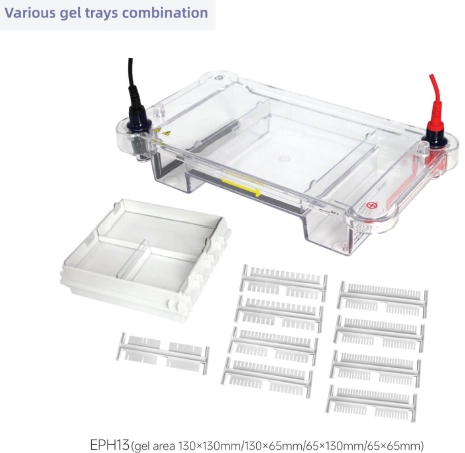

Horizontal Electrophoresis Tanks EPH7/EPH13
EPH7/EPH13
- High-temperature-resistant gel tray, no deform at temperatures up to 100°c
- The movable electrode adopts an embedded design, no concern about leakage
- No tape sealing is required during the glue making process
- Button-type cover opening design, easy to open the cover
- Injection molded tank of pressure-resistant and transparent polycarbonate material, which is leak-free and easy to observe
| Model | EPH7 | EPH13 |
| Gel area | 70x35mm/70x70mm/70xl00mm | 30xl 30mm/l 30x65mm/ 65xl 30mm/65x65mm |
| Comb size | 0.75mm:9/16wells; 1.0mm:9/16wells;1.5mm:9/ 16wells | 0.75mm:7+7 /1 4wells;9+9/19wells; 1.0mm:12+ l 2/ 27wells; 1.5mm :7+ 7 /1 4wells;9+9/19wells; 2.0mm:3+2wells/3+3wells |
| Comb Quantity | double bladex3 | double bladex9 |
| Buffer volume | 260ml | 1000ml |
| Platinum electrode | Φ0.25mm | Φ0.25mm |
| Dimension | L260xW110xH80mm | L300xW170xH80mm |
| Weight | 1.5kg | 2kg |
모바일 환경에서는 표를 좌·우로 스크롤해주세요.
고객센터
배송안내
배송기간
주의사항
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |
Horizontal Electrophoresis Tanks EPH7/EPH13
EPH7/EPH13
- High-temperature-resistant gel tray, no deform at temperatures up to 100°c
- The movable electrode adopts an embedded design, no concern about leakage
- No tape sealing is required during the glue making process
- Button-type cover opening design, easy to open the cover
- Injection molded tank of pressure-resistant and transparent polycarbonate material, which is leak-free and easy to observe
| Model | EPH7 | EPH13 |
| Gel area | 70x35mm/70x70mm/70xl00mm | 30xl 30mm/l 30x65mm/ 65xl 30mm/65x65mm |
| Comb size | 0.75mm:9/16wells; 1.0mm:9/16wells;1.5mm:9/ 16wells | 0.75mm:7+7 /1 4wells;9+9/19wells; 1.0mm:12+ l 2/ 27wells; 1.5mm :7+ 7 /1 4wells;9+9/19wells; 2.0mm:3+2wells/3+3wells |
| Comb Quantity | double bladex3 | double bladex9 |
| Buffer volume | 260ml | 1000ml |
| Platinum electrode | Φ0.25mm | Φ0.25mm |
| Dimension | L260xW110xH80mm | L300xW170xH80mm |
| Weight | 1.5kg | 2kg |
모바일 환경에서는 표를 좌·우로 스크롤해주세요.
