The integrated design of the glass plate and gasket ensures the smoothness of the surface of the gasket and the rubber sealing end of the gasket, completely preventing leakage.
Optional spacer glass plates and glue combs (0.75/1.0/1.Smm) with various thickness can meet different sample loading needs.
It can run 2 or 4pcs 8.3x7.3cm gels at the same time, save ex erimental space and cost.
안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |

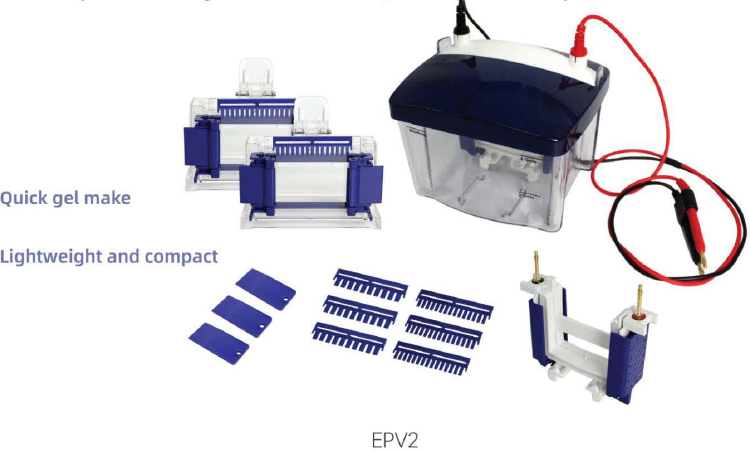

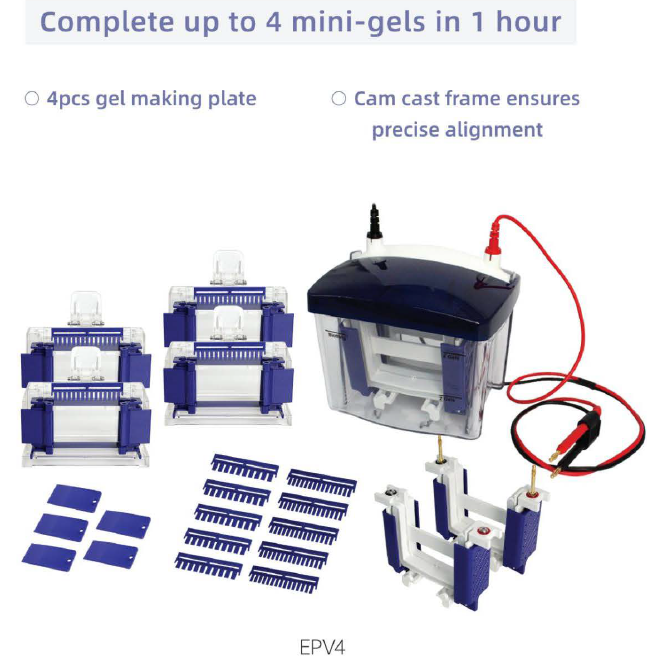

Vertical Electrophoresis Tank EPV2/EPV4
EPV2/EPV4
- Injection molded tank of pressure-resistant and transparent polycarbonate material,
which is leak-free and easy to observe
- Multiple safety designs eliminate possible operational safety issues
- The glass plate and gasket adopt an integrated design to ensure no leakage
- Spacer glass plates and glue combs (0.75mm/1.0mm/1.5mm) with various thickness can meet the needs of different sample loading volumes
- Special gel making tray, easy to operate.
| Model | EPV2 | EPV4 |
| Gel quantity | 1~2pcs | 1~4pcs |
| Gel thickness | 1.0 (standard)/0.75/l.5mm | |
| Precast gel | compatible PIERCE,BIO-RAD | |
| Glass plate size | 100x83mm | |
| Gel size | 83x73mm | |
| Comb size | 1.0mm:10/15 wells(standard);0.75mm:10/15 wells;1.5mm:10/15 wells | |
| Platinum electrode | Φ0.25mm | |
| Dimension | L180xW120xH160mm | |
