Name: [VISION] Mini PCR Workstation NDS-mini
Brand: VISION MED
Price: 5972000 KRW
Availability: InStock

NDS-mini

[VISION] Mini PCR Workstation NDS-mini

SALE

BEST

5,972,000원 6,000,000원

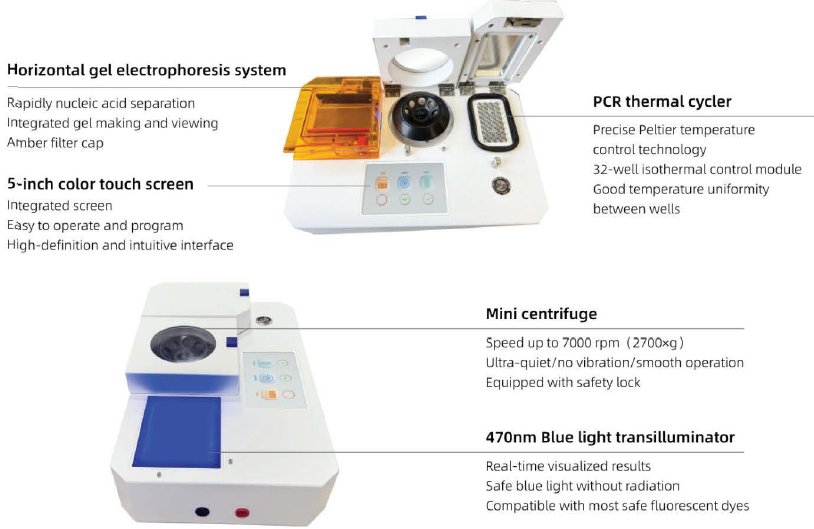

A portable PCR workstation consists of four parts:
PCR thermal cycler, mini centrifuge, horizontal gel electrophoresis system and blue light transilluminator. It can integrate all steps from nucleic acid extraction to visualized results.
The overall design is exquisite and perfectly meets the needs of rapid, accurate and reliable PCR testing anytime and anywhere.

구매평

Q&A

반품/교환

구매하기 장바구니 0

장바구니 장바구니

구매하기 구매하기

구매평

Q&A

반품/교환

상품이 없습니다.

Model	NDS-mini	NDS-S
Display	5-inch color touch screen
Dimension	L350xW220xH120mm
Weight	5.2kg
Power supply	100-240V; 50/60HZ
PCR Thermal cycler
Temp. control mode	Standard
Sample capacity	32x0.2ml PCR tube / 4x0.2ml 8-strip tube
Block temp. control range	4°C~ 105°C
Hot lid temp. control range	30°C~ 110°C
Temp display accuracy	±0.1°C
Temp. uniformity	±0.5°C
Max. temp. Change rate	3°C/s
Thermal cycler technology	Peltier heating/cooling
User defined PCR editable program file	> 10000 files
Mini centrifuge
Max. speed	1000-7000rpm	1000-12000rpm
Max. Relative centrifugal force	2700xg
Rotor capacity	8 x0.2/0.5/1.5 / 2.0 ml tube;
	32x0.2mlPCR tube;
	4x0.2ml PCR 8-strip tube)
Timing range	0~5999s
Security lock	Yes
Stop when the lid opened	Support
Horizontal gel electrophoresis system
Constant voltage	50V	10-150V(Step 10V)
Gel tray	70x70mm 1 pcs
Gel size	70x70mm 1 pcs
Comb size	0.75mm, 9/16wells 1 pcs
	1.0mm, 9/16wells 1 pcs
	1.5mm, 9/16wells 1 pcs
Timing	0~5999S or Continuous
Gel tank	Included
Blue light LED transilluminator
Observation area	L105xW85mm
Max. emission wavelength	470 nm
LED light source	Built- in LED blue light module
LED lifetime	>50000h
Blue light intensity adjustment	1 ~ 10 level

Model	NDS-mini	NDS-S
Display	5-inch color touch screen
Dimension	L350xW220xH120mm
Weight	5.2kg
Power supply	100-240V; 50/60HZ
PCR Thermal cycler
Temp. control mode	Standard
Sample capacity	32x0.2ml PCR tube / 4x0.2ml 8-strip tube
Block temp. control range	4°C~ 105°C
Hot lid temp. control range	30°C~ 110°C
Temp display accuracy	±0.1°C
Temp. uniformity	±0.5°C
Max. temp. Change rate	3°C/s
Thermal cycler technology	Peltier heating/cooling
User defined PCR editable program file	> 10000 files
Mini centrifuge
Max. speed	1000-7000rpm	1000-12000rpm
Max. Relative centrifugal force	2700xg
Rotor capacity	8 x0.2/0.5/1.5 / 2.0 ml tube;
	32x0.2mlPCR tube;
	4x0.2ml PCR 8-strip tube)
Timing range	0~5999s
Security lock	Yes
Stop when the lid opened	Support
Horizontal gel electrophoresis system
Constant voltage	50V	10-150V(Step 10V)
Gel tray	70x70mm 1 pcs
Gel size	70x70mm 1 pcs
Comb size	0.75mm, 9/16wells 1 pcs
	1.0mm, 9/16wells 1 pcs
	1.5mm, 9/16wells 1 pcs
Timing	0~5999S or Continuous
Gel tank	Included
Blue light LED transilluminator
Observation area	L105xW85mm
Max. emission wavelength	470 nm
LED light source	Built- in LED blue light module
LED lifetime	>50000h
Blue light intensity adjustment	1 ~ 10 level
