Our USHD C8 HPLC Column features a unique bonding process for exceptional batch-to-batch reproducibility.
With high carbon content and double end-capping technology, it offers superior stability, enhanced selectivity, and improved retention capacity, making it ideal for a wide range of analytical applications.

안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |

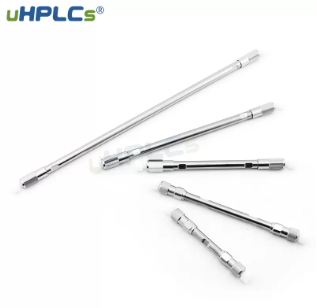

USHD C8 HPLC Column
USHD C8
| Property | USHD C8 |
| USP | L7 |
| Pore Size Option | 5 µm, 120 Å |
| 3 µm, 120 Å | |
| 1.8 µm, 120 Å | |
| Surface Area (m²/g) | 320 |
| Carbon Load (%) | 12 |
| pH Tolerance Range | 2-8 |
| Column Specifications | 4.6 × 250 mm |
| 4.6 × 150 mm | |
| 4.6 × 100 mm | |
| 4.6 × 50 mm | |
| 3.0 × 100 mm | |
| 3.0 × 50 mm | |
| 2.1 × 100 mm | |
| 2.1 × 50 mm | |
| Features and Applications | Advanced Bonding Process: Ensures outstanding batch-to-batch reproducibility. |
| High Carbon Content: Enhances column efficiency, selectivity, and retention capacity. | |
| Double End-Capping Technology: Provides superior chemical stability and durability. |
Column body
This is a measure of the distribution of particles packed in a column. In HPLC, it is preferable to have narrow particle size distribution as a narrow particle size distribution can lead to better HPLC column efficiency.

Endcap
In LC chromatography the reaction of a silylating agent with unreacted accessible silanols remaining on the silica gel surface after the initial bonding reaction of the HPLC column stationary phase. HPLC column endcapping eliminates unwanted secondary silanol interactions between compounds and the stationary phase.

PEEK frit
Longer filtration life
Consistent frit-to-frit swept volumes
Biocompatible and inert to most solvents
Suitable for low and high pressure applications.
Enhanced sealing and excellent chemical resistance.
PEEK frits can be used up to 80 ºC.
