Boost your UHPLC performance with the 2.1mm Direct-Connect Guard Column – superior protection, refined separation.

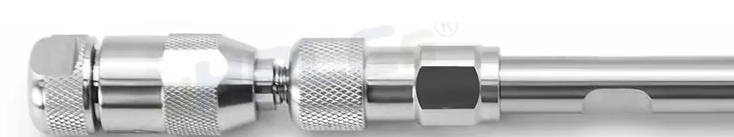

The uHPLCs UPLC Direct Connection Guard Column is engineered for ultra-high-performance protection of your analytical columns.
Designed with a direct-connection structure, it minimizes dead volume, eliminates the need for additional fittings, and streamlines system setup — all while extending the lifespan of your main column. Ideal for precision chromatographic analysis in pharmaceuticals, food safety, environmental testing, and biotechnology, the 2.1 mm guard column ensures excellent retention, separation, and reproducibility under high pressure conditions up to 13,000 psi (900 bar).

안내사항 |
가격 기재가 되지 않은 별도 문의 상품인 경우 반드시 '온라인 견적문의' 혹은 '전화 문의' 후 구매 부탁드립니다. 설치/교육 신청의 경우 별도의 연락 후 직접 납품 드립니다. |
13000PSI, 3.0# Direct connection guard column in HPLC
P3K0B 시리즈

| Type | Product Code | Application | |
![]() | HPLC / UHPLC 3.0# Direct Connection Guard Column (peek Ferrule) Advantage: Low Back Pressure | P3K0B-00148 | UHPLC HPLC Column and LC-MS System |
HPLC / UHPLC 3.0# Direct Connection Guard Column(peek Ferrule)
| Type | Product Code | Characteristic | Particle Size Pore Size | |
![]() | Reversed Phase | P3X0B-00463 | Durable C18 Ideal for TCM Analysis | 3μm |
| P3X0B-00270 | General Type C18 | 3μm | ||
| P3X0B-00356 | Pure Water-resistant C18 | 3μm | ||
| P3X0B-00315 | Low pH and Pure Water-resistant C18 | 3μm | ||
| P3X0B-00357 | Wide pH Range C18 | 3μm | ||
| P3X0B-00358 | Durable C8 | 3.5μm | ||
| P3X0B-00359 | General Type C8 | 3μm | ||
| P3X0B-00360 | Phenyl | 3μm | ||
| P3X0B-00361 | PFP | 3μm | ||
| P3X0B-00363 | Bio-SEC 300Å | 3μm 300Å | ||
| HILIC | P3X0B-00364 | Hilic-SiO2 | 3μm | |
| Reversed Phase | P3X0B-00465 | Durable C18 Ideal for TCM Analysis | 5μm | |
| P3X0B-00096 | General TypeC18 | 5μm | ||
| P3X0B-000337 | Pure Water-resistant C18 | 5μm | ||
| P3X0B-00314 | Low pH and Pure Water-resistant C18 | 5μm | ||
| P3X0B-00338 | Wide pH Range C18 | 5μm | ||
| P3X0B-00339 | Durable C8 | 5μm | ||
| P3X0B-00536 | General Type C8 | 5μm | ||
| P3X0B-00340 | Phenyl | 5μm | ||
| P3X0B-00341 | PFP | 5μm | ||
| Normal Phase | P3X0B-00342 | SiO2 | 5μm | |
| P3X0B-00462 | CN | |||
| SEC | P3X0B-00347 | Bio-SEC 120Å | 5μm 120Å | |
| P3X0B-00348 | Bio-SEC 300Å | 5μm 300Å | ||
| P3X0B-00350 | C8-Bio 300Å | 5μm | ||
| P3X0B-00351 | C4-Bio 300Å | 5μm | ||
| HILIC | P3X0B-00352 | Hilic-SiO2 | 5μm | |
| P3X0B-00353 | Hilic-Amide | 5μm | ||
| P3X0B-00354 | Hilic-ZIL | 5μm |
